Why Beam Angle Matters More Than Lumen Rating in Troffer Retrofits
T8 LED tube retrofits are often evaluated based on wattage equivalency and lumen output. In troffer applications, however, beam angle and optical interaction with the reflector cavity have a greater impact on delivered light quality than raw lumen ratings alone.

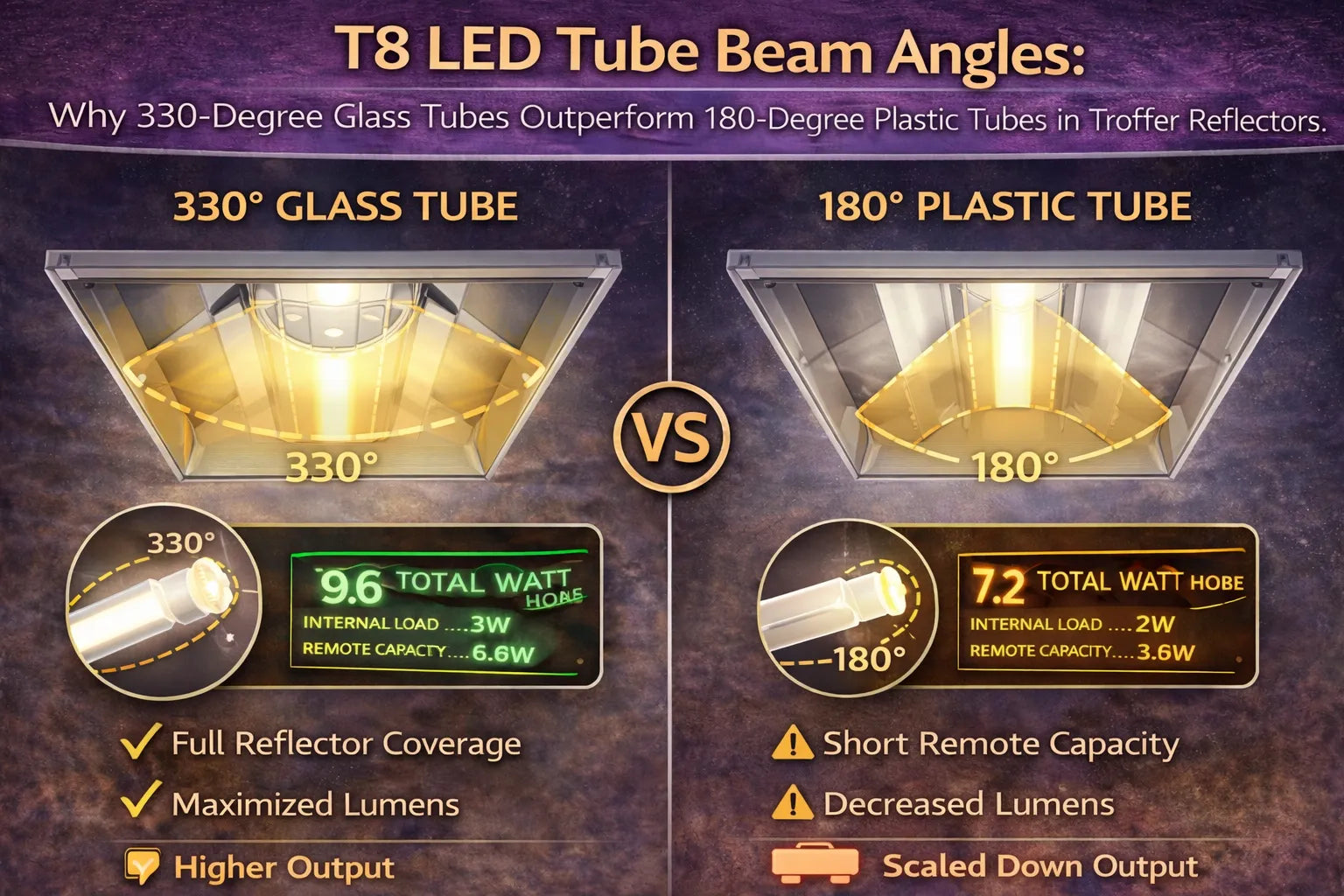

The two most common beam angle designs—approximately 330-degree glass tubes and 180-degree plastic tubes—behave very differently once installed in recessed troffers. Understanding these differences is essential for achieving uniform illumination, minimizing glare, and avoiding wasted light.
Related resource: For system-level guidance on panels, troffers, recessed fixtures, linear layouts, ceiling integration, and compliance planning across commercial interiors, reference the Commercial Ceiling Lighting Buying Guide.
How Troffer Reflectors Shape Light Output
Troffers are designed around indirect light control. The reflector cavity captures and redirects light emitted upward and laterally, spreading illumination evenly across the diffuser or lens.
This design assumes a near-omnidirectional light source, similar to traditional fluorescent lamps. When LED tubes deviate from this emission pattern, reflector efficiency is compromised.
330-Degree Glass Tube Optical Characteristics
330-degree LED tubes emit light around nearly the entire circumference of the lamp, closely replicating fluorescent emission geometry.
| Attribute | 330-Degree Glass Tube | Troffer Impact |
|---|---|---|
| Emission pattern | Near-omnidirectional | Full reflector engagement |
| Upward light component | Present | Improved uniformity |
| Material | Glass | Thermal stability |
Because the reflector remains active, these tubes produce smoother light distribution with fewer hot spots.
180-Degree Plastic Tube Optical Characteristics
180-degree LED tubes emit light only downward, using an opaque backing to block upward emission.
| Attribute | 180-Degree Plastic Tube | Troffer Impact |
|---|---|---|
| Emission pattern | Directional | Reflector largely unused |
| Upward light component | Absent | Uneven illumination |
| Material | Plastic | Potential long-term yellowing |
Without reflector participation, illumination becomes more dependent on diffuser quality and spacing.
Uniformity, Glare, and Visual Comfort Comparison
Beam angle selection directly influences visual comfort and perceived brightness.
| Performance Factor | 330-Degree Glass | 180-Degree Plastic |
|---|---|---|
| Luminance uniformity | High | Variable |
| Glare potential | Lower | Higher |
| Visual comfort | Consistent | Dependent on diffuser |
In offices, classrooms, and healthcare spaces, uniformity and glare control are often more important than peak lumen delivery.
Selecting the Correct Beam Angle for Retrofit Projects
Beam angle selection should align with fixture geometry and application requirements.
| Troffer Type | Recommended Tube | Reason |
|---|---|---|
| Parabolic louver | 330-degree glass | Maximizes reflector efficiency |
| Prismatic lens | 330-degree glass | Uniform diffusion |
| Open strip retrofit | 180-degree plastic | Direct downward output |
Related Commercial Ceiling Lighting Articles
Beam angle decisions directly affect how effectively troffer reflectors distribute light, control glare, and maintain uniform illumination across occupied spaces. Tube geometry, optic interaction, and retrofit strategy must be evaluated together to avoid uneven light patterns and visual discomfort. The following resources expand on troffer system design, retrofit selection, and optical performance considerations commonly encountered in suspended ceiling environments.
- Integrated LED Fixtures vs. LED Tubes: Choosing the Right Retrofit Strategy for Troffer Lighting
- The 2×4 Troffer Retrofit: LED Plate Kits vs Full Fixture Replacement
- Volumetric vs. Flat Panel: Which Optical Design Reduces Computer Screen Glare in Open-Office Floor Plans
- Commercial Drop Ceiling Lighting Specification for Suspended Ceiling Systems
Related Commercial Lighting Categories
In troffer retrofits, 330-degree glass LED tubes more effectively leverage existing reflector design, delivering superior uniformity, reduced glare, and consistent visual comfort compared to 180-degree plastic alternatives.
