LED Linear Tubes
LED linear tubes for fluorescent retrofits, ballast strategies, and maintenance-driven reliability
LED linear tubes are the standard for retrofitting T8 and T12 fluorescent fixtures in commercial offices, hospitals, and industrial warehouses. These high-efficiency lamps provide a direct path to reducing energy overhead while eliminating many of the maintenance costs associated with frequent ballast failures and flickering tubes. Available in 2ft, 4ft, and 8ft lengths, our linear LEDs are designed to fit into existing troffers and strip fixtures, delivering consistent output across the full lamp length.
Read more about LED Linear Tubes
Tube types and wiring configurations in this collection
Our selection of commercial LED tubes includes Type A, Type B, and hybrid configurations to match your facility’s wiring and maintenance strategy. These tubes are engineered for long service life in high-duty-cycle environments, with options for high CRI and multiple CCTs to support visual accuracy for task areas while aligning with common rebate and specification requirements.
Related categories and retrofit planning context
Answer summary: LED linear tubes are specified by tube type (T5, T8, or T12), wiring configuration (Type A, Type B, or Hybrid), socket compatibility (shunted vs non-shunted), lumen output, beam distribution, color quality (CRI/CCT), and operating voltage—not tube length or wattage equivalency alone.
Linear Tube Retrofit Architecture, Wiring Compatibility & Maintenance Context
Internal vs External Driver Tube Designs: Long-Term Maintenance Impacts Ballast Failure Economics: Why Type B Retrofits Reduce Maintenance Labor Shunted vs Non-Shunted Sockets: Avoiding Compatibility Mistakes in Tube Retrofits Ballast Bypass Retrofit Considerations for Linear Tube Conversions
Tube retrofit spec workflow: socket checks, wiring method selection, and compatibility validation
Use this guide to select LED tubes by socket type (shunted vs non-shunted), wiring method (Type A, Type B, hybrid), voltage, and performance targets. The table of contents links to the key retrofit decisions that prevent miswires, flicker, premature failure, and safety issues—especially in large-scale troffer and strip-fixture conversions.
LED linear tube specification guidance
Proper LED linear tube performance depends on wiring method, socket type (shunted vs. non-shunted), operating voltage, beam distribution, lumen output, and thermal management. Incorrect tube selection can result in electrical incompatibility, flicker, uneven illumination, or premature failure.
Specification note: Common linear tube failures include installing single-ended tubes into shunted sockets, mismatching ballast compatibility on Type A systems, insufficient lumen output for task areas, glare caused by improper beam angle, and overheating in enclosed troffers or strip fixtures.
Technical selection guide for commercial LED tube retrofits
Successful tube retrofits start with the fixture architecture. Your wiring choice is usually a maintenance decision: keep a ballast (fastest swap) or remove it (highest long-term reliability). Use the sections below to align socket type, wiring method, and performance targets.
Quick-check: Confirm tube family, base, socket type, and wiring method before ordering large quantities for a retrofit.
| Check | What to confirm | Why it matters | Common failure |
|---|---|---|---|
| Tube family + length | T5 vs T8 vs T12; 2ft/4ft/8ft | Ensures the lamp family matches the fixture architecture | Wrong family causes fit/compatibility problems and poor performance |
| Base / lampholder type | Most T8/T12 use G13 bi-pin (verify on site) | Prevents mechanical mismatch and poor electrical contact | Loose contact leads to intermittent operation |
| Socket type | Shunted vs non-shunted lampholders | Determines whether single-ended wiring is allowed | Single-ended tube installed into shunted sockets (no start / unsafe) |
| Wiring method | Type A (ballast), Type B (direct-wire), Hybrid | Sets long-term maintenance risk and installation labor | Ballast incompatibility (Type A) or miswire (Type B) |
| Voltage / supply | Line voltage assumptions and branch circuit conditions | Prevents misapplication and unstable performance | Nuisance trips or non-start due to incorrect assumptions |
| Optical intent | Distribution change vs fluorescent (directional output) | Affects glare, reflections, and perceived brightness | Office complaints after retrofit due to reflection and glare shift |
Identify tube and base type

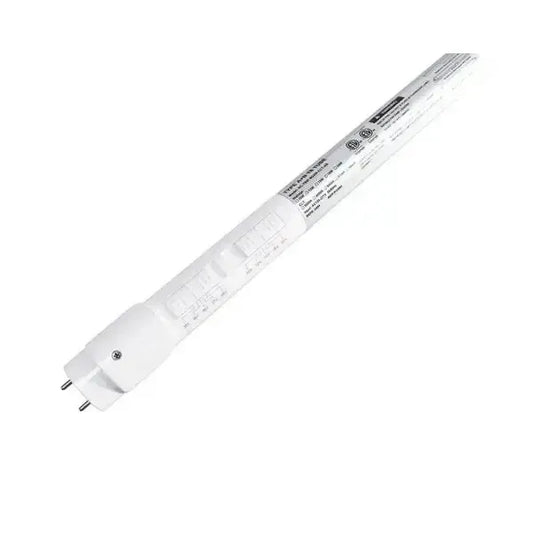

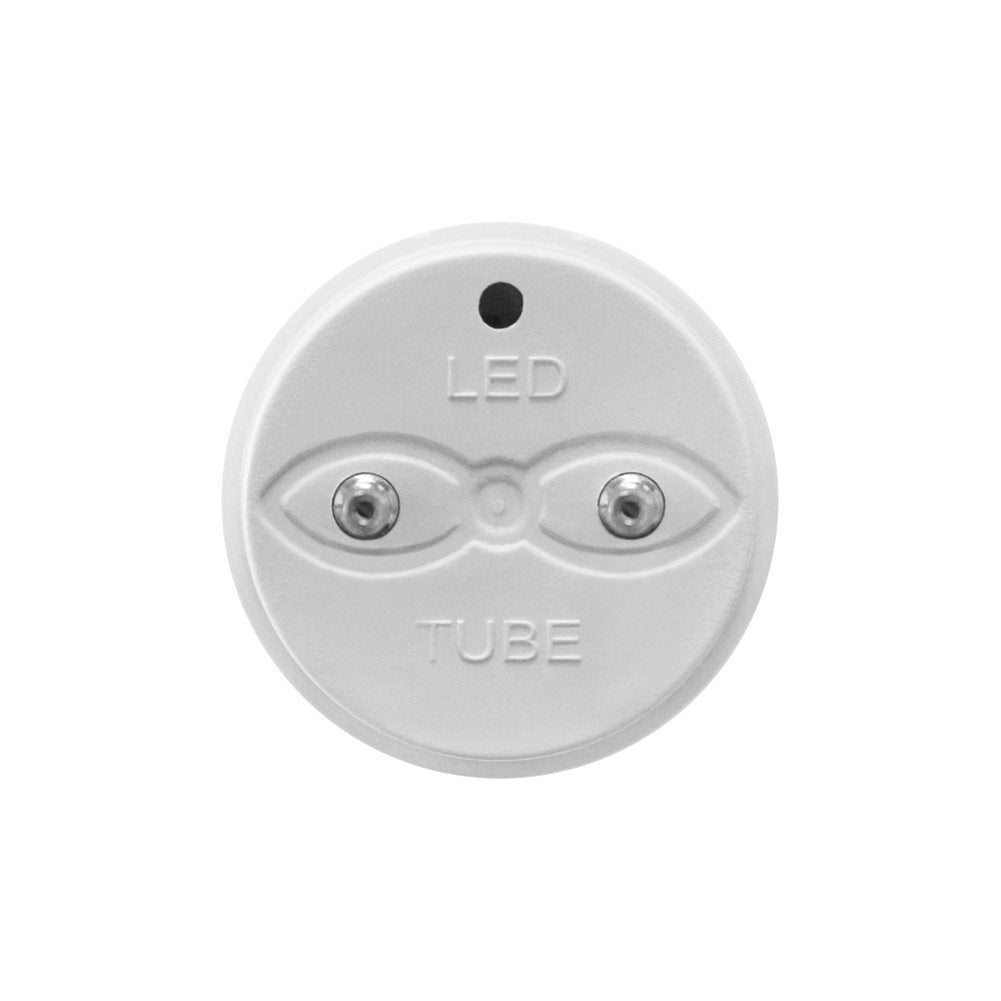

Start by confirming the lamp family and base style. Most retrofits are T8 (G13 bi-pin) or T12 (G13 bi-pin), but some fixtures use different lamp families and bases. Matching the tube style and the fixture’s lampholders prevents fit and compatibility problems.
Selection rule: Confirm tube family and base type first, then validate wiring method and voltage so the retrofit is mechanically correct and electrically safe.
Shunted vs non-shunted socket checks
Socket type determines whether certain wiring methods are allowed. Shunted sockets electrically tie the contacts together; non-shunted sockets keep contacts isolated. This directly impacts compatibility for single-ended direct-wire tubes.
Selection rule: If the retrofit is single-ended direct-wire, confirm non-shunted lampholders (or plan to replace them). If the retrofit is double-ended, socket requirements are often less restrictive—verify with the tube’s installation instructions.
Socket compatibility: Shunted vs non-shunted determines whether single-ended direct-wire installs are allowed. Always follow the tube’s wiring diagram.
| Tube configuration | Typical requirement | Shunted sockets | Non-shunted sockets | Notes |
|---|---|---|---|---|
| Single-ended direct-wire (Type B) | Non-shunted at powered end | Not allowed (replace sockets) | Compatible | Most common retrofit mistake: single-ended tube into shunted socket |
| Double-ended direct-wire (Type B) | Varies by product | Often compatible (verify instructions) | Compatible | Always follow manufacturer wiring diagram; do not assume |
| Ballast-compatible (Type A) | Ballast list + socket condition | Depends on fixture architecture | Depends on fixture architecture | Primary risk is ballast compatibility and ballast condition, not socket type alone |
| Hybrid (Type A/B) | Ballast now, bypass later | Depends on current configuration | Compatible when converted per instructions | Used for phased retrofits and future maintenance reduction |
Wiring methods: Type A, Type B, and hybrid
Choose the wiring method based on your maintenance strategy and the fixture condition.
Retrofit method selection: Your wiring choice is usually a maintenance strategy decision—fastest deployment vs long-term reliability.
| Method | Install speed | Long-term reliability | Primary risk | Best use case |
|---|---|---|---|---|
| Type A (ballast-compatible) | Fastest in many facilities | Depends on ballast health | Ballast compatibility/failure remains | Short timelines, minimal rewiring, verified ballast list |
| Type B (direct-wire) | Slower (requires rewiring) | Highest (ballast removed) | Miswire risk if socket type/diagram ignored | Maintenance reduction priority; large-scale standardization |
| Hybrid (Type A/B) | Fast now, flexible later | Improves after conversion | Still requires validation in ballast mode | Phased retrofits; future bypass planned |
- Type A (ballast-compatible): Fastest install in many facilities, but ballast condition and compatibility determine long-term reliability.
- Type B (direct-wire): Bypasses/removes the ballast so the tube runs on line voltage—often preferred for eliminating ballast maintenance and reducing future service calls.

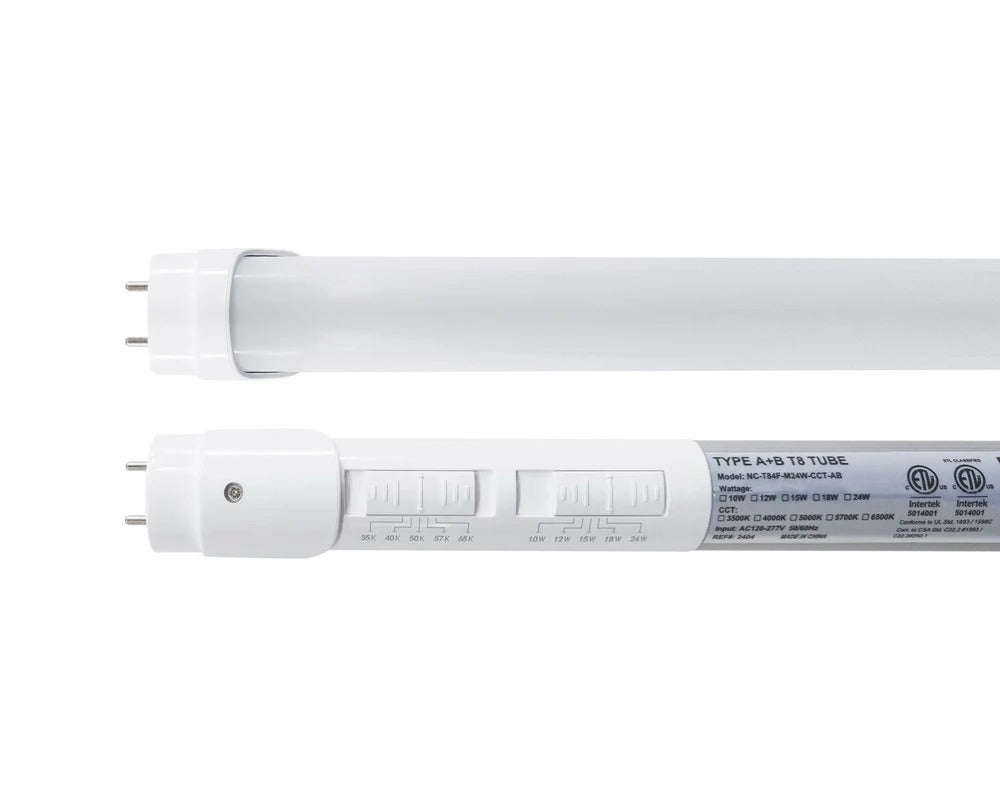

- Type A/B (hybrid): Works with compatible ballasts now and can be converted to direct-wire later, supporting phased retrofit plans.
Ballast strategy: If you keep a ballast, you inherit ballast risk. If you bypass it, you inherit wiring responsibility. Control risk with verification and labeling.
| Strategy | What you gain | What can go wrong | Best practice controls |
|---|---|---|---|
| Keep ballast (Type A) | Fast deployment with minimal fixture changes | Incompatible ballast causes flicker/non-start; ballast failure later | Use approved ballast list; replace weak ballasts during retrofit |
| Bypass ballast (Type B) | Eliminates ballast failures; improves long-term reliability | Miswire risk; wrong socket type can create unsafe conditions | Verify shunted/non-shunted; follow diagram; label fixture “DIRECT WIRE” |
| Hybrid now, bypass later | Phased plan reduces immediate labor | Ballast mode still depends on compatibility | Standardize tube SKU; document future conversion plan in closeout |
Selection rule: If long-term maintenance reduction is the priority, Type B strategies are commonly specified; if speed and minimal fixture rewiring are priorities, Type A or hybrid may be selected—then validated for ballast compatibility.
Beam distribution and glare control
Unlike fluorescent lamps that emit near-360°, many LED tubes deliver a directional distribution (often around 240°) that pushes more usable light to the task plane. Distribution affects perceived brightness, reflections, and glare—especially in offices and corridors.
Selection rule: Select beam distribution to support the application: prioritize reduced glare and reflections in office environments and higher delivered task light in industrial and utility spaces.
Distribution planning: LED tubes often emit directionally compared to fluorescent. Use this table to prevent reflection and glare complaints.
| Space type | Common risk after retrofit | Selection cue | Mitigation |
|---|---|---|---|
| Offices / screens | Reflections and glare from directional distribution | Prioritize visual comfort and uniformity | Use appropriate lens/diffusion; avoid over-lumen selection |
| Corridors / classrooms | Hot spots and uneven wall brightness | Balanced distribution and consistent CCT/CRI | Standardize by zone; validate spacing and fixture condition |
| Warehouses / utility | Usually positive (higher delivered task light) | Prioritize delivered light to work plane | Confirm lumen targets; choose durable construction |
Materials and thermal considerations
Fixture environment and handling determine whether glass or polymer tubes are preferred. Enclosed or hot housings can stress LEDs over time, and high-volume retrofits often benefit from more impact-resistant construction.
Construction selection: Choose tube materials based on breakage risk, handling frequency, and fixture environment.
| Construction | Strength | Primary risk | Best fit |
|---|---|---|---|
| Glass | Traditional feel; strong thermal behavior | Breakage during install/maintenance | Lower handling risk areas; projects prioritizing traditional construction |
| Nano-plastic / polymer | Impact resistant; lighter weight; durable | Must still meet application thermal requirements | Warehouses, schools, maintenance-heavy environments, high break-risk zones |
| Enclosed / hot fixtures | Requires strong thermal management | Overheating shortens life and causes instability | Confirm fixture ventilation and tube temperature ratings before standardizing |
- Glass: Traditional feel and strong thermal behavior, but more fragile during installation and maintenance.
- Nano-plastic / polymer: Higher impact resistance and lighter weight, often preferred for large-scale warehouse installs and maintenance-heavy areas.
Selection rule: Choose construction based on handling risk and environment: glass when traditional aesthetics and thermal behavior are priorities; polymer when breakage risk and durability are priorities.
Commercial Project Support
Need documentation, lead-time visibility, or closeout-ready deliverables? Use the resources below to route your project correctly and reduce revision cycles.
- Commercial Project Support (Hub)
- Quote Intake & Project Routing
- Photometrics
- Submittals
- Shipping Reliability & Fulfillment
- Closeout Documentation
- Returns & Restocking
- Warranty Claims
- Frequently Asked Questions
FAQs
Should I choose Type A or Type B LED tubes?
Type A tubes can be faster to deploy but depend on ballast compatibility and ballast health. Type B tubes bypass the ballast, which is often specified to reduce long-term maintenance and eliminate ballast failures. The right choice depends on your labor constraints and maintenance goals.
Do I need non-shunted sockets for LED tubes?
It depends on the tube wiring method. Many single-ended direct-wire installations require non-shunted lampholders. Always confirm socket type and follow the tube’s wiring instructions to avoid miswires and safety issues.
What causes flicker after an LED tube retrofit?
Common causes include ballast incompatibility (Type A), wiring mistakes (Type B), poor lampholder contact, voltage issues, or pairing the wrong tube type to the fixture architecture. Validating compatibility and wiring method typically resolves the majority of retrofit flicker problems.
Are LED tubes directional compared to fluorescent lamps?
Yes—many LED tubes emit light directionally (often around 240°) rather than near-360° like fluorescent. This can increase delivered task light but may also change ceiling bounce and glare characteristics depending on the space.
Do LED tubes overheat in enclosed troffers?
They can if the fixture is tightly enclosed, poorly ventilated, or the tube is not designed for that thermal environment. Confirm the tube’s temperature and fixture-use ratings, and prioritize products with strong thermal management for high-duty-cycle installations.
