Product Overview
The RecessEdge Series LED Commercial Downlight is a recessed architectural luminaire platform developed for commercial interiors requiring standardized aperture sizing, field-adjustable output, and optional emergency illumination within a unified fixture family. The series supports 4-inch through 10-inch ceiling openings, allowing consistent specification across offices, healthcare facilities, educational environments, and public buildings while maintaining uniform visual appearance commonly associated with LED recessed lighting systems.
Selectable wattage configurations allow delivered lumen output to be aligned with ceiling height, spacing criteria, and task illumination targets without changing fixture type or trim geometry. Wide input voltage compatibility and integrated dimming capability support deployment across new construction and retrofit projects operating on standard commercial electrical systems used throughout modern commercial lighting installations.
Select models incorporate a factory-integrated 90-minute emergency battery system intended for egress paths and designated life-safety zones, enabling continuity between general illumination and emergency lighting requirements while minimizing the need for separate emergency fixtures. This approach supports simplified layout coordination across normal and emergency circuits within commercial lighting designs.
Fixture Specifications
- Voltage: 120–277V
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Dimming: 0–10V

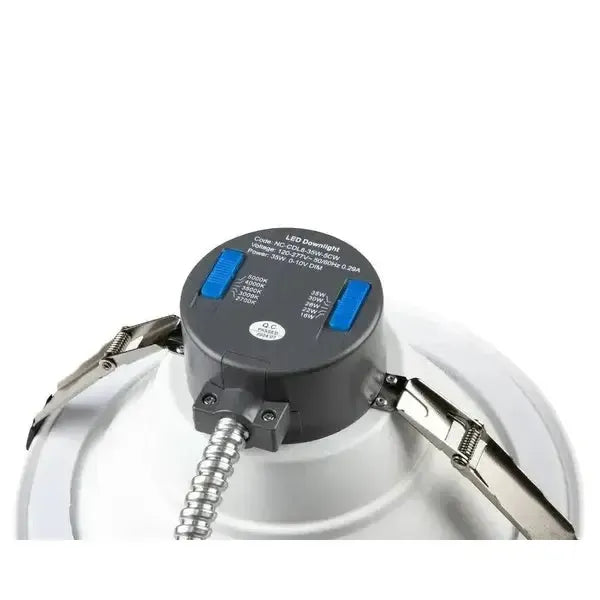

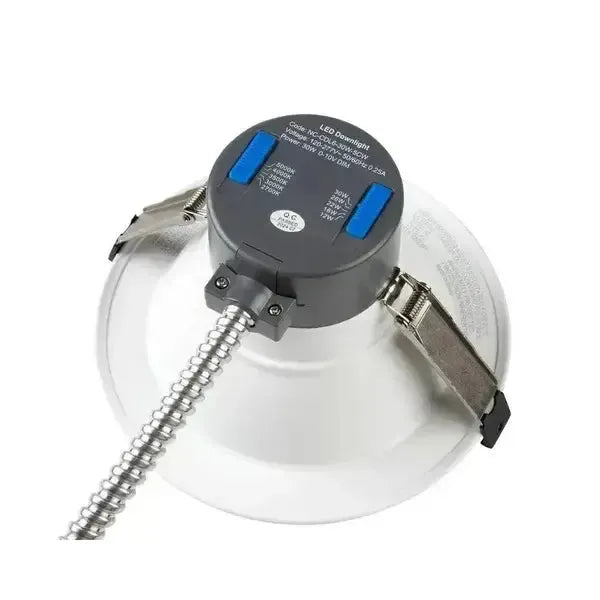

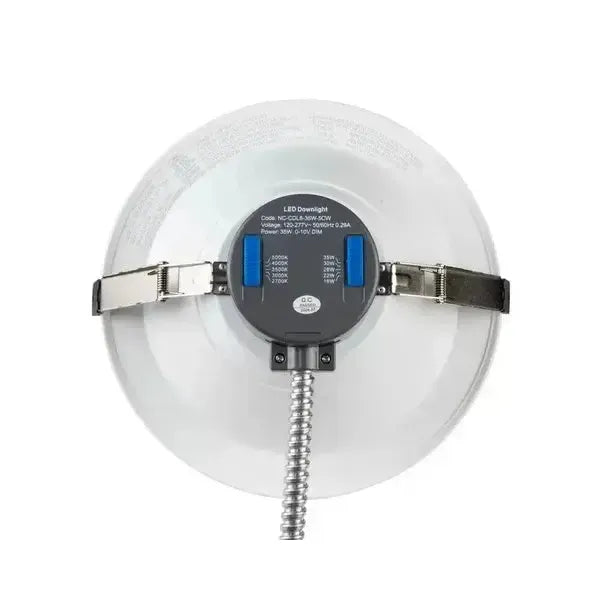

- Special Features: Field Selectable Wattage and CCT
- Certifications: cETLus Listed
- Warranty: 5-Year Limited Warranty
Performance & Physical Configurations
4-Inch Downlight
- Selectable Wattage: 6–16W
- Lumen Output: 600–1,515 lm
- Dimensions: 6 in D × 4.1 in H
- Emergency Option: Standard
- MPN: NC-CDL4-16W-5CW
6-Inch Downlight
- Selectable Wattage: 12–30W
- Lumen Output: 1,440–3,600 lm
- Dimensions: 8.3 in D × 4.8 in H
- Emergency Options: None or 90-Minute Emergency
- MPN (Standard): NC-CDL6-30W-5CW
- MPN (Emergency): NC-CDL6-30W-5CW-EM
8-Inch Downlight
- Selectable Wattage: 16–35W
- Lumen Output: 1,920–4,200 lm
- Dimensions: 10.3 in D × 5.3 in H
- Emergency Options: None or 90-Minute Emergency
- MPN (Standard): NC-CDL8-35W-5CW
- MPN (Emergency): NC-CDL8-35W-5CW-EM
10-Inch Downlight
- Selectable Wattage: 22–40W
- Lumen Output: 2,640–4,800 lm
- Dimensions: 11.6 in D × 5.9 in H
- Emergency Option: Not Available
- MPN: NC-CDL10-40W-5CW
