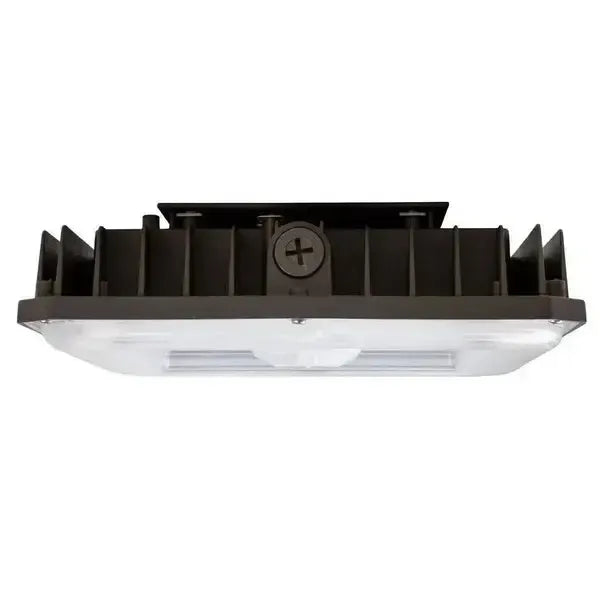

• CanoLux Series LED canopy light main product view showing commercial surface mount exterior canopy fixture housing

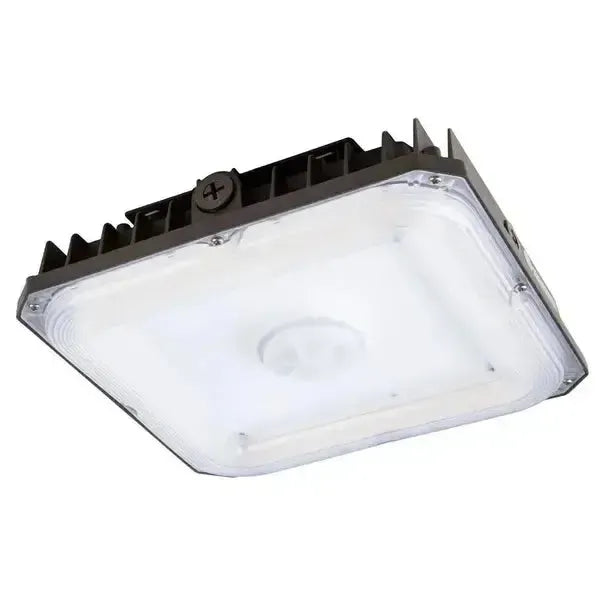

  • Angled underside view of CanoLux Series LED canopy light showing optical lens and integrated sensor receptacle for commercial canopy lighting controls

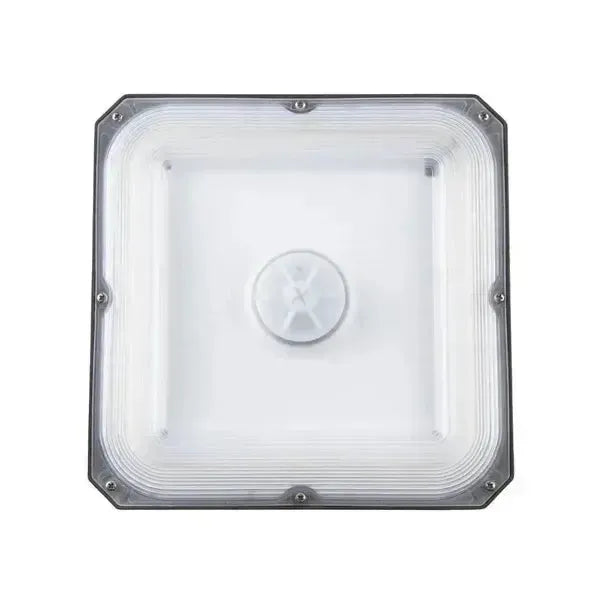

  • Bottom view of CanoLux Series LED canopy fixture showing sealed optical lens and sensor port for occupancy or daylight control integration

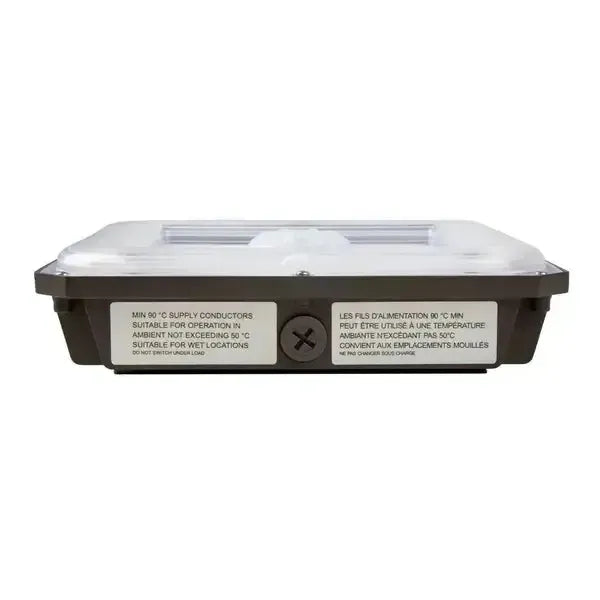

  • Upside down side profile of CanoLux Series LED canopy light showing lens assembly and die cast aluminum frame construction

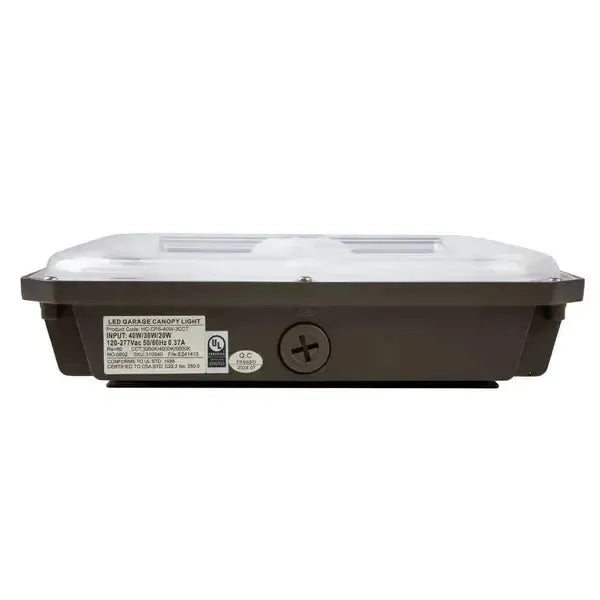

  • Upside down side view of CanoLux Series LED canopy light showing electrical knockout access point for conduit installation

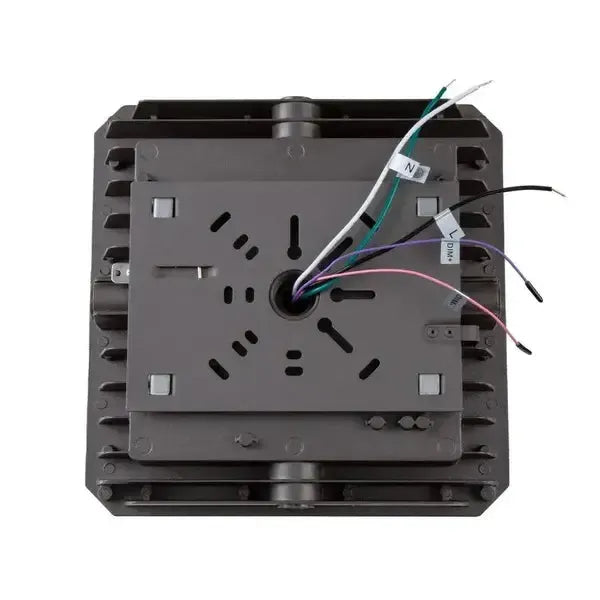

  • Rear view of CanoLux Series LED canopy light showing mounting plate interface and factory power wiring for commercial installation
1 6

NCLTG

CanoLux Series LED Canopy Light

CanoLux Series LED Canopy Light

NC-CPS-40W-3CCT

$55.75
$79.99 $55.75
Sale Sold out
Shipping calculated at checkout.
Output Range
Configuration

Shipping information

Shipping is calculated at checkout based on product type, destination, and delivery method (parcel or freight). For lead times, tracking, freight delivery, and inspection requirements, see our shipping policy.

Returns & Restocking

Returns and restocking are handled through an authorization and routing process based on product type and manufacturer policy. Some returns may be subject to a manufacturer-determined restocking fee. For eligibility, steps, and correction handling, see our return and refund policy.

View full details

Product Overview

The CanoLux Series LED Canopy Light is a surface-mounted exterior luminaire platform developed for covered commercial environments requiring consistent illumination, environmental protection, and optional emergency operation within a unified fixture family. The series supports standardized deployment across parking structures, fuel canopies, loading areas, walkways, and building overhangs while maintaining consistent fixture appearance and electrical performance across a site.

Field-selectable wattage allows delivered light levels to be aligned with mounting height, spacing criteria, and coverage requirements without changing fixture housing or mounting layout. Selectable correlated color temperature supports visual consistency across exterior zones and coordinated installation alongside LED canopy lighting systems and broader commercial lighting installations.

Select configurations incorporate a factory-installed 90-minute emergency backup system intended for covered egress paths and safety-designated exterior areas. Maintaining standard and emergency operation within the same luminaire platform simplifies project coordination while supporting continuity between normal site illumination and life-safety lighting requirements.

Fixture Specifications

Performance & Physical Configurations

20W / 30W / 40W Configuration

  • Fixture Size: Compact Canopy
  • Lumen Output: 3,158–5,835 lm
  • Dimensions: 10 in L × 10 in W × 2.75 in H
  • Emergency Backup Option: Yes (90-minute operation)
  • MPN (Standard): NC-CPS-40W-3CCT
  • MPN (Emergency): NC-CPS-40W-3CCT-EM
  • DLC Product ID: S-1KVF0S

40W / 60W / 75W Configuration

  • Fixture Size: High Output Canopy
  • Lumen Output: 6,880–11,127 lm
  • Dimensions: 10 in L × 10 in W × 2.75 in H
  • Emergency Backup Option: Yes (90-minute operation)
  • MPN (Standard): NC-CPS-75W-3CCT
  • MPN (Emergency): NC-CPS-75W-3CCT-EM
  • DLC Product ID: S-NBK75M

Product Downloads
