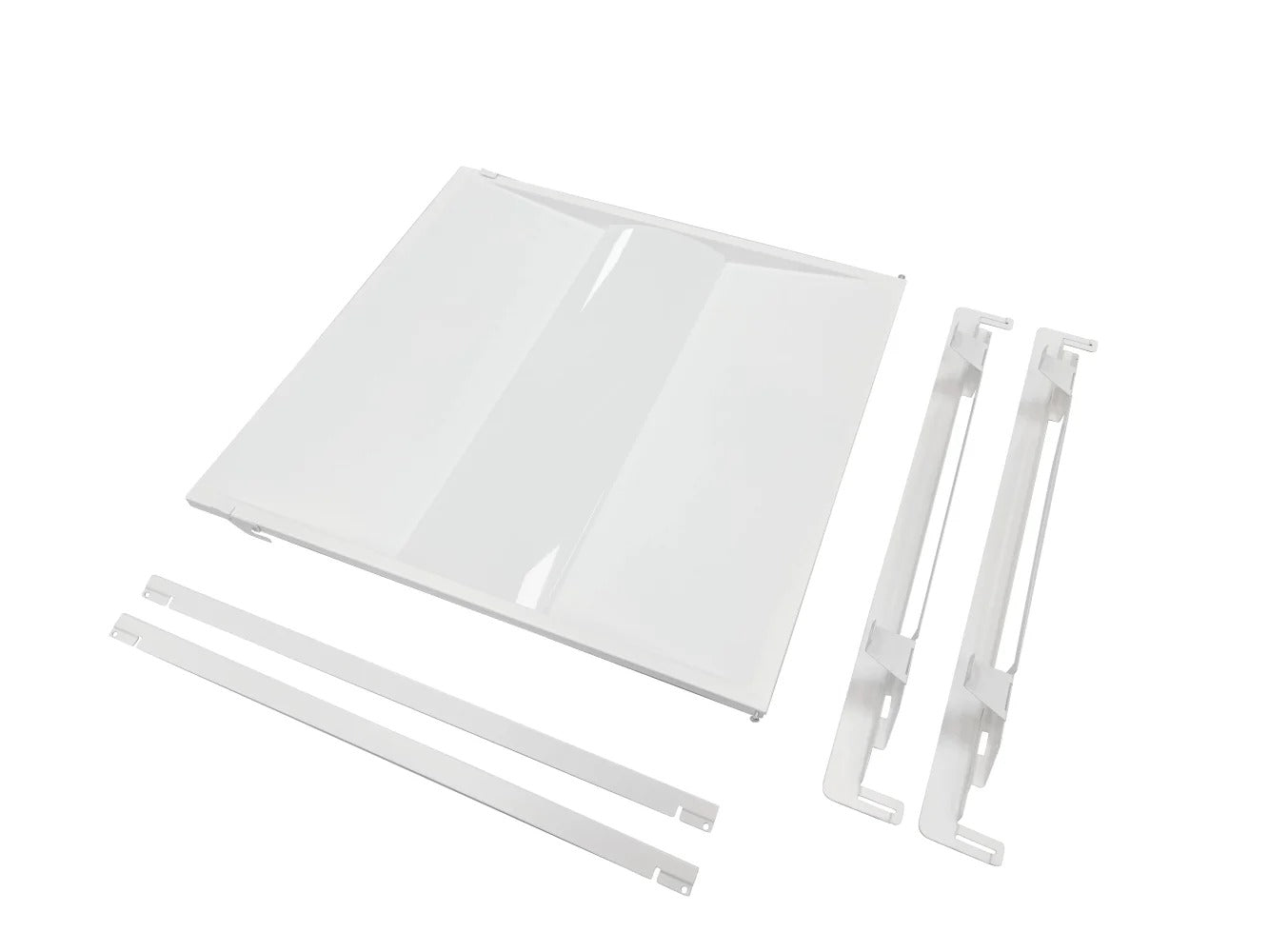

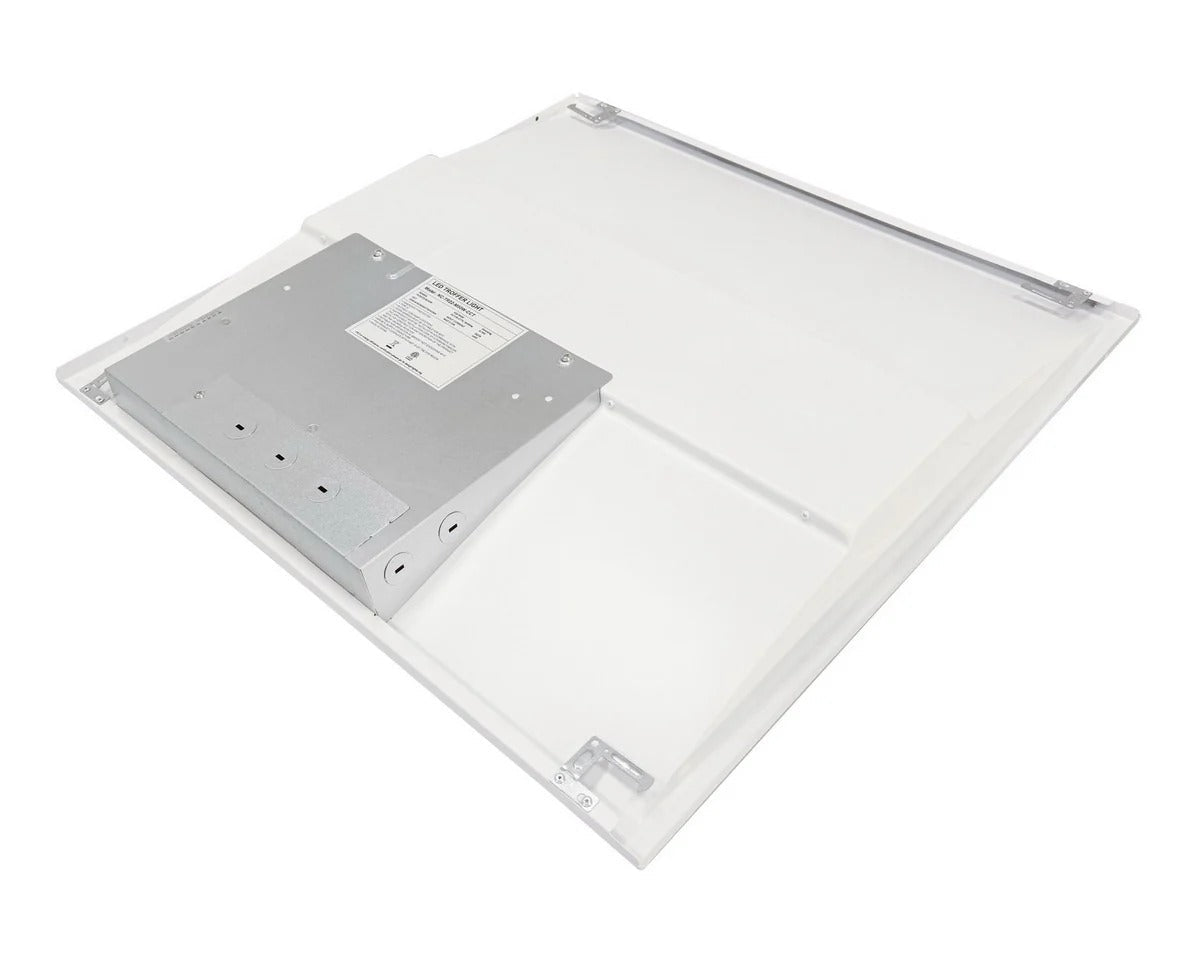

LED Troffer Lights
Volumetric LED troffers for T-bar grids—comfort-first optics that reduce glare at seated viewing angles while delivering uniform light for offices, classrooms, and healthcare.
Commercial LED troffers for low-glare, uniform illumination in T-grid ceilings

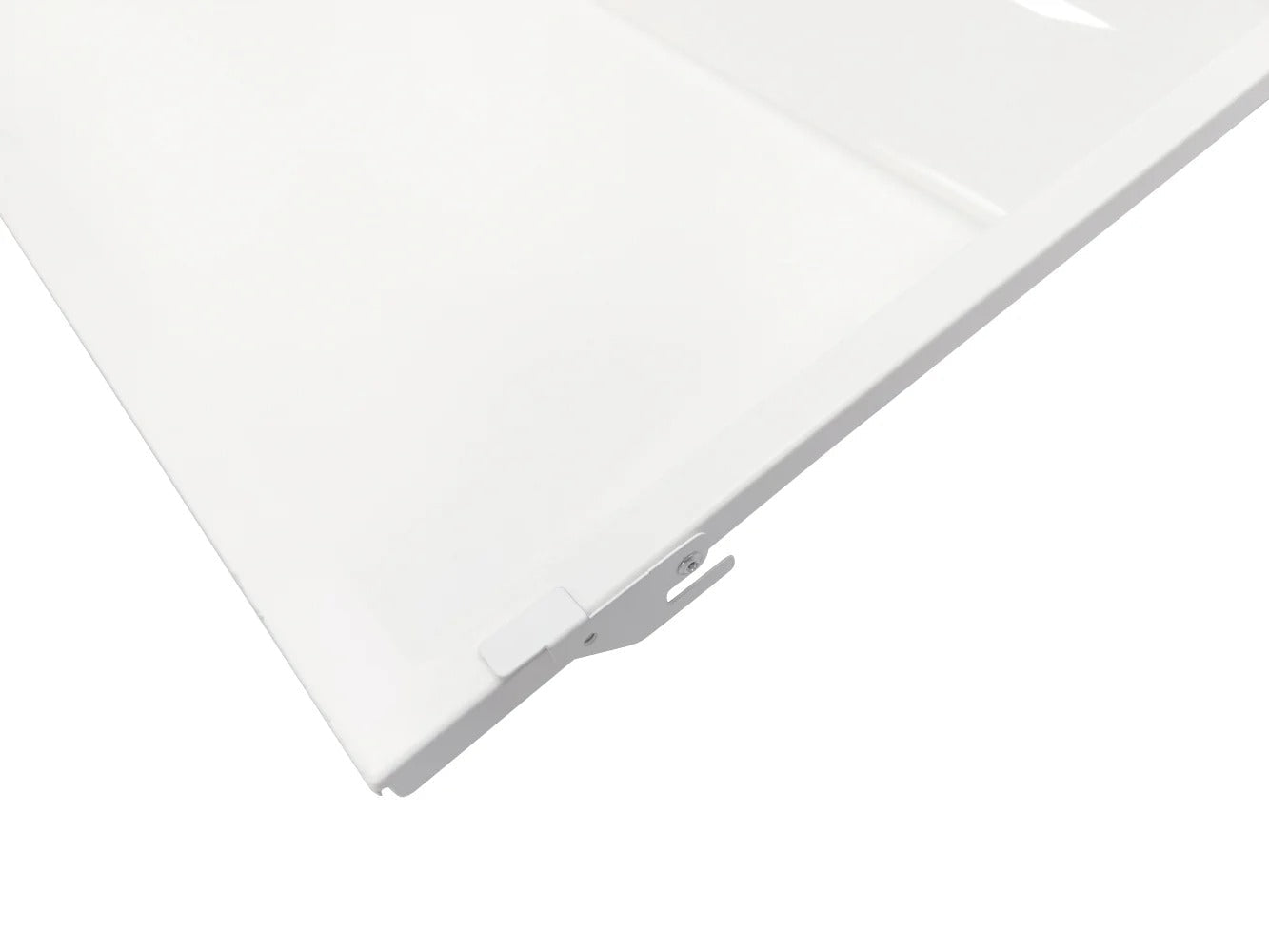

LED Troffers are the standard for high-performance commercial interiors, designed to provide uniform, shadow-free illumination within standard T-grid drop ceilings. These fixtures are the ideal replacement for legacy fluorescent tubes in environments that demand consistent light levels and low maintenance, such as offices, schools, and clinical healthcare facilities.
Read more about LED Troffer Lights

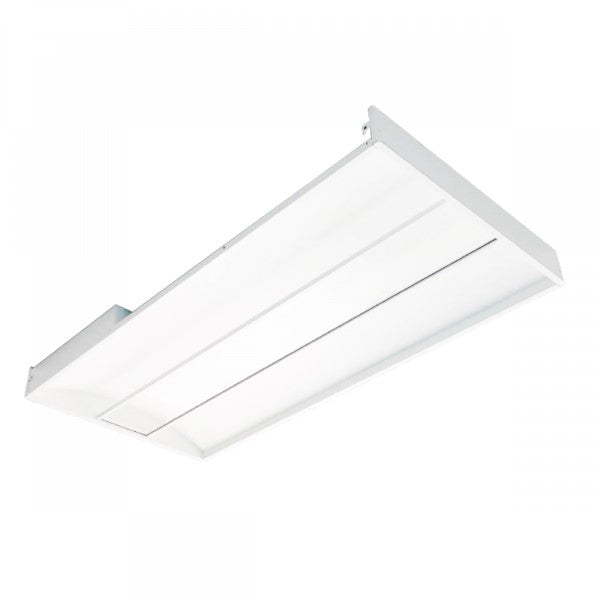

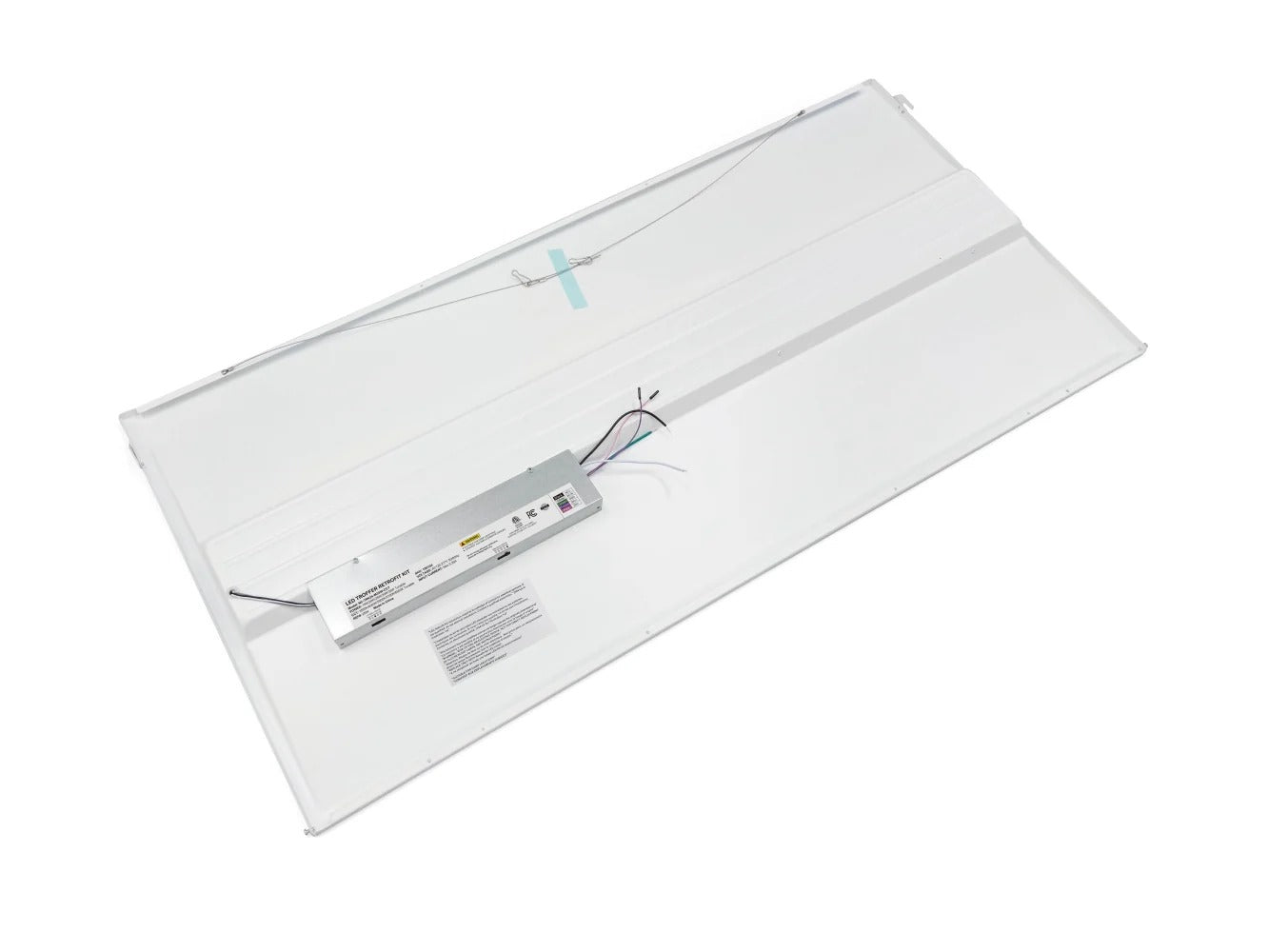

Architectural troffers with selectable performance and dimming compatibility

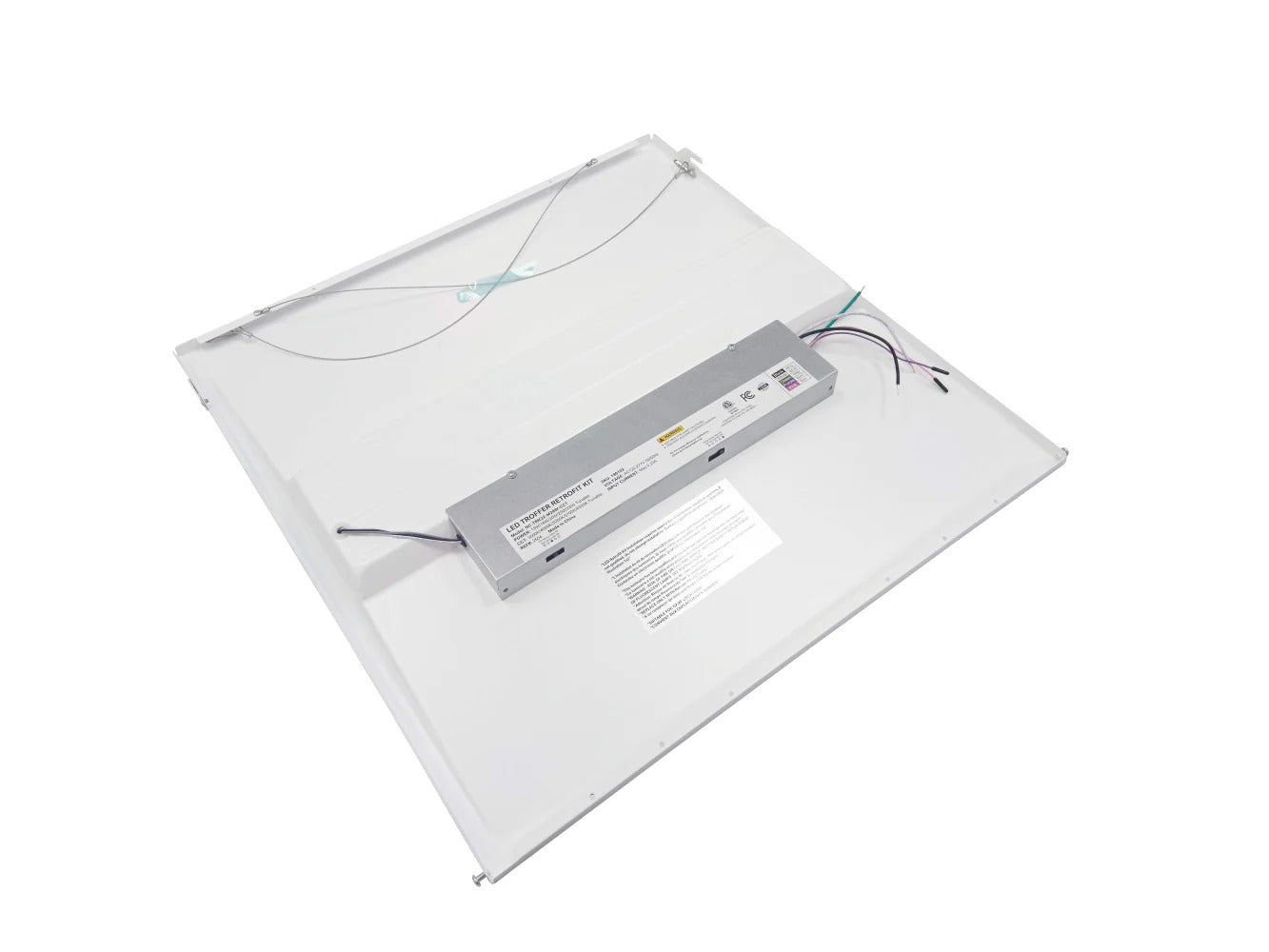

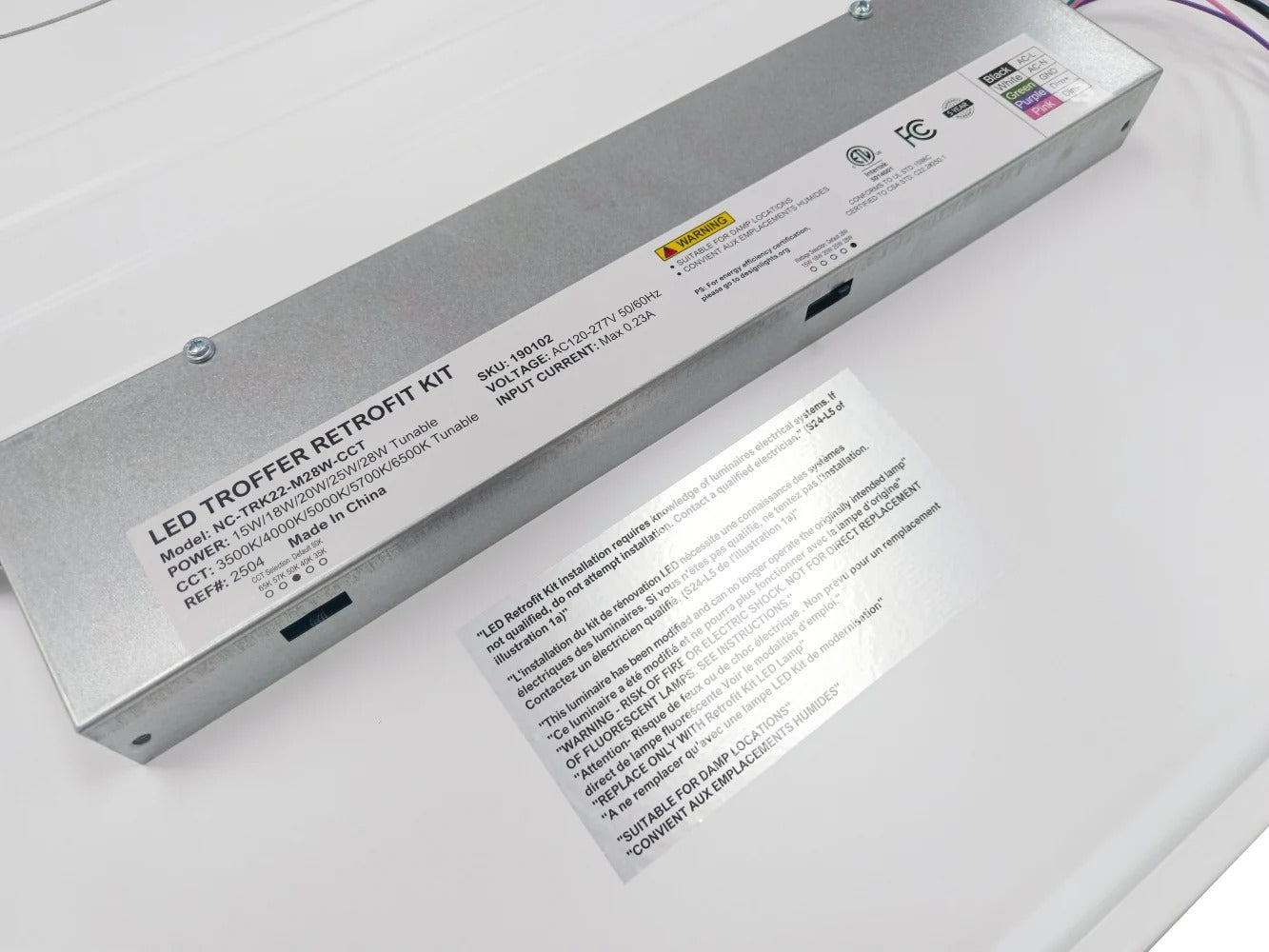

Our collection focuses on architectural-grade troffers featuring Field-Selectable Wattage and CCT. By combining precision optics with flicker-free 0–10V dimming, these fixtures allow you to customize lumen output and color temperature on-site to support visual comfort and compliance with modern energy codes.
Common applications and troffer system references
Answer summary: LED troffers are specified by distribution type, spacing, glare control, mounting height, and dimming compatibility—not fixture depth or appearance alone.
Troffer system context and specification references
How LED Troffers Compare to Other Commercial Ceiling Lighting Systems Achieving Uniform Ambient Coverage with LED Troffer Lighting Preventing Dimming and Control Issues in LED Troffer Installations
Troffer spec workflow: distribution choice, spacing checks, glare targets, and control verification
Use this guide to select the correct troffer optical approach (volumetric vs. low-profile), validate spacing and mounting height for uniformity, control glare in screen-heavy spaces, and confirm 0–10V dimming compatibility before commissioning. The sections below follow common specification decision points.
Ceiling lighting specification guidance
Troffer performance depends on more than fixture depth or appearance. Distribution type, spacing, glare control, mounting height, and dimming integration all influence visual comfort and energy performance in commercial interiors. For broader guidance covering panels, troffers, recessed, and linear ceiling systems, reference our commercial ceiling lighting buying guide.
Specification note: Common troffer lighting failures include excessive glare at seated workstations, uneven spacing that causes visual fatigue, and dimming incompatibility that results in flicker or limited control range.
Technical selection guide for LED troffers
Troffers can be engineered for different optical goals. Use the table of contents to jump directly to the selection checks that matter most for your ceiling height and occupancy type.

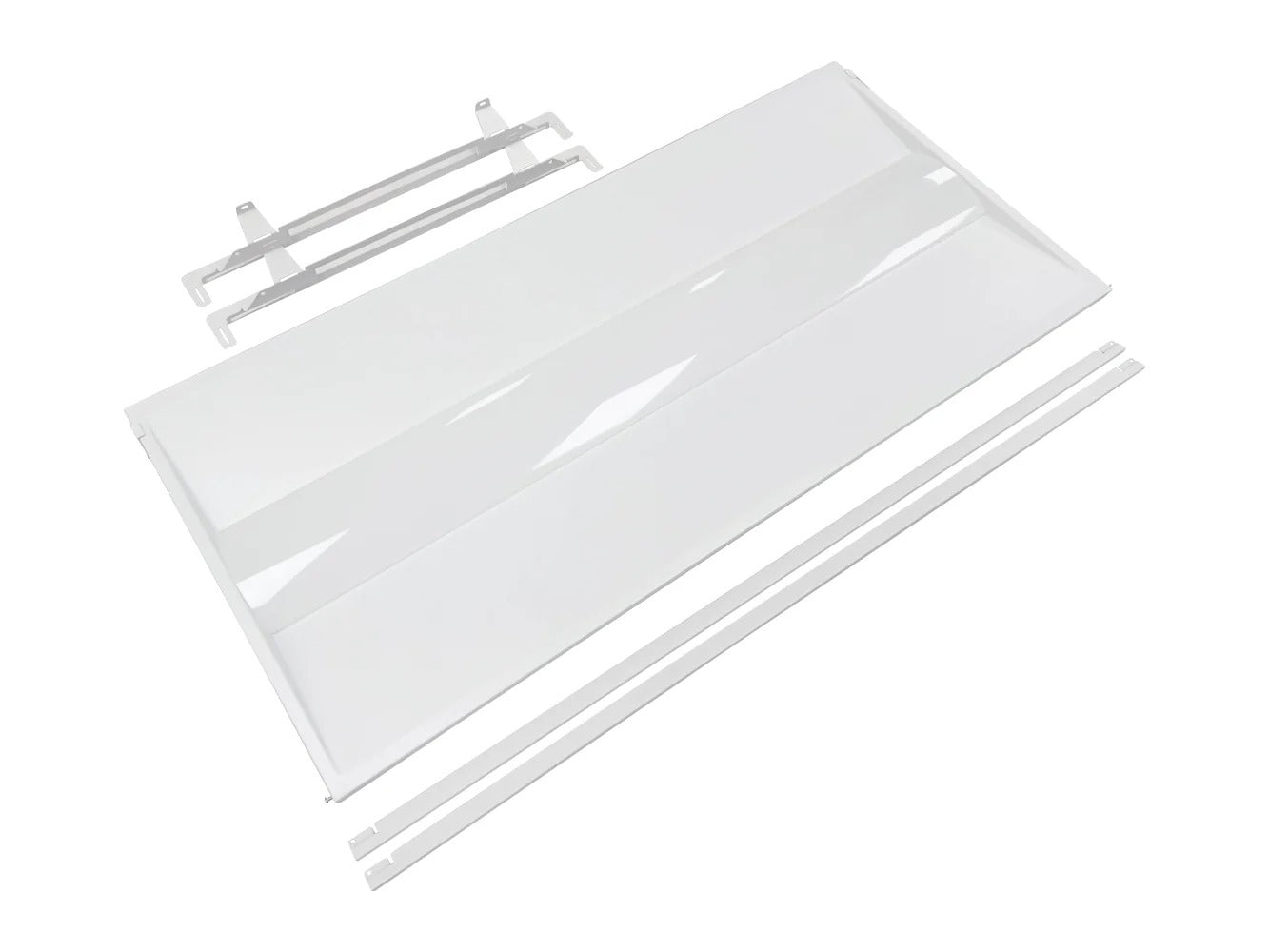

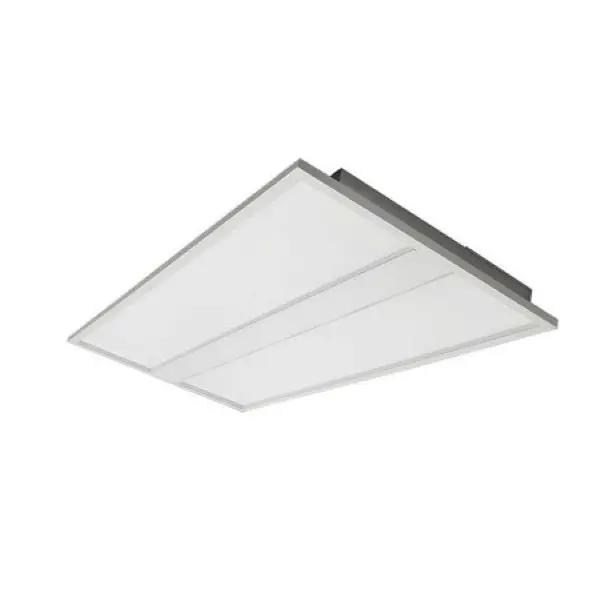

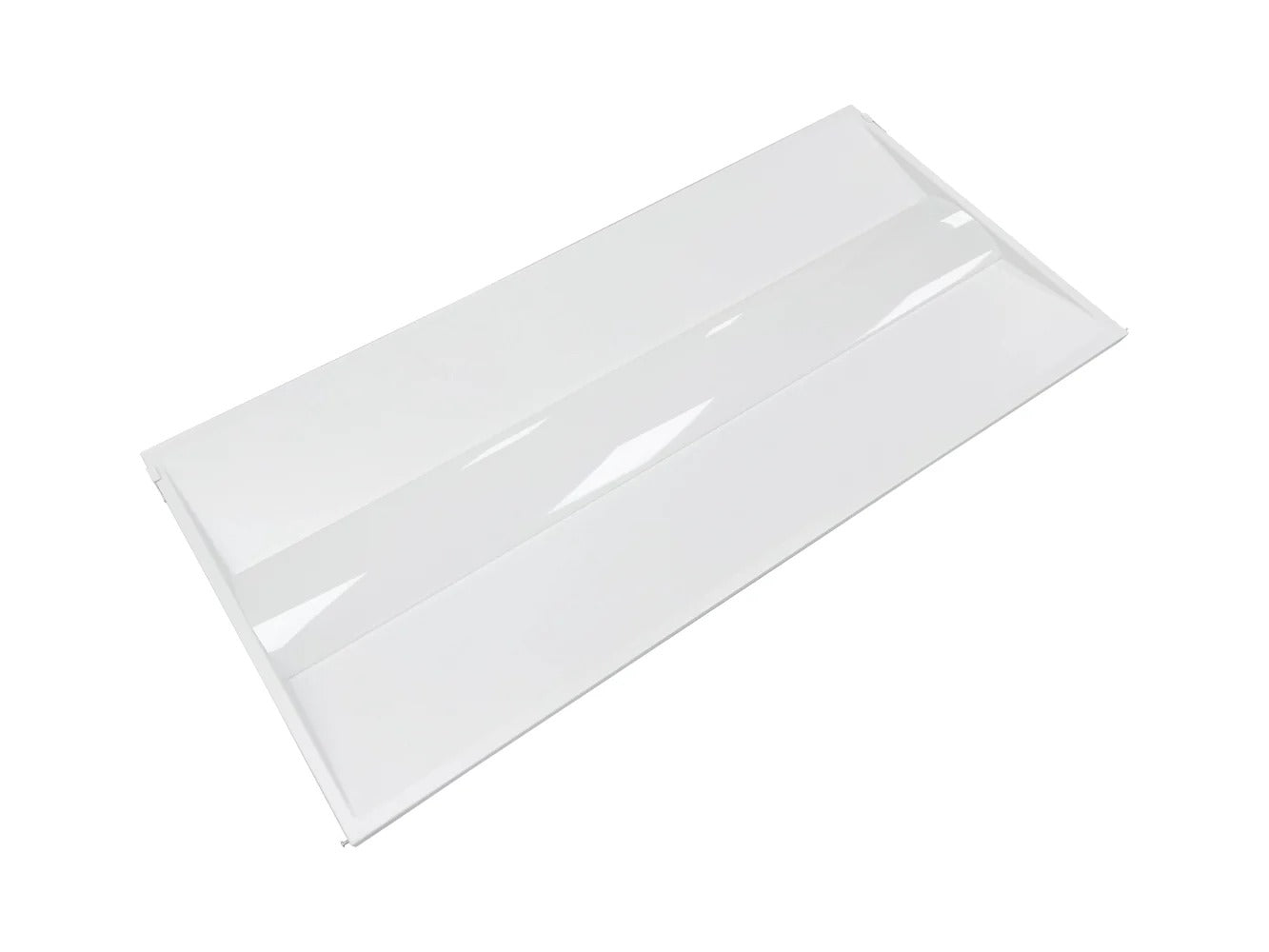

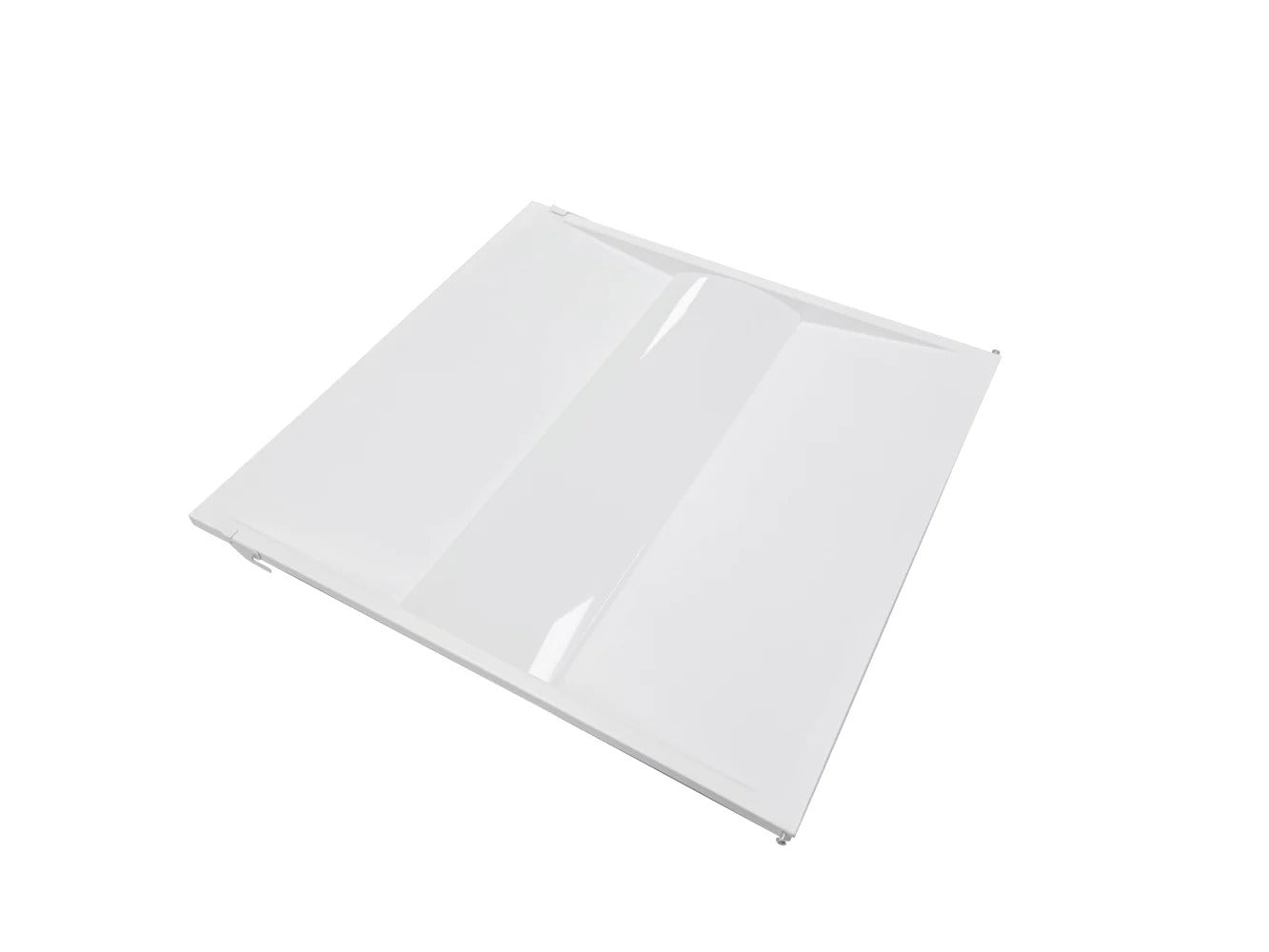

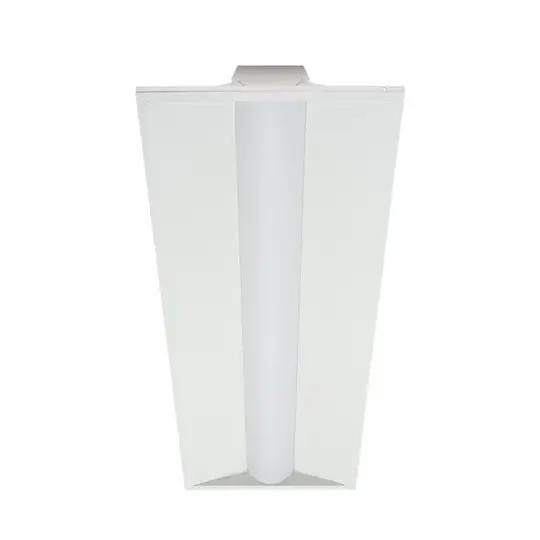

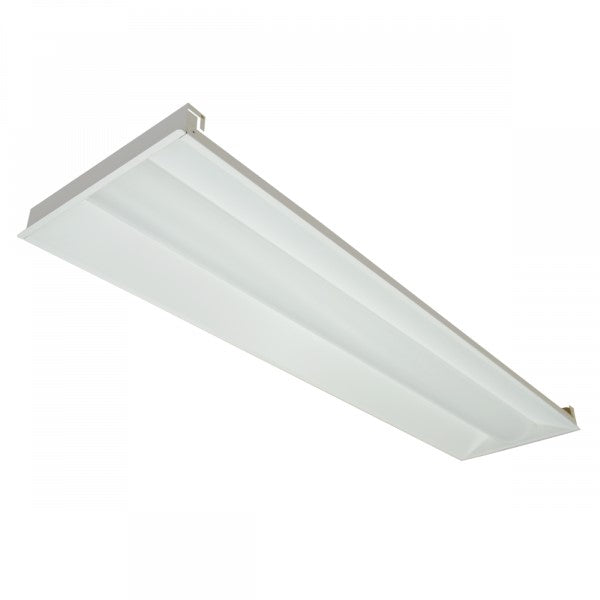

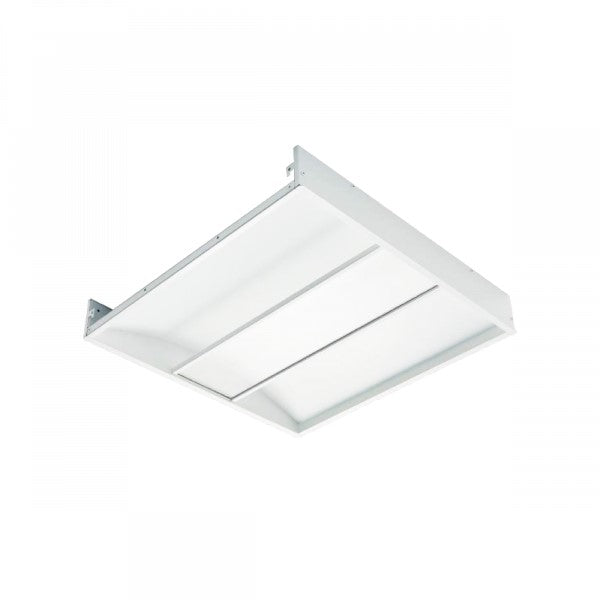

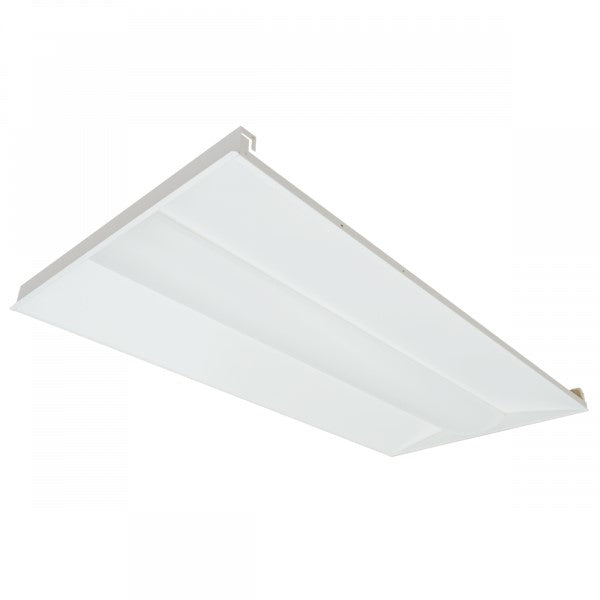

Volumetric vs. low-profile troffers

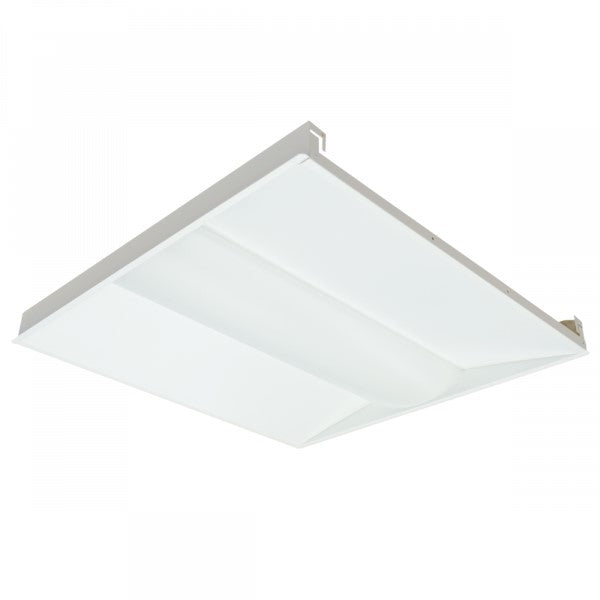

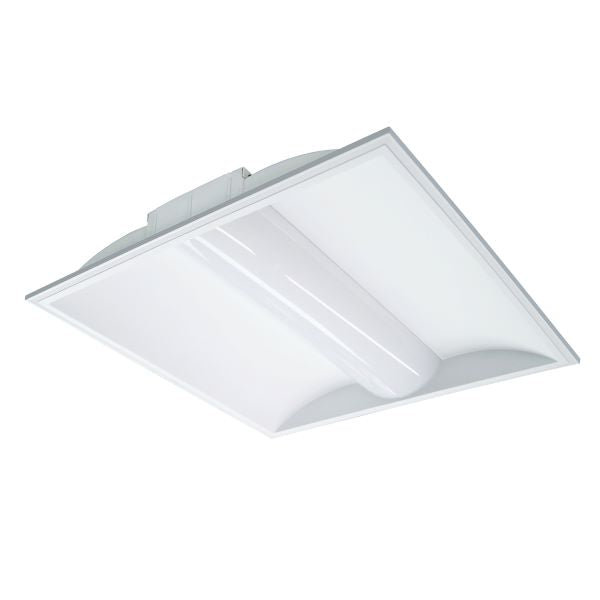

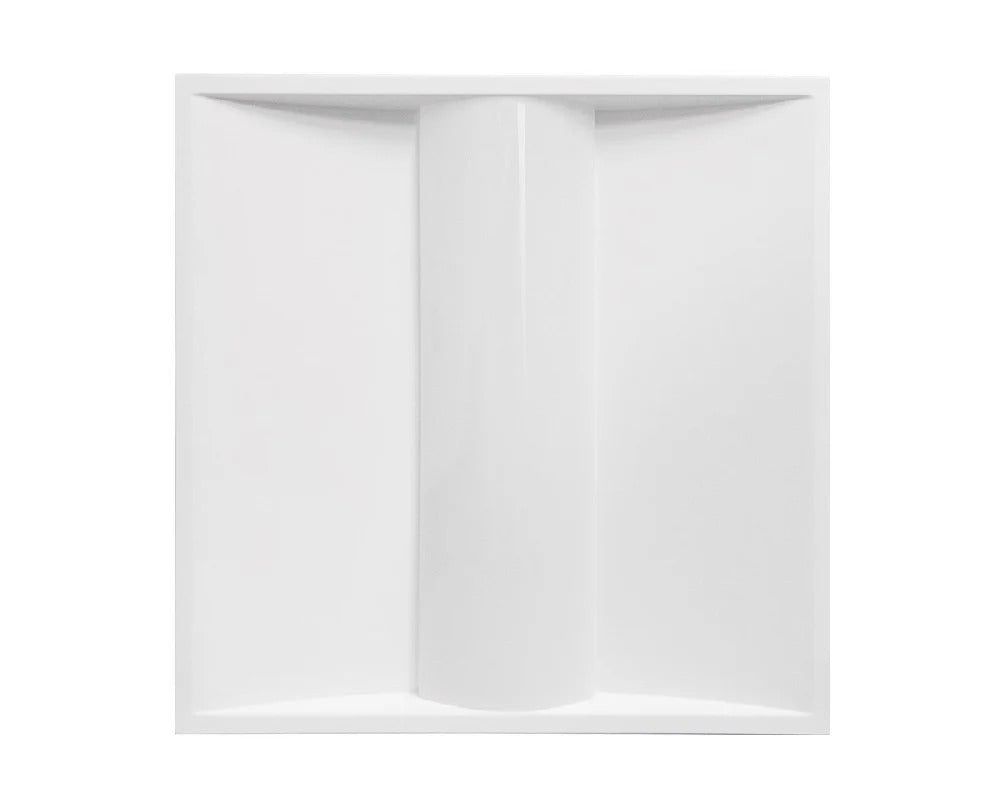

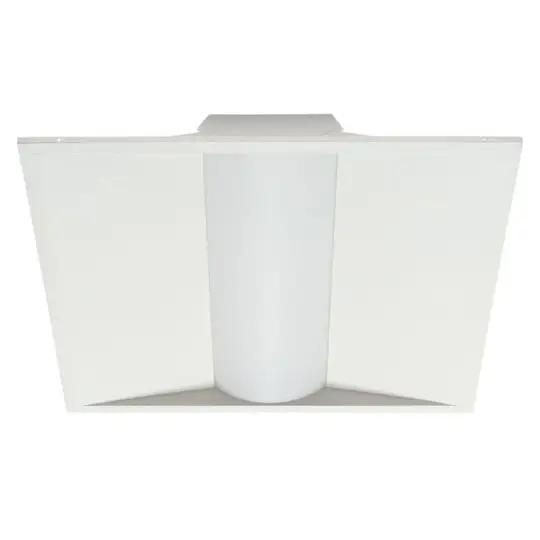

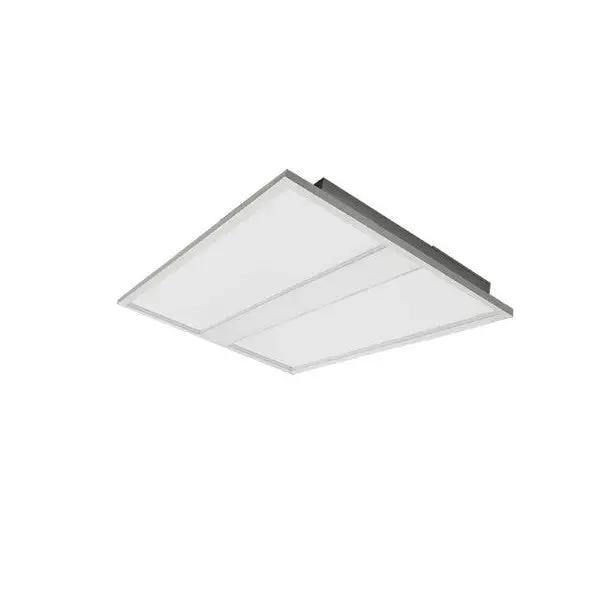

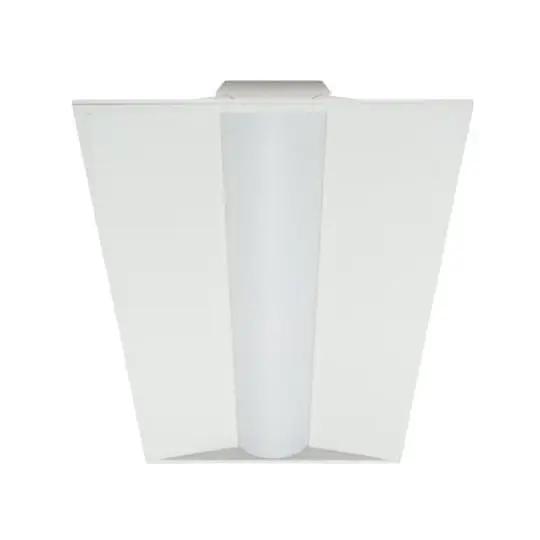

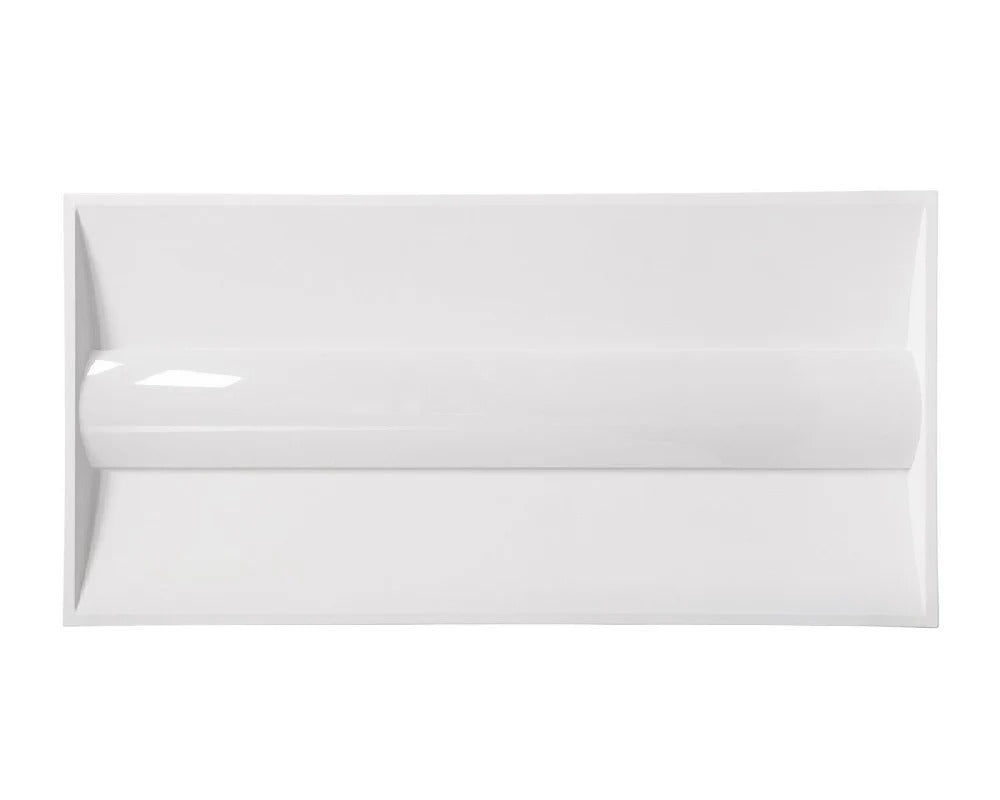

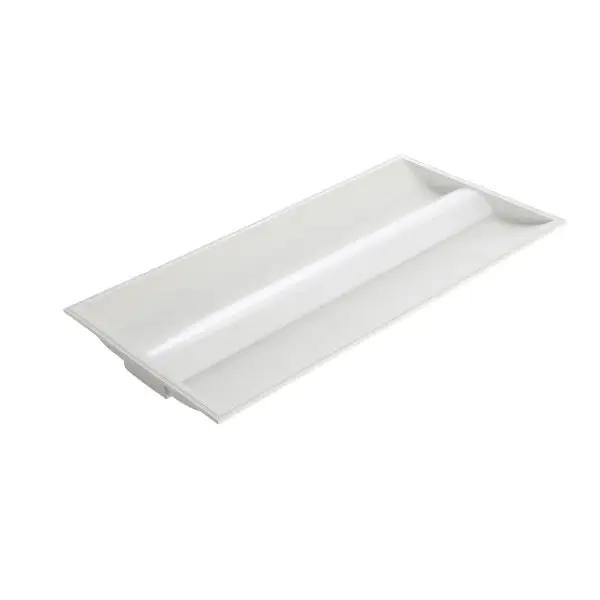

Volumetric (center basket) troffers are designed to soften the luminous surface and reduce perceived glare by shaping and shielding the light source. Low-profile recessed troffers prioritize clearance, efficiency, and a clean ceiling plane where plenum depth or obstructions limit fixture depth.
Selection rule: Volumetric troffers prioritize glare reduction and long-duration visual comfort, while low-profile troffers prioritize clearance and efficiency in constrained plenum spaces.
Selection shortcut: Use the matrix below to choose volumetric vs low-profile troffers based on glare risk, ceiling constraints, and service access.

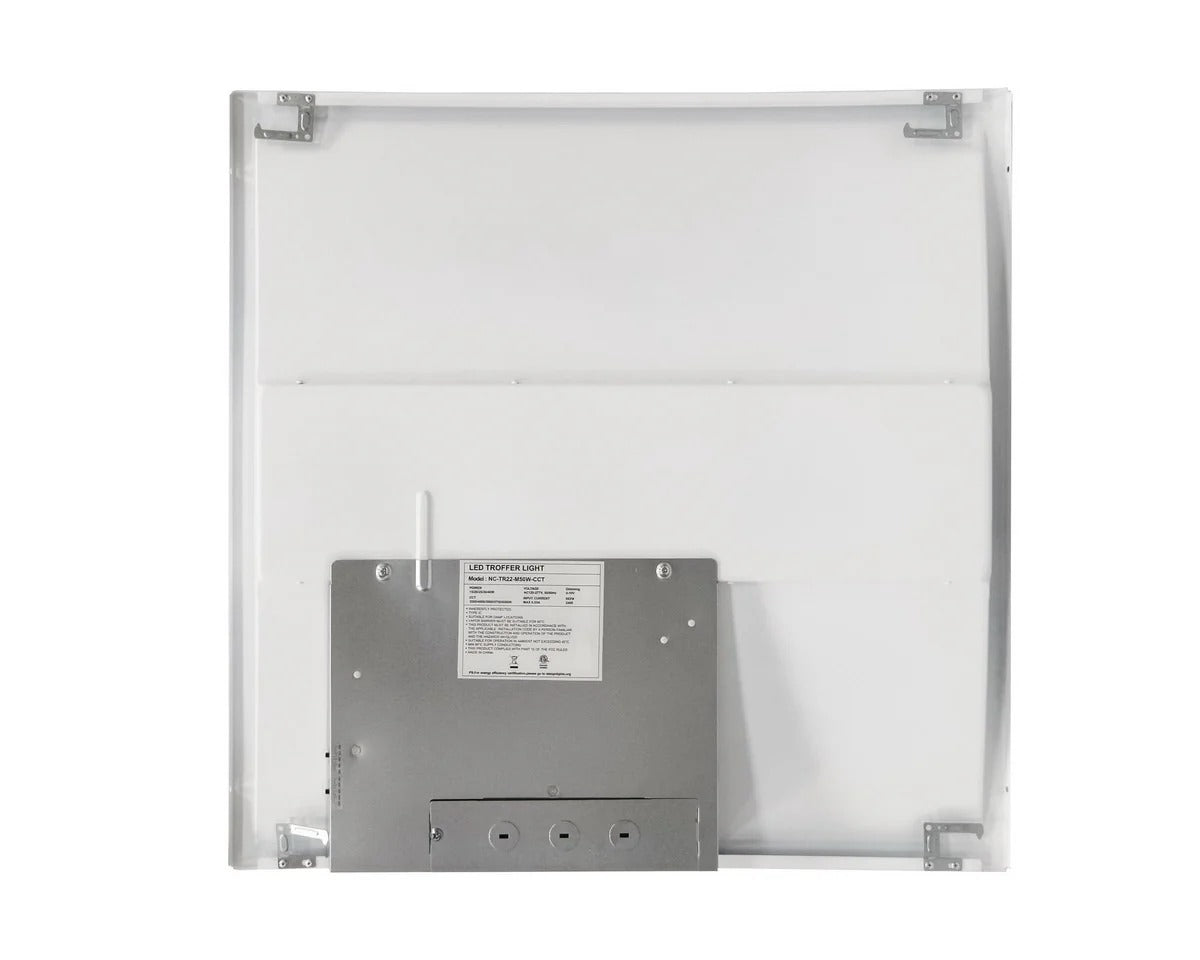

| Decision factor | Volumetric troffer | Low-profile troffer | Spec check |
|---|---|---|---|
| Screen-heavy spaces / seated workstations | Best fit for glare-sensitive viewing angles | Can work, but glare risk depends on optic | Confirm optic type + layout; avoid over-lighting. |
| Glare complaints / “too bright” ceiling history | Lower perceived glare and softer ceiling appearance | Higher perceived brightness risk at angle | Validate luminance control intent; specify output trim plan. |
| Plenum depth is restricted / obstructions present | May be limited by depth on some models | Often best for clearance constraints | Confirm fixture depth + driver location + access path. |
| Efficiency priority (lm/W) | Competitive; comfort optics can trade some efficiency | Often strong depending on design | Compare efficacy, lumen package, and ambient ratings. |
| Uniformity / “soft” ambient look | Best for visually comfortable uniform ambient | Uniformity depends on layout and optic | Confirm distribution + spacing; avoid mixed outputs in zone. |
| Serviceability / driver access | Varies; often reasonable access | Varies; sometimes constrained by slim housings | Verify how drivers are accessed and replaced. |
Spacing and mounting height checks
Uniform ambient lighting depends on matching delivered lumens and distribution to the ceiling height and room proportions. Validate spacing-to-mounting-height assumptions (especially in long corridors and open offices) to avoid striping, hot spots, or dark zones.
Layout rule-of-thumb: Use this table to sanity-check spacing risk by ceiling height and space type before requesting photometrics.
| Ceiling height | Most common risks | Better troffer choice | Spec checks |
|---|---|---|---|
| 8–10 ft | Over-lighting, glare at desks, “bright ceiling” fatigue | Volumetric / comfort optics | Right-size lumen package; confirm glare intent and zoning for screens. |
| 10–14 ft | Striping in open offices/corridors if spacing is off | Volumetric or balanced optic | Validate spacing for uniformity; avoid mixed outputs in the same zone. |
| 14–20 ft | Hot spots or dark zones if distribution is wrong | High-output troffer / optimized distribution | Request photometrics when uniformity is critical; confirm delivered lumens. |
| Corridors / long runs | Visual “banding” and uneven walls | Comfort optic preferred | Align layout to corridor geometry; check spacing consistency through intersections. |

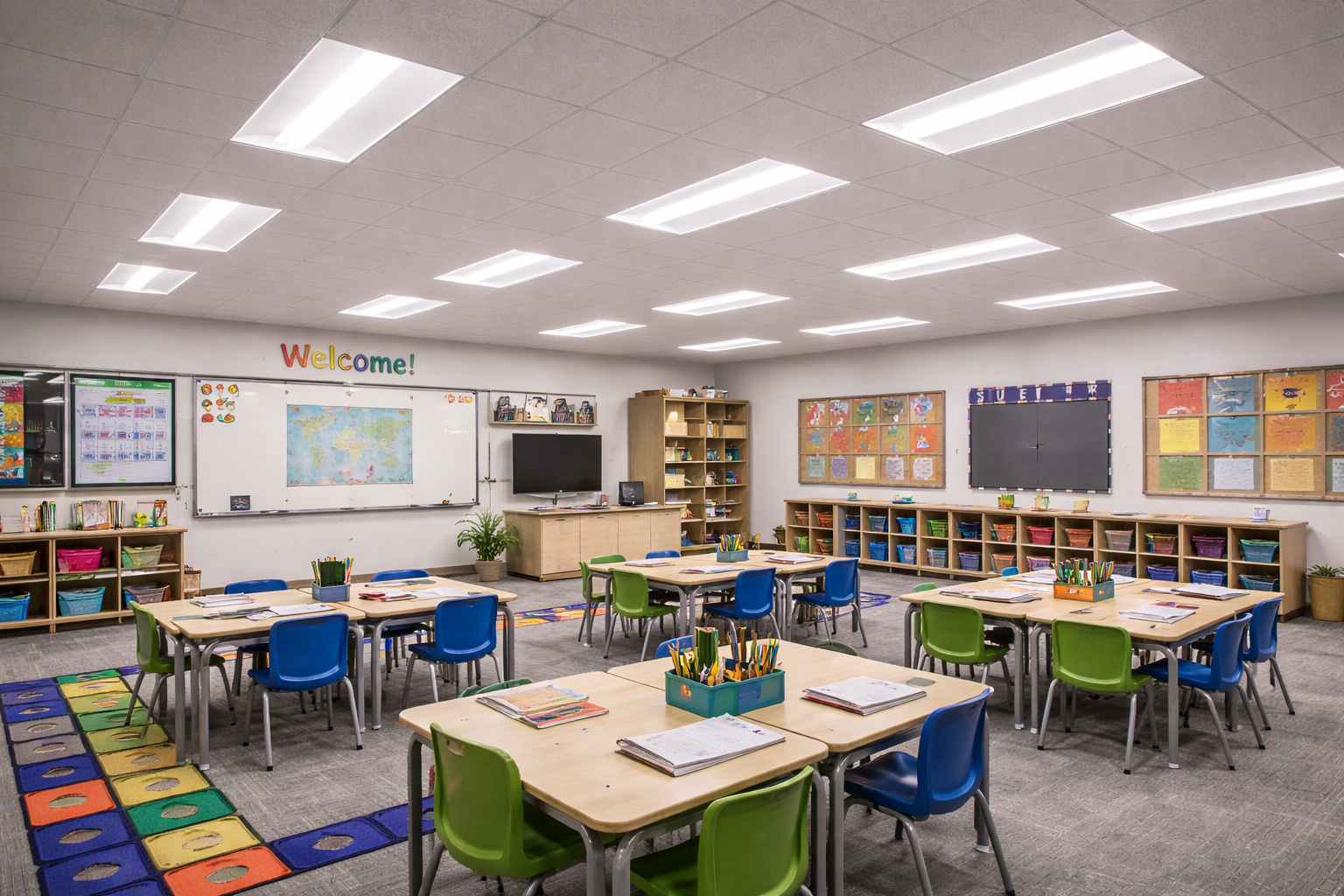

Glare control and visual comfort
Glare complaints typically come from high luminance at common viewing angles, over-lighting, and poor layout—especially at seated workstations and in classrooms. Prioritize optics intended for visual comfort and confirm output selection matches the task requirements without creating “bright ceiling” fatigue.
Comfort check: Use the checklist below to reduce screen glare and “too bright” complaints by matching optics and output to how people view the ceiling.
| Complaint risk | Typical cause | Spec fix (design) | Field fix (commissioning) |
|---|---|---|---|
| Screen glare / reflections | High luminance at viewing angles + over-lighting | Volumetric optic; right-sized lumen package; perimeter/interior zoning | Trim output via selectable wattage; tune scenes for screen-heavy hours. |
| “Bright ceiling” fatigue | Too many lumens for ceiling height/reflectances | Lower output; comfort optic; spacing review | Reduce wattage setting; apply high-end trim where available. |
| Uneven appearance / patchy zones | Mixed outputs/CCT; inconsistent zoning; layout mismatch | Standardize lumen/CCT per zone; avoid mixing families | Normalize switch settings; verify zoning/circuiting. |

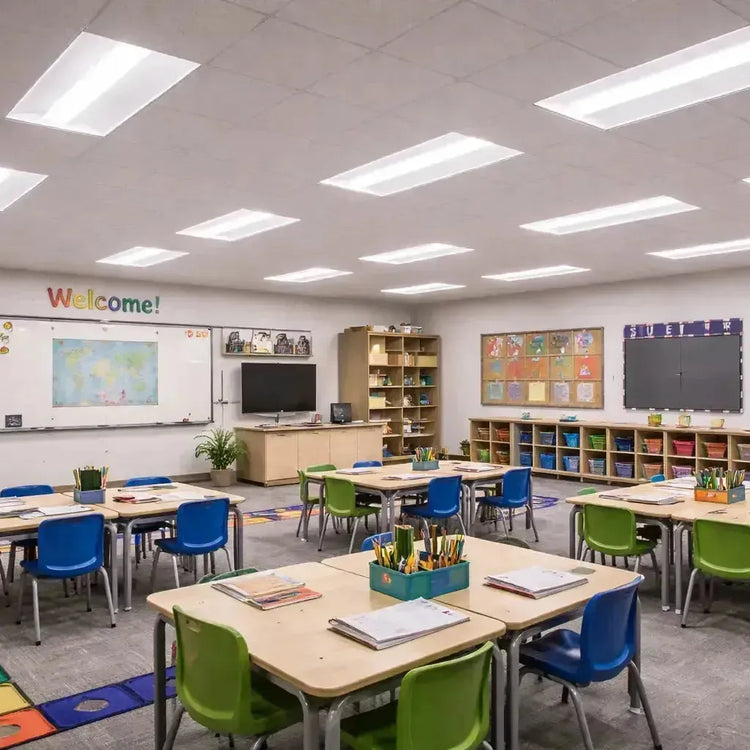

| Classroom visual fatigue | Harsh contrast + unstable dimming | Comfort optic + stable drivers; daylight/occupancy strategy | Set minimum dim above dropout; tune scenes for reduced contrast. |
| Healthcare comfort concerns | Glare + inconsistent CCT across patient/staff zones | Define CCT policy by zone; low-glare optic selection | Standardize CCT settings; document as-builts in closeout. |
Dimming and controls verification
Most commercial troffers use 0–10V dimming. Confirm driver compatibility with the control strategy, avoid mixing driver families in one zone, and verify low-voltage wiring practices. If flicker occurs, troubleshoot wiring polarity, interference, and control settings before replacing fixtures.
Controls check: Use this checklist to verify 0–10V compatibility, wiring practices, and zoning before commissioning to prevent flicker and uneven dimming.
| Check | What to verify | Common symptom if missed | Spec / field fix |
|---|---|---|---|
| Driver dimming protocol | Driver explicitly supports 0–10V and matches control strategy | No dimming response or limited range | Confirm driver option in submittals; standardize protocol project-wide. |
| Low-voltage polarity | 0–10V (+/–) polarity correct end-to-end where applicable | Erratic or reversed dimming | Verify wiring diagrams; enforce consistent wiring practices. |
| Separation from line voltage | Keep 0–10V runs separated from line voltage to reduce interference | Flicker/shimmer or “noisy” curve | Reroute low-voltage wiring; avoid shared conduits when possible. |
| Driver family consistency | Avoid mixing driver families in the same dimming zone | Uneven dimming between fixtures | Standardize drivers per zone; document in submittals. |
| Low-end stability | Confirm stable low-end and set minimum dim level appropriately | Dropout/pop-on/off at low dim levels | Set minimum dim above dropout; avoid pushing below stable range. |
| Zoning strategy | Zone by daylight and task needs (perimeter vs interior) | Inconsistent user experience | Separate zones; confirm controller capacity and topology. |
Troubleshooting note: If the install is complete and complaints begin post-commissioning, use the symptom-to-fix table below before swapping fixtures.
Field-proven fixes: The table below maps common troffer install complaints to likely causes and the fastest spec/commissioning corrections.
| Complaint / symptom | Typical root cause | Spec fix (design) | Field fix (commissioning) |
|---|---|---|---|
| Glare at desks / screen reflections | Optic not comfort-oriented; over-lighting; poor zoning | Specify volumetric optic; right-size lumen package; refine layout/zones | Trim output; tune scenes; verify workstation/perimeter zoning. |
| “Too bright” / harsh ceiling | Excess lumens; tight spacing; high perceived luminance | Select lower output; comfort optic; spacing review | Reduce wattage setting; apply high-end trim. |
| Uneven brightness / striping | Spacing/layout mismatch for ceiling height; mixed outputs | Re-check layout assumptions; normalize lumen packages | Normalize switch settings; verify zoning/circuiting consistency. |
| Flicker or unstable dimming | 0–10V wiring issues/interference; mixed drivers; low-end instability | Standardize compatible drivers/controls; include wiring best practices | Verify polarity/routing; isolate noise; set minimum dim above dropout. |
| Color looks inconsistent | Different CCT settings; mixed families/bins; reflectances amplify differences | Define CCT policy by zone; standardize family/driver option | Standardize CCT positions; record as-builts in closeout docs. |
| Complaints increase after controls are enabled | Bad zoning strategy; aggressive dim settings; mismatched drivers | Zone perimeter/interior separately; specify stable drivers | Tune scenes and trims; adjust minimum dim and high-end trim. |
Commercial Project Support
Need documentation, lead-time visibility, or closeout-ready deliverables? Use the resources below to route your project correctly and reduce revision cycles.
- Commercial Project Support (Hub)
- Quote Intake & Project Routing
- Photometrics
- Submittals
- Shipping Reliability & Fulfillment
- Closeout Documentation
- Returns & Restocking
- Warranty Claims
- Frequently Asked Questions
FAQs
When should I choose a volumetric (center basket) troffer instead of a low-profile troffer?
Choose volumetric troffers when visual comfort and glare reduction are the priority—especially over workstations, classrooms, and screen-heavy environments. Choose low-profile troffers when plenum depth, obstructions, or clearance constraints make fixture depth a limiting factor.
What causes glare complaints with LED troffers in offices and classrooms?
Glare is usually caused by excessive luminance at common viewing angles, over-lighting, or poor spacing/layout that creates hot spots. Correcting it typically involves selecting a more glare-controlled optic, reducing output, and validating layout spacing.
How do I think about spacing and mounting height for troffer layouts?
Start with ceiling height, target maintained light levels, and the fixture’s distribution. A layout that looks “even” at one ceiling height can produce striping or hot spots at another, so spacing should be validated with photometrics when uniformity is critical.
What should I confirm for 0–10V dimming compatibility on troffers?
Confirm the driver supports 0–10V, match it to the intended control device, and avoid mixing driver families within the same zone. If flicker occurs, verify wiring polarity, interference, and control settings before replacing fixtures.
When should I specify field-selectable wattage and CCT for troffers?
Use selectable configurations to reduce SKU count and keep commissioning flexibility—especially in multi-phase projects where ceiling heights, reflectances, or target light levels can shift late in the process.
Expert reviewed for commercial specification
Brandon Waldrop
Lead Commercial Lighting Specialist • Documentation + Layout Support
The LED Troffer Lights collection is reviewed for low-glare ambient performance in T-grid ceilings, spacing-first uniformity outcomes, and controls-ready commissioning so offices, classrooms, and clinical interiors stay comfortable, consistent, and easy to maintain.
Collection review focus:
Verified for optic intent matched to seated viewing angles (volumetric/comfort baskets vs low-profile optics) so glare and screen reflections are controlled instead of “bright ceiling” fatigue; verified for spacing-to-height discipline in real grid layouts (open offices, corridors, intersections, and perimeter/daylight zones) so coverage stays smooth without banding, hot spots, or dim pockets that show up after occupancy; verified for lumen right-sizing at the task plane (not just “how bright the ceiling looks”) so targets are met without over-lighting and complaint-driven dimming; verified for commissioning discipline on selectable troffers (documenting final wattage/CCT by room and sightline) to prevent patchwork brightness and mixed-tone ceilings after phased installs or maintenance swaps; verified for 0–10V controls readiness (driver protocol alignment, driver-family consistency within zones, low-end stability, and wiring interference exposure) to avoid flicker, dropout, and uneven dim curves across fixtures; verified for zoning logic that supports how spaces operate (perimeter vs interior separation, screen-heavy vs general areas, corridor baseline levels) so controls save energy without creating perceived darkness or inconsistent zone response; verified for application-fit consistency across sensitive environments (classrooms and healthcare zones where comfort, clarity, and predictable appearance matter) so the same ceiling reads uniform from room to room rather than “close enough” by fixture count alone; verified for serviceability posture (access expectations in grid ceilings and standardized configurations) so replacements don’t create visible mismatches or repeated troubleshooting cycles.
