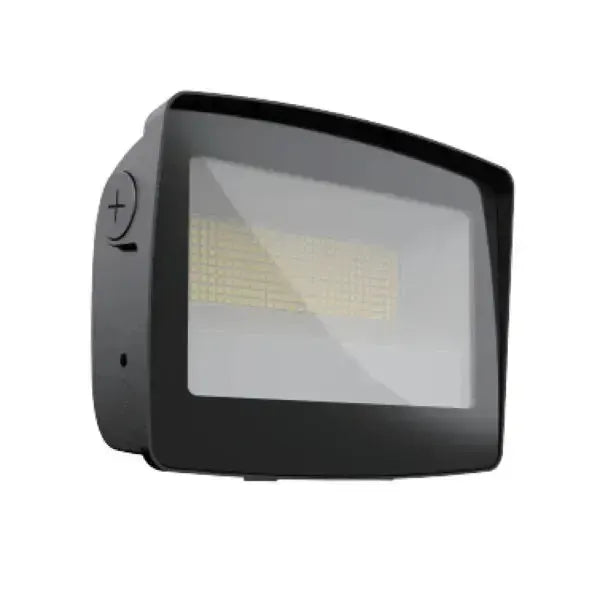

Product Overview
The TitanBeam Series LED Flood Light is a configurable exterior lighting platform developed for commercial site illumination where controlled beam direction, mounting flexibility, and standardized electrical performance are required across a facility. The series supports slip fitter, U-bracket, and knuckle mounting configurations, allowing the same fixture family to be deployed across poles, building structures, façades, equipment yards, and perimeter lighting zones while maintaining consistent photometric performance.

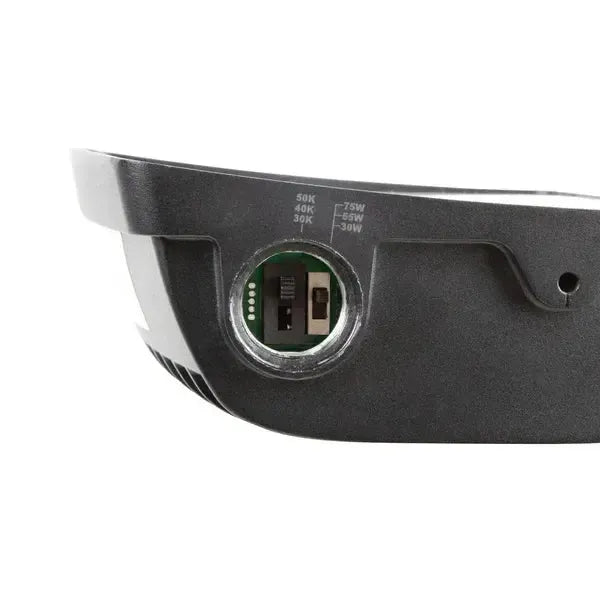

Selectable wattage enables lumen output to be aligned with mounting height, setback distance, and illumination targets without changing fixture type. Field-selectable correlated color temperature supports visual consistency across exterior environments and coordinated deployment alongside broader LED flood light systems and integrated commercial lighting installations. This approach simplifies specification across parking areas, service drives, loading zones, and architectural lighting applications.
Die-cast construction, IP65 environmental protection, and 120–277V operation support long-term performance in exposed outdoor conditions. Adjustable mounting options allow precise aiming to control spill light and improve coverage uniformity, supporting site lighting layouts that require adaptable fixture positioning without introducing multiple product platforms into the lighting schedule.
Fixture Specifications
- Voltage: 120–277V
- CCT: 3000K, 4000K, 5000K
- Dimming: 0–10V
- Efficacy: 130 lm/W
- IP Rating: IP65
- Minimum Operating Temperature: -22°F
- Certifications: UL Listed, DLC Premium Listed
- Warranty: 5-Year Limited Warranty
Performance & Physical Configurations
75W / 100W / 120W Configuration
- Lumen Output: 9,750 / 13,000 / 15,600 lm
- Mount Type: Slip Fitter Flood Light
- Dimensions: 11 in W × 7.9 in H × 3.1 in D
- MPN: NC-FL01G-120W-3CCT-SF
- DLC Product ID: S-4YS5B6
30W / 55W / 75W Configuration
- Lumen Output: 3,900 / 7,150 / 9,750 lm
- Mount Types: U-Bracket Flood Light; Knuckle Mount Flood Light
- Dimensions: 9 in W × 6.9 in H × 2.9 in D
- MPN (U-Bracket): NC-FL01G-75W-3CCT-U
- MPN (Knuckle): NC-FL01G-75W-3CCT-1/2-KNUCKLE
- DLC Product ID: S-RTCKPN
15W / 30W / 55W Configuration
- Lumen Output: 1,950 / 3,900 / 7,150 lm
- Mount Types: U-Bracket Flood Light; Knuckle Mount Flood Light
- Dimensions: 9 in W × 6.9 in H × 2.9 in D
- MPN (U-Bracket): NC-FL01G-55W-3CCT-U
- MPN (Knuckle): NC-FL01G-55W-3CCT-1/2-KNUCKLE
- DLC Product ID: S-FY2L2P
5W / 10W / 15W Configuration
- Lumen Output: 650 / 1,300 / 1,950 lm
- Mount Types: U-Bracket Flood Light; Knuckle Mount Flood Light
- Dimensions: 7.8 in W × 5.9 in H × 2.9 in D
- MPN (U-Bracket): NC-FL01G-15W-3CCT-U
- MPN (Knuckle): NC-FL01G-15W-3CCT-1/2-KNUCKLE
- DLC Product ID: S-XWDDR5
