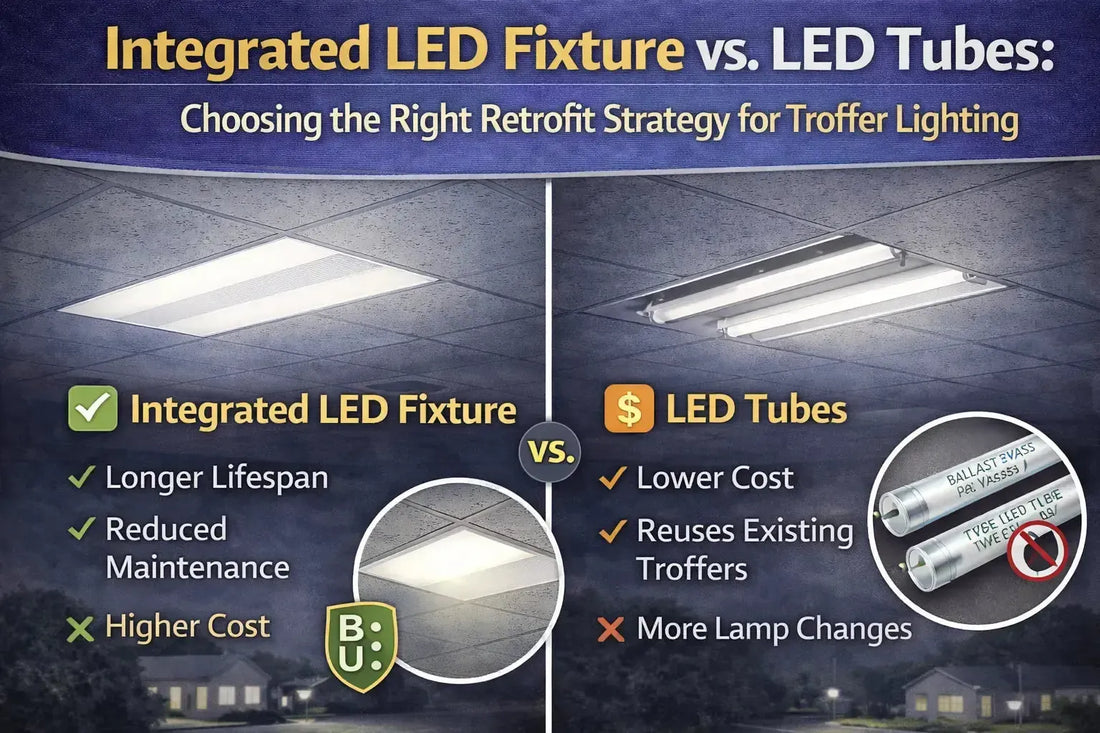

Integrated LED Fixtures vs. LED Tubes in Commercial Troffer Retrofits
When upgrading fluorescent troffers to LED, facilities typically face two options: replacing the entire fixture with an integrated LED troffer or retrofitting the existing housing with LED tubes. While both approaches reduce energy use and maintenance, they differ significantly in upfront cost, labor requirements, long-term flexibility, and financial return.
The correct choice depends on fixture condition, ceiling type, labor constraints, and the remaining service life of the existing infrastructure—not simply energy savings alone.
Related resource: For system-level guidance on panels, troffers, recessed fixtures, linear layouts, ceiling integration, and compliance planning across commercial interiors, reference the Commercial Ceiling Lighting Buying Guide.
What Differentiates Integrated LED Fixtures and LED Tubes
The primary difference between these two retrofit strategies is how much of the existing system is reused.
- Integrated LED fixtures replace the entire troffer, including housing, optical system, and driver
- LED tubes reuse the existing troffer housing and replace only the light source
This distinction affects not only cost, but also lighting quality, upgrade flexibility, and long-term serviceability.
Integrated LED Troffer Replacement: Advantages and Tradeoffs
Integrated LED troffers are complete luminaires designed as a single system. They typically deliver improved optical control and a uniform appearance across large spaces.
Where Integrated LED Fixtures Perform Best
- Facilities undergoing full lighting upgrades or renovations
- Spaces with damaged, outdated, or inconsistent troffer housings
- Projects prioritizing appearance uniformity and optical performance
Key Technical Considerations
- Dedicated LED driver matched to the fixture
- Integrated optics designed for uniform distribution
- Limited component-level serviceability
Once installed, integrated fixtures typically require full replacement if the LED array or driver fails outside of warranty.
LED Tube Retrofit: Advantages and Tradeoffs
LED tube retrofits retain the existing troffer housing and replace fluorescent lamps with LED tubes. Depending on the tube type, the ballast may be retained or bypassed.
Where LED Tube Retrofits Perform Best
- Facilities with structurally sound troffer housings
- Projects with limited budgets or tight timelines
- Phased upgrades where fixtures may be replaced later
Key Technical Considerations
- Type A, Type B, or hybrid wiring configurations
- Light distribution influenced by existing reflector condition
- Simpler component replacement over time
LED tubes offer flexibility, but final light quality depends heavily on the condition and design of the existing troffer.
Cost Comparison and Budget Impact
| Cost Factor | Integrated LED Troffer | LED Tube Retrofit |
|---|---|---|
| Fixture Material Cost | Higher (full luminaire replacement) | Lower (lamp-only replacement) |
| Labor Cost | Moderate to high | Low to moderate |
| Disposal Cost | Old fixture removal required | Minimal (lamp disposal only) |
| Upfront Project Cost | Higher | Lower |
Installation, Labor, and Downtime Considerations
Installation time can significantly impact operating facilities such as offices, schools, and healthcare environments.
- Integrated fixtures require ceiling access and fixture removal
- LED tubes can often be installed with minimal disruption
- Ballast-bypass tubes add wiring time but reduce future failures
For occupied spaces, reduced downtime may outweigh marginal efficiency gains.
Long-Term Maintenance and Future Flexibility
| Maintenance Factor | Integrated LED Fixture | LED Tube Retrofit |
|---|---|---|
| Component Replacement | Limited; full fixture often required | Simple lamp replacement |
| Future Technology Changes | Less adaptable | Highly adaptable |
| Maintenance Skill Level | Electrical service required | Basic maintenance staff capable |
When Each Option Makes Financial Sense
| Facility Condition | Recommended Approach | Reasoning |
|---|---|---|
| Good troffer housings, limited budget | LED tube retrofit | Lowest upfront cost with immediate energy savings |
| Damaged or mismatched fixtures | Integrated LED replacement | Improves appearance and performance consistency |
| Phased upgrade strategy | LED tube retrofit | Preserves capital while deferring full replacement |
| Long-term ownership, low tolerance for maintenance | Integrated LED replacement | Fewer service events during warranty period |
Related Commercial Ceiling Lighting Articles
Retrofit strategy decisions for troffer lighting extend beyond fixture cost alone. Optical performance, beam distribution, reflector interaction, and long-term serviceability all influence whether an LED upgrade delivers consistent illumination and reliable ROI over time. The following resources expand on optical behavior, retrofit performance, and suspended ceiling system considerations that commonly affect troffer lighting upgrades.
- T8 LED Tube Beam Angles: Why 330-Degree Glass Tubes Outperform 180-Degree Plastic Tubes in Troffer Reflectors
- The 2×4 Troffer Retrofit: LED Plate Kits vs Full Fixture Replacement
- Commercial Drop Ceiling Lighting Specification for Suspended Ceiling Systems
- Volumetric vs. Flat Panel: Which Optical Design Reduces Computer Screen Glare in Open-Office Floor Plans
Related Commercial Lighting Categories
The better financial choice is not universal. Evaluating fixture condition, labor availability, and long-term maintenance strategy determines whether replacing the entire troffer or retrofitting with LED tubes delivers the strongest return.
Frequently Asked Questions
Why is 480V distribution common in industrial lighting?
In large-scale industrial facilities, the primary goal of electrical design is to minimize current to reduce energy loss and installation costs. Since Power equals Voltage multiplied by Current, increasing the voltage to 480V allows you to deliver the same amount of power with significantly less current. This reduced current allows for smaller wire gauges and fewer circuits, which can drastically lower the cost of copper and labor during a new build or major retrofit.
What are the risks of using a 277V step-down transformer?
While 277V is the standard for most commercial buildings, using it in an industrial 480V environment requires a step-down transformer. This adds a hidden layer of cost and inefficiency. Every transformer has core and coil losses (often 2–5% of the energy consumed), which generate heat and waste electricity 24/7. Additionally, the transformer becomes a single point of failure; if the transformer blows, an entire section of your warehouse goes dark, whereas a native 480V system only risks individual fixture failure.
Does 480V lighting require different maintenance safety protocols?
Yes. 480V is considered a high-energy system and requires stricter adherence to NFPA 70E arc flash safety standards. Maintenance personnel must be properly trained for high-voltage work, and the fixtures must be equipped with specialized 480V-rated drivers. While this requires a higher skill level for technicians, the frequency of maintenance is often lower because native 480V systems eliminate the external transformers and additional panelboards that often fail in harsh industrial environments.
How does voltage choice affect conductor and conduit costs?
By using native 480V fixtures, you can often run twice as many fixtures on a single circuit compared to 277V. This is because the amperage is roughly 43% lower at 480V. Native 480V means fewer home runs to the panel, smaller conduit sizes, and less copper weight. For a 100,000-square-foot facility, the savings in electrical infrastructure alone can often pay for the premium price of 480V-rated LED drivers.
Is fixture availability an issue for 480V systems?
In the past, 480V fixtures were specialty items with long lead times. However, in 2026, most industrial LED manufacturers offer Universal High-Voltage (277-480V) drivers. These drivers are designed to sense the input voltage and adjust automatically, providing the same lumen output regardless of the source. This has largely eliminated the inventory and lead-time issues that previously made 277V step-down systems the default choice.
Which system provides the better long-term ROI?
For facilities larger than 50,000 square feet with high ceilings, native 480V fixtures almost always provide a superior ROI. The combination of lower installation costs, the elimination of transformer energy losses, and the reduction in electrical infrastructure failure points outweighs the slightly higher cost of high-voltage fixtures. For smaller facilities or those with existing 277V panels already in place, sticking with 277V may be the more practical path to avoid the capital expense of rewiring the distribution system.
