Commercial LED recessed lighting for clean ceilings, controlled beams, and low-glare performance
LED Recessed Lighting is the essential choice for clean, architectural illumination in modern commercial and residential interiors. Designed to sit flush within the ceiling plane, recessed fixtures deliver high-quality downlighting without the visual clutter of surface-mounted units. Whether you’re outfitting retail showrooms, corporate offices, or high-end residential spaces, this collection focuses on precision optics and low-profile housings for a seamless finish—including traditional round apertures and linear recessed systems that create continuous architectural lines of light.
Read more about LED Recessed Lighting
Recessed families and performance options in this collection
Our commercial-grade LED downlights prioritize controllable output and visual comfort. Many models include Field-Selectable CCT and high-CRI performance for accurate color, with options ranging from ultra-slim wafer lights for tight plenums to architectural deep-regress trims that reduce aperture glare. These fixtures are engineered for efficient installation in both new construction and remodel applications while reducing energy overhead and improving comfort.
Common applications and recessed-system context
Answer summary: LED recessed lighting is specified by aperture size, beam control, spacing, glare management, ceiling conditions, and application—not trim style alone.
Recessed downlighting references
Trim Strategy and Dimming Control for High-Performance Recessed Lighting When Recessed Downlights Require 1% Dimming and Specialized Drivers Preventing Flicker and Control Issues in Recessed Lighting Installations Understanding CCT vs CRI for Accurate Color in Recessed Downlighting
Recessed lighting spec workflow: aperture, beam control, glare checks, and documentation
Use this guide to select recessed fixtures by aperture size and beam distribution, confirm glare control for primary sightlines, and route documentation (photometrics, submittals, shipping visibility, closeout) for commercial projects. The table of contents links directly to the decision points used in real specifications.
Recessed lighting specification guidance
Recessed lighting performance depends on more than trim style. Aperture size, spacing, beam control, glare management, and ceiling conditions all influence visual comfort and task visibility in commercial interiors. For broader guidance covering recessed, panel, troffer, and linear ceiling systems, reference our commercial ceiling lighting buying guide.
Specification note: Common recessed lighting failures include over-lighting from improper spacing, visible glare from shallow trims, and insufficient beam control that causes uneven task illumination.
Technical selection guide for LED recessed downlighting
Modern recessed systems range from canless wafers to architectural deep-regress downlights. Selection should start with ceiling conditions and glare requirements, then move to distribution, dimming, and color quality.
Canless wafers vs. traditional downlights
Selection rule: Wafer downlights prioritize installation flexibility in shallow ceilings, while traditional deep-regress downlights prioritize glare control and visual precision.

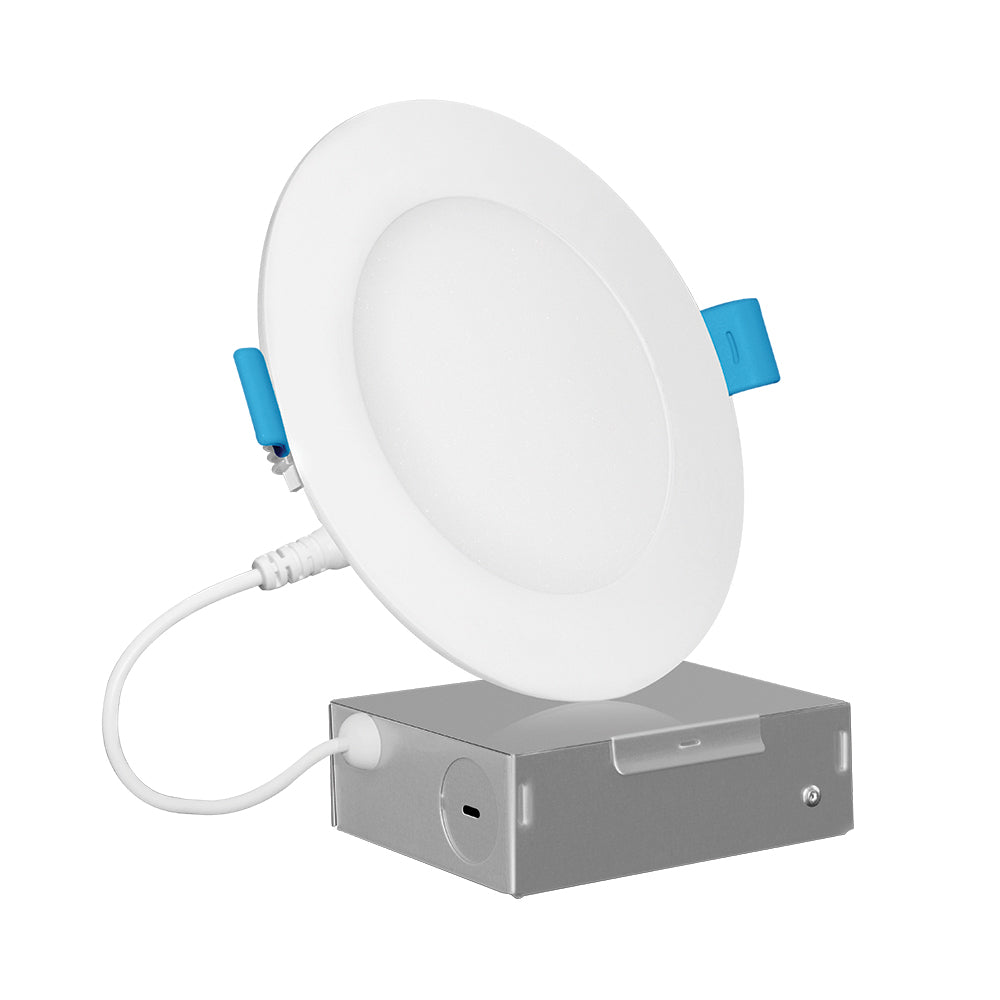

Ultra-slim wafer downlights are ideal for remodel conditions with limited plenum depth where a housing is not practical. Traditional downlights (including deep-regress designs) are preferred in professional interiors where controlling brightness at the viewing angle is the priority.
Selection shortcut: Use the matrix below to choose wafers vs traditional (deep-regress) downlights based on ceiling constraints and visual comfort priorities.
| Decision factor | Wafer downlight (canless) | Traditional / deep-regress downlight | Spec check |
|---|---|---|---|
| Plenum depth is limited / remodel constraints | Best fit for tight clearances where housings won’t fit. | May require housing depth and access that isn’t available. | Confirm above-ceiling clearance, obstructions, and access path for service. |
| Glare control and visual precision are the priority | Can be comfortable with good diffusion, but less optical control. | Best fit—deep regress and glare control options reduce eye-level brightness. | Confirm regress depth, shielding angle intent, and optic type. |
| High-finish architectural interiors | Good for clean ceilings, but trim/finish options may be limited. | Best fit—more trim/finish/optic options for spec-grade appearance. | Verify trim family consistency, finish match, and cutout tolerances. |
| Serviceability / long-term maintenance | Varies; replacement may be simpler but can be more “fixture swap” oriented. | Often better long-term service path depending on housing/driver strategy. | Confirm driver access method and replacement approach (below vs plenum). |
| Accessory optics (lenses, wall wash, snoots) | Limited accessory ecosystem on many wafer families. | Best fit—more optical accessories for beam shaping and control. | Confirm available optic/lens packages and aim/tilt capability if needed. |
Beam control and spacing
Recessed layouts are built on spacing and beam distribution—not “more fixtures.” Choose optics that support uniformity at the task plane while avoiding scalloping on walls and hot spots at floor level. Photometrics are recommended when ceiling heights, reflectances, or layout constraints are non-standard.
Beam planning reference: Use the table below to match recessed beam intent to the application so you get uniformity without hot spots or wall scalloping.
| Beam intent | Best for | Common risk | Spec checks |
|---|---|---|---|
| Narrow / controlled beam | Accent, highlighting, higher ceilings, feature walls (with correct spacing). | Hot spots and harsh contrast if spacing is too wide or output too high. | Validate aiming/placement; confirm accent-to-ambient balance; use photometrics for non-standard layouts. |
| Medium beam | General downlighting for offices, corridors, hospitality zones. | Striping or unevenness if spacing-to-height isn’t matched. | Check spacing consistency and ceiling height; confirm delivered lumens for task plane. |
| Wide / diffuse beam | Uniform ambient goals where ceiling is low-to-moderate and glare is controlled. | “Bright ceiling” feel and reduced punch on vertical surfaces. | Confirm glare control (shielding/diffusion) and avoid over-lighting. |
| Wall wash / asymmetric (if available) | Vertical illumination for retail, lobbies, corridors, feature walls. | Scalloping or uneven wash if spacing is inconsistent. | Confirm offset-from-wall placement and consistent spacing; validate with photometrics. |
Glare management and deep regress
Glare complaints are most common when the light source is directly visible in seated and standing sightlines. Deep-regress trims set the emitter higher into the aperture to reduce perceived brightness and improve comfort—especially in conference rooms, corridors, retail aisles, and screen-heavy offices.
Comfort check: Use the table below to prevent eye-level glare and reduce perceived brightness in seated and standing sightlines.
| Glare issue | Typical cause | What to specify | Quick field / commissioning fix |
|---|---|---|---|
| Aperture glare in normal sightlines | Shallow trim; emitter visible; high luminance optic. | Deep-regress trim; glare-controlled optic; appropriate lumen package. | Reduce output via dimming/high-end trim; verify trim is seated correctly. |
| Screen glare / reflections | Fixtures placed in monitor lines; over-lighting at workplane. | Glare control + better placement; zoning; lower output where needed. | Task tune scenes; cap max output with high-end trim for screen-heavy hours. |
| Harsh contrast / visual fatigue | Too much downlight with minimal vertical/ambient balance. | Balance ambient + vertical lighting; adjust beam selection. | Tune scene levels; verify uniformity and avoid pushing dimming below stable range. |
| Glare in corridors and circulation | Shallow optics and spacing that puts bright apertures in view. | Deep regress; better shielding; confirm spacing-to-height. | Reduce output; adjust zoning; ensure consistent CCT per zone. |
Color quality: CCT and CRI
Specify CCT based on the environment (warm for hospitality, neutral for general interiors, cooler for task and utility zones). In retail and high-finish interiors, prioritize higher CRI where accurate color appearance affects product presentation, materials, and skin tones.
Color policy reference: Use the table below to set CCT and CRI targets by environment so finishes, products, and skin tones render predictably.
| Environment | Typical CCT intent | CRI priority | Spec checks |
|---|---|---|---|
| Hospitality / high-finish residential | Warmer appearance for comfort and materials. | Higher CRI recommended for skin tones and finishes. | Document CCT per zone; confirm dimming behavior at low levels. |
| Offices / general interiors | Neutral appearance for focus and uniformity. | Standard CRI can work; higher CRI where presentation matters. | Avoid mixing CCTs; align with daylight exposure and finishes. |
| Retail merchandising | Neutral-to-cooler for clarity (varies by brand intent). | High CRI recommended for product accuracy. | Validate on-surface appearance; confirm consistency across fixture families. |
| Circulation / utility zones | Neutral or cooler for visibility where comfort is secondary. | Standard CRI acceptable if color fidelity isn’t critical. | Confirm glare control in sightlines; ensure uniformity and safe visibility. |
Dimming compatibility
Recessed downlights often reveal dimming issues faster than other ceiling systems because the source is in the field of view. Confirm the dimming protocol (0–10V, phase dim, or specialized 1% drivers), wiring requirements, and control compatibility to avoid flicker, dropouts, or limited dim range.
Dimming compatibility checklist: Use the table below to match recessed drivers to controls so you avoid flicker, dropout, and limited dim range.
| Dimming approach | Best for | Common symptom if mismatched | Spec checks |
|---|---|---|---|
| 0–10V dimming | Commercial zoning with sensors and automation. | Flicker, unstable low-end, uneven dimming across a zone. | Confirm driver option, wiring practices, and avoid mixed driver families in one zone. |
| Phase dim (forward/reverse) | Residential and select commercial retrofits with line-voltage dimmers. | Buzzing, shimmer, dropout at low levels. | Match dimmer compatibility list; confirm minimum load and driver requirements. |
| 1% dimming / specialized drivers | High-end conference rooms, presentation spaces, premium hospitality. | Can’t achieve low scenes smoothly on standard drivers. | Specify the correct driver family and control strategy; document commissioning setpoints. |
| Mixed protocols in one area | Avoid where possible. | Inconsistent user experience and service complexity. | Standardize dimming protocol per zone; document in submittals and closeout. |
Commercial Project Support
Need documentation, lead-time visibility, or closeout-ready deliverables? Use the resources below to route your project correctly and reduce revision cycles.
- Commercial Project Support (Hub)
- Quote Intake & Project Routing
- Photometrics
- Submittals
- Shipping Reliability & Fulfillment
- Closeout Documentation
- Returns & Restocking
- Warranty Claims
- Frequently Asked Questions
FAQs
How do I choose recessed lighting by aperture size?
Choose aperture size based on ceiling conditions, desired visual “quietness,” and the beam distribution needed at the task plane. Smaller apertures reduce ceiling presence; larger apertures can support broader distribution when spaced correctly.
When should I use wafer downlights instead of traditional downlights?
Use wafer downlights when plenum depth is limited or a housing is not practical. Use traditional and deep-regress downlights when glare control, beam precision, and architectural finish quality are the priority.
What causes glare with recessed lighting?
Glare is most often caused by shallow trims, overly high output for the space, or layouts that put the light source in common sightlines. Deep-regress optics and correct spacing reduce perceived brightness and improve comfort.
Do I need high CRI for recessed lighting?
High CRI is recommended where accurate color appearance matters—retail merchandising, hospitality finishes, and high-end interiors. In utility areas, standard CRI may be acceptable if color fidelity is not critical.
How do I prevent flicker and dimming issues?
Confirm the dimming protocol and driver compatibility with the control system, and follow best practices for low-voltage wiring where applicable. High-end spaces may require specialized 1% dimming drivers for consistent low-level performance.
Why does beam control matter for recessed downlights?
Beam control determines how evenly the space is illuminated and whether light is placed where it’s needed. Poor beam control can create hot spots, dark zones, or uneven task illumination that cannot be fixed without layout changes.
Expert reviewed for commercial specification
Brandon Waldrop
Lead Commercial Lighting Specialist • Documentation + Layout Support
The LED Recessed Lighting collection is reviewed for clean-ceiling execution, controlled beam performance, and low-glare comfort so downlights deliver uniform task visibility without harsh apertures or distracting ceiling clutter.
Collection review focus:
Verified for ceiling-condition fit (plenum depth limits, remodel constraints, and housing vs canless feasibility) so the selected family installs cleanly without forcing compromises or unsafe access; verified for aperture and optic control (beam intent, distribution consistency, and spacing-to-height behavior) so layouts avoid hot spots, dark zones, and wall scalloping; verified for glare management in real sightlines (seated and standing viewing angles, shallow vs deep-regress shielding, and aperture luminance control) so comfort holds in offices, corridors, conference rooms, retail aisles, and screen-heavy spaces; verified for trim and finish consistency (cutout tolerance, trim seating, and visual uniformity across the ceiling plane) so the ceiling reads intentional—not patched; verified for color policy discipline (CCT consistency by zone and CRI selection where color accuracy matters) so finishes, merchandise, and skin tones render predictably across phased installs; verified for dimming stability and protocol alignment (0–10V, phase, or 1% drivers where required) so low-end scenes don’t flicker, shimmer, drop out, or dim unevenly across a zone; verified for zoning and controls behavior (sensor compatibility, scene tuning, and high-end trim strategy) so you can cap brightness, protect comfort, and still meet task and circulation targets; verified for serviceability and long-term maintenance path (driver access method, replacement approach, and documentation of settings) so future swaps don’t change appearance or performance unexpectedly.
Team-backed support: Quotes, photometrics, submittals, shipping visibility, and closeout documentation are supported through Commercial Project Support . Call 800-357-6860.
