Commercial Durability
Engineered for demanding environments, with industrial IP-rated construction, thermal control, and documentation-backed warranty support.
Product Overview

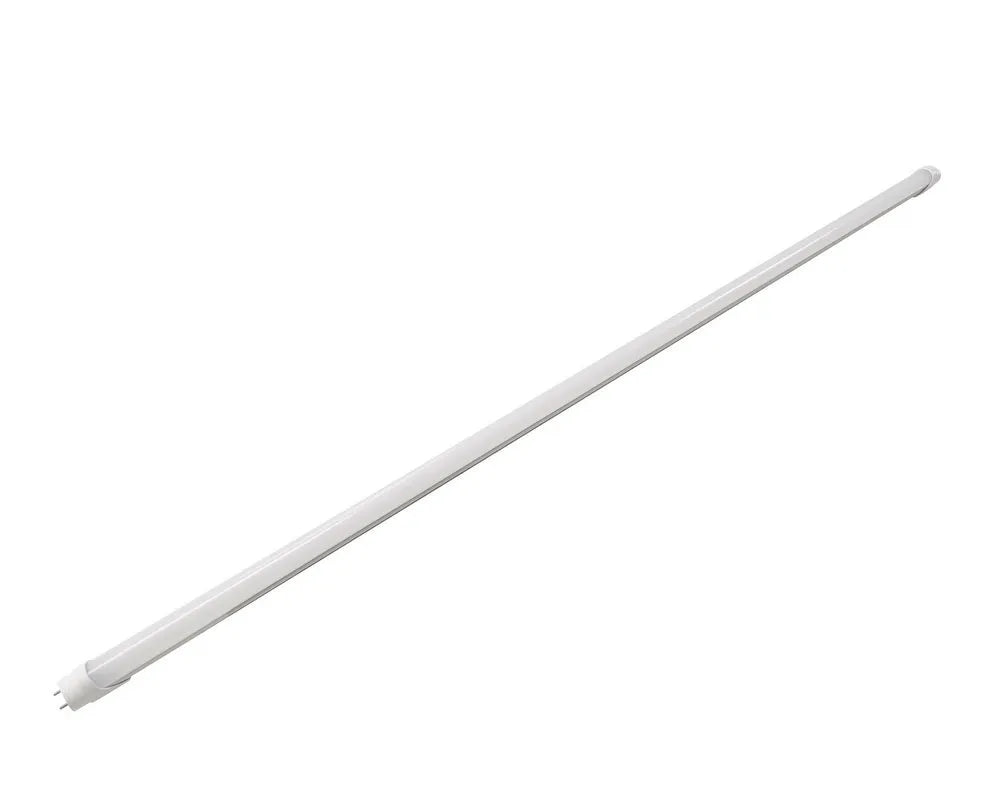

The Linear5 Series T8 LED Tube is engineered as a direct fluorescent replacement platform for commercial facilities transitioning legacy linear lighting systems to LED without changing fixture infrastructure. Designed for installation in existing strip lights, troffers, and industrial linear housings, the series supports both ballast-compatible and ballast-bypass operation, allowing retrofit strategies to align with maintenance planning, electrical standards, and long-term reliability requirements.

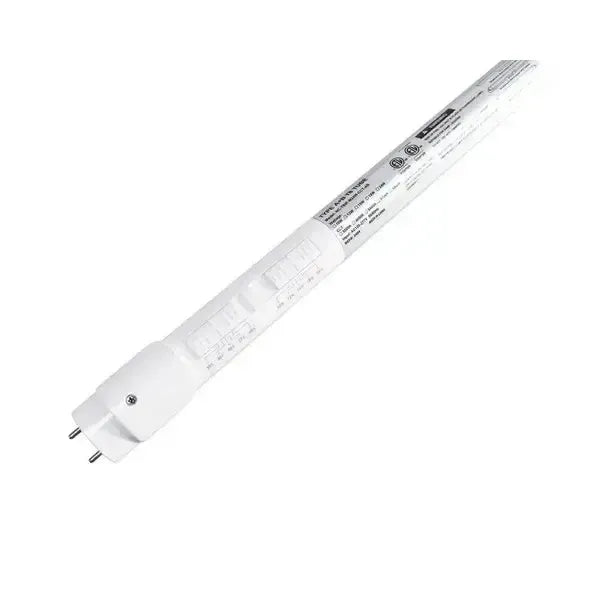

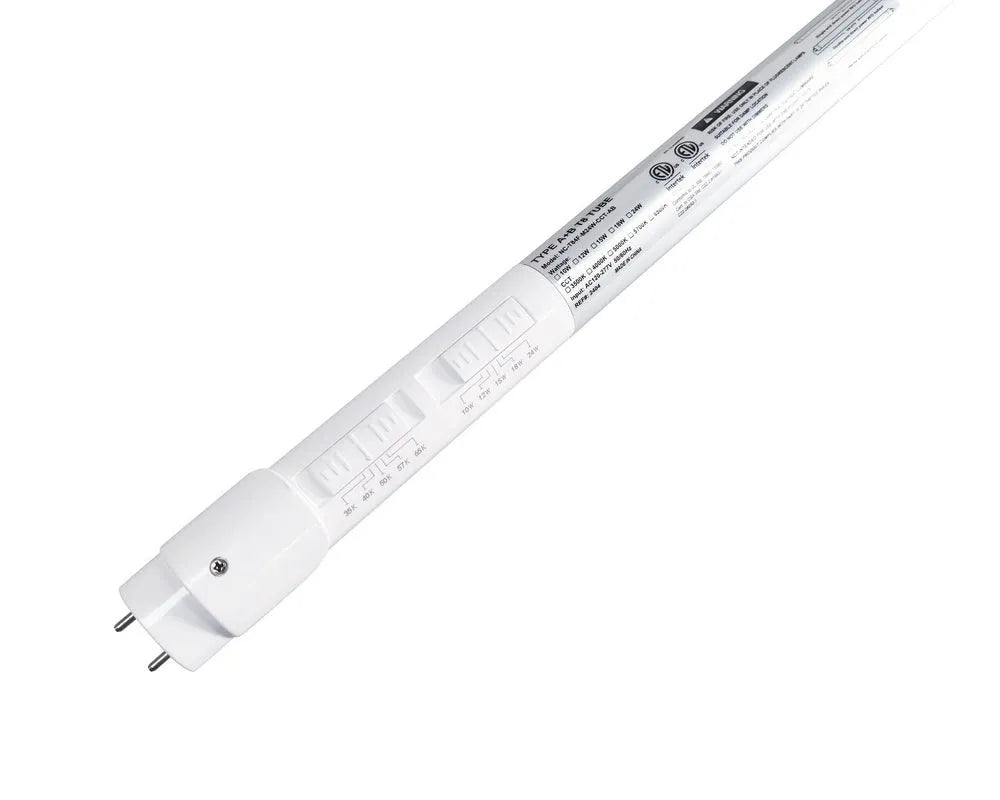

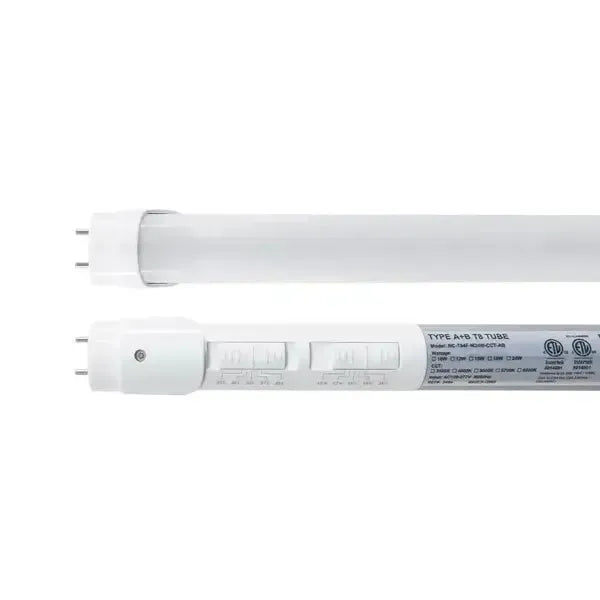

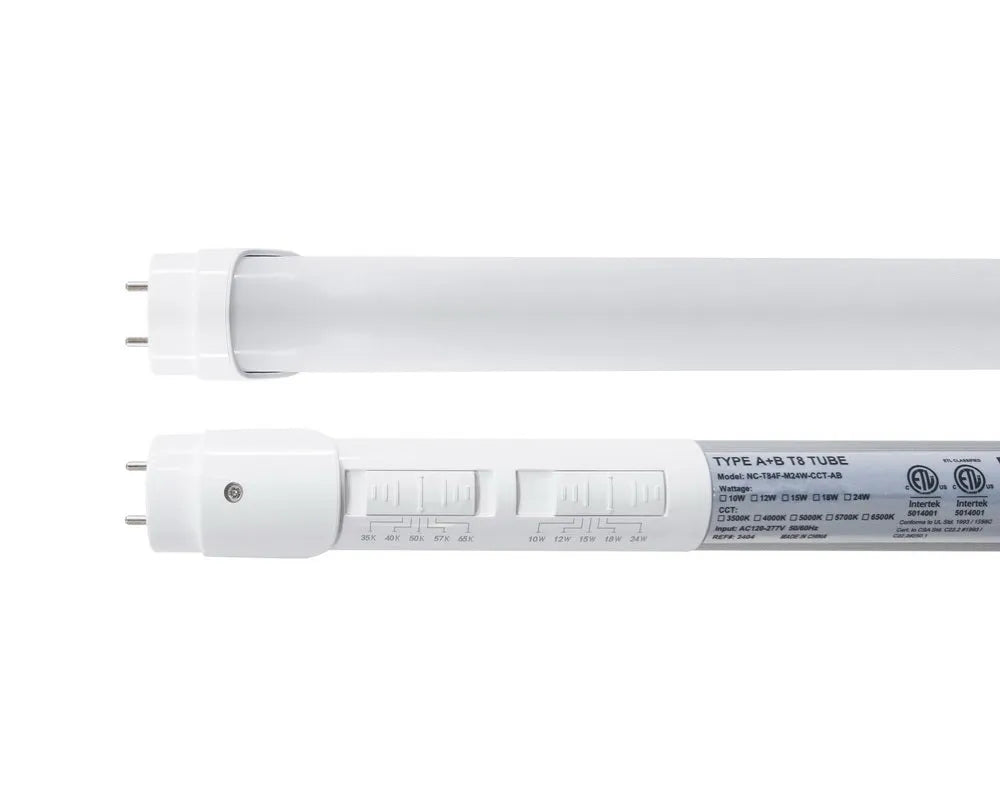

Selectable wattage enables lumen output to be matched to fixture spacing, ceiling height, and task illumination requirements while maintaining a consistent lamp format across large facilities. Field-selectable correlated color temperature allows visual uniformity between retrofit zones and newly installed luminaires, supporting coordinated deployment alongside LED linear tube lighting systems and broader commercial lighting installations.
Hybrid Type A+B compatibility provides installation flexibility during phased upgrades. Existing ballast operation can remain in service where appropriate, while direct-wire configuration removes ballast failure as a maintenance variable in long-term applications. LED tube technology delivers directional illumination with higher luminous efficacy and reduced operating heat compared to fluorescent sources, improving system efficiency while extending service intervals in continuously operated environments. LED tubes commonly achieve substantially longer operating life and lower power consumption than fluorescent lamps, reducing relamping frequency across commercial facilities operating extended hours.
The Linear5 platform standardizes 4-foot and 8-foot lamp deployment across warehouses, education facilities, retail interiors, service corridors, and industrial workspaces where linear illumination remains the dominant lighting architecture. Maintaining identical electrical characteristics, color temperature ranges, and installation options across lamp lengths simplifies specification, inventory management, and large-scale retrofit execution.
Fixture Specifications
| Input Voltage | 120–277V |
|---|---|
| Compatibility | Type A+B (ballast compatible and ballast bypass) |
| Wiring | Single- or double-ended wiring (by configuration) |
| CCT Options | 3500K, 4000K, 5000K, 5700K, 6500K |
| Efficacy | Up to 150 lm/W (126–150 lm/W across configurations) |
| Dimming | 0–10V (when applicable to the installed configuration) |
| Certifications | cETLus Listed, DLC Premium Listed |
| Minimum Operating Temperature | -4°F |
| Warranty | 5-Year Limited Warranty |
Performance & Physical Configurations
| Length | Base | Case Pack | Input Voltage | Selectable Wattage | Lumen Output | CCT Options | Dimensions | MPN | DLC Product ID |
|---|---|---|---|---|---|---|---|---|---|

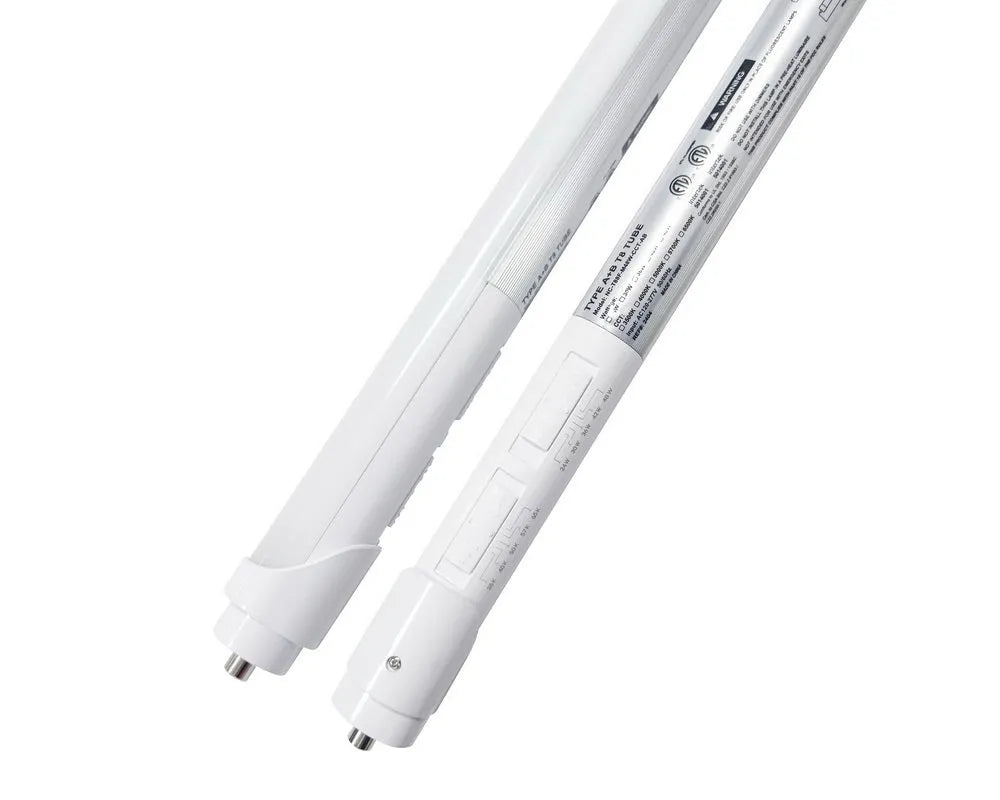

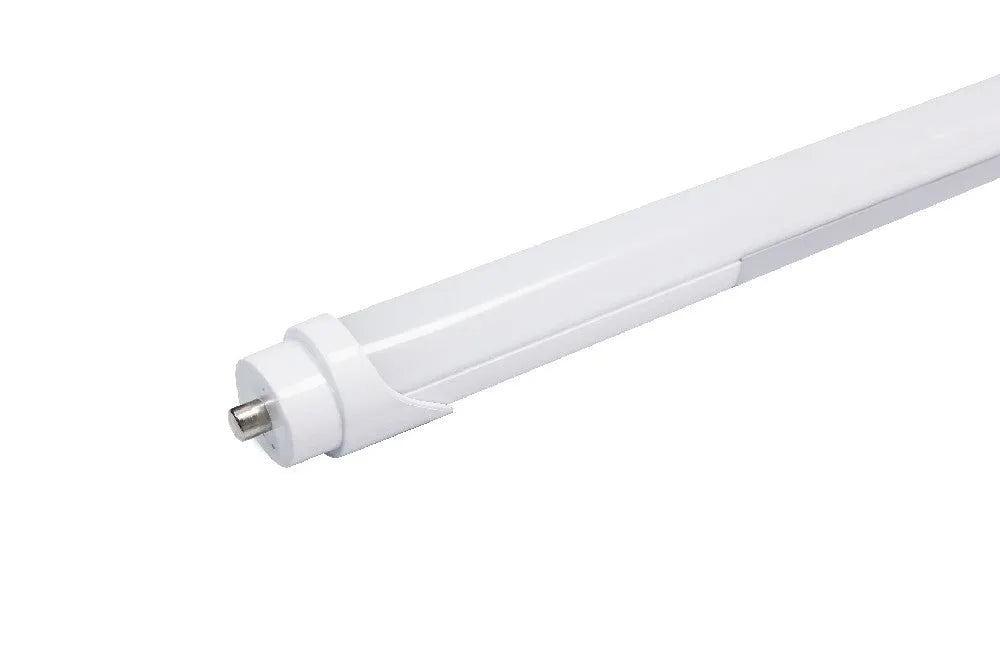

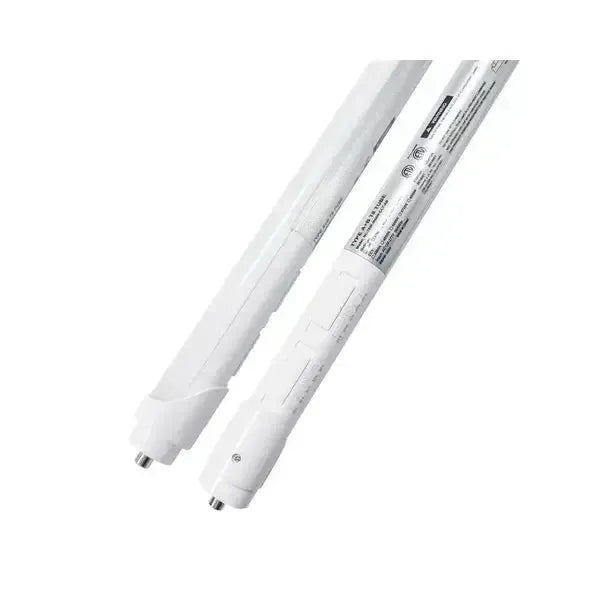

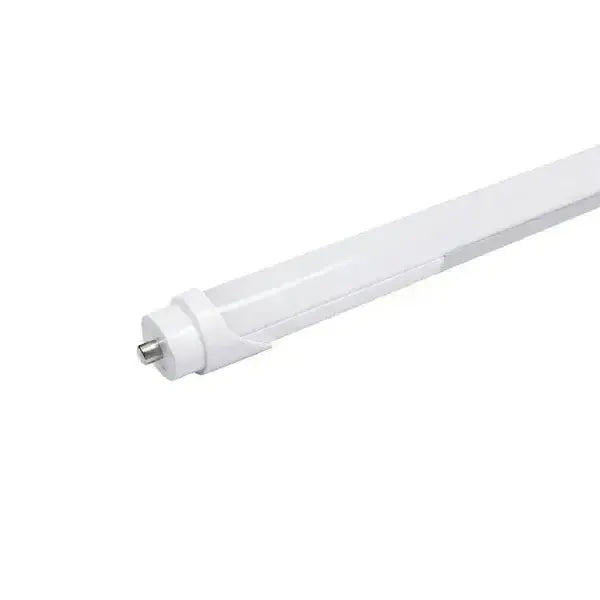

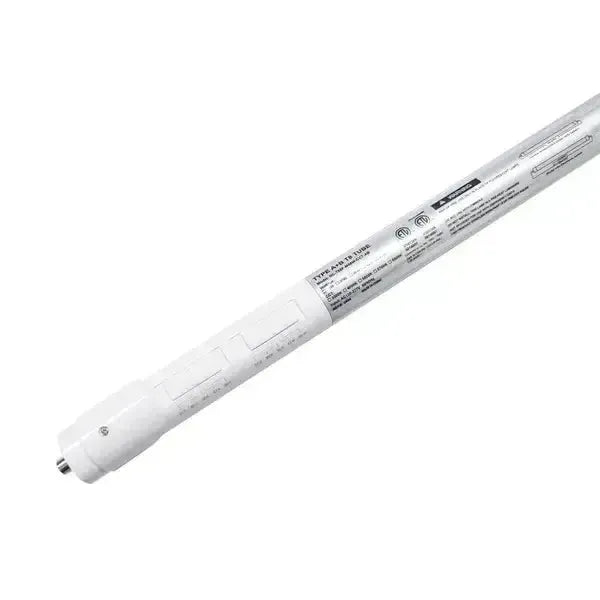

| 8 ft | FA8 | Case of 25 | 120–277V | 24W / 30W / 36W / 42W / 48W | 3,600 / 4,380 / 5,000 / 5,550 / 6,050 lm | 3500K / 4000K / 5000K / 5700K / 6500K | 92.78 in L × 1.29 in H × 1.13 in D | NC-T88F-M48W-CCT-AB-FA8 | S-C0602B |

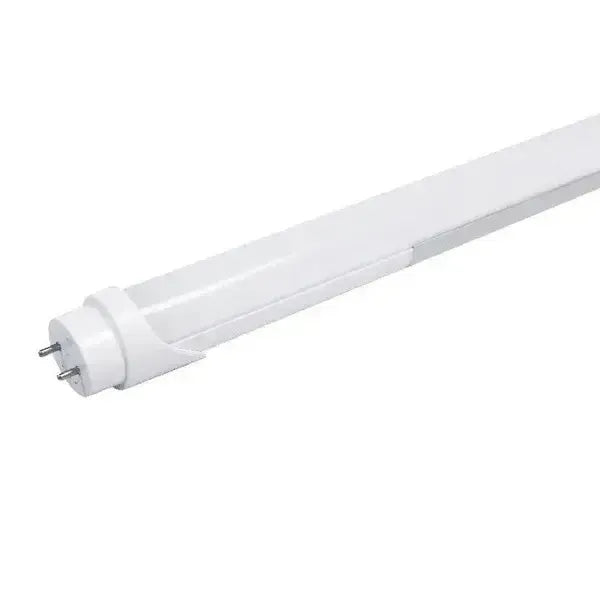

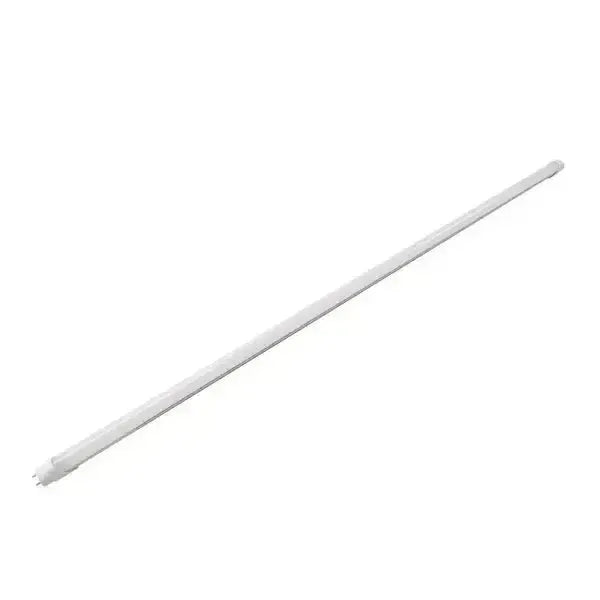

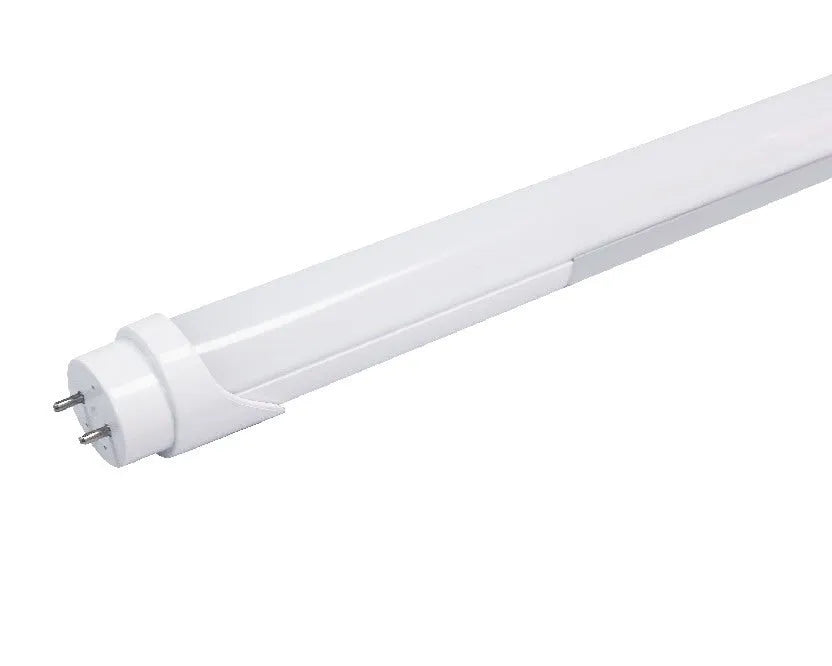

| 4 ft | G13 | Case of 30 | 120–277V | 10W / 12W / 15W / 18W / 24W | 1,500 / 1,750 / 2,100 / 2,430 / 3,050 lm | 3500K / 4000K / 5000K / 5700K / 6500K | 47.17 in L × 1.29 in H × 1.13 in D | NC-T84F-M24W-CCT-AB | S-FJ22Q1 |
Product Downloads
- Specification Sheet (NC-T84F-M24W-CCT-AB)
- Specification Sheet (NC-T88F-M48W-CCT-AB-FA8)
- Installation Instructions (NC-T84F-M24W-CCT-AB)
- Installation Instructions (NC-T88F-M48W-CCT-AB-FA8)
- Photometrics
- Warranty
