Product Overview
The PrismLay Series LED Troffer Light is a recessed T-grid luminaire platform developed for commercial ceiling systems requiring standardized fixture sizing, controllable lumen output, and configuration flexibility across large interior installations. The series supports both 2×2 and 2×4 ceiling modules, allowing consistent fixture specification throughout offices, educational facilities, healthcare environments, and administrative buildings while maintaining uniform visual appearance across mixed-use spaces.
Selectable wattage configurations allow illumination levels to be aligned with mounting height, fixture spacing, and target foot-candle requirements without changing luminaire type. Field-selectable correlated color temperature enables consistent color deployment across phased construction or retrofit projects operating within standard commercial electrical infrastructure.
Configuration options including integrated sensor receptacles and factory-installed 90-minute emergency backup support coordination between general illumination, lighting controls, and life-safety requirements within a single recessed fixture family. This approach reduces fixture variation across project layouts while maintaining compliance flexibility in designated occupancy and egress zones.
As part of a broader LED troffer lighting solution strategy, the PrismLay Series integrates into modern commercial lighting systems focused on predictable performance, simplified installation, and long-term operational consistency across interior environments.
Fixture Specifications
- Voltage: 120–277V
- CCT: 3500K, 4000K, 5000K, 5700K, 6500K
- Dimming: 0–10V
- Construction: Recessed T-Grid LED Troffer

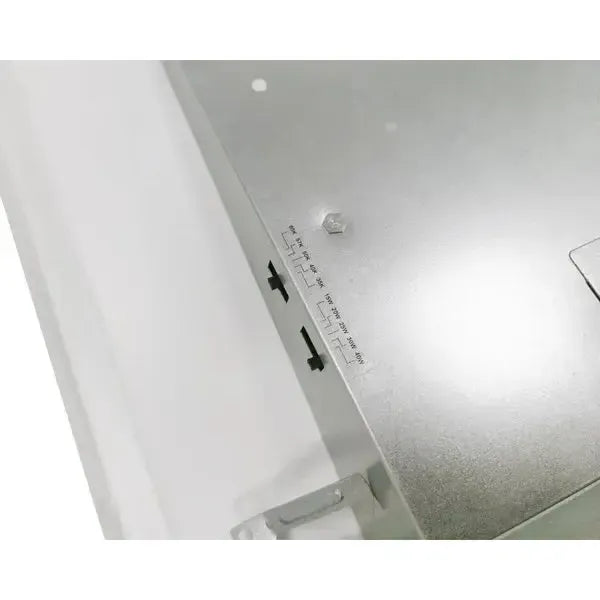

- Special Features: Selectable Wattage and Selectable CCT
- Certifications: cETLus Listed, RoHS Compliant, DLC Premium Listed
- Warranty: 5-Year Limited Warranty
Performance & Physical Configurations

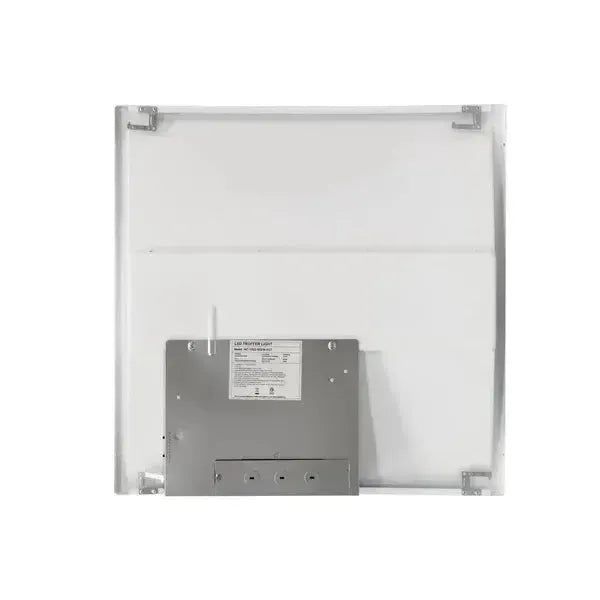

2×2 Troffer
- Selectable Wattage: 15W / 20W / 25W / 30W / 40W
- Lumen Output: 1,950–5,000 lm
- Dimensions: 23.74 in L × 23.74 in W × 2.12 in H
- Sensor Port Option: Yes
- Emergency Backup Option: Yes (90-minute operation)
- MPN (Standard): NC-TR22-M40W-CCT
- MPN (Sensor): NC-TR22-M40W-CCT-S
- MPN (Emergency): NC-TR22-M40W-CCT-EM
- MPN (Sensor + Emergency): NC-TR22-M40W-CCT-S-EM
- DLC Product ID: S-9Q9R20
2×4 Troffer
- Selectable Wattage: 25W / 30W / 35W / 40W / 50W
- Lumen Output: 3,250–6,250 lm
- Dimensions: 47.72 in L × 23.74 in W × 2.12 in H
- Sensor Port Option: Yes
- Emergency Backup Option: Yes (90-minute operation)
- MPN (Standard): NC-TR24-M50W-CCT
- MPN (Sensor): NC-TR24-M50W-CCT-S
- MPN (Emergency): NC-TR24-M50W-CCT-EM
- MPN (Sensor + Emergency): NC-TR24-M50W-CCT-S-EM
- DLC Product ID: S-N7KLKF
