Product Overview
The WallGuard Series LED Traditional Wall Pack is a forward-throw exterior luminaire platform developed for commercial buildings requiring consistent perimeter illumination, selectable output flexibility, and optional emergency operation within a unified wall-mounted fixture family. Traditional wall pack optics distribute light outward and downward from the mounting surface to provide broad coverage across service areas, building perimeters, loading zones, walkways, and exterior egress paths.

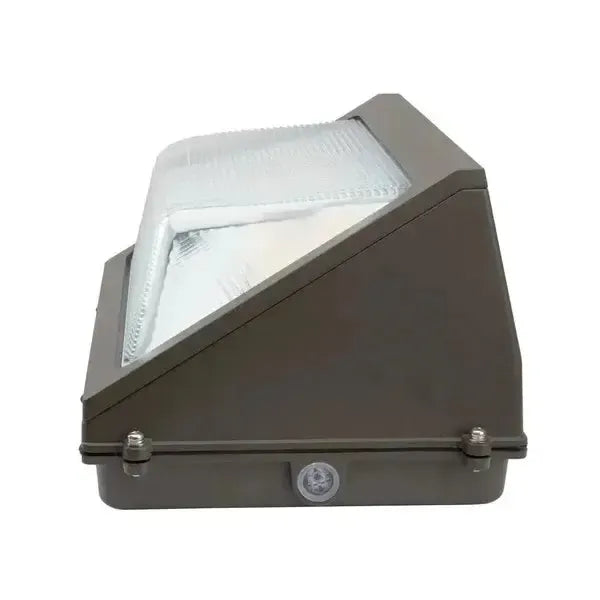

Field-selectable wattage allows delivered lumen output to be aligned with mounting height, façade spacing, and required illumination levels without changing fixture housing or installation location. Selectable correlated color temperature supports visual consistency across exterior lighting zones and coordinated deployment alongside LED wall pack lighting systems and larger commercial lighting installations.

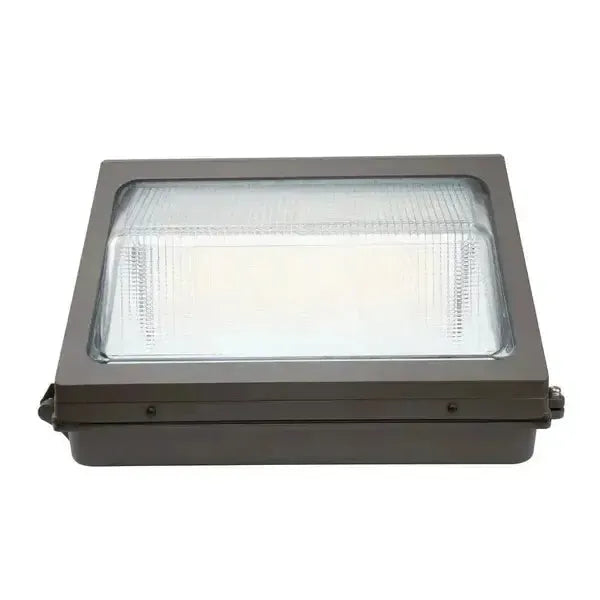

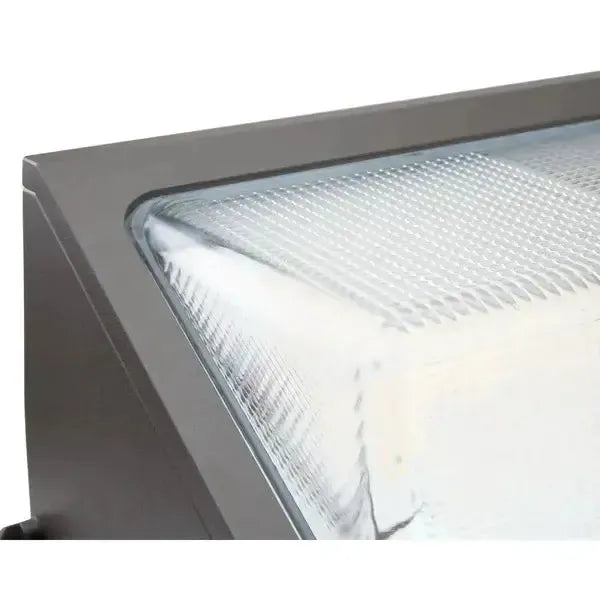

Configurations are available with standard operation or integrated 90-minute emergency backup to maintain exterior visibility during loss of normal power. Die-cast construction, sealed optical assemblies, and wide-voltage driver operation support long-term performance across demanding commercial and industrial environments where reliability, service access, and predictable light distribution remain primary specification requirements.
Fixture Specifications
- Voltage: 120–277V
- CCT: 3000K, 4000K, 5000K
- Dimming: 0–10V
- IP Rating: IP65
- Emergency Operation: 90 Minutes (Emergency Backup Models)
- Minimum Operating Temperature: -22°F
- Certifications: UL Listed, DLC Premium Listed
- Warranty: 5-Year Limited Warranty
Performance & Physical Configurations
30W / 40W / 50W / 60W Configuration
- Wall Pack Type: Traditional Wall Pack
- Lumen Output: 4,770–9,471 lm
- Efficacy: 139–159 lm/W
- Dimensions: 14.2 in W × 9.3 in H × 7.3 in D
- Emergency Backup Option: Yes (90-minute operation)
- MPN (Emergency): NC-WPE-60W-CWP-3CCT-EM
- MPN (Standard): NC-WPE-60W-CWP-3CCT
- DLC Product ID: S-LV6K3H
60W / 80W / 100W / 120W Configuration
- Wall Pack Type: Traditional Wall Pack
- Lumen Output: 8,280–15,720 lm
- Efficacy: 119–138 lm/W
- Dimensions: 14.2 in W × 9.3 in H × 7.3 in D
- Emergency Backup Option: Yes (90-minute operation)
- MPN (Emergency): NC-WPE-120W-CWP-3CCT-EM
- MPN (Standard): NC-WPE-120W-CWP-3CCT
- DLC Product ID: S-QLGPNZ
Product Downloads
- Specification Sheet (NC-WPE-60W-CWP-3CCT)
- Specification Sheet (NC-WPE-120W-CWP-3CCT)
- Installation Instructions
- Photometrics
- Warranty
