Product Overview

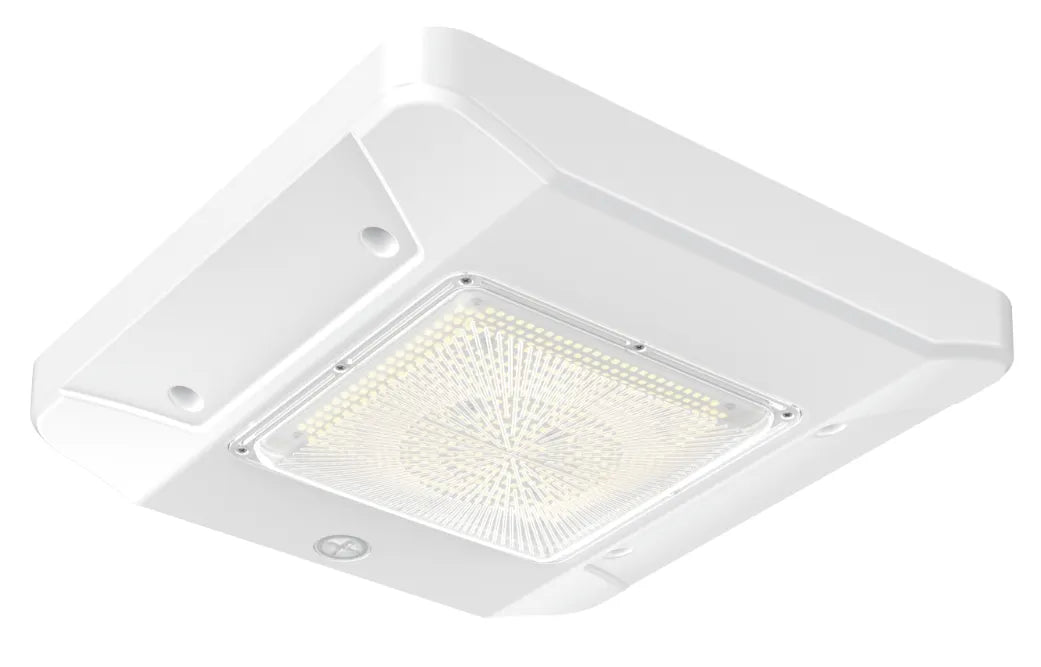

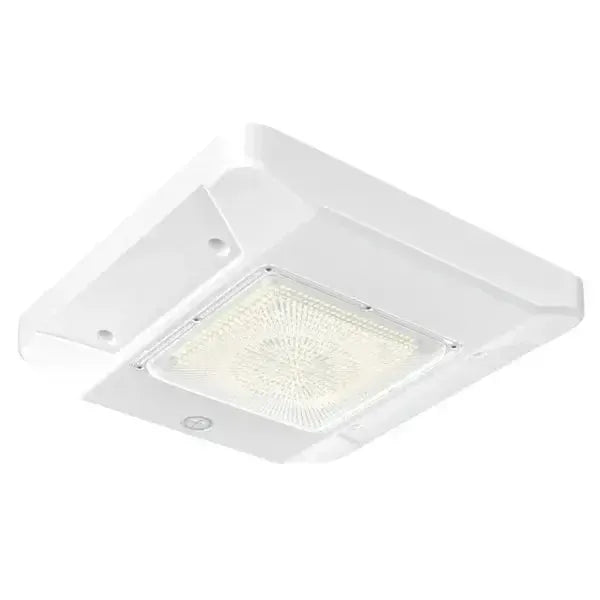

The FuelLite Series LED Gas Station Canopy Light is a high-output exterior luminaire platform developed for fueling stations, truck stops, and covered commercial drive-through environments requiring uniform illumination across wide canopy structures. The fixture supports standardized deployment across multi-bay fueling layouts while maintaining consistent light distribution, electrical compatibility, and enclosure protection in exposed outdoor conditions.
Selectable wattage allows illumination levels to be aligned with canopy mounting height, column spacing, and required ground illumination targets without changing fixture housing. Selectable correlated color temperature supports visual consistency across fueling zones and surrounding exterior areas, allowing coordinated installation alongside LED canopy lighting systems and broader commercial lighting installations.
The sealed IP65-rated construction protects internal electrical components from moisture, airborne contaminants, and washdown exposure common in fueling environments. High lumen output combined with DLC Premium performance supports reduced fixture counts while maintaining uniform canopy illumination across commercial fueling and transportation facilities.
Fixture Specifications
- Voltage: 120–277V
- CCT: 4000K, 5000K, 5700K
- Dimming: 0–10V
- Efficacy: 140 lm/W
- IP Rating: IP65
- Minimum Operating Temperature: -40°F
- Certifications: UL Listed, DLC Premium Listed
- Warranty: 5-Year Limited Warranty
Performance & Physical Configurations
- Fixture Type: Gas Station Canopy Light
- MPN: NC-CPGS-150W-3CCT
- Selectable Wattage: 100W / 120W / 150W
- Lumen Output: 14,000 / 16,800 / 21,000 lm
- Dimensions: 15 in L × 15 in W
- DLC Product ID: S-BV7FVB
Product Downloads
