Product Overview
The DirectDrive Series LED omni-directional HID replacement lamps are designed for retrofit projects where existing luminaires remain structurally sound but legacy HID sources no longer meet performance, maintenance, or energy requirements. These corn cob retrofit lamps allow facility operators to transition from metal halide or high-pressure sodium systems without replacing housings, poles, or mounting infrastructure, supporting modernization through compatible LED HID retrofit bulbs.
Selectable wattage configurations support accurate lumen matching across high bays, wall packs, post-top fixtures, area lights, and industrial enclosures, reducing overlighting while maintaining required illumination levels. Omni-directional LED distribution replicates traditional HID lamp output patterns, allowing existing reflectors and optical systems to continue operating as intended during lamp-level upgrades within broader LED bulb replacement programs.
Universal 120–277V input compatibility supports standard commercial electrical systems, while EX39 mogul and E26 medium base options enable deployment across a wide range of retrofit scenarios. Integrated surge protection and solid-state driver architecture support operation in demanding warehouse, exterior site, and industrial environments where vibration, switching cycles, and temperature variation are common.
For facilities modernizing legacy discharge lighting systems, the DirectDrive Series provides a practical transition into current LED commercial lighting strategies while extending the service life of existing luminaires and minimizing installation disruption.
Fixture Specifications
- Input Voltage: 120–277V
- Color Temperature: 3000K, 4000K, 5000K Selectable
- Color Rendering Index: 80+
- Distribution: Omni-Directional 360° Light Output
- Base Types: EX39 Mogul, E26 Medium
- Surge Protection: 4kV Integrated
- Rated Life: 50,000 Hours
- Operating Temperature: Down to −22°F
- Certifications: cULus Listed, DLC Listed
- Location Rating: Dry or Damp Location
- Installation Type: Ballast Bypass / Direct Wire Retrofit
- Typical HID Replacement: 50W–400W Metal Halide or High Pressure Sodium
- Warranty: 5-Year Limited Warranty
Performance and Output Configurations

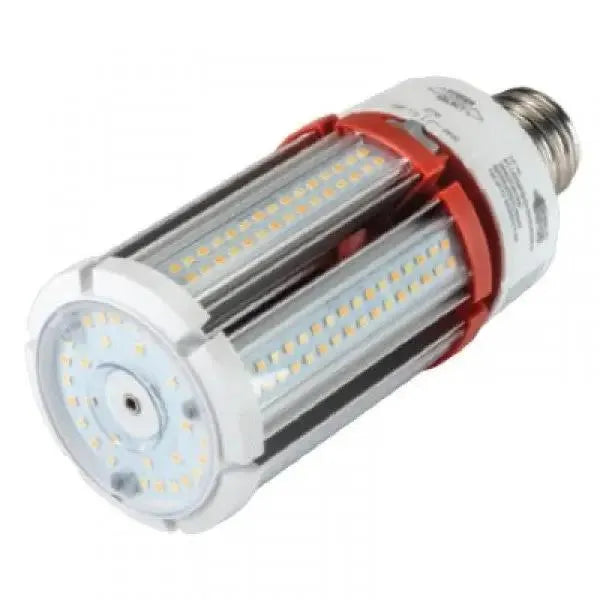

9W–19W Configuration
- Typical Lumen Output: 1,287–2,556 lm
- Common HID Replacement: 50W–70W HID
- Base Type: E26
- Typical Applications: Wall Packs, Post Tops, Small Exterior Fixtures
18W–36W Configuration
- Typical Lumen Output: 2,610–5,220 lm
- Common HID Replacement: 100W HID
- Base Type: E26 / EX39
- Typical Applications: Parking Areas, Building Perimeter Lighting

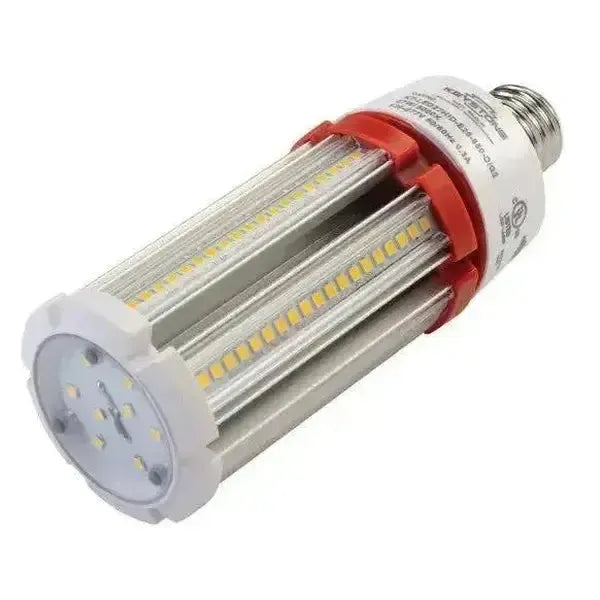

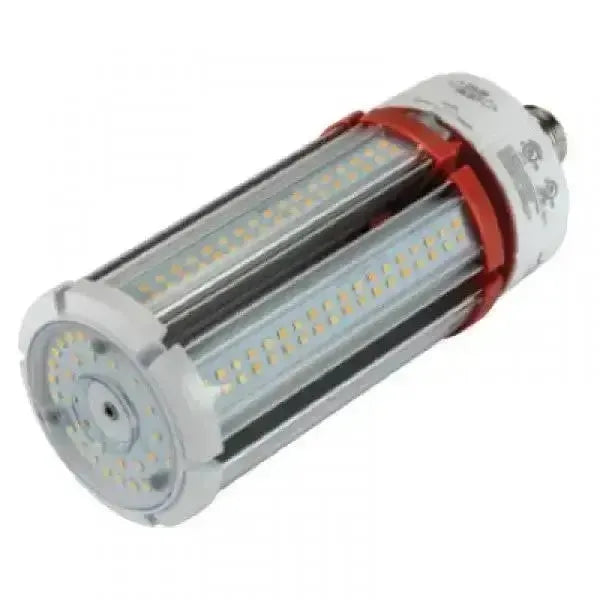

27W–54W Configuration
- Typical Lumen Output: 3,915–7,830 lm
- Common HID Replacement: 150W–175W HID
- Base Type: EX39
- Typical Applications: Site Lighting, Canopies, Utility Areas

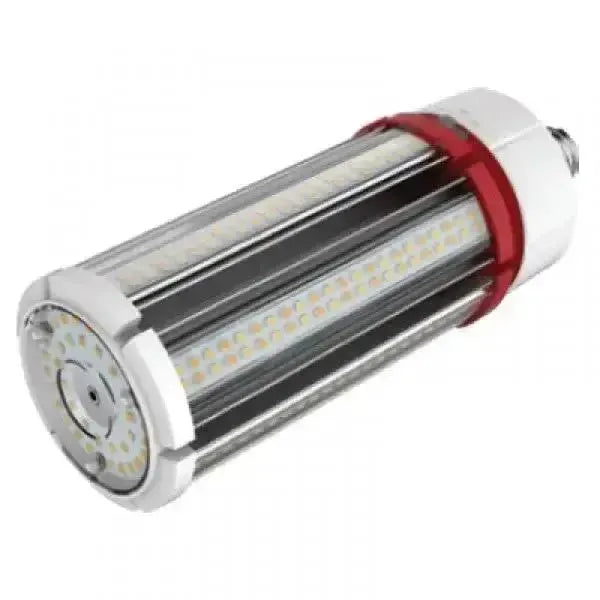

45W–63W Configuration
- Typical Lumen Output: 6,525–9,135 lm
- Common HID Replacement: 200W–250W HID
- Base Type: EX39
- Typical Applications: High Bays, Industrial Interiors

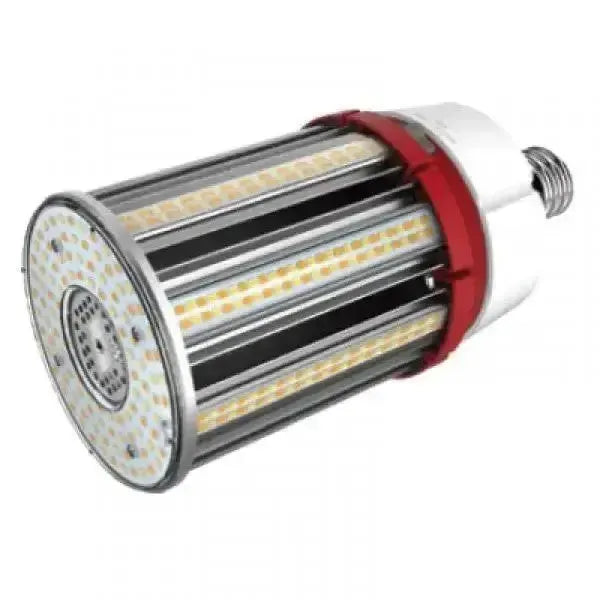

54W–80W Configuration
- Typical Lumen Output: 7,830–11,600 lm
- Common HID Replacement: 250W–320W HID
- Base Type: EX39
- Typical Applications: Warehouses, Manufacturing Facilities

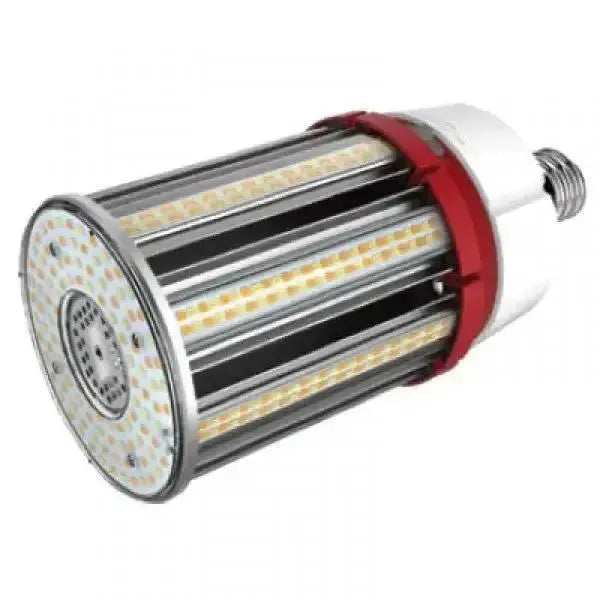

63W–100W Configuration
- Typical Lumen Output: 9,135–14,500 lm
- Common HID Replacement: 320W–400W HID
- Base Type: EX39
- Typical Applications: High Clearance Industrial & Exterior Site Lighting
