LED Wraparound Lights
Wraparound LED fixtures that deliver wide, even distribution—an efficient upgrade path for corridors, utility rooms, and back-of-house spaces.
LED wraparound fixtures for low-clearance corridors, stairwells, and utility spaces
LED Wraparound Fixtures are engineered for low-clearance areas that require high-output illumination without harsh glare. Using frosted acrylic or prismatic lenses, these surface-mount fixtures diffuse light in a wide arc—brightening floors and vertical surfaces to reduce shadows in tight corridors and service areas.
Read more about LED Wraparound Lights
Wraparound fixture families in this collection
Our collection focuses on low-profile, maintenance-free solutions that replace legacy two-lamp fluorescent wraps. With Field-Selectable CCT and Wattage, these fixtures allow on-site tuning of light levels and color temperature—supporting consistent illumination across mixed-use facilities and phased retrofits.
Common applications and related context
Answer summary: LED wraparound fixtures are specified by diffuser type, spacing, mounting height, glare control, and corridor/utility application—not lumen output alone.
Low-clearance linear fixture references
Replacing Fluorescent Wrap Lights with LED Wraparound Fixtures Improving Visibility in Corridors and Utility Spaces with Diffused LED Lighting Preventing Dimming and Control Issues in Surface-Mounted LED Fixtures
Wraparound spec workflow: diffuser selection, spacing checks, and corridor-safe controls
Use this guide to choose wraparound fixtures by diffuser type and glare exposure, confirm spacing for uniform coverage in low ceilings, and route documentation (photometrics, submittals, shipping visibility, closeout) for commercial projects. The table of contents links to the decision points used in real corridor and utility specifications.
Wraparound lighting specification guidance
Wraparound performance is driven by how evenly light is distributed—not raw lumens alone. Lens style, fixture length, mounting height, spacing, and control strategy all affect glare, shadow control, and visual comfort in corridors, stairwells, and utility rooms. For broader guidance covering panels, troffers, recessed, and linear ceiling systems, reference our commercial ceiling lighting buying guide.
Specification note: Common wraparound issues include uneven spacing that creates shadow bands, excessive brightness at eye level from improper diffuser choice, and over-lighting in low-clearance spaces that causes discomfort.
Technical selection guide for LED wraparound fixtures
Wraparound fixtures are selected to control glare while maintaining uniform ambient coverage. Use the sections below to match diffuser type, mounting height, and control behavior to the space.
Prismatic vs. frosted diffusers
The lens defines how the fixture “feels” in the space.
Selection rule: Prismatic lenses prioritize maximum floor illumination, while frosted lenses prioritize glare reduction and visual comfort in occupied corridors and stairwells.

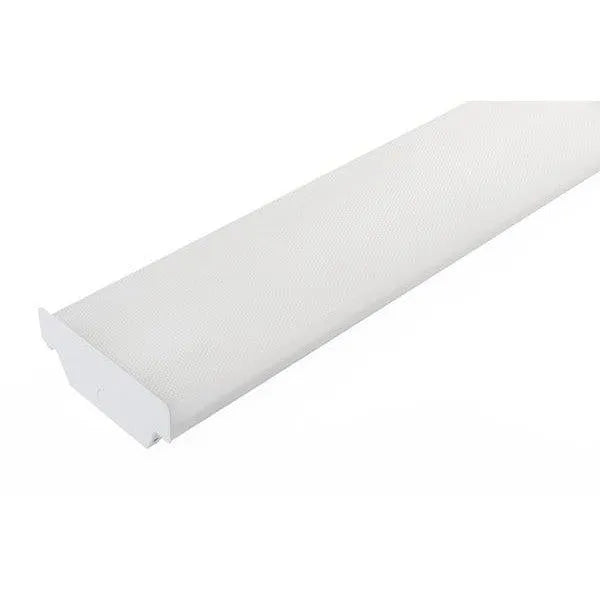

Prismatic lenses for maximum output
Prismatic diffusers use a textured pattern to redirect light into multiple angles. This is often preferred in storage rooms, workshops, and service corridors where maximum task visibility at the floor is the priority.

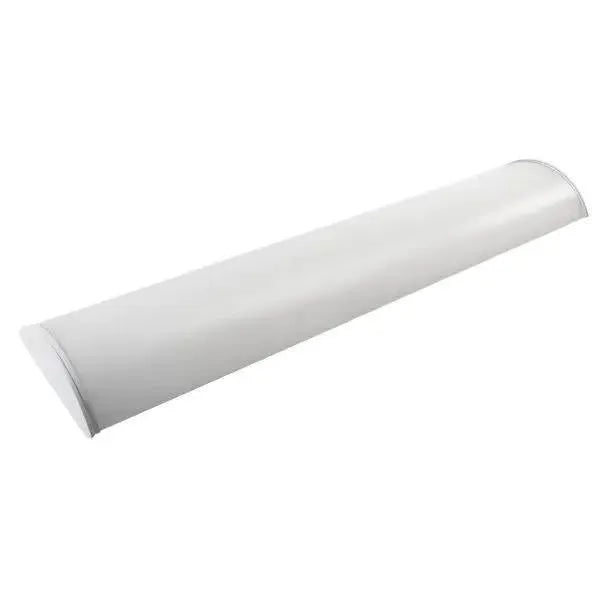

Frosted acrylic for visual comfort
Frosted lenses provide a softer, more uniform luminous surface that hides individual LED points—ideal for schools, offices, and stairwells where occupants frequently look upward and glare complaints are common.
Diffuser selection shortcut: Use this table to choose prismatic vs. frosted based on glare exposure and space type.
| Diffuser type | What it does | Best-fit spaces | Tradeoff | Spec check |
|---|---|---|---|---|
| Prismatic lens | Redirects light broadly for maximum perceived brightness and floor illumination. | Utility corridors, storage rooms, workshops, back-of-house areas. | More sparkle/visual texture; can feel harsher at low ceilings. | Use lower output in occupied corridors; confirm glare tolerance and reflective finishes. |
| Frosted acrylic lens | Creates a smooth luminous surface and reduces direct-view glare and LED point visibility. | Schools, offices, stairwells, public corridors, healthcare-adjacent circulation. | May deliver slightly less “punch” than prismatic in utility tasks. | Pair with correct lumen package and spacing to avoid under-lighting while keeping comfort high. |
Spacing and low-ceiling glare control
In low-clearance spaces, glare is driven by viewing angle and surface brightness more than total lumens.
Selection rule: Use spacing and selectable output to maintain uniformity while avoiding over-lighting—especially in corridors with glossy floors, light paint, or reflective wall surfaces.
Layout quick check: Use this table to prevent corridor shadow banding and hot spots in low ceilings.
| Issue observed | Typical cause | Spec fix (design) | Commissioning fix (field) |
|---|---|---|---|
| Shadow banding (“zebra” corridor) | Spacing too wide or inconsistent; misaligned rows; mixed fixture lengths. | Standardize spacing; align fixtures to the corridor centerline; select 8ft where continuous coverage matters. | Verify mounting alignment end-to-end; confirm fixture placement matches plan (no skipped bays). |
| Hot spots under fixtures | Output too high for ceiling height; spacing too tight. | Specify lower lumen package or frosted lens in occupied corridors. | Reduce selectable wattage; apply high-end trim to meet targets without over-lighting. |
| Glare complaints at eye level | Prismatic lens in occupied corridor; reflective floors/walls; fixtures in direct sightlines. | Switch to frosted lens or glare-softened optic; adjust placement away from primary sightlines. | Lower output and tune scenes; verify lens is clean and not hazed/warped. |
| Dark corners / vertical surfaces | Fixture distribution too narrow; spacing too wide for wall wash. | Adjust spacing or use lens/distribution that improves lateral spread. | Confirm fixtures are level and centered; verify ceiling plane is consistent. |
Commissioning reality: In corridors, complaints often show up after occupancy settings and output levels are finalized. Use the table below to correct settings before swapping hardware.
Troubleshooting note: If the install is complete and complaints begin post-commissioning, use the symptom-to-fix table below before swapping fixtures.
Field-proven fixes: The table below maps common wraparound complaints to likely causes and the fastest spec/commissioning corrections.
| Complaint / symptom | Typical root cause | Spec fix (design) | Field fix (commissioning) |
|---|---|---|---|
| “Too bright” / discomfort | High lumen package in low ceiling; prismatic lens in occupied space. | Specify frosted lens and/or lower output option; plan spacing to uniform targets. | Reduce selectable wattage; apply high-end trim to meet targets without glare. |
| Shadow banding down corridor | Spacing inconsistencies; misalignment; mixed fixture lengths. | Standardize spacing and fixture length; align to corridor centerline. | Re-align mounting; verify no skipped bays and consistent mounting plane. |
| Glare on glossy floors | High surface luminance + reflective finishes. | Use frosted lens and lower output; consider distribution that reduces harsh reflections. | Tune output down; adjust zoning so bright areas don’t create contrast. |
| Flicker or unstable dimming | 0–10V wiring polarity/interference; control mismatch; mixed driver families. | Standardize drivers/controls by zone; enforce wiring best practices. | Verify polarity; separate control runs from line voltage; set minimum dim above dropout. |
| Uneven color appearance | Mixed CCT settings across fixtures or phased replacements without a policy. | Define one CCT policy per corridor/zone; keep product family consistent. | Normalize CCT switch positions; document final settings at closeout. |
Stairwell and corridor controls
Stairwells and egress-adjacent corridors often require lighting that is functionally “always on,” but can still be optimized for energy.
Commissioning note: After controls are defined, standardize wattage and CCT by zone so phased retrofits don’t create patchy brightness or color shifts.
Control strategy: Use this table to apply corridor-safe bi-level behavior without compromising egress visibility.
| Control approach | Best use | How it behaves | Commissioning notes |
|---|---|---|---|
| Bi-level occupancy | Stairwells and corridors needing “always-on” baseline. | Maintains low background level; boosts to full output on occupancy. | Set baseline high enough for comfort/safety; verify timeout and re-trigger behavior. |
| 0–10V zoning | Long corridors, multi-wing facilities, mixed-use circulation. | Groups fixtures into zones for consistent tuning and schedules. | Avoid mixing driver families in one zone; verify polarity and wiring separation from line voltage. |
| Schedule + high-end trim | Facilities with consistent operating hours and “too bright” complaints. | Caps max output and reduces lighting during low-activity hours. | Document trimmed levels at closeout; keep consistent with adjacent spaces to avoid contrast. |
| Emergency / life-safety coordination | Egress-adjacent paths with inspection expectations. | Ensures baseline lighting aligns with the site’s life-safety plan. | Confirm expectations with AHJ/site policy; document final settings and locations. |
- Bi-level sensing: Maintain a low background level for safety, then raise output on occupancy.
- Emergency considerations: For critical egress paths, specify solutions aligned to the site’s life-safety plan and inspection expectations.
Selectable tuning map: Use this table to standardize wattage/CCT settings across phased wraparound retrofits.
| Scenario | Preferred output approach | Preferred CCT approach | Why it works |
|---|---|---|---|
| Low ceiling occupied corridor | Use lower selectable wattage; apply high-end trim if needed. | Standardize one CCT across the corridor zone. | Reduces glare and “too bright” complaints while keeping uniform coverage. |
| Utility / back-of-house corridor | Use mid-to-high selectable wattage as task needs require. | Match existing adjacent spaces to avoid abrupt color shifts. | Maintains task visibility without creating contrast issues between zones. |
| Phased retrofit (old + new fixtures) | Set a project-wide lumen policy by corridor type. | Lock a site-wide CCT policy and document it at closeout. | Prevents “patchwork” appearance and future replacements drifting in color/output. |
| Reflective floors / light-painted walls | Reduce output and prioritize frosted lens for comfort. | Keep consistent within the zone; avoid mixing settings. | Controls perceived brightness and glare while preserving uniformity. |
Commercial Project Support
Need documentation, lead-time visibility, or closeout-ready deliverables? Use the resources below to route your project correctly and reduce revision cycles.
- Commercial Project Support (Hub)
- Quote Intake & Project Routing
- Photometrics
- Submittals
- Shipping Reliability & Fulfillment
- Closeout Documentation
- Returns & Restocking
- Warranty Claims
- Frequently Asked Questions
FAQs
When should I choose wraparound fixtures instead of strip lights?
Choose wraparounds in low-clearance spaces where occupants can see the light source and glare control matters. The diffused lens softens brightness and improves comfort in corridors, stairwells, and utility rooms.
Prismatic vs frosted: which diffuser is better?
Prismatic lenses are often preferred for maximum floor-level brightness and utility visibility. Frosted lenses are preferred when visual comfort is the priority and you want to reduce sparkle, hot spots, and glare at eye level.
How do I avoid “shadow banding” in corridors?
Shadow banding usually comes from poor spacing or inconsistent mounting alignment. Use consistent spacing, match fixture lengths to the corridor layout, and tune output (via selectable wattage) so uniformity is maintained without over-lighting.
Do wraparounds work with 0–10V dimming and sensors?
Many wraparound fixtures support 0–10V dimming and can be paired with occupancy controls. In stairwells, bi-level strategies can maintain a low safety level and increase output when occupied.
What mounting height range is typical for wraparound fixtures?
Wraparounds are commonly used in low to mid mounting heights (corridors, stairwells, utility rooms). The right output is determined by ceiling height, spacing, surface reflectances, and glare tolerance.
Why do wraparound retrofits sometimes feel “too bright”?
In low ceilings, high lumen packages can create discomfort because the luminous surface is close to the eye. Selectable wattage and diffuser choice help tune brightness to the space while maintaining uniform coverage.
Expert reviewed for commercial specification
Brandon Waldrop
Lead Commercial Lighting Specialist • Documentation + Layout Support
The LED Wraparound Lights collection is reviewed for low-ceiling uniformity, glare-managed diffuser performance, and corridor-safe control behavior so circulation paths and utility spaces stay bright, comfortable, and operationally consistent without “too bright” complaints or shadow banding.
Collection review focus:
Verified for diffuser-driven comfort control (prismatic vs. frosted behavior treated as the primary selection lever) so low-clearance corridors, stairwells, and occupied circulation don’t suffer from harsh sparkle, hot spots, or direct-view discomfort; verified for uniformity-first layout performance in narrow spaces (shadow banding, dark corners, and wall/vertical surface lift treated as known failure modes) so corridors read continuous and safe rather than patchy; verified for low-ceiling glare exposure management (eye-level sightlines, reflective floors, light-painted walls, mirrors/metal surfaces in service zones) so brightness stays usable without causing “glare tunnel” perception; verified for phased-retrofit consistency using field-selectable wattage/CCT (standardized settings and documented commissioning intent) so mixed installs don’t drift into uneven brightness and “two different corridors” color; verified for control stability in circulation spaces (0–10V dimming behavior, minimum dim thresholds, bi-level occupancy logic where applicable) so stairwells keep a predictable baseline and corridors avoid flicker, dropout, or nuisance cycling; verified for maintenance and lens longevity in high-touch environments (lens durability, cleanability, and long-duty reliability prioritized) so fixtures don’t degrade into uneven diffusion, yellowed lenses, or repeated service interruptions; verified for task-appropriate output planning in back-of-house zones (utility rooms, storage, workshops) so prismatic “max visibility” choices are used where they help and not where they create occupant discomfort; verified for documentation readiness on multi-fixture projects (settings record, zone mapping, control intent) so future replacements preserve the same visual result and don’t reintroduce glare or banding.
Team-backed support: Quotes, photometrics, submittals, shipping visibility, and closeout documentation are supported through Commercial Project Support . Call 800-357-6860.
