NCLTG

LineVolt Series LED Strip Light

SKU:NC-SP4F-M50W-CCT

$28.15

~~$40.99~~ $28.15

Sale Sold out

Shipping calculated at checkout.

Fixture Size 4-Foot 8-Foot

Output Range 25–50W (3750–6500 lm) 50–100W (6500–13000 lm)

Configuration Standard Sensor Port Sensor Port + Emergency Backup

Shipping information

Shipping is calculated at checkout based on product type, destination, and delivery method (parcel or freight). For lead times, tracking, freight delivery, and inspection requirements, see our shipping policy.

Returns & Restocking

Returns and restocking are handled through an authorization and routing process based on product type and manufacturer policy. Some returns may be subject to a manufacturer-determined restocking fee. For eligibility, steps, and correction handling, see our return and refund policy.

View full details

Product Overview

The LineVolt Series LED Strip Light is a linear commercial luminaire platform developed for open-ceiling and utility environments requiring continuous illumination, configuration flexibility, and optional controls or emergency operation within a unified fixture family. Available in both 4-foot and 8-foot lengths, the series supports standardized specification across warehouses, storage areas, service corridors, mechanical rooms, and industrial workspaces while maintaining consistent fixture appearance throughout a facility.

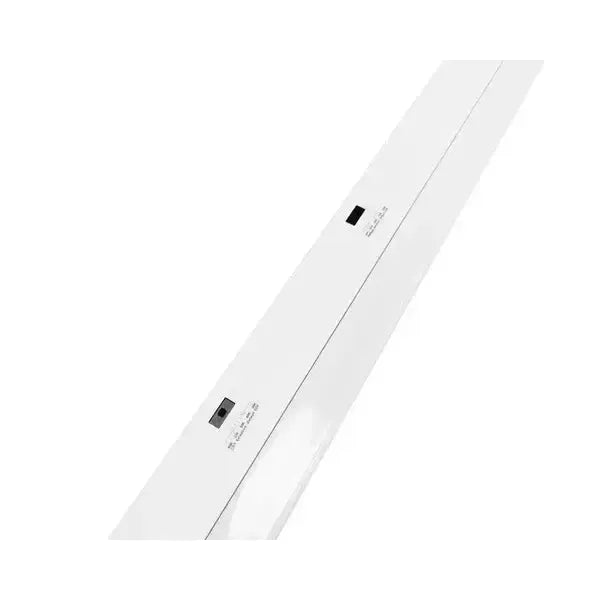

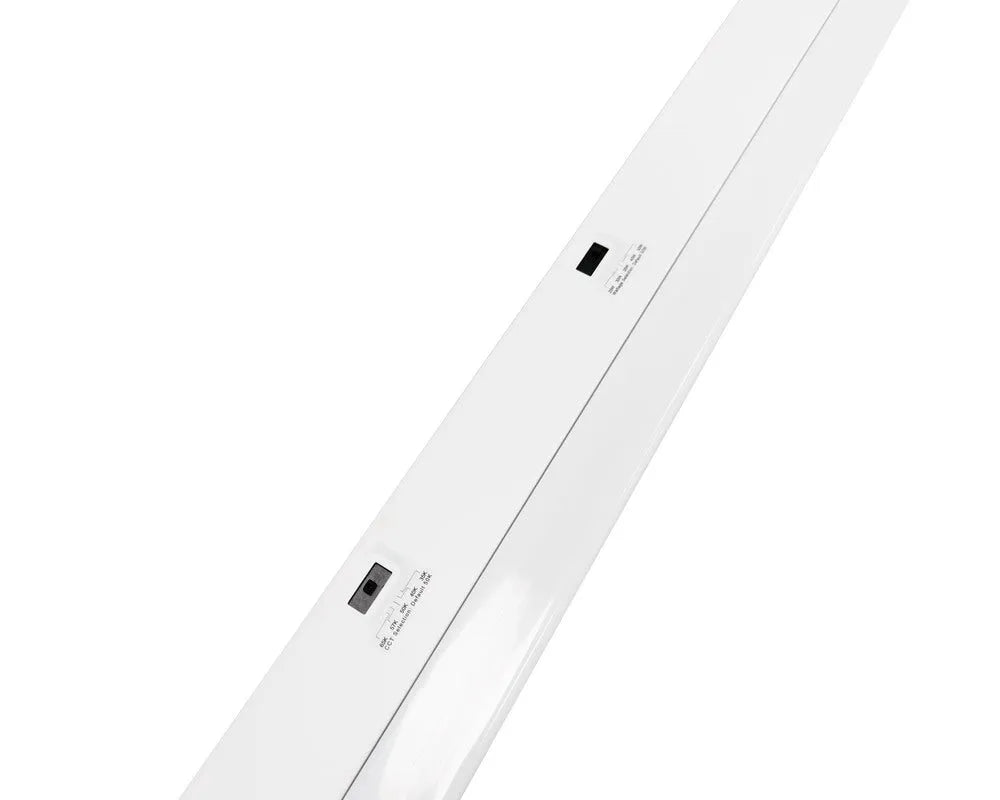

Field-selectable wattage allows light output to be aligned with mounting height, fixture spacing, and target illumination levels without changing housing type. Selectable correlated color temperature enables visual consistency across connected interior zones, supporting coordinated deployment with LED strip lighting systems, recessed ceiling solutions, and broader commercial lighting installations.

Configuration options include standard output models, controls-ready versions with integrated sensor receptacles, and models incorporating a factory-installed 90-minute emergency backup system for designated life-safety areas. This structure allows normal illumination, occupancy-based control, and emergency operation to remain within a single linear platform, simplifying layout coordination across commercial electrical and lighting designs.

Fixture Specifications

Voltage: 120–277V
CCT: 3500K, 4000K, 5000K, 5700K, 6500K
Dimming: 0–10V
Efficacy: 130–150 lm/W
Certifications: cETLus Listed, DLC Premium
Warranty: 5-Year Limited Warranty

Performance & Physical Configurations

4 ft Strip Light

Selectable Wattage: 25W / 30W / 35W / 40W / 50W
Lumen Output: 3,750–6,500 lm
Dimensions: 46.5 in L × 2.48 in W × 2.84 in H
Sensor Port Options: No; Yes
Emergency Backup Option: Yes (90-minute operation)
MPN (Standard): NC-SP4F-M50W-CCT
MPN (Sensor): NC-SP4F-M50W-CCT-S
MPN (Sensor + Emergency): NC-SP4F-M50W-CCT-S-EM

8 ft Strip Light

Selectable Wattage: 50W / 60W / 70W / 80W / 100W
Lumen Output: 6,500–13,000 lm
Dimensions: 92.9 in L × 2.48 in W × 2.84 in H
Sensor Port Options: No; Yes
Emergency Backup Option: Yes (90-minute operation)
MPN (Standard): NC-SP8F-M100W-CCT
MPN (Sensor): NC-SP8F-M100W-CCT-S
MPN (Sensor + Emergency): NC-SP8F-M100W-CCT-S-EM
