Why Retrofit Strategy Matters for 2×4 Troffers in 2026
Commercial retrofit projects in 2026 face stricter energy codes, tighter lumen efficacy requirements, and higher expectations for lighting quality and serviceability. The ubiquitous 2×4 fluorescent troffer is a common target for upgrades to LED, but the retrofit strategy affects cost, labor, performance, and compliance.
This guide compares LED plate retrofit kits with full fixture replacements, highlighting labor impacts, compliance implications, optical performance, and architectural outcomes.
Related resource: For system-level guidance on panels, troffers, recessed fixtures, linear layouts, ceiling integration, and compliance planning across commercial interiors, reference the Commercial Ceiling Lighting Buying Guide.

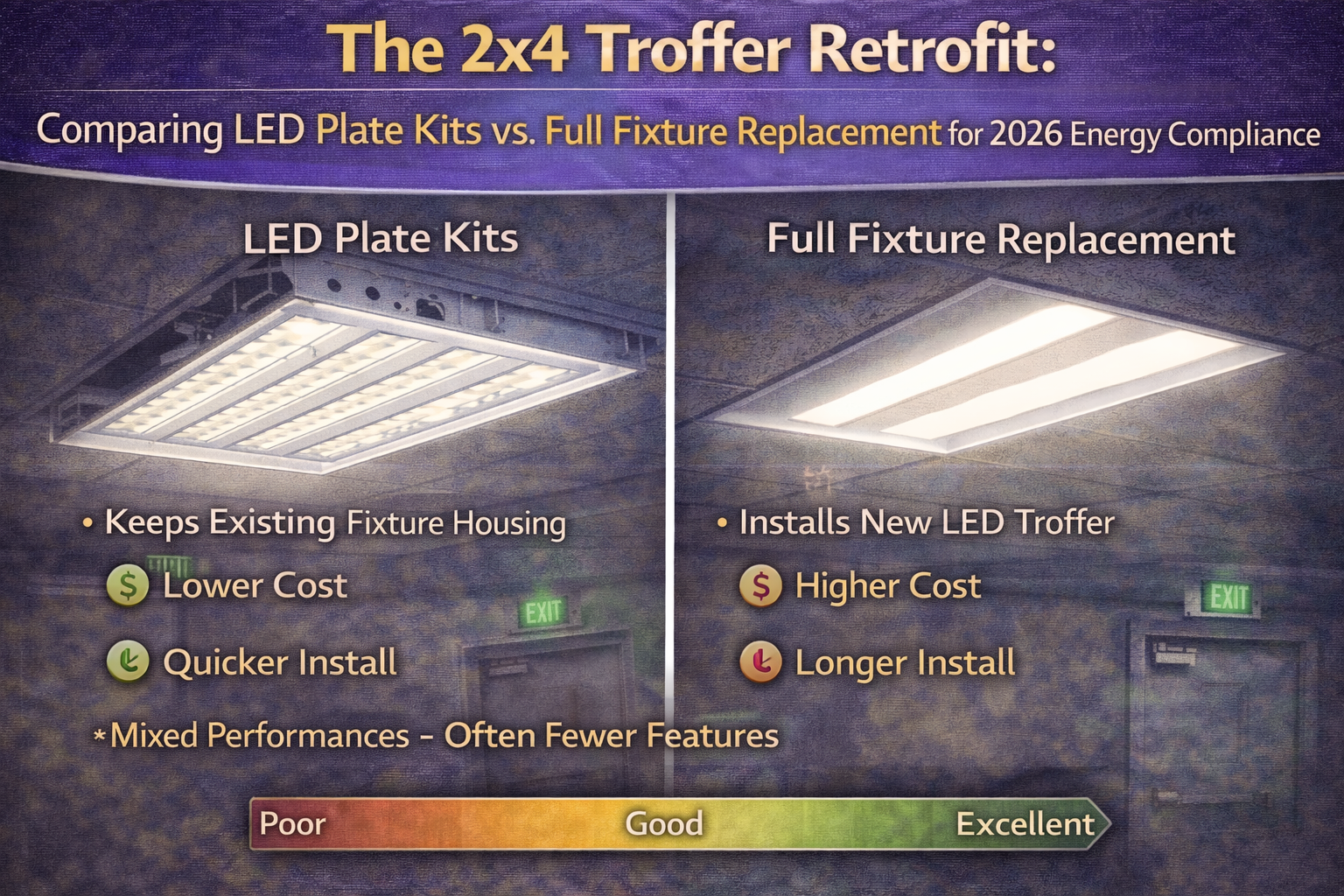

Overview of Plate Kits vs. Full Fixture Replacement
| Approach | Description | Use Case |
|---|---|---|
| LED Plate Retrofit Kit | A slim LED panel that installs in existing troffer housing | Quick upgrades with minimal demolition |
| Full Fixture Replacement | Remove old troffer and install a purpose-built LED luminaire | Comprehensive upgrades with architectural quality |
Both strategies reduce energy use but differ in installation complexity and final performance.
Labor and Installation Comparison
| Installation Factor | Plate Kit | Full Fixture |
|---|---|---|
| Ceiling access | Minimal | Moderate |
| Disruption to space | Low | Medium to high |
| Install time per unit | Short | Longer |
| Need for electrical rework | Minimal | Possible |
Plate kits reduce labor and occupied-space disruption, but they depend on existing housing condition and accessibility.
Energy Code and Performance Compliance
2026 energy codes emphasize efficacy, controls integration, and LPD (lighting power density). Compliance is tied to measured performance, not retrofit method.
| Compliance Metric | Plate Kit | Full Fixture |
|---|---|---|
| LPD reduction | Depends on selected kit | Designed to achieve target |
| Control integration | 0–10V / motion compatible | Integrated or field-ready |
| Efficacy | Moderate | Often higher |
Full fixtures tend to deliver more predictable efficacy and integrated control options, simplifying compliance reporting.
Optical and Architectural Differences
While both retrofit kits and new fixtures provide illumination, their optical performance and architectural impact differ.
| Characteristic | Plate Kit | Full Fixture |
|---|---|---|
| Light uniformity | Dependent on existing reflector | Optimized optical system |
| Diffuser quality | Kit component | Engineered for performance |
| Architectural finish | Matches existing | Updated aesthetic |
Full fixtures offer design control over distribution and appearance; plate kits are constrained by existing housings.
Long-Term Maintenance and Serviceability
- Plate kits can be replaced independently of housing condition
- Full fixtures offer unified warranty and easier driver access
- Driver quality and service access favor new fixtures
Full fixture replacement typically improves maintainability over the service life of the system.
Cost Comparison Over Service Life
| Cost Component | Plate Kit | Full Fixture |
|---|---|---|
| Initial material | Lower | Higher |
| Installation labor | Lower | Higher |
| Long-term service | Moderate | Lower |
| Replacement cycle | Kit only | Fixture level |
A holistic evaluation should include first cost, maintenance, and code compliance over time.
Related Commercial Ceiling Lighting Articles
Retrofit decisions for 2×4 troffers intersect with glare control, optical architecture, ceiling coordination, and long-term performance. The following resources expand on related specification considerations that commonly affect commercial ceiling retrofit projects.
- Volumetric vs. Flat Panel: Which Optical Design Reduces Computer Screen Glare in Open-Office Floor Plans
- Air-Handling Troffers: How Integrated HVAC Vents Impact Ceiling Grid Planning and Fire Ratings
- Back-Lit vs. Edge-Lit LED Panels: Evaluating Long-Term Color Consistency and Housing Depth
Related Commercial Lighting Categories
Selecting between LED plate kits and full fixture replacements depends on labor constraints, compliance risk, optical performance, and long-term maintenance strategy. Each approach has a defensible use case; documenting the rationale prevents scope creep and supports energy code verification.
Frequently Asked Questions
When should I choose a UFO High Bay over a Linear fixture?
UFO High Bays are the best choice for open floor plans with mounting heights above 20 feet. Because they utilize a circular (radial) distribution, they are designed to overlap their beams in all directions. This makes them ideal for manufacturing floors, gymnasiums, and hangars where there are no obstructions like racking to block the light. They provide excellent horizontal illumination on the ground but are inefficient in narrow aisles.
Why are Linear High Bays required for high-aisle racking?
High-aisle racking creates narrow corridors that block radial light. Linear High Bays are designed with rectangular optics that align with the aisle. Instead of wasting light on the top of racks, linear optics push light longitudinally down the aisle and vertically onto the rack faces. This ensures that forklift operators can clearly see labels and pallets at every level, from the floor to the top beam.
What is the Batwing distribution in Linear High Bays?
Many Linear High Bays feature a Batwing optic. Unlike a standard round beam, a batwing optic pushes light out at wider angles to the sides while maintaining intensity directly underneath. In a warehouse, this allows for wider spacing between fixtures without creating hot spots on the floor or dark zones between the lights. It is the most common optic for achieving uniform vertical foot-candles on shelving.
Do UFO High Bays cause more glare than Linear High Bays?
Glare is typically a result of the beam angle. A 120° UFO fixture has a very wide, diffuse output that can be blinding to workers looking up. In contrast, many Linear fixtures use deep-cell louvers or specialized lenses to cutoff high-angle light. If your facility has workers frequently looking upward (such as in an assembly line or inspection area), a Linear fixture with a narrower 90° optic or a frosted lens will significantly reduce eye fatigue compared to a wide-beam UFO.
Can I use a UFO High Bay in an aisle if I use a 60° reflector?
While a 60° aluminum reflector on a UFO fixture will tighten the beam and reduce spill on the top of the racks, it still creates a circular footprint. You will end up with scalloping (alternating bright and dark spots) along the floor of the aisle. For a continuous, uniform light path, the rectangular footprint of a Linear High Bay is mathematically superior for any space where the length of the area is significantly greater than its width.
