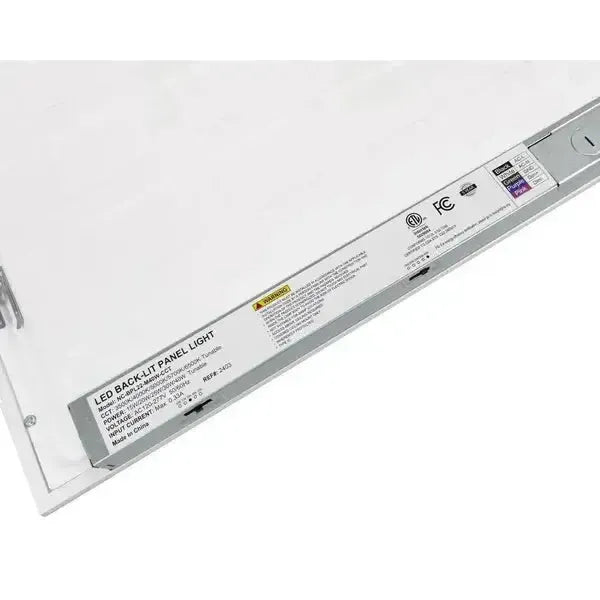

  • Close-up angled view of SkyLine Series LED flat panel rear driver and electrical housing mounted along panel back edge

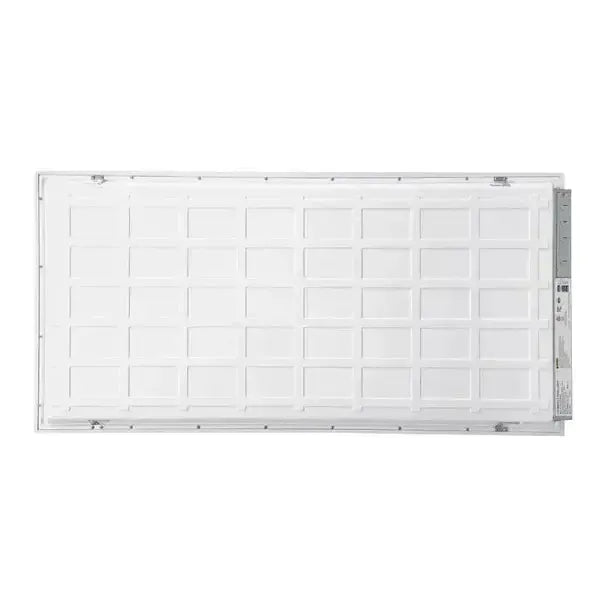

  • SkyLine Series 2x4 LED flat panel rear view showing integrated LED driver and electrical junction box for commercial ceiling installation

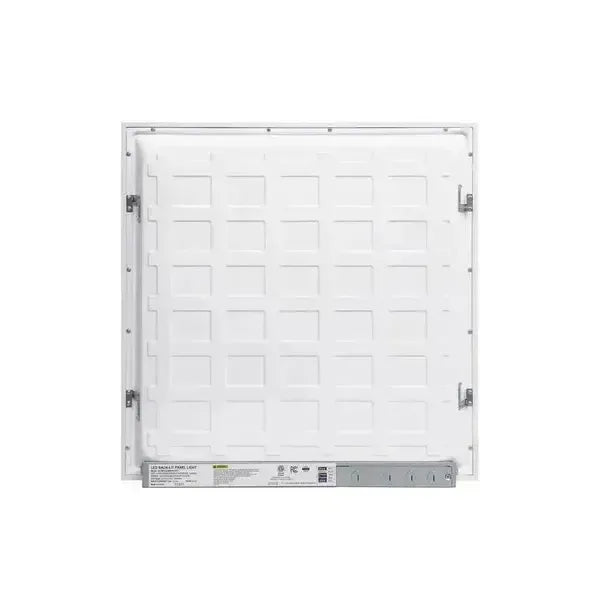

  • SkyLine Series 2x2 LED flat panel back view displaying driver housing and electrical connection box
  • SkyLine Series 1x4 LED flat panel rear assembly showing integrated driver and electrical enclosure
  • Angled rear perspective of SkyLine Series 2x4 LED flat panel showing driver housing and junction box mounting position
  • Angled view of SkyLine Series 1x4 LED flat panel diffusion lens showing low-profile recessed commercial ceiling design
1 9

NCLTG

SkyLine Series LED Panel Light

SkyLine Series LED Panel Light

NC-BPL14-M40W-CCT

$30.00
$37.99 $30.00
Sale Sold out
Shipping calculated at checkout.
Fixture Size
Output Range
Configuration

Shipping information

Shipping is calculated at checkout based on product type, destination, and delivery method (parcel or freight). For lead times, tracking, freight delivery, and inspection requirements, see our shipping policy.

Returns & Restocking

Returns and restocking are handled through an authorization and routing process based on product type and manufacturer policy. Some returns may be subject to a manufacturer-determined restocking fee. For eligibility, steps, and correction handling, see our return and refund policy.

View full details

Product Overview

The SkyLine Series LED Flat Panel is a recessed lay-in luminaire family for suspended T-grid ceilings, specified where fixture geometry, electrical compatibility, and selectable performance need to remain consistent across multiple ceiling module sizes. The series covers 1×4, 2×2, and 2×4 openings and supports field-selectable wattage and selectable CCT to align lumen output and color appearance with room function and layout density across offices, classrooms, corridors, and support areas commonly addressed by LED panel lights.

Configuration options are managed at the fixture level: select models include an integrated sensor receptacle for controls-ready deployment, and select models include a factory-integrated 90-minute emergency battery system for designated egress and life-safety locations. This approach supports one panel platform across standard lighting zones, sensor-controlled zones, and emergency-designated zones while maintaining consistent installation and appearance within broader commercial lighting specifications.

Fixture Specifications

  • Voltage: 120–277V
  • CCT: 3500K, 4000K, 5000K, 5700K, 6500K
  • Dimming: 0–10V
  • Special Features: Wattage and CCT Selectable
  • Certifications: cETLus Listed, RoHS Compliant, DLC Premium Listed
  • Warranty: 5-Year Limited Warranty

Performance & Physical Configurations

1×4 Flat Panel

  • Selectable Wattage: 15W / 20W / 25W / 30W / 40W
  • Lumen Output: 1,950–5,000 lm
  • Dimensions: 47.76 in L × 11.93 in W × 1.38 in H
  • Sensor Port Option: No
  • Emergency Option: Not Available
  • MPN: NC-BPL14-M40W-CCT
  • DLC Product ID: S-FRVCC0

2×2 Flat Panel

  • Selectable Wattage: 15W / 20W / 25W / 30W / 40W
  • Lumen Output: 1,950–5,000 lm
  • Dimensions: 23.74 in L × 23.74 in W × 1.38 in H
  • Sensor Port Option: Yes
  • Emergency Options: None or 90-Minute Emergency Backup
  • MPN (Standard): NC-BPL22-M40W-CCT
  • MPN (Sensor): NC-BPL22-M40W-CCT-S
  • MPN (Emergency): NC-BPL22-M40W-CCT-EM
  • MPN (Sensor + Emergency): NC-BPL22-M40W-CCT-S-EM
  • DLC Product ID: S-KK2HX9

2×4 Flat Panel

  • Selectable Wattage: 30W / 40W / 50W / 60W / 72W
  • Lumen Output: 3,900–9,000 lm
  • Dimensions: 47.72 in L × 23.74 in W × 1.38 in H
  • Sensor Port Option: Yes
  • Emergency Options: None or 90-Minute Emergency Backup
  • MPN (Standard): NC-BPL24-M72W-CCT
  • MPN (Sensor): NC-BPL24-M72W-CCT-S
  • MPN (Emergency): NC-BPL24-M72W-CCT-EM
  • MPN (Sensor + Emergency): NC-BPL24-M72W-CCT-S-EM
  • DLC Product ID: S-Q25QKF
