Product Overview

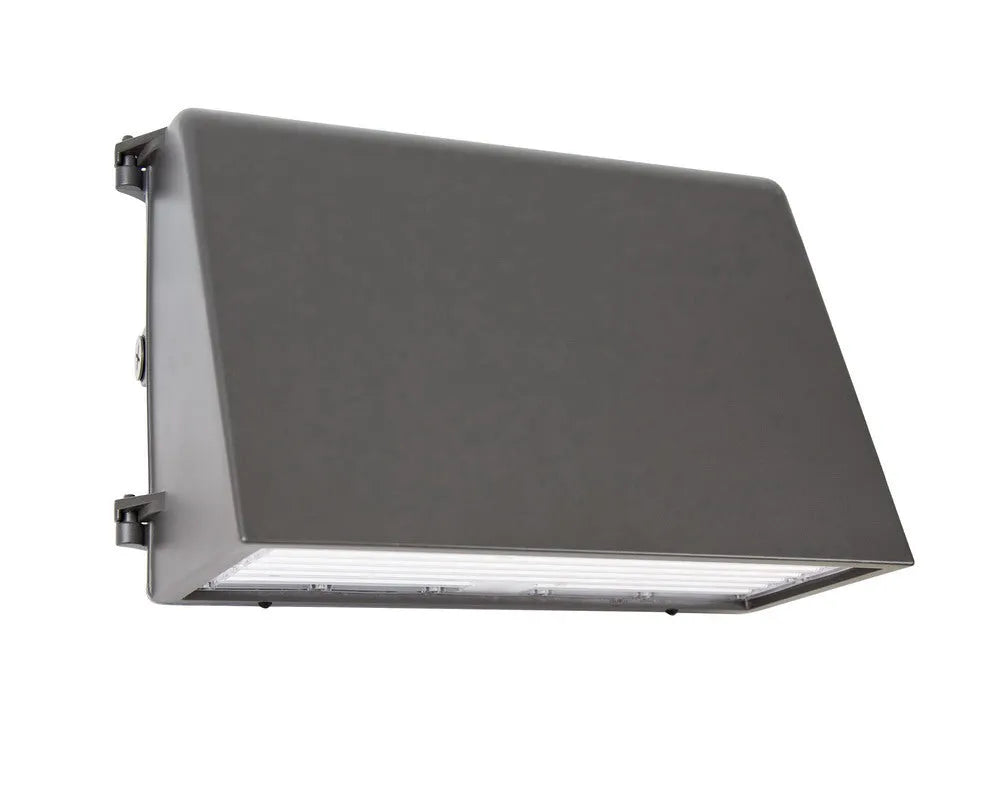

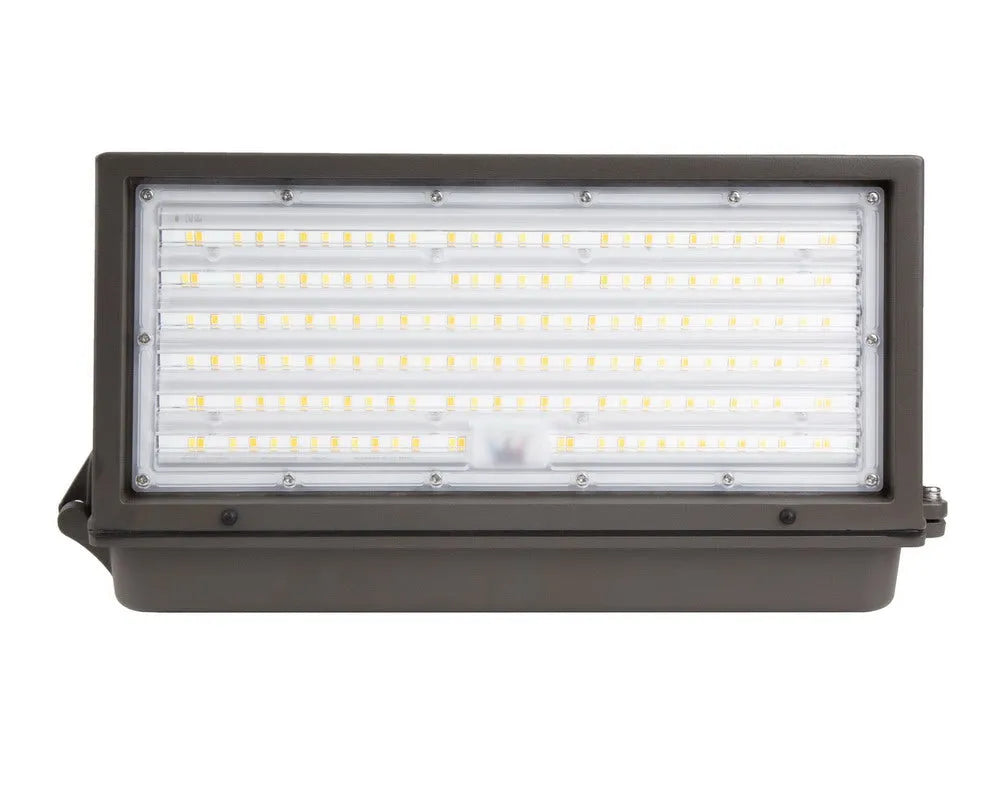

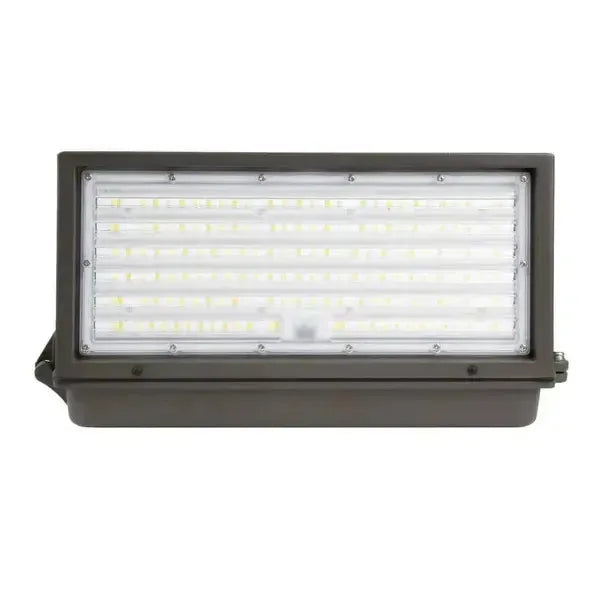

The DarkShield Series LED Full Cutoff Wall Pack is engineered for exterior installations where light distribution control is required rather than forward projection. The full cutoff housing directs illumination below the horizontal plane, eliminating uplight and reducing high-angle glare commonly associated with traditional wall-mounted fixtures. This optical approach supports installations located near property lines, pedestrian areas, and regulated commercial zones where light trespass must be minimized.
Unlike forward-throw wall packs designed for maximum outward reach, full cutoff luminaires concentrate usable light onto walking surfaces, building perimeters, service entrances, and controlled circulation zones. By directing output downward only, the fixture improves visual comfort while maintaining required illumination levels for exterior safety and code-aligned site lighting. Full cutoff designs are widely specified where municipal or Dark Sky requirements restrict upward light emission and glare exposure.

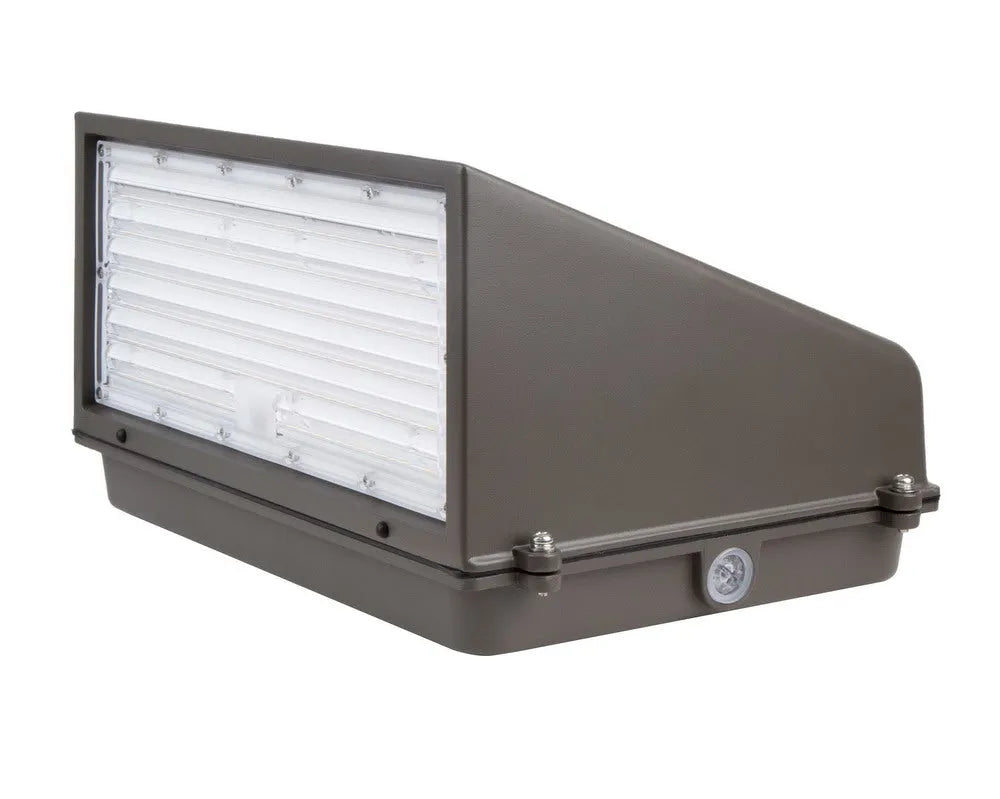

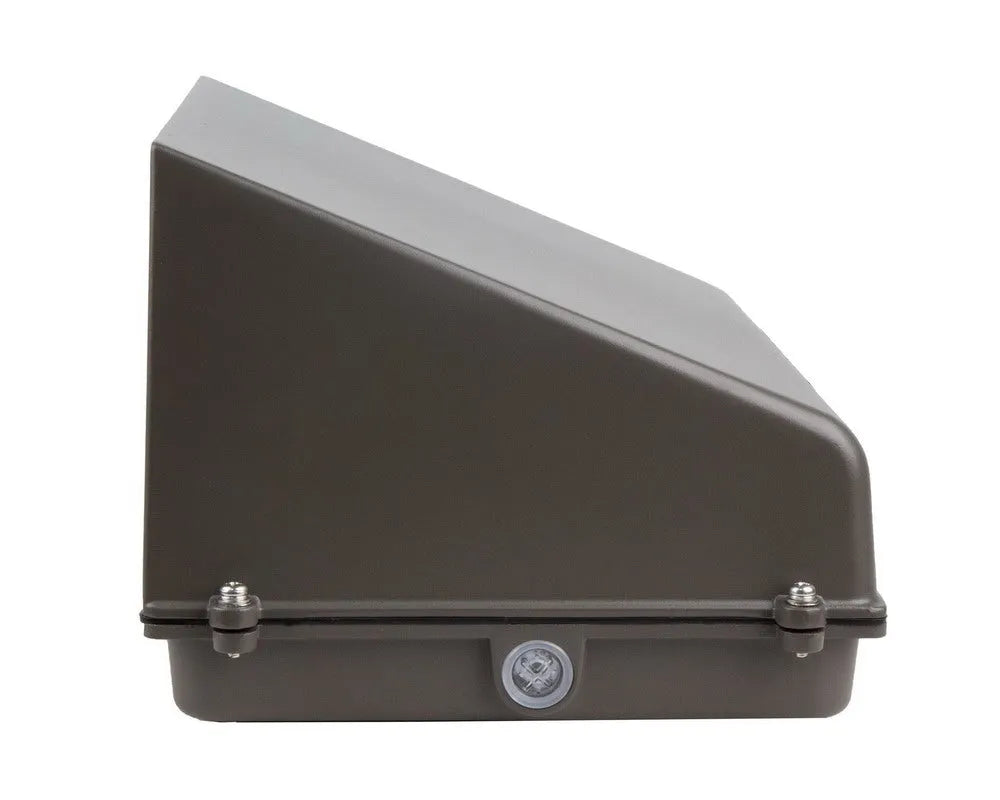

Selectable wattage allows output to be matched to mounting height and façade spacing without changing fixture form factor, while selectable correlated color temperature supports visual consistency across exterior lighting systems. This enables coordinated deployment alongside LED wall pack lighting applications and broader commercial lighting systems where controlled distribution and compliance-driven performance are required.
The DarkShield platform is typically specified for commercial buildings, campuses, healthcare facilities, multi-tenant properties, and environmentally sensitive sites where glare reduction, downward distribution, and predictable illumination boundaries are prioritized over wide forward light throw.
Fixture Specifications
- Voltage: 120–277V
- CCT: 3000K, 4000K, 5000K
- Dimming: 0–10V
- Efficacy: 144–174 lm/W
- Distribution: Full Cutoff
- Certifications: UL Listed, DLC Premium Listed
- IP Rating: IP65
- Minimum Operating Temperature: -22°F
- Warranty: 5-Year Limited Warranty
Performance & Physical Configurations
30W / 40W / 50W / 60W Configuration
- Wall Pack Type: Full Cutoff Wall Pack
- MPN: NC-WPEF-60W-CWP-3CCT
- Selectable Wattage: 30W / 40W / 50W / 60W
- Lumen Output: 5,350–9,641 lm
- Dimensions: 13.08 in W × 9.259 in H × 7.19 in D
- DLC Product ID: S-YKSMMJ
30W / 60W / 90W / 120W Configuration
- Wall Pack Type: Full Cutoff Wall Pack
- MPN: NC-WPEF-120W-CWP-3CCT
- Selectable Wattage: 30W / 60W / 90W / 120W
- Lumen Output: 5,190–19,320 lm
- Dimensions: 13.08 in W × 9.259 in H × 7.19 in D
- DLC Product ID: S-K01N8X
