Product Overview

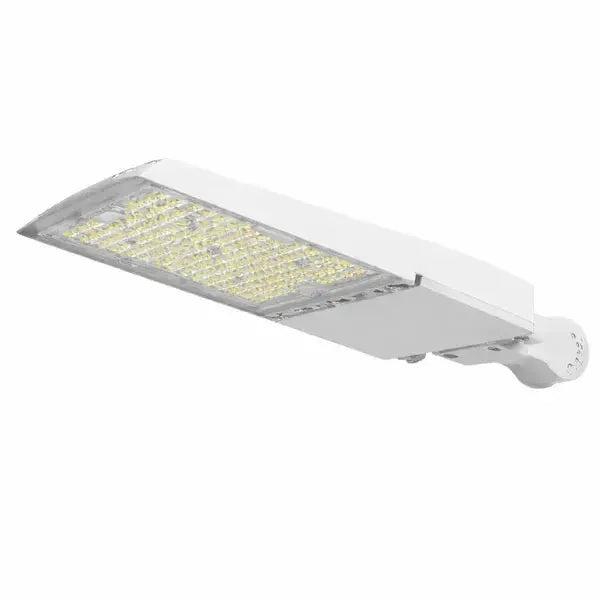

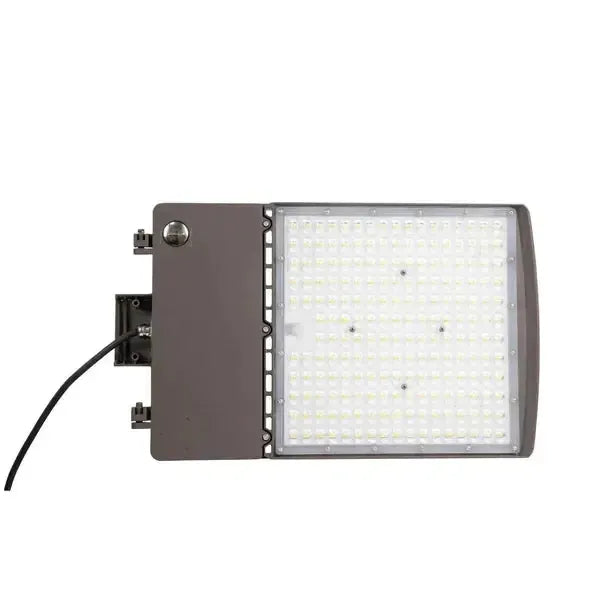

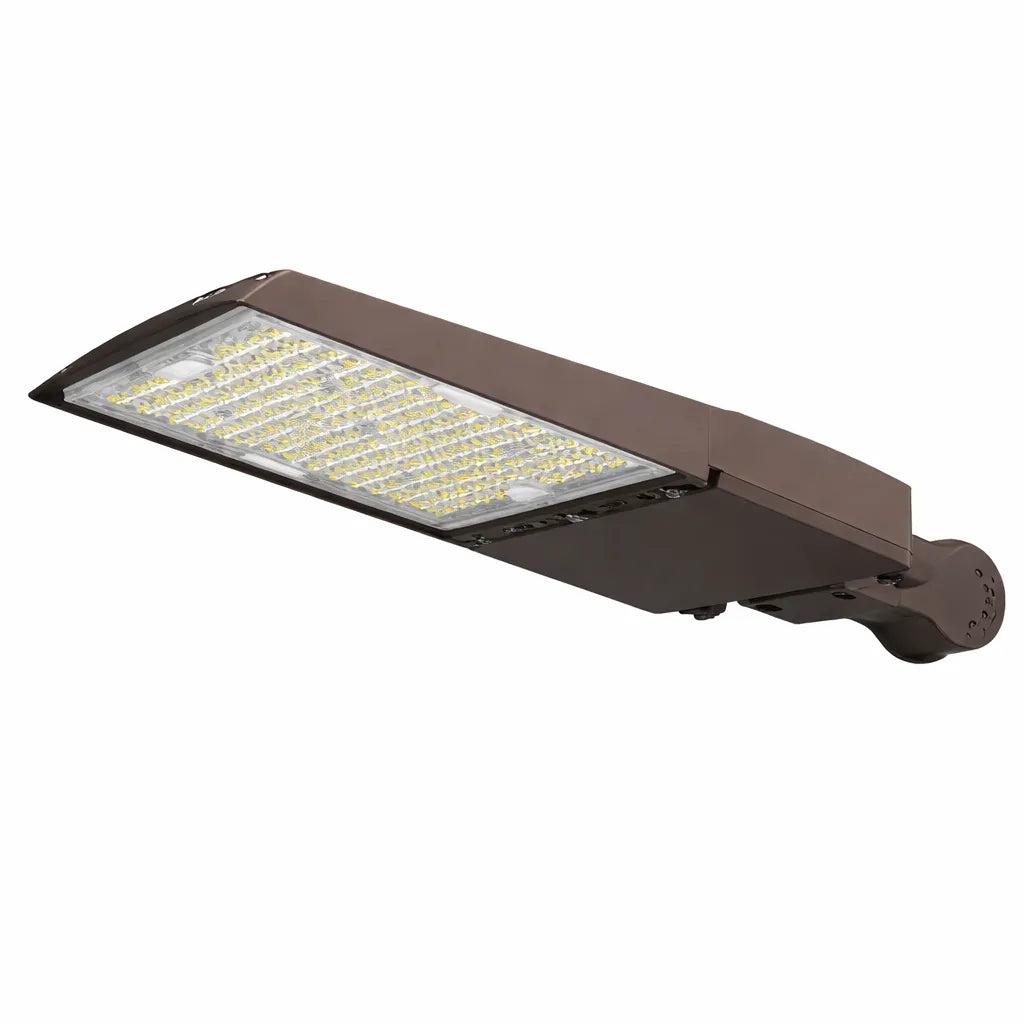

The GridMax Series LED Area Light is designed for commercial exterior installations where mounting flexibility, voltage compatibility, and controlled roadway distribution must be coordinated during fixture selection. Available in trunnion, slip fitter, and arm mount configurations, the platform supports both standard 120–277V branch circuits and 277–480V electrical infrastructure commonly used across industrial campuses, distribution facilities, parking areas, and municipal properties.

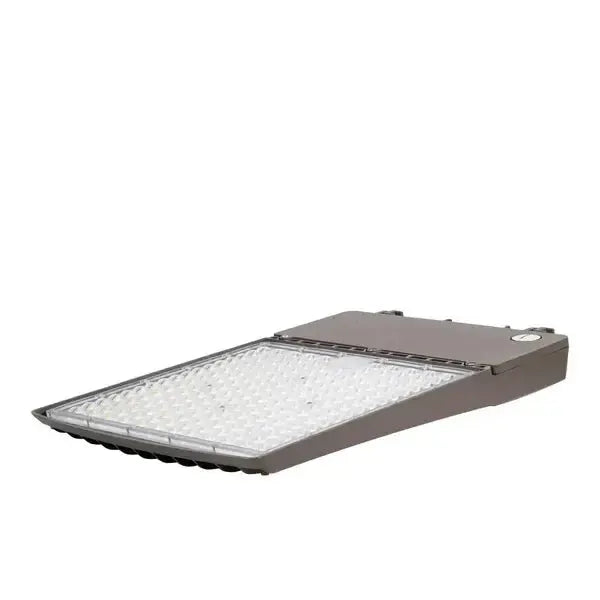

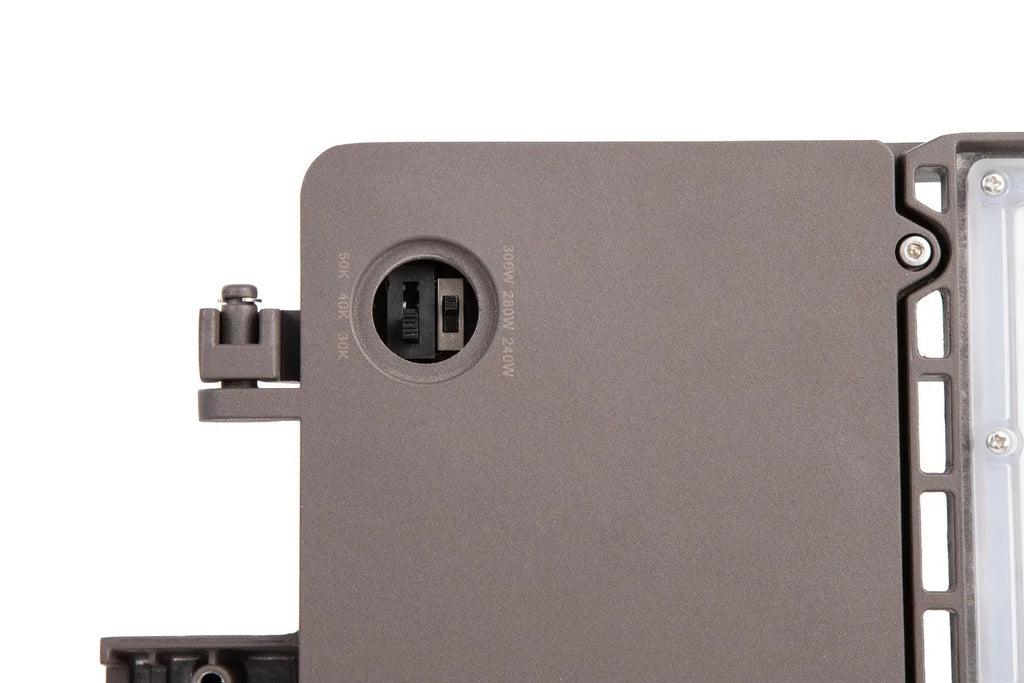

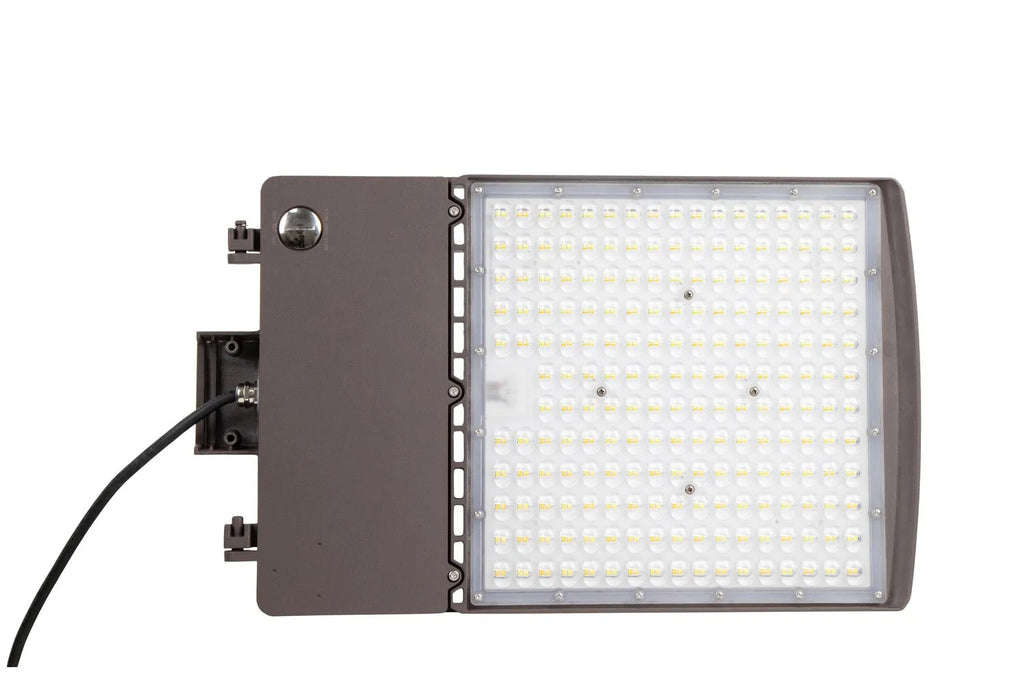

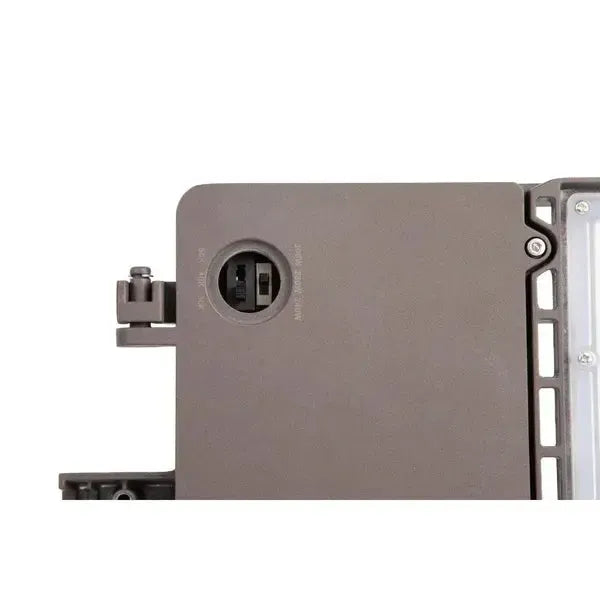

Selectable wattage configurations ranging from 100W through 300W allow output to be matched to pole height, spacing, and illumination targets without changing fixture families. Type III distribution supports forward and lateral coverage required for parking rows, drive lanes, access roads, and perimeter zones while maintaining uniform ground illumination across large exterior areas. Field-selectable 3000K, 4000K, and 5000K color temperatures provide consistency with site lighting standards and local lighting ordinances.

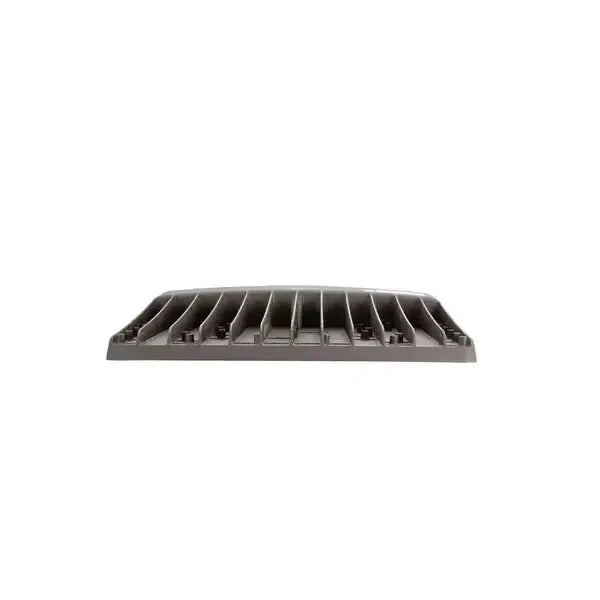

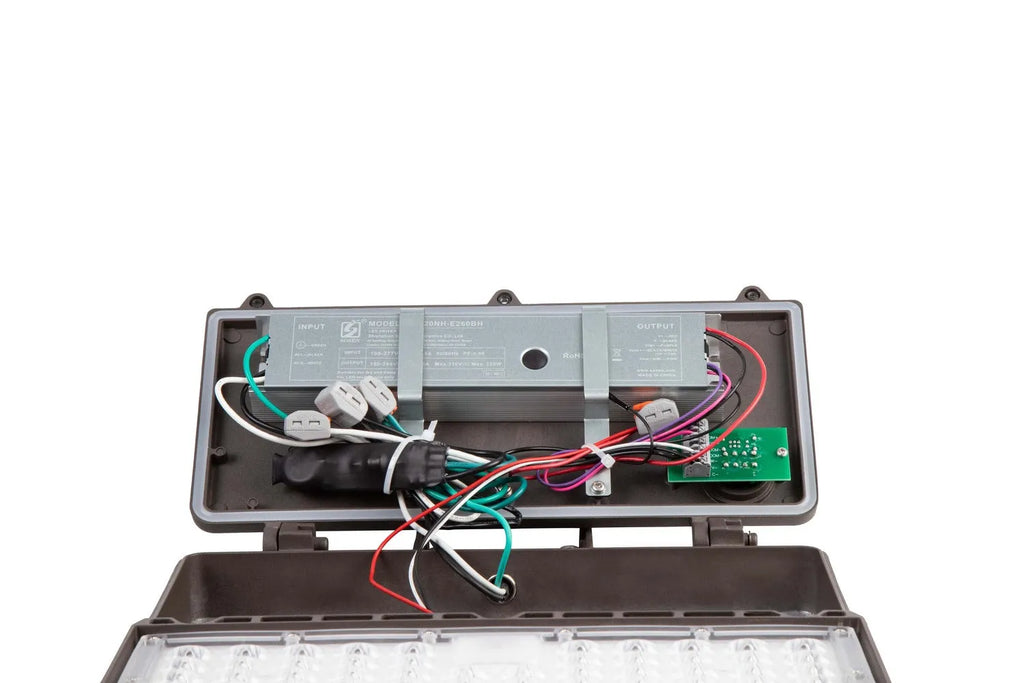

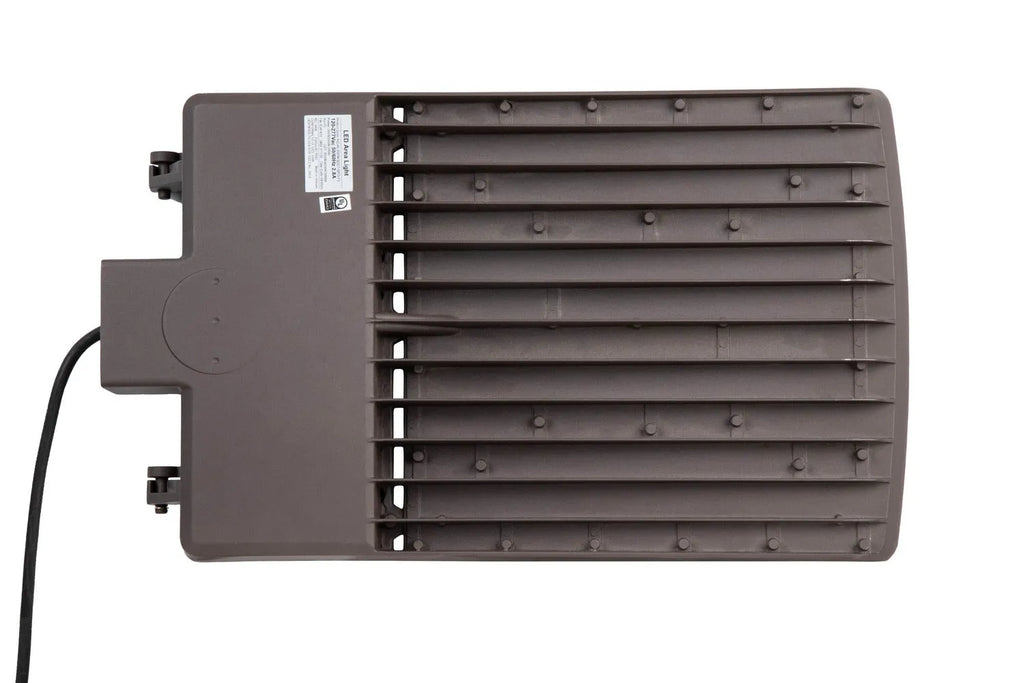

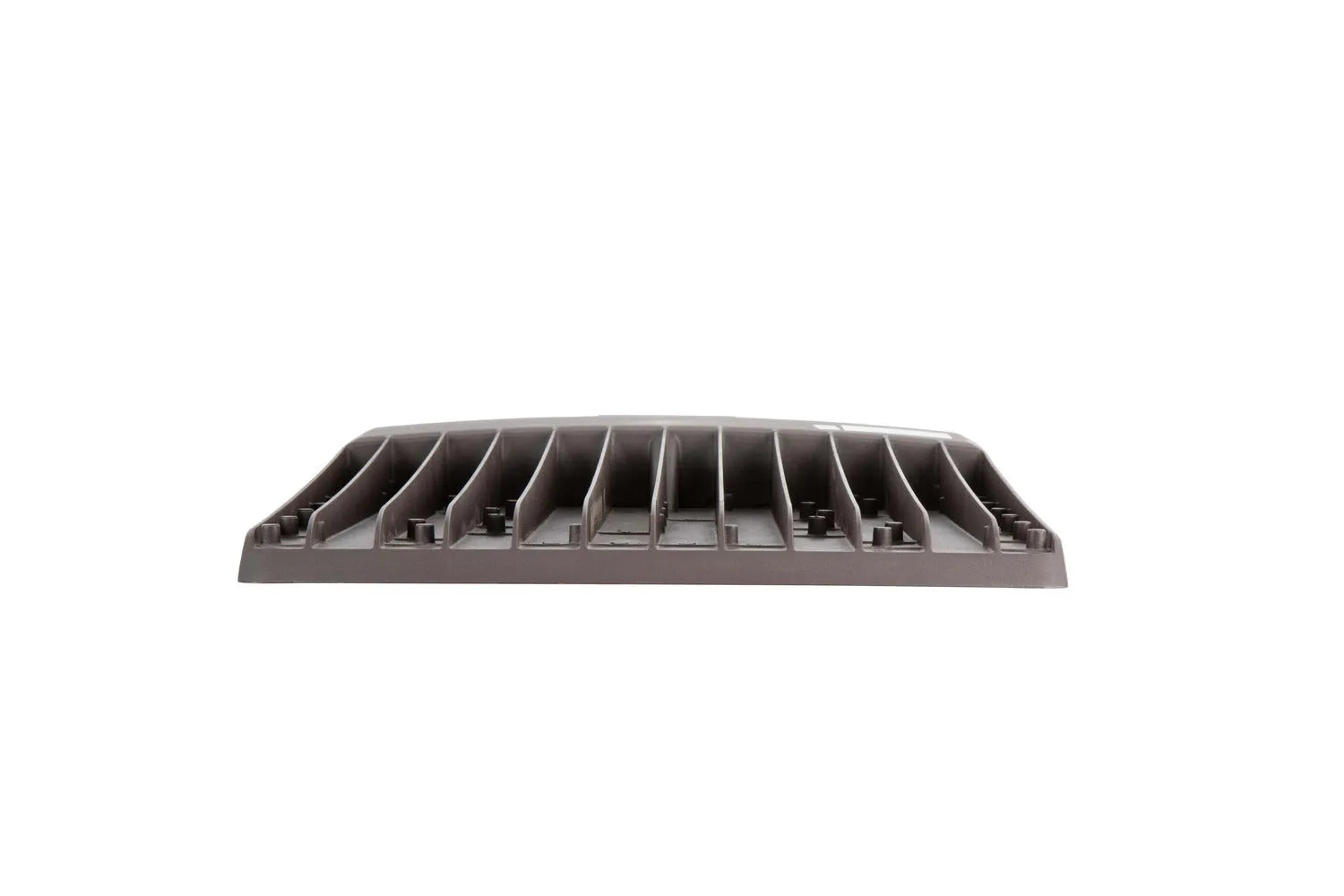

The die-cast housing and IP65 environmental protection support operation in exposed outdoor environments subject to temperature variation, precipitation, and airborne contaminants. Operating capability down to -40°F allows deployment across cold-weather regions where fixture reliability and startup performance are critical to site safety. DLC Premium qualification supports energy rebate programs and long-term operating efficiency requirements for commercial projects.
For projects requiring coordinated exterior illumination across parking, roadway, and building-mounted applications, this fixture integrates directly within broader LED area lighting layouts and larger LED commercial lighting system designs where standardized performance, serviceability, and electrical compatibility are required across multiple mounting conditions.
Fixture Specifications
- CCT: 3000K, 4000K, 5000K
- Dimming: 0–10V
- Efficacy: 170 lm/W

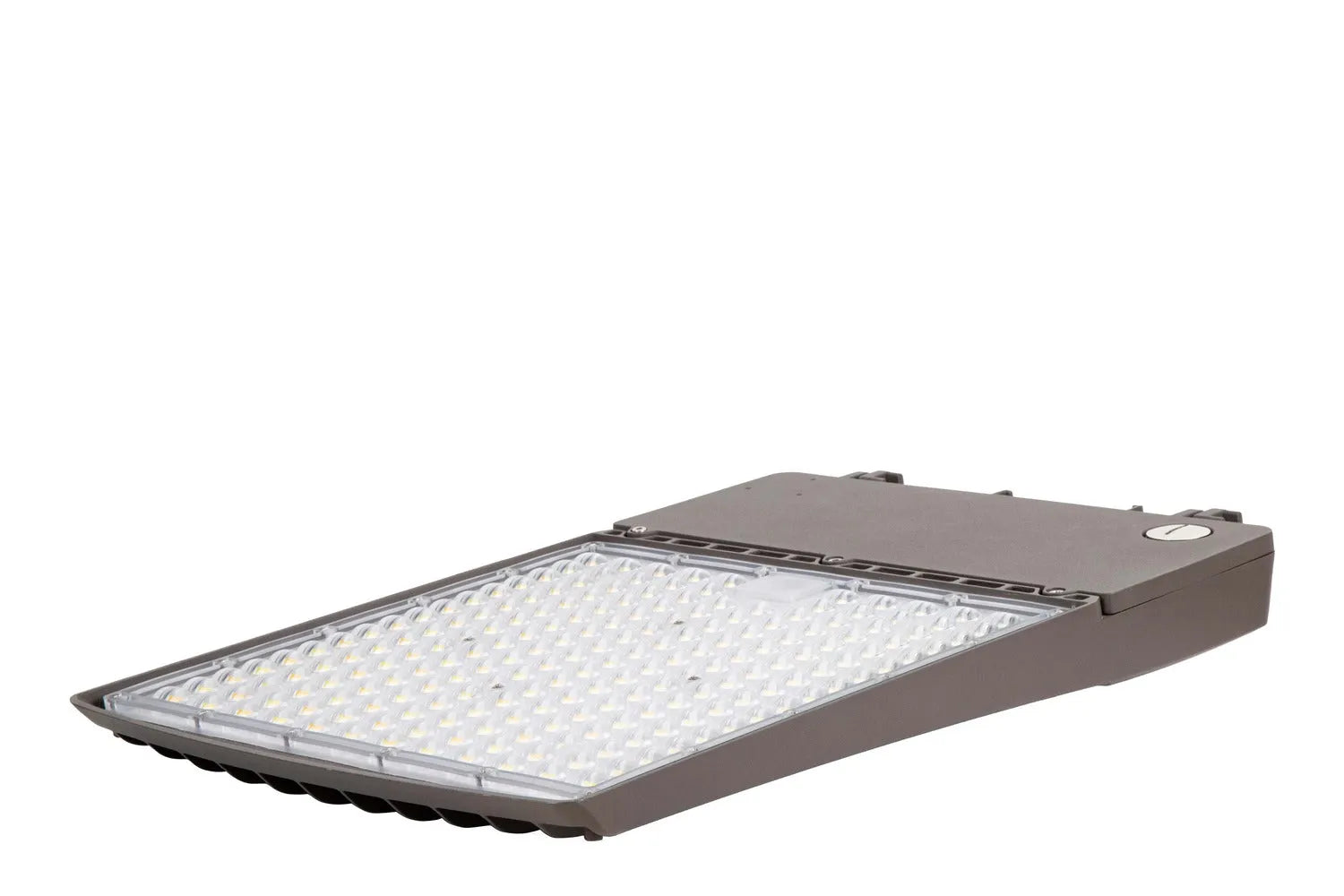

- Light Distribution: Type III

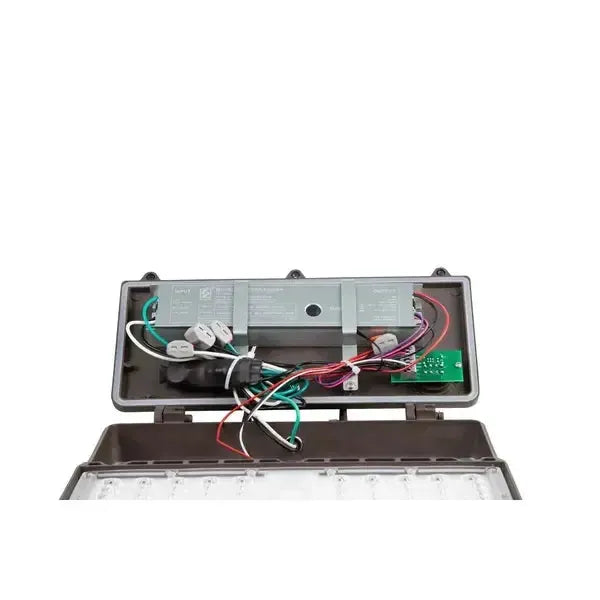

- Input Voltage Options: 120–277V models; 277–480V models
- IP Rating: IP65
- Minimum Operating Temperature: -40°F
- Finish: Bronze, White
- Certifications: UL Listed, DLC Premium Listed
- Warranty: 5-Year Limited Warranty

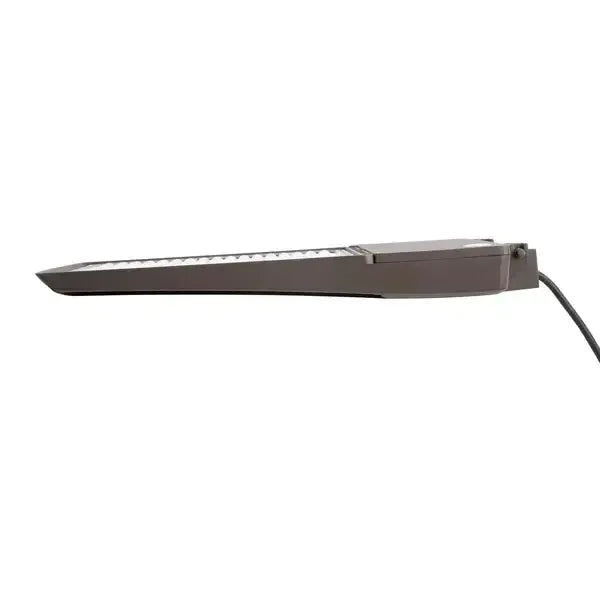

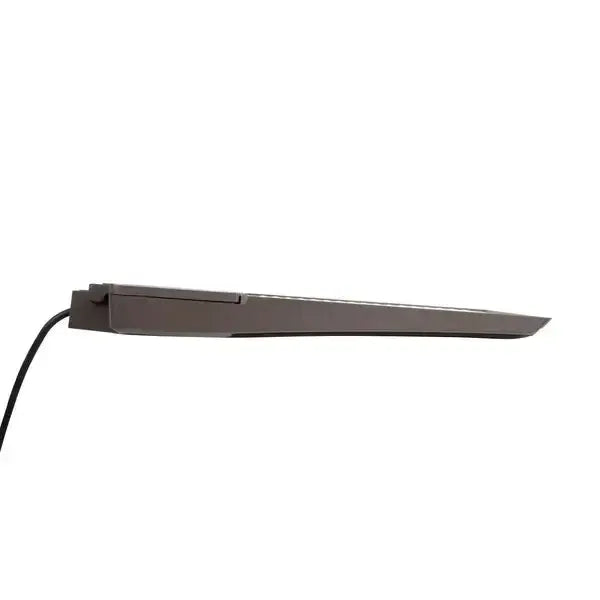

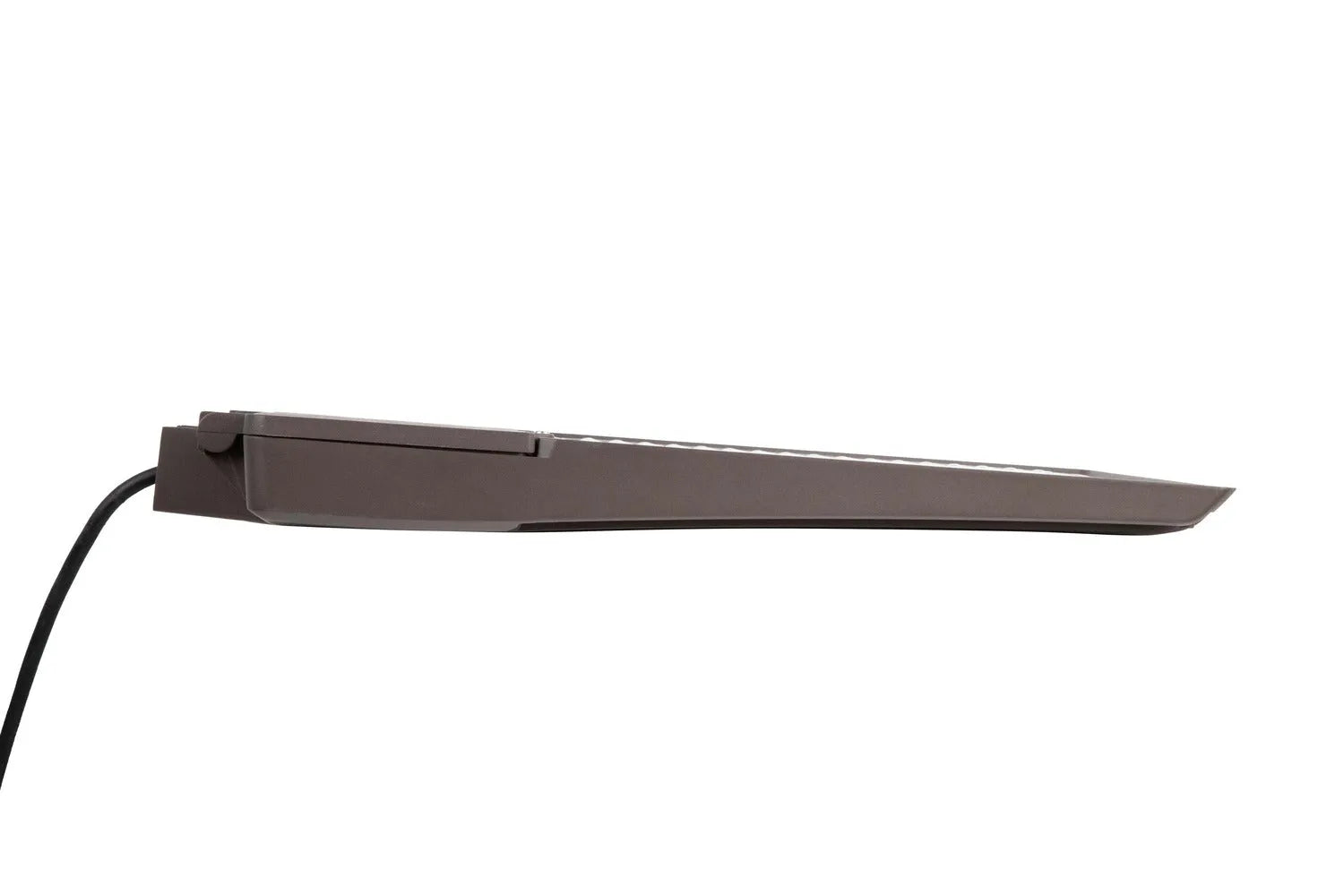

Performance & Physical Configurations
200W / 240W / 300W Configuration
- Lumen Output: 34,000 / 40,800 / 51,000 lm
- Distribution: Type III
- Finish: Bronze, White
- Input Voltage Options: 120–277V; 277–480V
- Mounting Options: Trunnion, Slip Fitter, Arm Mount

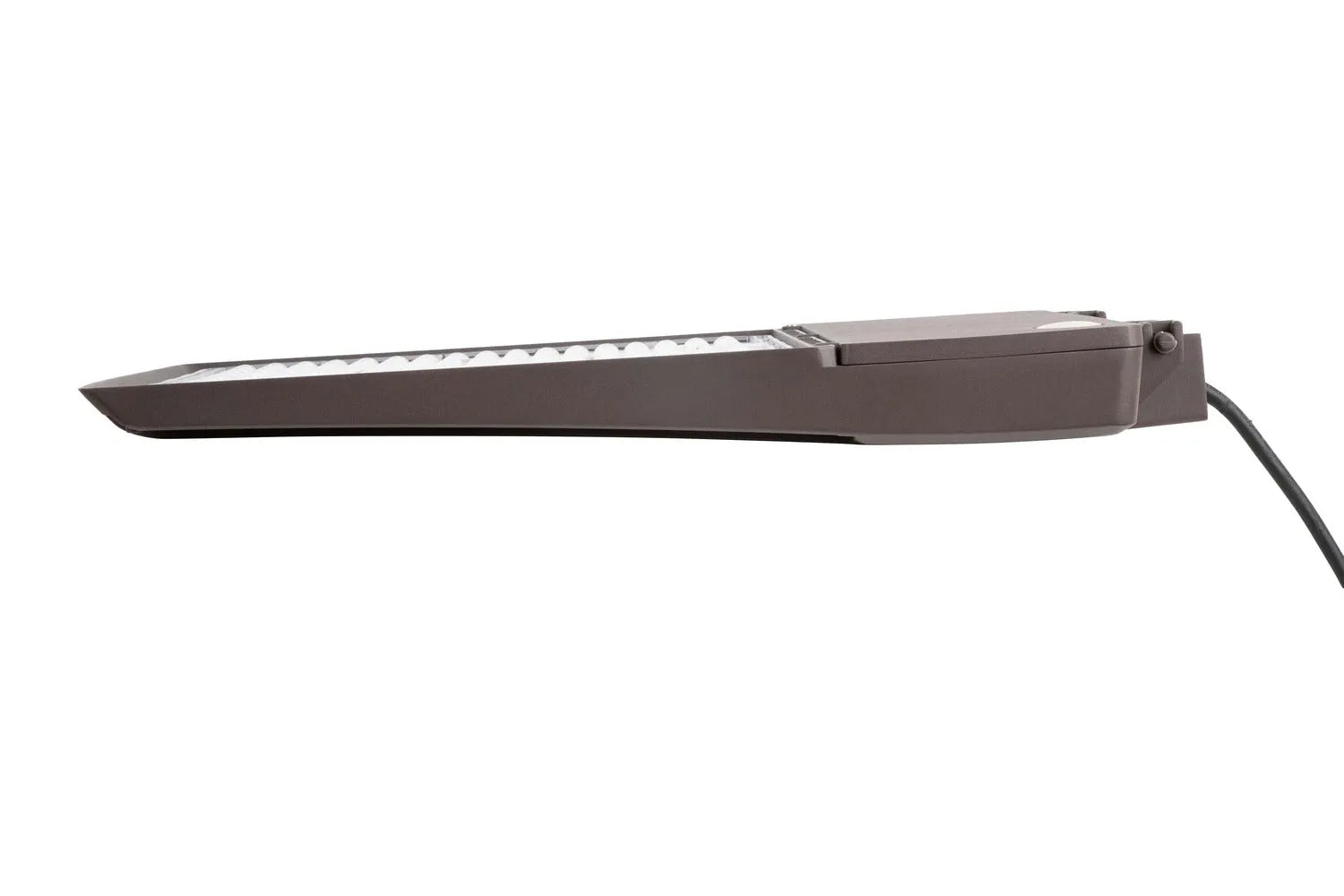

- Trunnion Dimensions: 25.073 in L × 11.885 in W × 2.953 in H
- Slip Fitter Dimensions: 27.717 in L × 11.885 in W × 3.582 in H
- Arm Mount Dimensions: 27.609 in L × 11.885 in W × 6.479 in H
- MPN (120–277V): NC-AL300W-3CCT-SPD-T3-TR / NC-AL300W-3CCT-SPD-T3-SF / NC-AL300W-3CCT-SPD-T3-ARM
- MPN (277–480V): NC-AL300WHV-3CCT-SPD-T3-TR / NC-AL300WHV-3CCT-SPD-T3-SF / NC-AL300WHV-3CCT-SPD-T3-ARM
- DLC Product ID (120–277V): S-JSFF7T
- DLC Product ID (277–480V): S-1V9ZFS
100W / 120W / 150W Configuration
- Lumen Output: 17,000 / 20,400 / 25,500 lm
- Distribution: Type III
- Finish: Bronze, White
- Input Voltage Options: 120–277V; 277–480V
- Mounting Options: Trunnion, Slip Fitter, Arm Mount
- Trunnion Dimensions: 21.653 in L × 8.657 in W × 2.953 in H
- Slip Fitter Dimensions: 24.269 in L × 8.66 in W × 3.013 in H
- Arm Mount Dimensions: 24.121 in L × 8.66 in W × 6.456 in H
- MPN (120–277V): NC-AL150W-3CCT-T3-TR / NC-AL150W-3CCT-T3-SF / NC-AL150W-3CCT-T3-ARM
- MPN (277–480V): NC-AL150WHV-3CCT-T3-TR / NC-AL150WHV-3CCT-T3-SF / NC-AL150WHV-3CCT-T3-ARM
- DLC Product ID (120–277V): S-WVVT3Q
- DLC Product ID (277–480V): S-0RGCFN
