LED Canopy Lights
LED canopy fixtures for entrances and covered areas—wet-location performance with controlled distribution and selectable options for commissioning and energy targets.
LED canopy lights for gas stations, parking decks, and covered loading zones
LED Canopy Lights are engineered for high-intensity, low-clearance illumination in demanding exterior and transitional environments. Featuring IP65-rated housings and impact-resistant lenses, these fixtures are built to withstand 24/7 operation in gas stations, parking garages, and loading docks.
Read more about LED Canopy Lights
Canopy fixture families in this collection
Our canopy collection focuses on commercial-grade fixtures designed for covered structures where uniform coverage matters at low mounting heights. Many models prioritize thermal management and controlled beam distributions, with options for field-selectable wattage and CCT to simplify standardization across multi-site rollouts.
Related categories and covered-structure context
Answer summary: LED canopy lights are specified by mounting height, beam distribution, fixture spacing, glare control, and site classification—not lumen output alone.
Covered-structure lighting references
Why Vertical Illumination Is the Key Metric for Canopy Lighting Performance LED Canopy Light Specification Criteria for Covered Structures Mounting and Installation Considerations for LED Canopy Fixtures
Canopy spec workflow: low-mount photometrics, spacing checks, and control strategy
Use this guide to select canopy fixtures by mounting height and distribution, confirm spacing and uniformity under covered structures, and route documentation (photometrics, submittals, shipping visibility, closeout) for commercial projects. The table of contents links directly to the decision points used in real canopy specifications.
Canopy lighting specification guidance
Proper canopy lighting performance depends on mounting height, beam spread, spacing, glare control, and site classification (fueling, parking, or loading zones). Incorrect fixture selection can create shadowing, excessive brightness, or non-compliant light levels. For a full breakdown of exterior photometrics, mounting strategies, and code considerations across area, canopy, flood, and wall-mounted fixtures, reference our commercial site lighting buying guide.
Specification note: Common canopy lighting failures include over-lighting at pump islands, dark zones between fixtures, excessive glare at driver eye level, and improper spacing that creates uneven illuminance under the canopy.
Technical selection guide for LED canopy fixtures
Canopy fixtures are designed for low-clearance mounting, where optics must provide uniform coverage while minimizing glare to drivers and pedestrians. Use the sections below to align fixture selection with structure type and performance targets.
Low-mount photometrics and distribution
Unlike high-mast area lights, canopy fixtures are engineered for low mounting heights where wide distribution and glare control are the priority. Optics are selected to reduce “hot spots” while keeping illumination consistent across drive lanes, pump islands, or parking bays.
Selection rule: Canopy fixtures are specified to deliver uniform horizontal and vertical illumination at low mounting heights while minimizing glare to drivers and pedestrians.
Canopy classification: Use this table to match the structure type to the performance priorities that matter most.
| Site classification | Primary lighting goal | Key spec priorities | Common failure mode | Photometric focus |
|---|---|---|---|---|

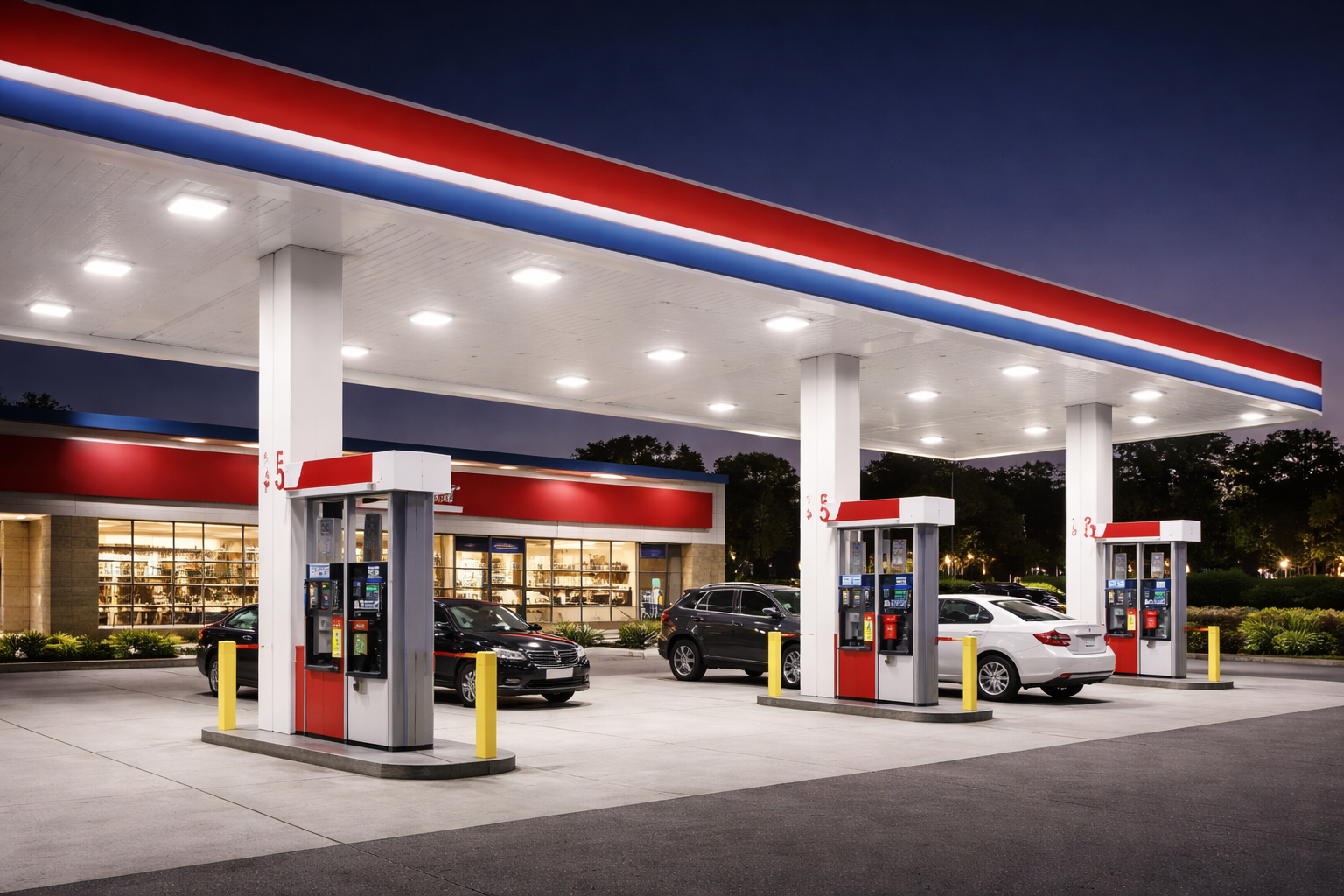

| Gas station / fueling canopy | Safety + visibility at pump islands and drive lanes | Uniformity, vertical illumination, driver-eye glare control, sealed durability | Over-lighting hot spots at pumps; glare into vehicle sight lines | Horizontal + vertical illumination under canopy and at approach lanes |
| Parking deck (covered bays) | Consistent coverage between columns and bays | Uniformity between fixtures, column-shadow management, corrosion resistance | Dark bands between rows and behind columns; uneven bay lighting | Between-fixture minimums and dark-zone identification near columns |
| Covered loading zone / dock | Task visibility for movement and staging | Uniformity on the working plane, impact resistance, vibration tolerance | Shadowing at staging areas; lens damage from traffic/equipment | Task plane uniformity and avoidance of harsh contrast near doors |
Vertical illumination check: In fueling canopies, vertical visibility often matters more than ground-level numbers alone.
| Performance goal | Why it matters | What to check | Common mistake |
|---|---|---|---|
| Face recognition / perceived safety | Improves visibility of people and activity under canopy | Vertical illumination on typical standing height planes and pump zones | Chasing only horizontal fc while vertical visibility remains weak |
| Uniformity under canopy | Reduces harsh contrasts that feel unsafe or “patchy” | Between-fixture minimums and max-to-min ratios across bays | Over-spacing fixtures and accepting dark bands between rows |
| Driver-eye glare control | Improves comfort and reduces complaint risk | High-angle brightness and typical approach sight lines | Too much output at low height without optical control |
| Signage / payment visibility | Supports transactions and navigation | Vertical visibility near pumps, kiosks, and entry lanes | Hot spots that wash out contrast while surrounding zones go dim |
Spacing and uniformity checks
Spacing is driven by mounting height, optic, and the geometry of the canopy or deck structure. Photometrics validate that light levels hold between fixtures and that columns/soffits do not create dark bands.
Selection rule: Confirm spacing with photometrics using actual mounting height, fixture locations, and structure constraints to reduce revisions and re-aiming.
Spacing and uniformity checks: Use this table to prevent dark bands, hot spots, and glare under low-clearance structures.
| Issue observed | Typical cause | Spec fix (design) | Validation step |
|---|---|---|---|
| Dark bands between fixtures | Spacing too wide; optics too tight; soffits/columns blocking spread | Adjust spacing or distribution; align to canopy geometry; verify row layout | Run photometrics using actual fixture locations and structural obstructions |
| Hot spots at pump islands / bays | Output too high for mounting height; distribution too concentrated | Reduce selectable wattage; use more uniform distribution; optimize grid | Check max-to-min ratios and visual comfort at typical viewing angles |
| Glare into driver sight lines | High-angle brightness from low mount; reflective surfaces | Prioritize glare-controlled optics/lens; reduce output; confirm placement | Review driver-eye viewpoints and high-angle intensity in the photometric set |
| Uneven lighting near columns | Columns interrupt light spread; fixtures not aligned to bay grid | Re-align fixtures to bays; adjust row spacing to reduce column shadows | Check bay-by-bay minimums and column-adjacent points |
Construction and durability
Canopy environments include vehicle exhaust, vibration, and frequent moisture exposure. Fixtures should prioritize sealed drivers, corrosion-resistant housings, and impact-resistant lenses for long-life performance in 24/7 operation.
Selection rule: Specify IP-rated housings and durable lens materials when fixtures are exposed to damp, washdown, or high-traffic impact risk.
Durability checklist: Canopy fixtures live in high-traffic, moisture-prone zones—spec the construction for long-life reliability.
| Exposure / risk | What to specify | Why it matters | Field check |
|---|---|---|---|
| Moisture and washdown | IP-rated sealed housing and lens interface | Prevents moisture ingress and driver failure | Confirm sealing applies to the full assembly, not just the lens |
| Impact risk (traffic/equipment) | Impact-resistant lens and robust housing | Reduces cracking that can compromise the seal | Inspect lens condition and mounting tightness during maintenance cycles |
| Corrosion exposure | Corrosion-resistant housing/fasteners where needed | Prevents hardware degradation and seal compromise | Confirm suitability for local exposure (salt, chemicals, exhaust) |
| Vibration | Secure mounting + vibration-tolerant build | Reduces loosening and long-term failures | Verify mounting surface integrity and fastener retention |
Controls and dimming integration
Many projects standardize fixtures with field-selectable wattage and CCT so crews can match existing site conditions during commissioning. For energy performance, 0–10V dimming supports occupancy control, scheduling, or photocell strategies depending on the site’s operating hours.
Commercial Project Support
Need documentation, lead-time visibility, or closeout-ready deliverables? Use the resources below to route your project correctly and reduce revision cycles.
- Commercial Project Support (Hub)
- Quote Intake & Project Routing
- Photometrics
- Submittals
- Shipping Reliability & Fulfillment
- Closeout Documentation
- Returns & Restocking
- Warranty Claims
- Frequently Asked Questions
Controls strategy: Select controls based on operating hours, security expectations, and late-night reduction policies.
| Control approach | Best fit | How it behaves | Commissioning notes |
|---|---|---|---|
| Photocell baseline | Fueling and high-security sites needing dusk-to-dawn | On at dusk, off at dawn (simple + reliable) | Place to avoid false triggers; confirm service access |
| Schedule / timeclock | Sites with predictable hours or policies | Runs by schedule; can reduce output late night | Document schedules and zone mapping at closeout |
| Bi-level dimming | Late-night reduction allowed while maintaining safety | Maintains a lower background level with full-output periods | Set minimum dim above “dropout”; confirm uniformity at low level |
| Occupancy boost (select zones) | Low-traffic covered bays or intermittent loading areas | Boosts output on activity, dims when inactive | Manage nuisance triggers; tune timeout to match operations |
FAQs
How do I choose canopy lights by mounting height?
Start with the mounting height and the coverage area under the structure. Low mounting heights require wide distribution optics that maintain uniformity without creating hot spots or driver-eye glare.
Why is vertical illumination important for gas station canopies?
Vertical illumination improves face recognition, perceived safety, and visibility at pump islands. It is often a more meaningful performance metric than ground-level footcandles alone in fueling environments.
What causes dark zones under a canopy?
Dark zones are usually caused by poor spacing, columns/soffits blocking light distribution, or optics that concentrate light too tightly. Photometrics help validate spacing and fixture placement before installation.
Do canopy lights need dimming or controls?
Many canopy fixtures support 0–10V dimming so sites can use scheduling, occupancy control, or photocell strategies to reduce energy during low-traffic hours while maintaining required security lighting.
When should I use field-selectable wattage and CCT?
Use field-selectable fixtures when you want to reduce SKU count and keep commissioning flexibility—especially for multi-site programs where mounting heights or existing site color temperatures vary.
Expert reviewed for commercial specification
Brandon Waldrop
Lead Commercial Lighting Specialist • Documentation + Layout Support
The LED Canopy Lights collection is reviewed for low-mount uniformity, vertical visibility at pump/face height, and glare-disciplined presentation so fueling canopies, parking decks, and covered loading zones stay readable, comfortable, and operationally consistent under 24/7 duty cycles.
Collection review focus:
Verified for vertical visibility at pump/face height and transaction sightlines (not just bright pavement) so people, vehicles, pump zones, and payment areas stay legible on-site and on camera; verified for canopy spacing and pump-zone overlap to eliminate dark islands, corner pockets, and striping between fixtures while keeping uniformity credible from approach lanes; verified for low-mount glare discipline where high-angle brightness is contained at edges, entries, and drive-through viewpoints so the site reads bright without creating driver discomfort or washed surveillance; verified for geometry-first layout alignment (bay grid, columns/soffits, lane geometry, and canopy perimeter transitions) so structure obstructions don’t create shadow bands or uneven bays that feel unsafe; verified for hot-spot control at critical task areas (pump islands, kiosks, loading thresholds) using optic selection and right-sized lumen packages so “blast zones” don’t destroy contrast or create harsh adaptation; verified for color consistency across the entire canopy and adjacent covered zones (single CCT strategy and consistent appearance fixture-to-fixture) so replacements don’t create mixed-tone islands that signal poor maintenance; verified for environmental sealing posture appropriate to covered exterior sites (moisture pathways, insects/contamination in the optical chamber, exhaust residue, and heat stress in long-run duty) so ingress issues don’t turn into early driver/optic failures; verified for control reliability and fail-safe behavior (photocell placement, scheduling logic, minimum safe dim baselines where used) so the canopy avoids nuisance cycling, partial outages, or “too-dim” forecourt conditions during low-traffic hours; verified for documentation and settings discipline on multi-site rollouts (recorded wattage/CCT settings by zone and closeout-ready consistency) so the canopy stays standardized and predictable over time instead of drifting into patchwork performance.
