XFit Series LED Wraparound Light

Product Overview

The XFit Series LED Wraparound Light is a surface-mounted linear luminaire designed for commercial interior environments requiring uniform ambient distribution without recessed ceiling construction. The fixture provides selectable wattage and selectable correlated color temperature within a single housing platform, allowing electrical contractors and facility teams to standardize installation while adjusting delivered illumination during commissioning.

Available diffuse curved and prismatic lens configurations support different visual comfort and distribution requirements across corridors, classrooms, offices, utility rooms, and general commercial interiors. Field-selectable output enables alignment with mounting height, fixture spacing, and target light levels without changing fixture type, simplifying specification alongside broader LED wraparound lighting systems used throughout occupied spaces.

Universal 120–277V operation and integrated 0–10V dimming compatibility allow the XFit platform to integrate into modern control strategies while maintaining consistent fixture appearance across projects. This unified approach supports retrofit modernization and new construction deployments as part of coordinated commercial lighting installations where surface-mounted linear illumination is required.

Fixture Specifications

• Input Voltage: 120–277V
• CCT Options: 3500K / 4000K / 5000K
• Color Rendering Index: 80+
• Dimming: 0–10V
• Location Rating: Damp Location
• Finish: White
• Certifications: cULus Listed, RoHS Compliant, DLC Premium Listed
• Minimum Operating Temperature: -4°F
• Warranty: 5-Year Warranty

Performance & Physical Configurations

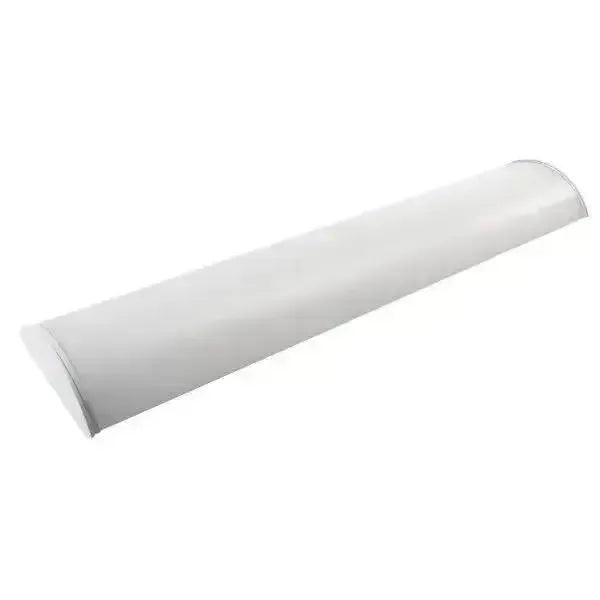

Diffuse Curved Wrap Lens

• Selectable Wattage: 18W / 28W / 44W
• Lumen Output: 2,664 / 4,032 / 6,116 lm
• Input Voltage: 120–277V
• CCT: 3500K / 4000K / 5000K
• Dimensions: 46 in L × 9.7 in W × 3.4 in H
• Manufacturer Part Number: KT-CWLED44PS-4-8CSA-VDIM

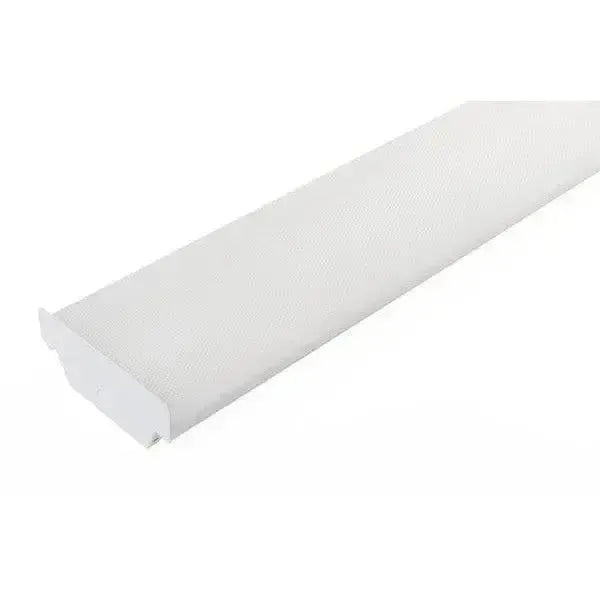

Prismatic Wrap Lens

• Selectable Wattage: 18W / 28W / 44W
• Lumen Output: 2,700 / 4,050 / 5,940 lm
• Input Voltage: 120–277V
• CCT: 3500K / 4000K / 5000K
• Dimensions: 47.7 in L × 7.1 in W × 2.8 in H
• Manufacturer Part Number: KT-WLED44PS-4-8CSA-VDIM

Product Downloads

• Brochure
• Specification Sheet (KT-WLED44PS-4-8CSA-VDIM)
• Specification Sheet (KT-CWLED44PS-4-8CSA-VDIM)
• Photometrics (IES Files)
• Installation Instructions
• Warranty
