Product Overview
The StormGuard Series LED Vapor Tight Light is a sealed linear luminaire platform developed for commercial and industrial environments where moisture, humidity, airborne particulates, or washdown exposure would compromise standard open fixtures. Vapor tight luminaires utilize gasketed housings designed to prevent dust, water vapor, and contaminants from entering electrical compartments, protecting drivers and internal components in demanding operating conditions.
Available in 2-foot, 4-foot, and 8-foot configurations, the StormGuard Series supports consistent fixture specification across parking garages, cold storage areas, service corridors, food processing spaces, utility zones, and enclosed industrial interiors. Field-selectable wattage allows illumination levels to be aligned with mounting height and fixture spacing without changing housing type, while selectable correlated color temperature maintains visual continuity throughout connected facility areas.
The enclosed construction platform enables reliable operation in locations exposed to condensation, spray, dust accumulation, and temperature variation where sealed lighting systems are required for long-term performance. This allows coordinated deployment alongside broader LED vapor tight lighting systems while maintaining specification consistency across facility upgrades and new construction projects within larger commercial LED lighting installations.
By maintaining uniform mechanical design across multiple lumen packages and fixture lengths, the StormGuard Series allows projects to standardize appearance, simplify maintenance planning, and deploy sealed linear illumination using a single vapor-protected lighting family across mixed commercial and industrial environments.
Fixture Specifications
- Voltage: 120–277V
- CCT: 3500K, 4000K, 5000K, 5700K, 6500K
- Dimming: 0–10V
- Efficacy: 125–130 lm/W
- Construction: Sealed Vapor Tight Linear Housing
- Certifications: cETLus Listed, DLC Premium Listed
- Warranty: 5-Year Limited Warranty
Performance & Physical Configurations

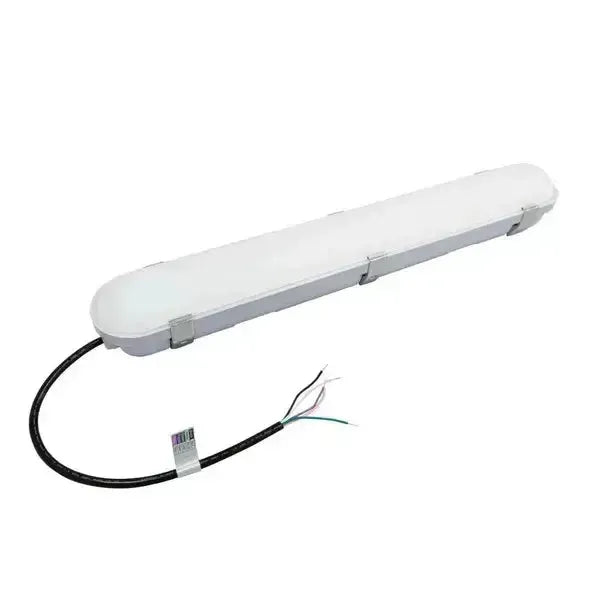

2 ft Vapor Tight
- MPN: NC-VP2F-M25W-CCT
- Selectable Wattage: 12W / 15W / 18W / 22W / 25W
- Lumen Output: 1,560–3,250 lm
- Dimensions: 23.6 in L × 3.74 in W × 3.15 in H

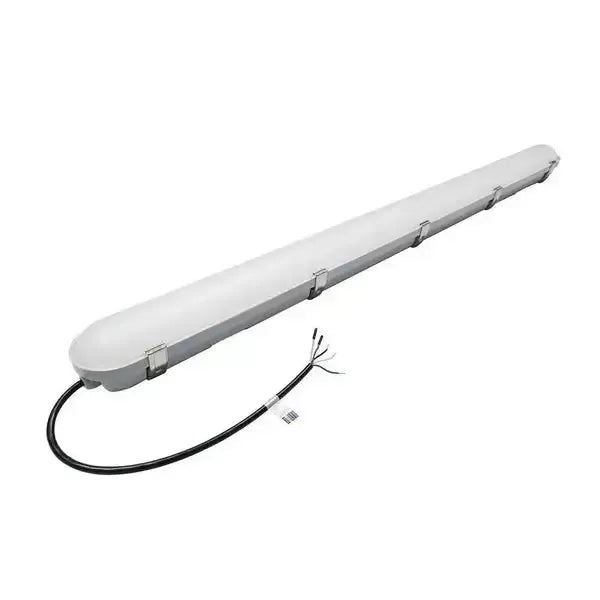

4 ft Vapor Tight
- MPN: NC-VP4F-M50W-CCT
- Selectable Wattage: 25W / 30W / 35W / 40W / 50W
- Lumen Output: 3,250–6,250 lm
- Dimensions: 47.2 in L × 3.74 in W × 3.15 in H
8 ft Vapor Tight
- MPN: NC-VP8F-M100W-CCT
- Selectable Wattage: 50W / 60W / 70W / 80W / 100W
- Lumen Output: 6,250–12,500 lm
- Dimensions: 94.49 in L × 3.74 in W × 3.31 in H
