CanoLux Series LED canopy light main product view showing commercial surface mount exterior canopy fixture housing

CanoLux Series LED Canopy Light

20–40W (3158–5835 lm) / Standard
$67.99 $79.99
Skip to product information
CanoLux Series LED canopy light main product view showing commercial surface mount exterior canopy fixture housing
  • CanoLux Series LED canopy light main product view showing commercial surface mount exterior canopy fixture housing

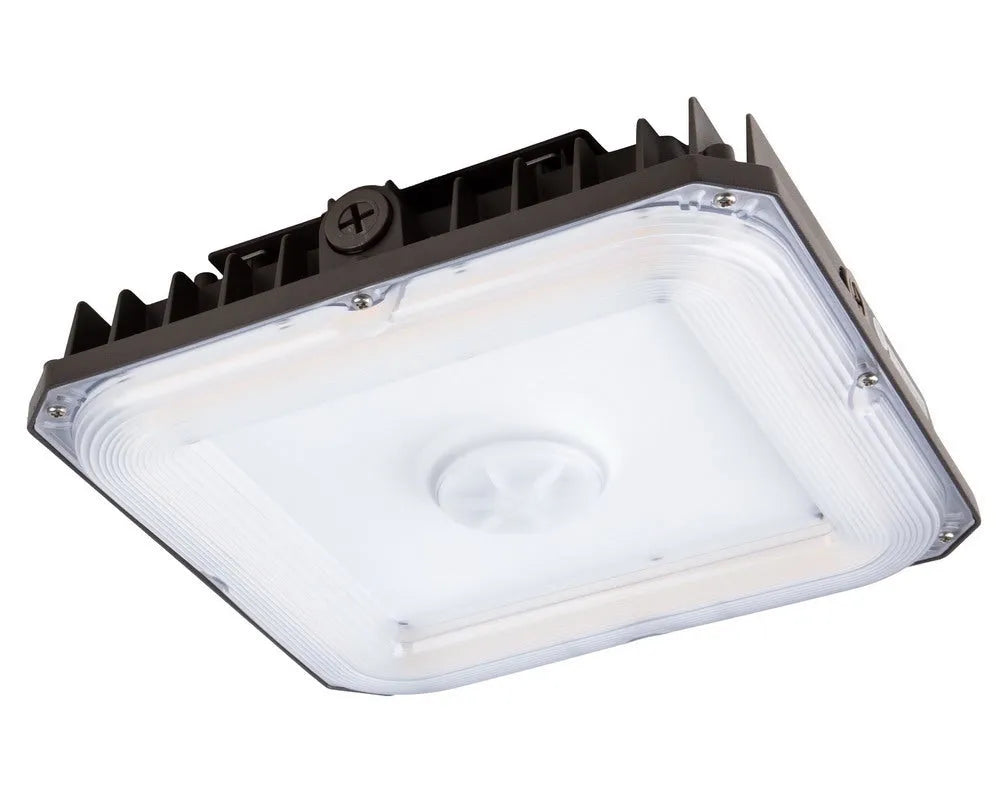

  • Angled underside view of CanoLux Series LED canopy light showing optical lens and integrated sensor receptacle for commercial canopy lighting controls

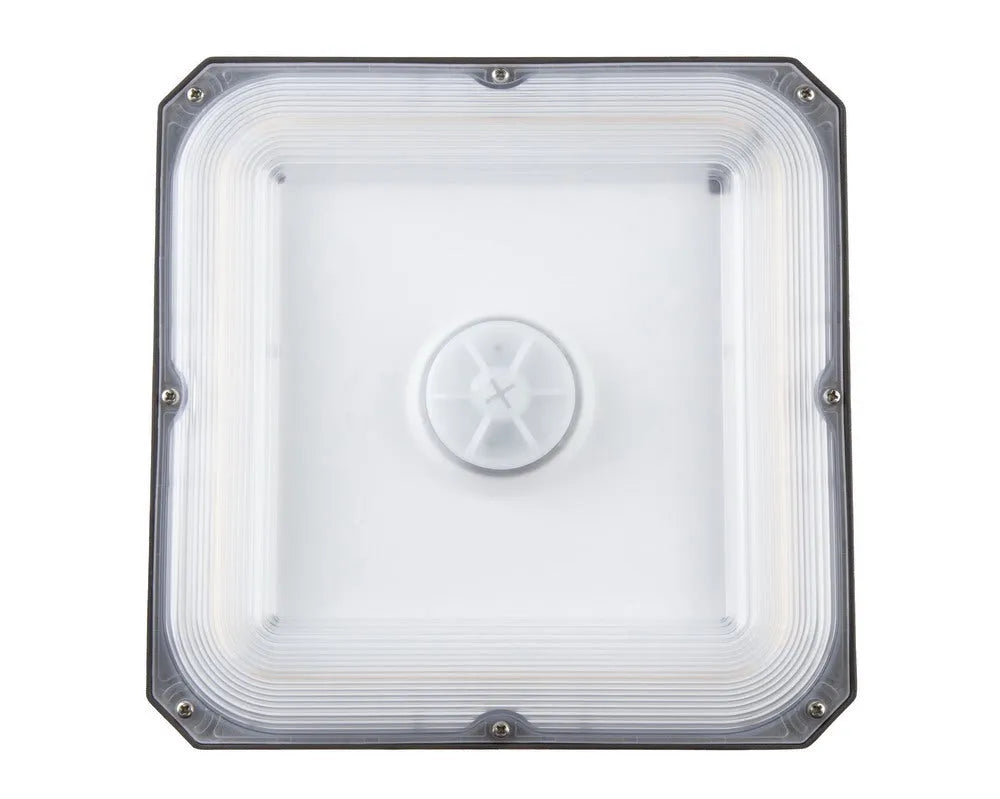

  • Bottom view of CanoLux Series LED canopy fixture showing sealed optical lens and sensor port for occupancy or daylight control integration

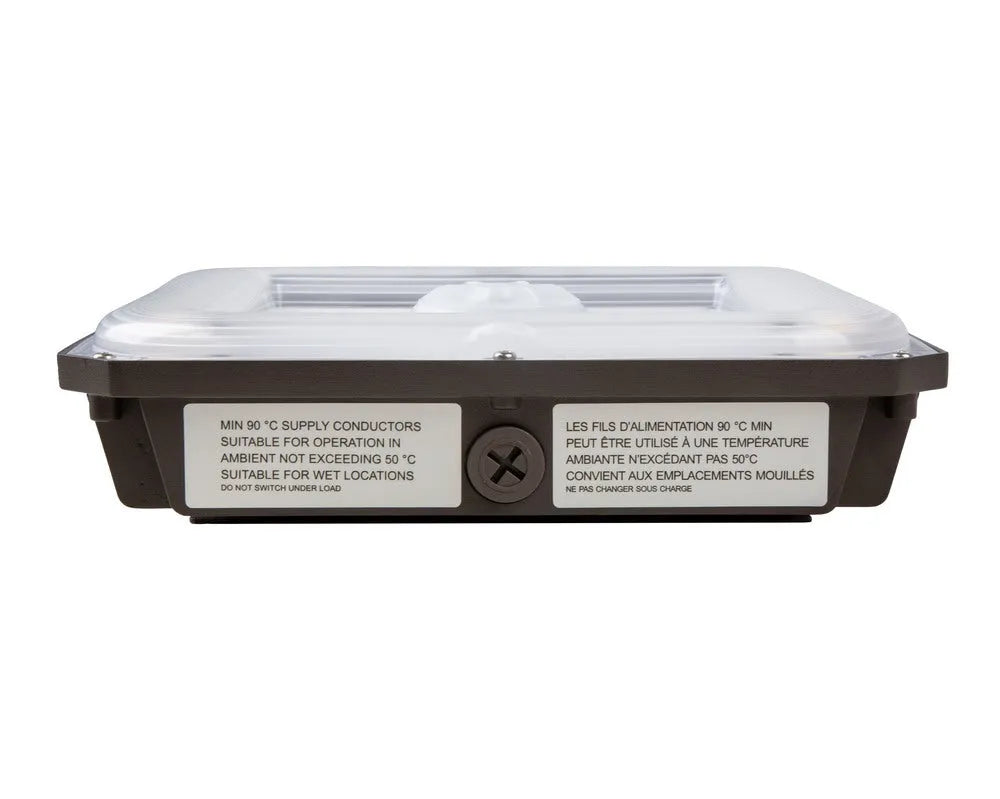

  • Upside down side profile of CanoLux Series LED canopy light showing lens assembly and die cast aluminum frame construction
  • Upside down side view of CanoLux Series LED canopy light showing electrical knockout access point for conduit installation

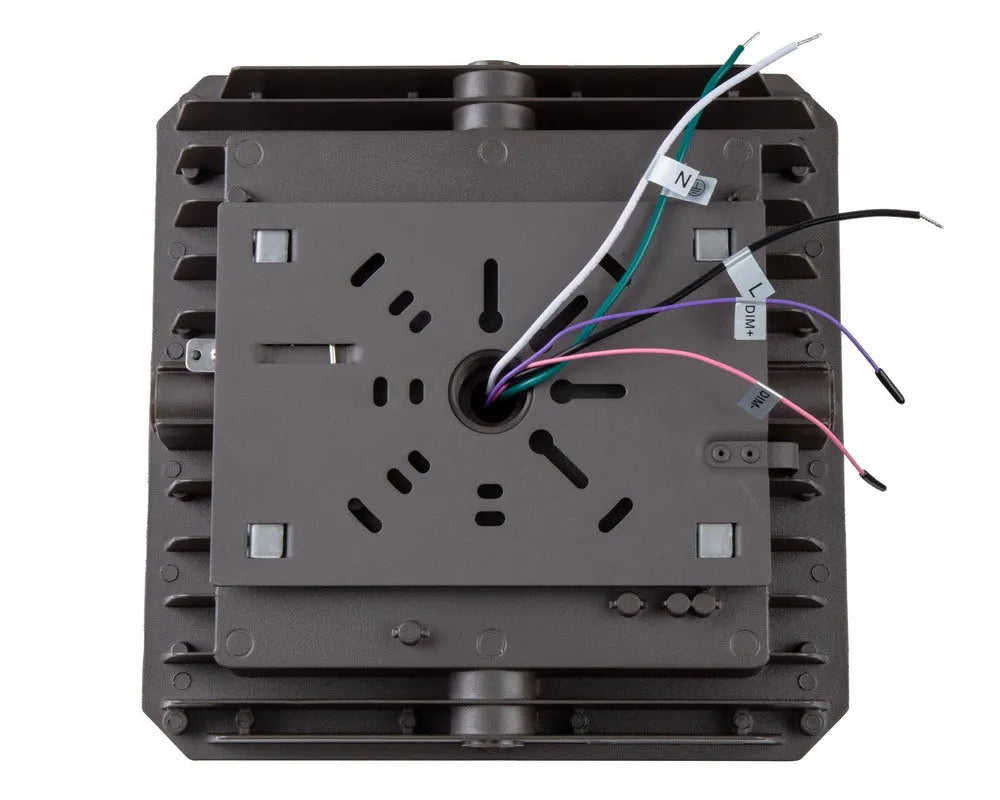

  • Rear view of CanoLux Series LED canopy light showing mounting plate interface and factory power wiring for commercial installation
  • CanoLux Series LED canopy light main product view showing commercial surface mount exterior canopy fixture housing
  • Angled underside view of CanoLux Series LED canopy light showing optical lens and integrated sensor receptacle for commercial canopy lighting controls
  • Bottom view of CanoLux Series LED canopy fixture showing sealed optical lens and sensor port for occupancy or daylight control integration
  • Upside down side profile of CanoLux Series LED canopy light showing lens assembly and die cast aluminum frame construction
  • Upside down side view of CanoLux Series LED canopy light showing electrical knockout access point for conduit installation
  • Rear view of CanoLux Series LED canopy light showing mounting plate interface and factory power wiring for commercial installation
CanoLux Series LED Canopy Light

CanoLux Series LED Canopy Light

Brand: NCLTG
SKU: NC-CPS-40W-3CCT
Product Type: LED Canopy Light
$67.99 $79.99
Secure Checkout

Payment information is processed through encrypted, PCI-compliant payment gateways. Card details are never stored on our servers.
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping is calculated at checkout based on product type, destination, and delivery method (parcel or freight). For lead times, tracking, freight delivery, and inspection requirements, see our shipping policy.
Returns & Restocking

Returns and restocking are handled through an authorization and routing process based on product type and manufacturer policy. Some returns may be subject to a manufacturer-determined restocking fee. For eligibility, steps, and correction handling, see our return and refund policy.

Product Overview

The CanoLux Series LED Canopy Light is a surface-mounted exterior luminaire platform developed for covered commercial environments requiring consistent illumination, environmental protection, and optional emergency operation within a unified fixture family. The series supports standardized deployment across parking structures, fuel canopies, loading areas, walkways, and building overhangs while maintaining consistent fixture appearance and electrical performance across a site.

Field-selectable wattage allows delivered light levels to be aligned with mounting height, spacing criteria, and coverage requirements without changing fixture housing or mounting layout. Selectable correlated color temperature supports visual consistency across exterior zones and coordinated installation alongside LED canopy lighting systems and broader commercial lighting installations.

Select configurations incorporate a factory-installed 90-minute emergency backup system intended for covered egress paths and safety-designated exterior areas. Maintaining standard and emergency operation within the same luminaire platform simplifies project coordination while supporting continuity between normal site illumination and life-safety lighting requirements.

Fixture Specifications

Voltage 120–277V
CCT 3000K, 4000K, 5000K
Dimming 0–10V
Efficacy 134–161 lm/W
Ingress Protection IP65 Rated
Minimum Operating Temperature -22°F
Certifications UL Listed, DLC Premium Listed
Warranty 5-Year Limited Warranty

Performance & Physical Configurations

Fixture Size Emergency Backup MPN Selectable Wattage Lumen Output Dimensions DLC Product ID
Compact Canopy No NC-CPS-40W-3CCT 20W / 30W / 40W 3,158–5,835 lm 10"L × 10"W × 2.75"H S-1KVF0S
Compact Canopy 90-Minute Emergency Backup NC-CPS-40W-3CCT-EM 20W / 30W / 40W 3,158–5,835 lm 10"L × 10"W × 2.75"H S-1KVF0S
High Output Canopy No NC-CPS-75W-3CCT 40W / 60W / 75W 6,880–11,127 lm 10"L × 10"W × 2.75"H S-NBK75M
High Output Canopy 90-Minute Emergency Backup NC-CPS-75W-3CCT-EM 40W / 60W / 75W 6,880–11,127 lm 10"L × 10"W × 2.75"H S-NBK75M

Product Downloads
