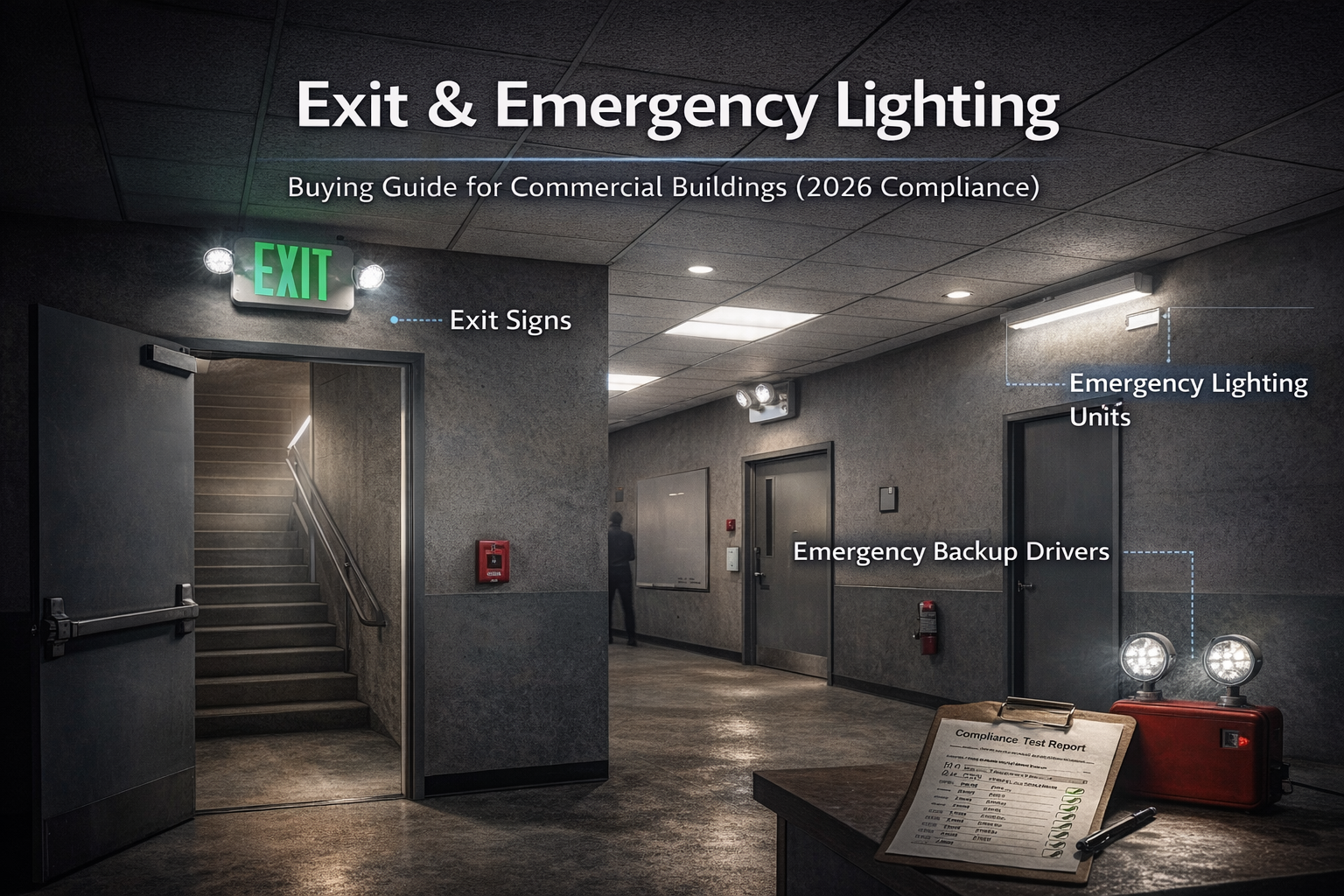

Exit & Emergency Lighting Buying Guide for Commercial Buildings (2026 Compliance)
Exit and emergency lighting decisions are not about aesthetics, efficiency, or brightness—they are about life safety, code compliance, and inspection survivability. These systems must perform during power loss, pass documented testing requirements, and remain operational under conditions where everything else has failed.
This buying guide breaks down exit signs, emergency lighting units, and emergency backup drivers so you can specify systems that pass inspection, reduce labor burden, and remain compliant under NFPA 101, local fire codes, and AHJ enforcement practices.
Note: Exit and emergency lighting is a regulated life-safety system. Unlike general lighting, failure is not optional—and retrofits triggered by inspection findings are almost always disruptive and expensive.
Last reviewed: January 2026 · Aligned with current NFPA 101 life-safety requirements, UL standards, and common AHJ inspection practices
Quick Compliance Reality Check
- Fixtures working is not enough. Inspectors typically require proof of monthly and annual testing.
- Records matter. Missing documentation is often treated as non-compliance.
- Batteries fail silently. Runtime failures are one of the most common re-inspection triggers.
Related Commercial Lighting Buying Guides
In this guide
Start With the 3 Exit & Emergency Lighting Truths
2026 compliance takeaway: Exit and emergency lighting systems fail inspections due to documentation gaps, testing lapses, and battery degradation—not because LEDs burn out.
- Truth #1: Testing is mandatory. Monthly and annual tests are required whether anyone remembers to do them or not.
- Truth #2: Labor is the hidden cost. Manual testing scales poorly as facilities grow.
- Truth #3: Inspectors expect proof. If you can’t document compliance, the system is treated as non-compliant.
Codes That Govern Exit & Emergency Lighting
Compliance rule: Most commercial buildings fall under NFPA 101 (Life Safety Code) or an adopted equivalent enforced by the Authority Having Jurisdiction (AHJ).
- Monthly functional testing (30 seconds)
- Annual 90-minute discharge testing
- Documented records available for inspection
Local enforcement may supplement or interpret these requirements differently, making Authority Having Jurisdiction (AHJ) expectations as important as the base code language.
Failure to meet any of these requirements can result in failed inspections, re-inspection fees, or occupancy delays.
Inspection reality: In most jurisdictions, incomplete testing records are treated as a failed system—even if all fixtures illuminate during inspection.
Manual vs Self-Diagnostic Exit Signs
Answer summary: Self-diagnostic exit signs automatically perform required NFPA tests, reduce labor, and provide visible compliance indicators—making them the preferred choice in multi-device facilities.
2026 decision rule: In facilities with more than a handful of exit signs, self-diagnostic units are no longer a convenience—they are a risk-management tool.
| Feature | Manual Exit Signs | Self-Diagnostic Exit Signs |
|---|---|---|
| Monthly testing | Manual activation required | Automatic |
| Annual 90-min test | Manual observation | Automatic |
| Fault indication | Often unnoticed | Visible LED indicators |
| Documentation burden | High | Low |
Related Technical Guidance
Emergency Lighting Units vs Backup Drivers
Answer summary: Emergency lighting units simplify inspection and testing, while backup drivers preserve aesthetics but require tighter coordination and documentation.
2026 decision rule: Use emergency lighting units when visibility and inspection clarity matter most; use backup drivers when architectural appearance is critical and testing coordination is well managed.
Emergency illumination can be achieved in two ways, each with different implications for aesthetics, maintenance, and inspection.
- Emergency lighting units: Self-contained heads with onboard batteries—simple, visible, easy to inspect.
- Emergency backup drivers: Power select luminaires during outages—cleaner look but more complex testing.
Design note: Remote-capable emergency lighting units are often specified when egress paths, stairwells, or corridor layouts require flexible head placement without adding additional battery systems.
Specification tip: Backup drivers reduce fixture clutter but require careful coordination with normal lighting circuits to ensure coverage during outages.
Battery Chemistry, Runtime, and Failure Modes
Answer summary: Battery performance—not LED output—is the primary determinant of emergency lighting reliability during inspections and outages.
2026 decision rule: Batteries determine whether emergency lighting works when it matters—LEDs are secondary.
- Ni-Cd: Proven, predictable, widely accepted
- Li-ion: Smaller footprint, longer life, higher cost
Long-term risk: Batteries often meet runtime requirements when installed but degrade quietly over time. Systems without automated testing or visual fault indicators frequently fail inspections years later—not during initial commissioning.
Battery degradation is the most common cause of emergency lighting failure during inspections.
Mounting, Visibility, and Placement Mistakes
Even compliant fixtures fail inspections when installed incorrectly.
- Exit signs blocked by architectural features
- Emergency heads aimed into walls instead of egress paths
- Improper mounting height reducing visibility
Testing, Documentation, and Inspection Readiness
Inspection reality: Inspectors often ask for testing records before they look at fixtures.
- Self-diagnostic systems reduce missed tests
- Visual fault indicators simplify walk-throughs
- Consistent documentation prevents re-inspection delays
Common Exit & Emergency Lighting Inspection Failures
- Battery units passing illumination checks but failing 90-minute runtime
- Manual test switches never exercised or documented
- Self-diagnostic indicators ignored or misunderstood by maintenance staff
- Exit signs installed correctly but blocked by later renovations
Exit & Emergency Lighting Specification Checklist
| Spec Item | Why It Matters |
|---|---|
| Self-diagnostic capability | Reduces labor and missed tests |
| 90-minute runtime | Required by NFPA |
| Battery chemistry | Determines long-term reliability |
| Mounting visibility | Prevents inspection failures |
| Documentation strategy | Critical for AHJ approval |
Shop Exit & Emergency Lighting by Category
Exit and emergency lighting should never be specified as an afterthought. When systems are designed for testing, documentation, and battery longevity from day one, inspections become routine instead of disruptive—and life safety systems work exactly as intended when they are needed most.
