Core Metrics of Commercial LED Lighting

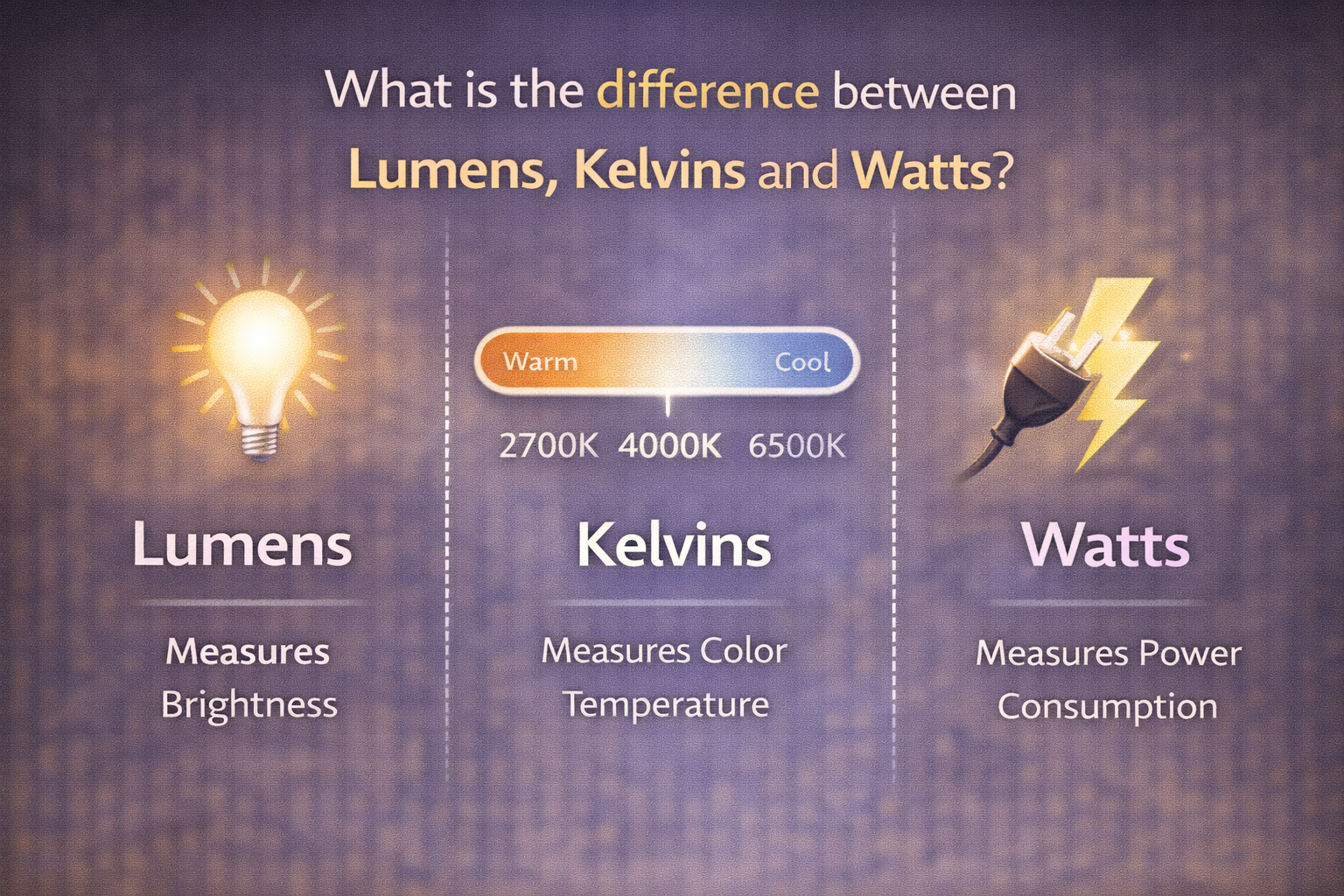

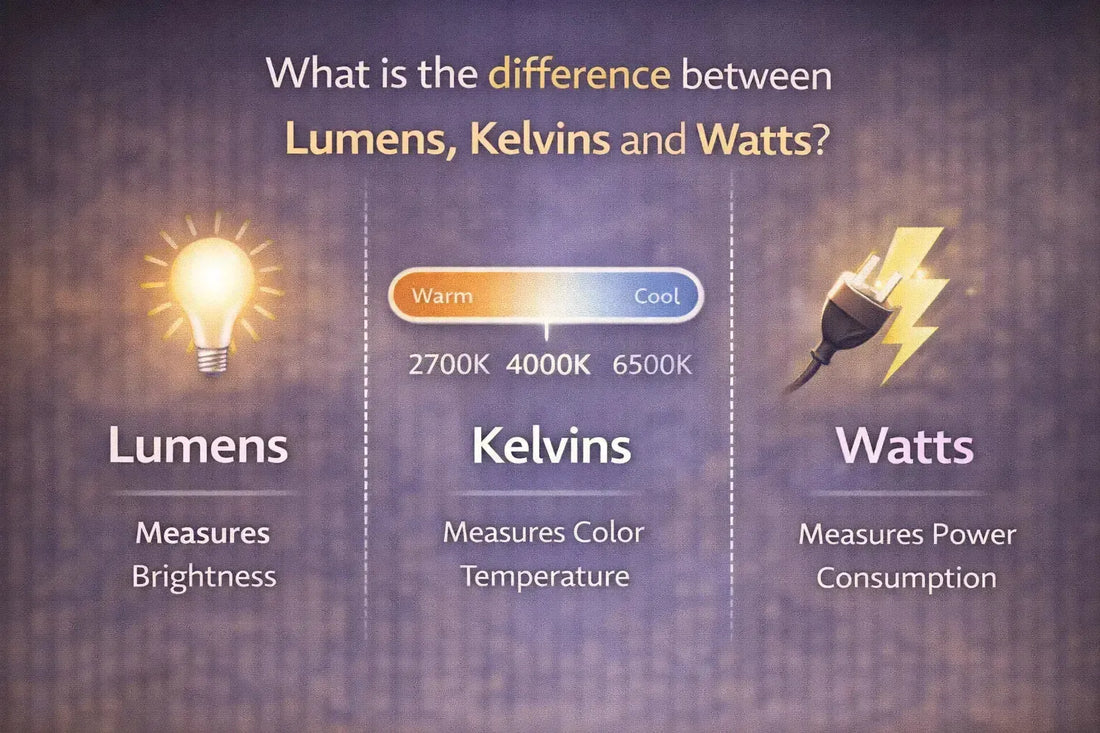

When specifying LED fixtures for commercial and industrial applications, system performance is defined by three core metrics: lumens, Kelvin (CCT), and wattage. Together, these values determine brightness, visual appearance, and energy consumption.
Understanding how these specifications interact is essential for maintaining proper illumination levels, managing operating costs, and ensuring compatibility with existing fixtures and electrical systems.
Understanding Lumens
Lumens represent the total amount of visible light emitted by a source. In professional lighting design, lumens—not wattage—are used to define brightness and establish target illumination levels.
During commercial retrofits, lumen output should be matched to the existing lighting system rather than attempting to match legacy wattage values.
| Legacy Incandescent Wattage | Approximate LED Lumen Output |
|---|---|
| 40W | ≈ 450 lumens |
| 60W | ≈ 800 lumens |
| 75W | ≈ 1,100 lumens |
| 100W | ≈ 1,600 lumens |
These values serve as general guidance and should be adjusted based on fixture optics, mounting height, spacing, and application requirements.
Understanding Kelvin Color Temperature
Kelvin (K) is the unit used to express Correlated Color Temperature (CCT), which describes the visual appearance of light emitted by a source. CCT is derived from the color produced by a theoretical black-body radiator at specific temperatures.
Lower Kelvin values (2700K–3000K) produce warm light commonly used in hospitality and accent environments. Neutral to cool ranges (4000K–5000K) are standard for offices, warehouses, and industrial facilities where contrast, visibility, and task accuracy are priorities.
Wattage and Luminous Efficacy
Wattage measures electrical power consumption and does not indicate brightness. In legacy lighting systems, wattage was often used as a proxy for light output, but this relationship no longer applies to LED technology.
Luminous efficacy, expressed as lumens per watt (lm/W), defines how efficiently a fixture converts electrical energy into light. Two LED fixtures with the same wattage may produce significantly different lumen outputs depending on their efficacy.
The term “wattage equivalent” is used to reference legacy lamps. For example, a “60W equivalent” LED produces approximately the same lumen output as a 60W incandescent while consuming substantially less power.
Thermal and Safety Considerations
Many commercial fixtures include maximum wattage ratings based on the heat generated by incandescent lamps. These ratings are thermal safety limits rather than brightness limits.
Because LED lamps generate significantly less heat, higher-output LED replacements can often be used safely in existing fixtures, provided the actual wattage consumed remains below the fixture’s rated maximum.
Verifying true wattage—not equivalent wattage—is critical for maintaining thermal safety and long-term fixture reliability.
Related Commercial Lighting Categories
Evaluating lumens, Kelvin, and wattage together ensures commercial LED lighting systems deliver the required illumination, correct visual appearance, and efficient energy performance.
Frequently Asked Questions
What do lumens measure
Lumens (lm) measure the total amount of visible light a lamp or fixture emits. In commercial specifications, lumens describe potential light output from the source. Delivered light on a work surface is evaluated with illuminance (lux or foot-candles), which depends on mounting height, optics, spacing, and room reflectance.
What do kelvins measure
Kelvins (K) describe correlated color temperature (CCT), or the visual appearance of the light color. Lower CCT values (around 2700K–3000K) appear warmer, while higher values (around 4000K–5000K and above) appear more neutral to cool. CCT affects perceived brightness and visual comfort but does not indicate how much light is produced.
What do watts measure
Watts (W) measure electrical power consumption. Watts do not equal brightness in LED systems. Two fixtures with the same wattage can produce different lumens depending on their efficiency.
How lumens and watts relate in LED specifications
The link between light output and power is luminous efficacy, expressed as lumens per watt (lm/W). Higher efficacy means more lumens for the same wattage. This is why LED retrofits are specified by lumen output and efficacy rather than trying to match legacy wattage.
Why a wattage equivalent label can be misleading
Wattage equivalent is a comparison to older incandescent or HID lamps and is not a true electrical load. For safety and circuit planning, always use the actual wattage on the lamp or driver label.
How to use the three metrics together in a commercial selection
Select lumens to meet target illuminance at the task plane, select CCT (Kelvin) to match the visual requirements of the space, and confirm wattage for energy modeling, circuit loading, and fixture thermal limits. For enclosed housings or retrofit lamps, verify the fixture rating and any temperature or ventilation constraints stated by the manufacturer.
