Technical Distinctions: Base Type vs. Bulb Shape
In commercial lighting maintenance and procurement, precise terminology is essential to ensure fixture compatibility and avoid costly specification errors. Two terms commonly used in general service lighting—E26 and A19—are often treated as interchangeable, yet they describe entirely different physical characteristics.

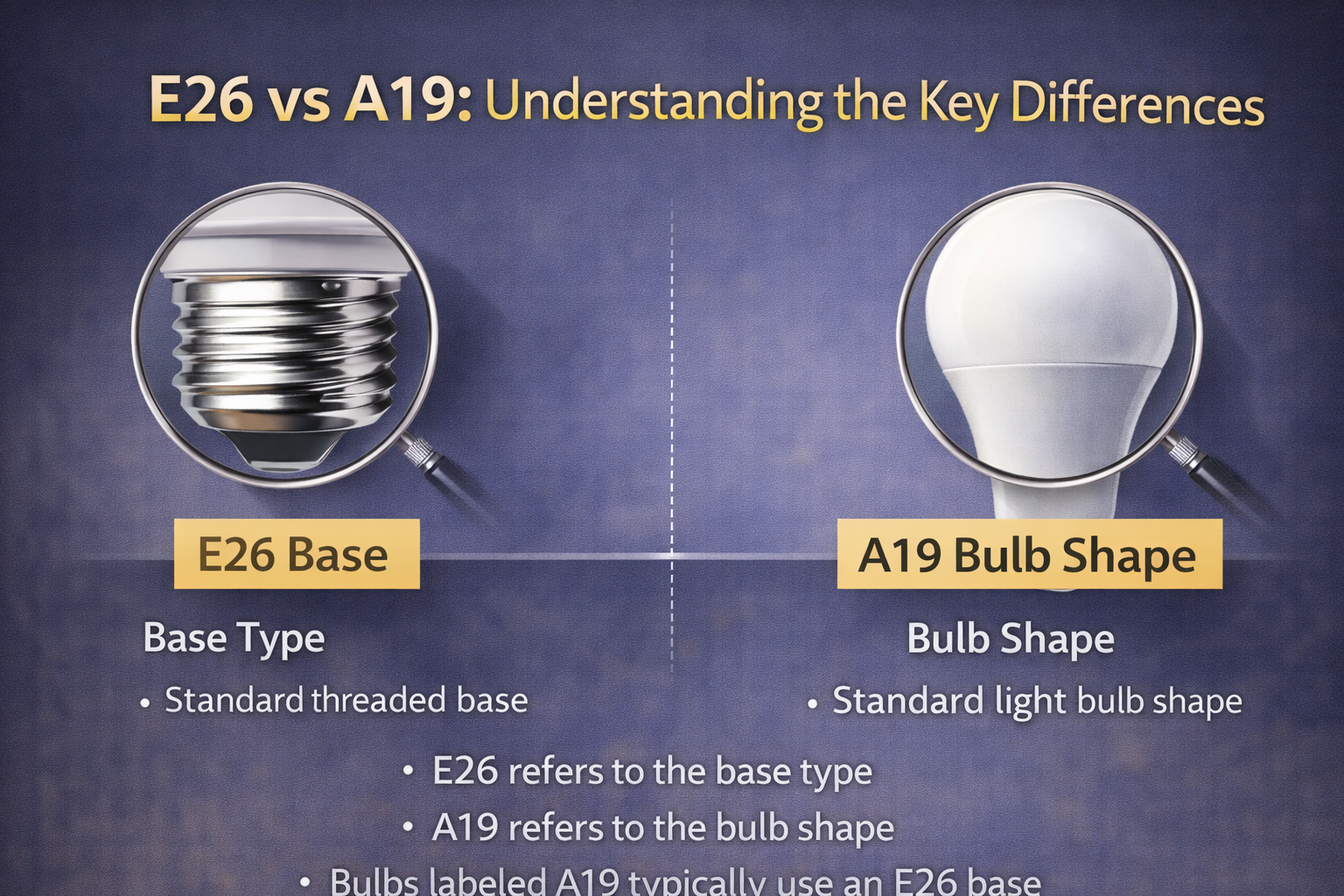

E26 defines how a lamp connects electrically to a fixture, while A19 defines the physical size and shape of the lamp envelope. Understanding this distinction is critical when servicing mixed commercial inventories or specifying replacement lamps across multiple fixture types.
What E26 Defines
E26 refers specifically to the base type of a lamp. The “E” denotes an Edison screw base, while “26” identifies the diameter of the base in millimeters. Commonly referred to as a medium base, E26 is the standard screw-in interface used throughout commercial and industrial lighting in North America.
The E26 base is governed by ANSI dimensional standards, ensuring electrical and mechanical compatibility across manufacturers.
What A19 Defines
A19 refers to the shape and size of the lamp envelope, not the electrical connection. The “A” designates an arbitrary, pear-shaped profile, while “19” represents the maximum diameter of the bulb measured in eighths of an inch (19/8", approximately 2.375").
An A19 lamp typically measures approximately 4.4 inches in overall length and represents the most common general-purpose bulb profile used in offices, hospitality spaces, and light-duty commercial environments.
How E26 and A19 Work Together
Because E26 and A19 describe different attributes, they are not interchangeable terms but are frequently paired. Most A19 lamps used in commercial facilities are manufactured with E26 bases, making the combination widely recognizable.
However, identifying only one of these specifications is insufficient when evaluating replacement compatibility.
Common Compatibility Scenarios
Commercial lighting systems frequently present situations where base type and bulb shape must be evaluated independently.
- A19 Fixtures with E26 Sockets: Many fixtures described informally as “A19 fixtures” are designed around the physical dimensions of the A19 envelope while using standard E26 sockets. These fixtures typically accept direct A19 replacements without issue.
- A19 Lamps with Non-E26 Bases: Some commercial fixtures use A19-shaped lamps with alternative bases such as GU24 to meet energy code requirements. In these cases, physical fit is correct, but electrical compatibility differs.
- E26 Sockets Accepting Other Lamp Shapes: An E26 socket may accept a wide range of lamp shapes beyond A19, including BR30, BR40, PAR38, or high-output LED retrofit lamps, provided the fixture housing allows for the larger dimensions.
Procurement and Maintenance Considerations
For commercial facility managers, verifying the base type is the first step in ensuring electrical compatibility. Verifying bulb shape is equally important to confirm physical fit within enclosed luminaires, lenses, or protective cages.
Accurately distinguishing between E26 and A19 reduces maintenance delays, minimizes incorrect orders, and ensures consistent lighting performance across mixed fixture inventories.
Related Commercial Lighting Categories
Correctly identifying both the base type and bulb shape ensures that replacement lamps meet electrical, dimensional, and operational requirements in commercial lighting systems.
Frequently Asked Questions
Is E26 the same thing as A19?
No. E26 describes the screw base interface. A19 describes the bulb shape and size. They are often used together, but they refer to different physical attributes.
What does E26 mean?
E26 is an Edison screw base with a nominal 26 mm diameter. It defines the electrical and mechanical connection to the socket and is commonly referred to as a medium base in North America.
What does A19 mean?
A19 is a bulb shape designation. The A indicates a general service, pear-shaped envelope, and 19 indicates the maximum bulb diameter in eighths of an inch, which is 19/8 inch.
Can an A19 bulb have a base other than E26?
Yes. An A19-shaped lamp can be produced with other base types used in commercial applications, including GU24. In those cases, the bulb may fit physically but will not screw into an E26 socket.
Can an E26 socket accept bulbs that are not A19?
Yes. Many lamp shapes use an E26 base, including BR30, BR40, PAR30, PAR38, and other retrofit lamp types. Compatibility depends on fixture clearance, heat management requirements, and the lamp rated use conditions.
What is the most common pairing in general service LED lamps?
The most common pairing is an A19 bulb shape with an E26 medium screw base. That is why the terms are frequently mentioned together in maintenance inventories.
What should be verified first during replacement, base type or bulb shape?
Verify the base type first to confirm the lamp will connect to the socket. Then verify bulb shape and dimensions to confirm the lamp will physically fit within the luminaire, lens, cage, or shade.
When does bulb shape matter most in commercial fixtures?
Bulb shape matters most in enclosed luminaires, vapor-resistant housings, caged fixtures, and decorative lenses where the envelope diameter and overall length can prevent proper fit or interfere with optics and airflow.
What is a common ordering mistake involving E26 and A19?
A common mistake is ordering A19 lamps assuming they will fit because the fixture uses a general service lamp profile, then discovering the socket is not E26. The reverse also occurs when an E26 base is correct but the lamp envelope is too large for the housing.
How should lamp descriptions be written for procurement to reduce errors?
List base type, shape, voltage, wattage, lumen output, CCT, and any enclosure or rated-use requirements. Base and shape should be separate fields so electrical compatibility and physical fit are both controlled.
