Illuminating Commercial High-Ceiling Environments

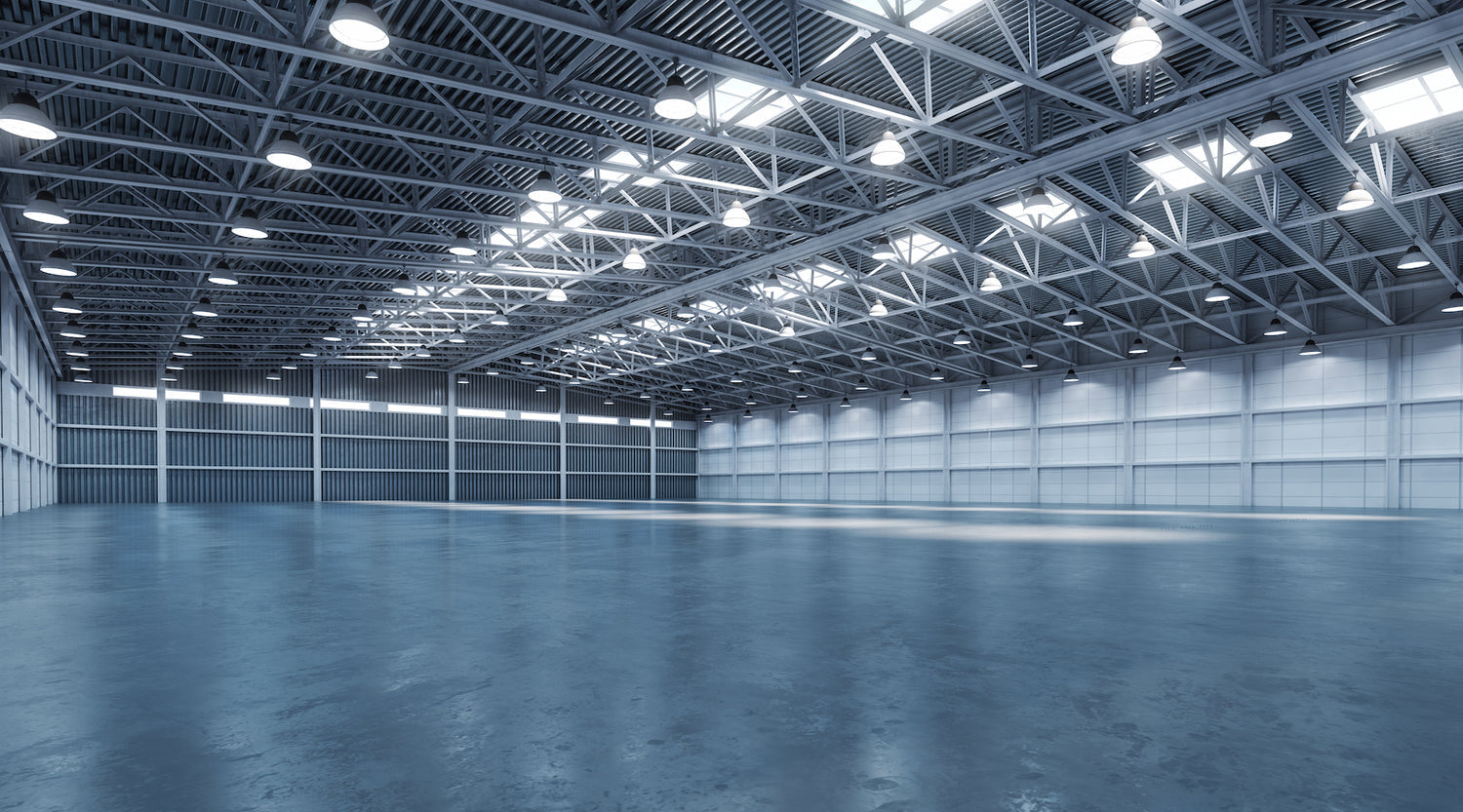

High-ceiling environments commonly found in warehouses, gymnasiums, manufacturing facilities, and distribution centers present unique challenges for light delivery and maintenance access. Effective illumination requires fixtures capable of delivering sufficient lumen density over long distances while maintaining uniform coverage across large floor areas.
Modern LED high-ceiling lighting systems address these challenges by combining high-output performance, optimized optics, and long service life to support safe and efficient facility operation.
High Bay Fixture Types
For ceiling heights exceeding approximately 15 feet, LED high bay fixtures are the primary lighting solution. These fixtures are generally categorized into two core form factors based on layout and application requirements.

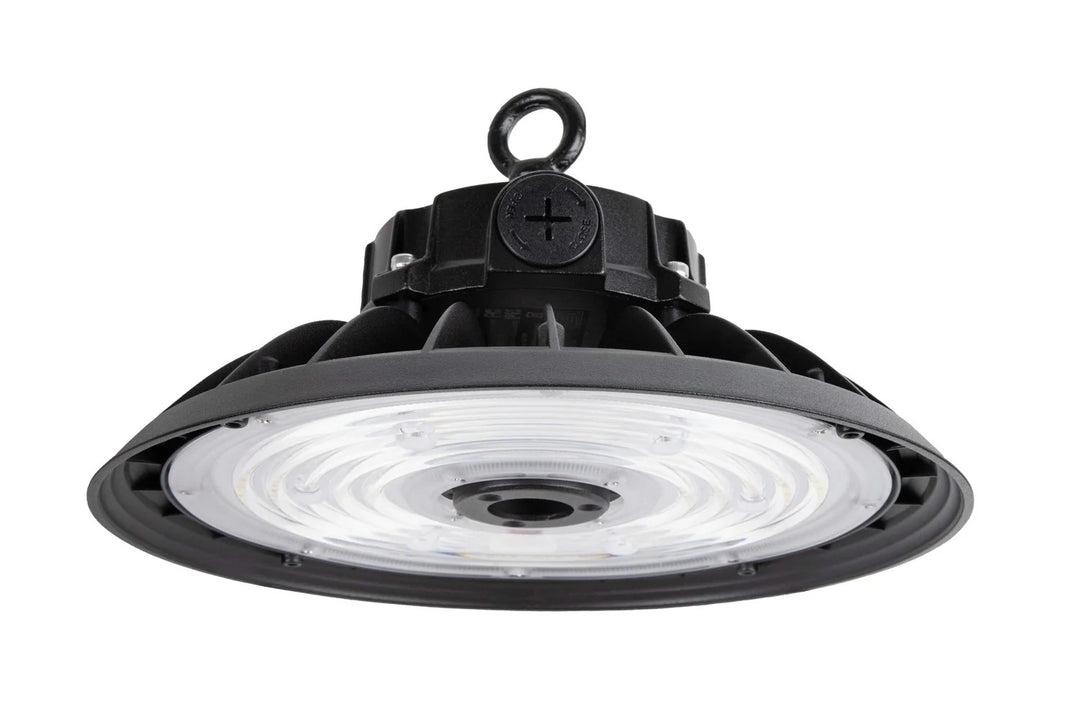

- UFO High Bays: Compact, round fixtures suited for open floor plans such as manufacturing areas, gymnasiums, and service bays. Their circular beam pattern provides high center intensity and simplified installation using hook, pendant, or rigid mounting.
- Linear High Bays: Rectangular fixtures designed for aisle-based environments such as warehouses and distribution centers. Their elongated light distribution reduces hot spots and improves uniformity across racking and walkways.
Lighting Layering Strategies
High-ceiling facilities benefit from a layered lighting approach rather than reliance on overhead fixtures alone. Layering improves visibility, reduces shadows, and supports task accuracy.
- General Illumination: High bay fixtures establish baseline lighting levels across the entire space.
- Task Lighting: Supplemental fixtures positioned over workstations, machinery, or inspection areas provide higher illuminance for detailed tasks.
- Vertical Illumination: Wall-mounted or wash lighting improves visibility on shelving, perimeter aisles, and vertical surfaces.
Optics and Beam Angle Selection
Beam angle selection plays a critical role in high-ceiling lighting performance. Wider distributions, such as 120°, are appropriate for lower mounting heights where fixture spacing allows for overlap. Narrower optics, including 60° and 90°, are required at greater mounting heights to deliver sufficient illuminance at the work plane.
Proper optical selection minimizes glare, reduces wasted light, and ensures usable foot-candles reach the floor or task surface.
Controls and Architectural Solutions
In high-ceiling commercial offices, classrooms, and mixed-use spaces, lighting systems must balance performance with visual integration. Suspended architectural fixtures and track-based systems provide controlled light delivery while maintaining a clean appearance.
These systems commonly integrate occupancy sensing and daylight-responsive controls to automatically adjust output based on space usage and available natural light, improving energy efficiency without compromising visual comfort.
Maintenance and Service Life
Maintenance access is a major cost and safety consideration in high-ceiling environments. Legacy HID and fluorescent systems require frequent lamp and ballast replacement, often involving lifts or scaffolding.
LED high bay fixtures are engineered for extended service life, with L70 ratings commonly exceeding 100,000 hours. This significantly reduces maintenance frequency and minimizes disruption to facility operations.
Related Commercial Lighting Categories
- LED high bay lighting
- Industrial lighting systems
- LED shop and task lighting
- Wall-mounted commercial lighting
Effective high-ceiling lighting design requires careful coordination of fixture type, optical control, mounting height, and maintenance strategy to ensure consistent illumination, operational safety, and long-term system reliability.
Frequently Asked Questions
What ceiling height is considered high ceiling for commercial lighting design?
High ceiling conditions typically start around 15 feet AFF and extend through 40 feet or more in warehouses, gyms, and manufacturing spaces. The mounting height drives fixture type, optic selection, spacing, and the lumen package required to achieve target foot-candles at the work plane.
When should a facility use high bay fixtures instead of strips or troffers?
High bay fixtures are used when mounting height and throw distance exceed what general purpose fixtures can deliver efficiently. If the ceiling is above typical 9 to 12 foot commercial interiors, high bays are usually the correct architecture for reaching the floor with acceptable uniformity.
How do UFO high bays and linear high bays differ in real layouts?
UFO high bays are commonly used in open floor plans where spacing is more uniform and the goal is broad coverage. Linear high bays are often selected for aisle and racking environments because their distribution supports better uniformity along long rows and can improve vertical illumination on shelving faces.
What lumen output range is typical for high ceiling lighting systems?
Common high bay lumen packages fall roughly between 15000 and 36000 lumens, with the final selection based on mounting height, aisle width, reflectance, and the required foot-candles for the task. The same lumen package can perform very differently depending on optic and spacing.
How should beam angle be selected for high ceiling applications?
Beam angle should be selected based on mounting height and spacing. Wider distributions can improve overlap at lower mounting heights, while narrower optics are used as height increases to preserve intensity at the floor and reduce wasted spill outside the target area.
What is the most common cause of glare in high ceiling facilities?
Glare is often caused by high luminance optics in direct view or by using an optic that is too narrow for the spacing, which creates hot spots and high contrast. Proper shielding, lens design, mounting height coordination, and spacing reduce discomfort and improve visibility.
Why is uniformity often more important than peak brightness in high ceiling spaces?
High contrast between bright zones and dark zones reduces hazard recognition and can degrade camera performance. A uniform field improves navigation in aisles, reduces shadowing around equipment, and supports consistent task visibility across large floor areas.
How does vertical illumination affect warehouse and gym visibility?
Vertical illumination improves visibility on racking, signage, and equipment faces, which supports picking accuracy and safer movement. In spaces with tall shelving or wall-mounted features, designing only for horizontal foot-candles can leave vertical surfaces underlit.
What control strategies are commonly used with high ceiling lighting?
Occupancy sensing is widely used to reduce runtime in intermittently used aisles or zones. Daylight responsive dimming is common near skylights and perimeter doors. For facilities with defined operating hours, scheduling can reduce output during low activity periods while maintaining minimum safety levels.
Are motion sensors reliable in high bay applications?
They can be, but performance depends on sensor type, mounting height, and aisle geometry. Sensor placement and sensitivity settings should be coordinated so forklifts, pedestrians, and cross-aisle movement are detected without nuisance triggering or dead zones.
What should be verified to reduce maintenance risk in high ceiling installations?
Verify rated life, driver accessibility, operating temperature limits, and the availability of replacement drivers or sensor components. High ceiling service requires lifts and downtime, so component reliability and serviceability matter as much as initial performance.
How does LED service life reduce operational disruption compared to legacy HID?
LED high bays reduce lamp and ballast replacement cycles and avoid warm-up and restrike delays. Longer service intervals reduce lift time, improve safety by limiting work at height, and reduce the likelihood of dark zones caused by single point failures.
What documentation helps validate a high ceiling lighting design before purchase?
Photometric files and a layout that reports average foot-candles, minimum foot-candles, and uniformity ratios provide the most direct validation. For code or rebate driven projects, confirm required listings and any performance criteria tied to the program or jurisdiction.
How should lighting be layered in high ceiling environments with task areas?
Use high bays for the baseline illumination and add task lighting where higher illuminance is needed at benches, inspection stations, or machinery. Layering reduces the need to over-light the entire facility to meet the highest task requirement in a limited area.
