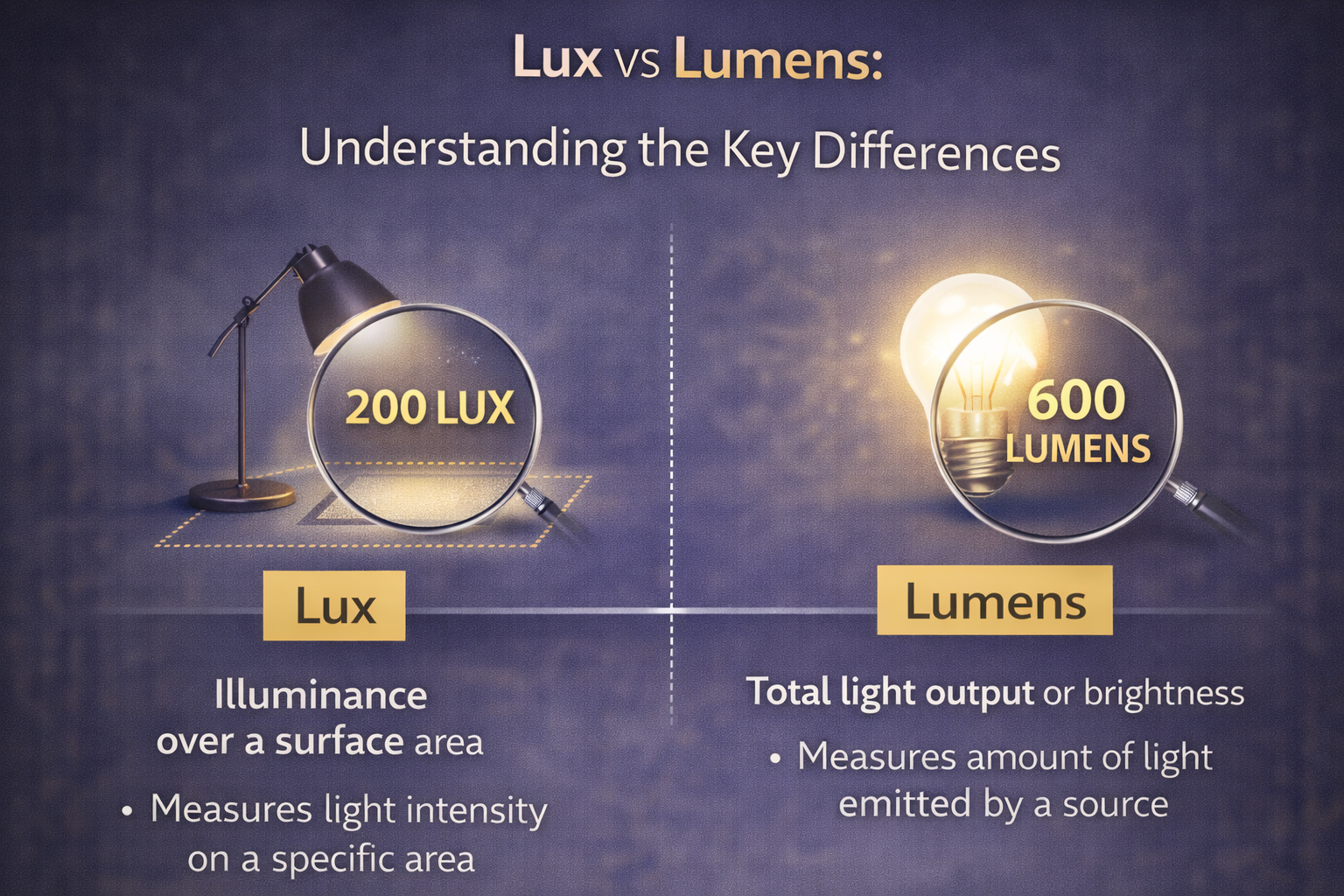

Defining Photometric Metrics: Lux and Lumens
In commercial and industrial lighting design, understanding the distinction between lux and lumens is fundamental to achieving compliant, functional, and efficient lighting systems. Although both terms describe light, they represent different stages of light delivery—one quantifies source output, while the other quantifies illumination at the task plane.
Misinterpreting these metrics often leads to over-lit or under-lit spaces, inefficient fixture selection, and layouts that fail to meet safety or performance requirements once installed.
What Lumens Measure
Lumens (lm) quantify the total amount of visible light emitted by a source in all directions. This metric defines the maximum light output potential of a fixture and is commonly used during the procurement phase to compare brightness and luminous efficacy across products.
Because lumens describe source output rather than delivered illumination, they do not account for beam angle, mounting height, optical losses, or surface interaction.
What Lux Measures
Lux (lx) is the unit of measurement for illuminance and is defined as one lumen per square meter (1 lx = 1 lm/m²). Lux describes how much usable light actually reaches a surface, such as a warehouse floor, workstation, or equipment area.
Unlike lumens, lux directly reflects real-world lighting conditions and is the primary metric referenced when evaluating safety, productivity, and visual performance.
How Lumens Convert to Lux
The relationship between lumens and lux is governed by distance, beam spread, and fixture distribution. For a fixture with a fixed lumen output, lowering the mounting height concentrates light over a smaller area, increasing lux at the task plane. Increasing mounting height spreads the same light over a larger area, reducing illuminance.
This relationship is a critical design consideration for high-bay, low-bay, and area lighting systems where ceiling heights and spacing vary.
Measurement and Industry Practice
Commercial lighting design relies on standardized testing and field verification to manage these metrics.
- Lumen Measurement: Manufacturers determine lumen output under controlled laboratory conditions using integrating spheres or goniophotometers. These values are published in IES photometric files used for layout modeling.
- Lux Measurement: Illuminance is verified on-site using calibrated light meters. These readings confirm that installed lighting meets task-level requirements defined by applicable safety and industry standards.
Typical Commercial Illuminance Levels
The following ranges represent commonly accepted illuminance targets for professional environments. Actual requirements may vary based on task complexity and local jurisdiction.
| Environment | Recommended Illuminance (Lux) |
|---|---|
| Warehouse Storage (Bulk) | 100 – 150 Lux |
| Mechanical Garage / Service Area | 300 – 500 Lux |
| General Commercial Office | 500 Lux |
| Detailed Assembly or Drafting | 750 – 1,000 Lux |
Related Commercial Lighting Categories
Effective commercial lighting design requires both lumens and lux to be evaluated together. Lumens define fixture capability, while lux confirms whether that capability is correctly delivered to the task plane under real installation conditions.
Frequently Asked Questions
What is the difference between lumens and lux?
Lumens measure total light output from a source. Lux measures illuminance on a surface. A fixture can have a high lumen rating and still produce low lux at the task plane if the mounting height, distribution, spacing, or losses prevent light from reaching the work surface.
What do lumens measure in commercial lighting specifications?
Lumens quantify the total visible light emitted by a luminaire. They are used to compare output and efficacy across products, but they do not indicate how much light will arrive on the floor, workbench, or equipment plane after installation.
What does lux measure, and why is it used for design targets?
Lux is illuminance measured at a surface. It is defined as one lumen per square meter. Lux is used for design and verification because it reflects delivered light where tasks occur, which is what affects visibility, safety, and accuracy.
How do lumens convert to lux?
Lux equals lumens divided by area in square meters only in an idealized case with perfectly uniform distribution. In real installations, delivered lux depends on beam angle, photometric distribution, mounting height, spacing, surface reflectance, and optical and environmental losses.
Why can two fixtures with the same lumen rating produce different lux on the floor?
Fixtures with the same lumens can have different optics and distributions that change where the light goes. A narrower distribution can raise center values but reduce uniformity, while a wider distribution can improve overlap and uniformity but lower peak values at the same mounting height.
How does mounting height affect lux at the task plane?
At a fixed lumen output, increasing mounting height spreads light over a larger area and reduces lux at the task plane. Lowering mounting height concentrates light and increases lux, but it can also increase glare if optics are not appropriate for the viewing angles in the space.
What is the role of an IES file when moving from lumens to lux?
An IES file provides the intensity distribution of the luminaire across angles. Lighting software uses that distribution, along with mounting height, spacing, and room characteristics, to predict lux levels and uniformity across the calculation grid.
Do lumens account for beam angle, spacing, or surface reflectance?
No. Lumens are a source-output metric. Beam angle, distribution, spacing, and reflectance determine how much of that output becomes usable illuminance on the target surfaces.
How is lumen output determined for commercial luminaires?
Lumen output is measured under controlled laboratory conditions using photometric testing equipment and is published in product data and photometric reports. Those values represent fixture output, not delivered illuminance in a specific facility.
How is lux measured in the field?
Lux is measured using a calibrated light meter placed on the relevant task plane, such as a floor grid or workbench height. Readings are taken at multiple points to evaluate both average illuminance and uniformity.
Which metric is more important for code and safety verification?
Lux is the primary metric for verifying delivered illumination at the task plane. Lumens are still important for fixture selection and connected load planning, but compliance evaluation is typically based on measured or calculated illuminance and uniformity.
What is a practical way to use lumens and lux together during specification?
Use lumens and efficacy to screen fixtures for output and energy performance, then use photometrics to confirm lux targets and uniformity at the required mounting height and spacing. Field measurements after installation validate that the design intent was achieved.
