Understanding CCT-Selectable Technology

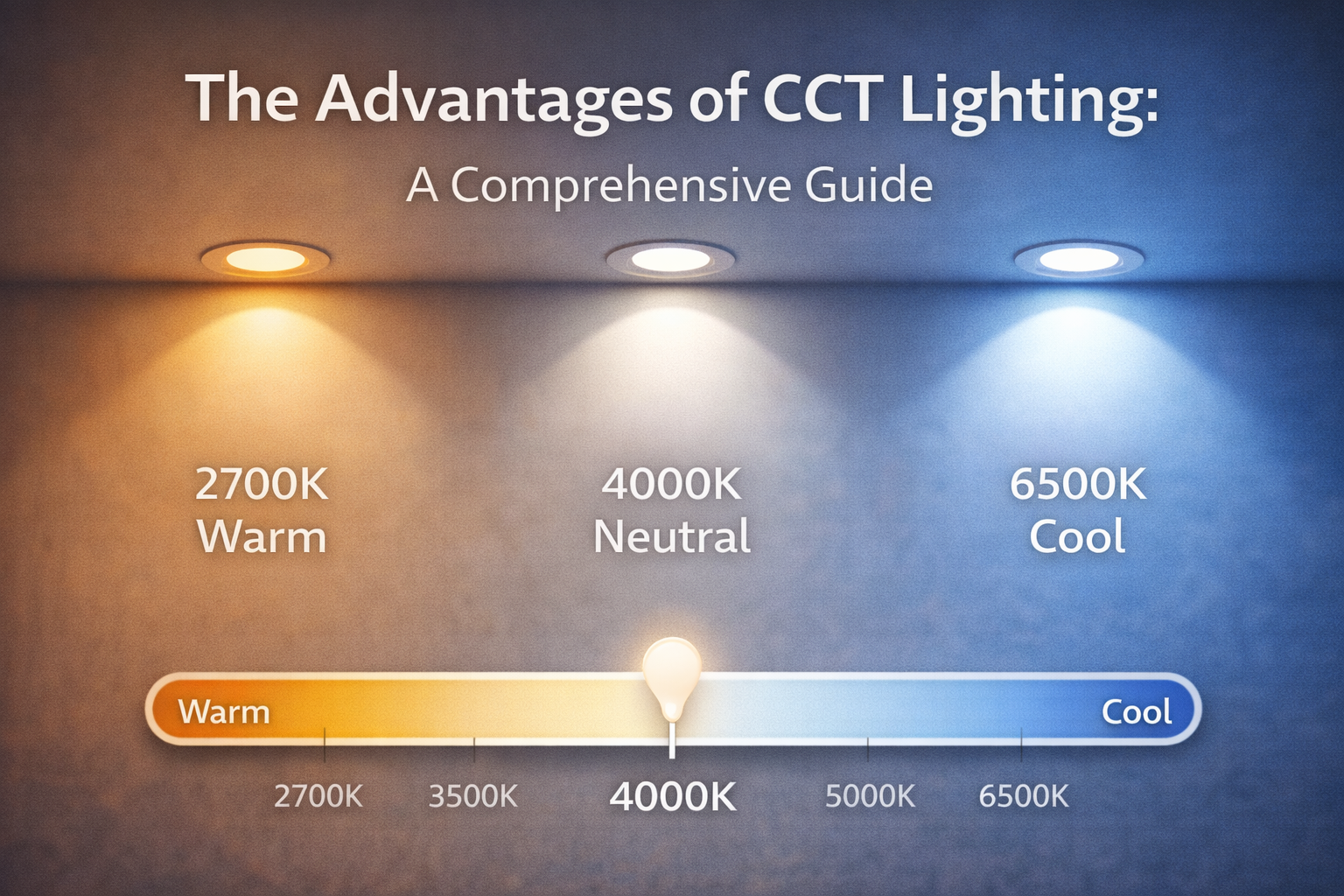

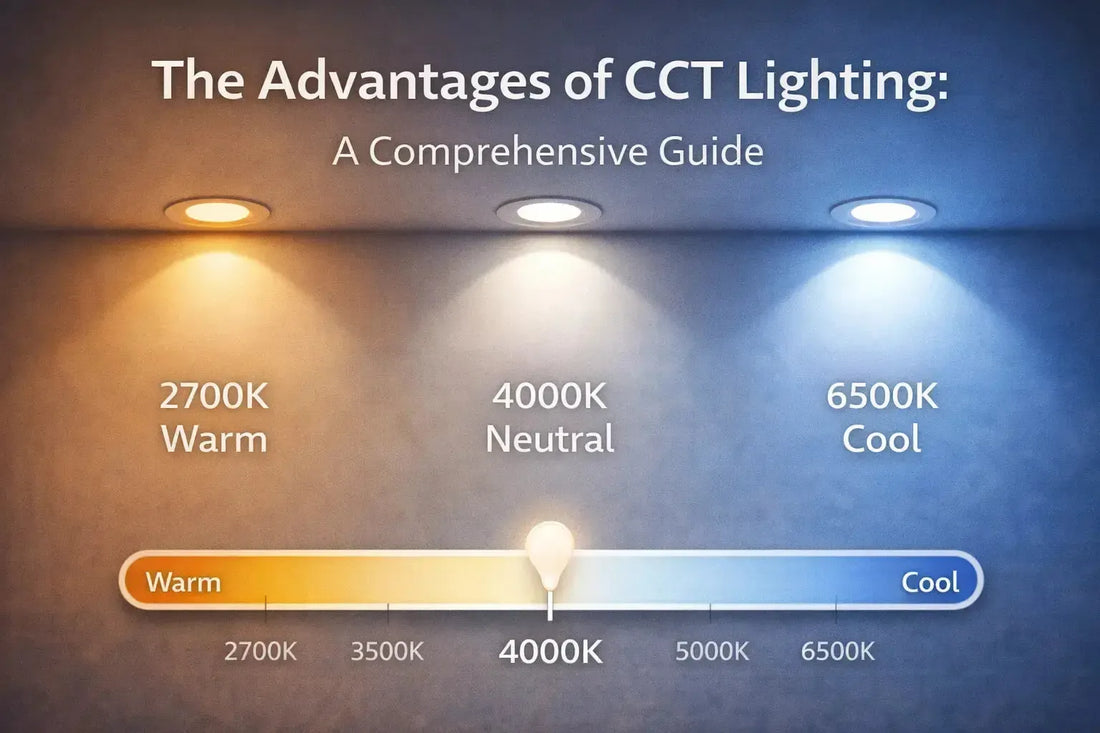

Correlated Color Temperature (CCT) defines the visual warmth or coolness of light emitted by a fixture and is measured in degrees Kelvin (K). In commercial and industrial lighting, CCT-selectable technology—also referred to as field-adjustable or tunable white—has become a standard specification.
These fixtures incorporate integrated switches or control interfaces that allow selection between multiple color temperatures, most commonly 3000K, 4000K, and 5000K, without changing hardware.
How CCT-Selectable Technology Works
CCT-selectable fixtures use internal driver circuitry and multi-channel LED arrays to produce different color temperatures from a single luminaire. Selection is typically made using a discrete switch on the fixture housing or through a low-voltage control interface.
Once set, the fixture operates as a fixed-CCT luminaire until manually adjusted, ensuring stable output and consistent appearance.
On-Site Flexibility During Installation
One of the primary advantages of CCT-selectable fixtures is the ability to finalize color temperature decisions in the field. Wall finishes, ceiling heights, daylight contribution, and task requirements can significantly influence perceived light color.
Field-adjustable fixtures allow installers and facility managers to evaluate multiple CCT options during commissioning without delaying the project or reordering equipment.
Inventory and Procurement Efficiency
CCT-selectable lighting simplifies inventory management for distributors and facilities with large fixture counts. A single SKU can replace multiple fixed-CCT versions of the same product.
This consolidation reduces warehouse space requirements, simplifies purchasing, and improves responsiveness for maintenance and retrofit work.
Impact on Occupant Performance
In offices, educational facilities, and mixed-use commercial spaces, CCT selection directly influences alertness and visual comfort.
Higher CCT settings, such as 5000K, are commonly used in task-intensive or morning-hour environments to improve contrast and focus. Neutral settings around 4000K are frequently preferred for general occupancy to balance clarity and eye comfort.
System Efficiency and Service Life
CCT-selectable fixtures utilize modern LED drivers and solid-state components with high luminous efficacy. Compared to fluorescent and HID systems, they significantly reduce energy consumption and eliminate ballast-related failures.
These fixtures are typically engineered for long service life, with L70 ratings commonly exceeding 50,000 hours, reducing maintenance frequency in commercial and industrial installations.
Color Rendering Considerations
Professional CCT-selectable fixtures are designed to maintain consistent color rendering across all selectable settings. High Color Rendering Index (CRI) performance ensures that colors remain accurate regardless of the selected CCT.
This is particularly important in shop environments, inspection areas, and retail spaces where visual accuracy and safety are critical.
Related Commercial Lighting Categories
CCT-selectable technology provides flexibility, simplifies procurement, and supports consistent lighting performance across diverse commercial and industrial environments.
Frequently Asked Questions
What is correlated color temperature and what does CCT selectable mean?
Correlated color temperature is the Kelvin value that describes whether white light appears warmer or cooler. CCT selectable means a fixture can be set to one of several predefined Kelvin options, typically 3000K, 4000K, and 5000K, using an onboard switch or a control interface.
How do CCT selectable fixtures produce different color temperatures?
They use LED arrays and driver control that blend multiple LED channels to achieve the selected white point. After selection, the fixture operates as a fixed CCT luminaire until the setting is changed again.
Where is the CCT selection made on a typical commercial fixture?
Most commercial fixtures use a discrete switch on the housing, driver compartment, or junction box area. Some models use a low voltage control interface that allows selection during commissioning.
When should the CCT be selected during a project?
CCT is commonly finalized during commissioning after ceilings, wall finishes, and primary surfaces are in place and the space has its expected daylight contribution. This timing reduces the chance of choosing a CCT that looks inconsistent once the space is occupied.
What is the main commissioning advantage of CCT selectable products?
They allow comparison of multiple CCT settings in the actual room without changing fixtures or delaying the project for returns and reorders. This is useful when finishes, reflectance, or daylight conditions are uncertain during submittal and rough in phases.
How does CCT selectable reduce SKU count and inventory requirements?
One part number can cover multiple CCT targets for the same fixture family. This reduces stocking complexity for distributors and simplifies procurement for facilities that maintain spares for maintenance and future expansions.
How should a facility document CCT settings to keep the site consistent?
Record the selected CCT by space or control zone and include it in closeout documentation. Consistent documentation helps maintenance teams match replacements to the installed appearance and avoids mixed CCT conditions within the same area.
Which CCT is commonly used for general commercial occupancy?
Many facilities standardize on 4000K for general areas because it provides neutral white light with balanced contrast. The best choice still depends on the visual task, daylight levels, and the desired appearance across adjacent zones.
When is a higher CCT setting typically used?
Higher CCT settings such as 5000K are often used in task intensive areas where higher perceived contrast and visual acuity are priorities, such as certain shop, warehouse, and inspection zones. Selection should be coordinated with glare control and the optical design of the fixture.
Does changing CCT affect lumen output or efficacy?
It can, depending on the LED mix and driver programming. Some fixtures maintain near constant output across settings, while others vary slightly. For layout work, use photometric files and lumen ratings for the intended CCT setting rather than assuming identical performance.
Does CCT selectable change the expected service life of the fixture?
The selectable feature does not inherently reduce service life, but reliability still depends on driver quality, thermal management, and operating temperature. For continuous duty applications, verify rated life and operating conditions for the full fixture assembly.
Why does CRI matter when choosing a CCT selectable fixture?
CRI describes how accurately colors appear under the light source. In areas where identification, inspection, or safety related color recognition matters, verify the specified CRI and confirm it is maintained across all selectable CCT settings.
How can CCT decisions impact occupant comfort in offices and classrooms?
CCT influences the perceived brightness and character of a space. Selecting a consistent CCT across connected areas reduces visual discontinuity, and pairing the CCT choice with proper illuminance and glare control supports comfort for long occupancy periods.
What are common mistakes to avoid with CCT selectable fixtures?
Common issues include mixing CCT settings within the same room, failing to document the selected setting, and using performance data for one CCT setting while commissioning to another. A consistent zoning plan and documented settings prevent these problems.
