Understanding Lighting Performance: CCT and CRI
In modern commercial and industrial lighting design, performance is no longer evaluated solely by wattage or lumen output. Light quality plays a critical role in safety, productivity, and visual accuracy. Two key specifications used to define lighting performance are Correlated Color Temperature (CCT) and Color Rendering Index (CRI).
Although these metrics are often referenced together, they measure different characteristics of light and serve distinct functions in professional lighting applications.
What CCT Measures
Correlated Color Temperature (CCT) describes the visual appearance of light emitted by a source and is measured in degrees Kelvin (K). It defines whether light appears warm, neutral, or cool to the human eye.
Commercial LED products typically range from approximately 2700K to 6500K. CCT selection is driven by the functional requirements of the space and the visual tasks performed within it.
What CRI Measures
Color Rendering Index (CRI) measures how accurately a light source reveals the colors of objects compared to a reference light source. CRI is expressed on a numerical scale from 0 to 100, with higher values indicating better color fidelity.
A CRI of 80 is generally acceptable for most commercial and industrial environments. Higher CRI values—90 and above—are specified where accurate color discrimination is essential, such as retail displays, inspection areas, and color-critical production spaces.

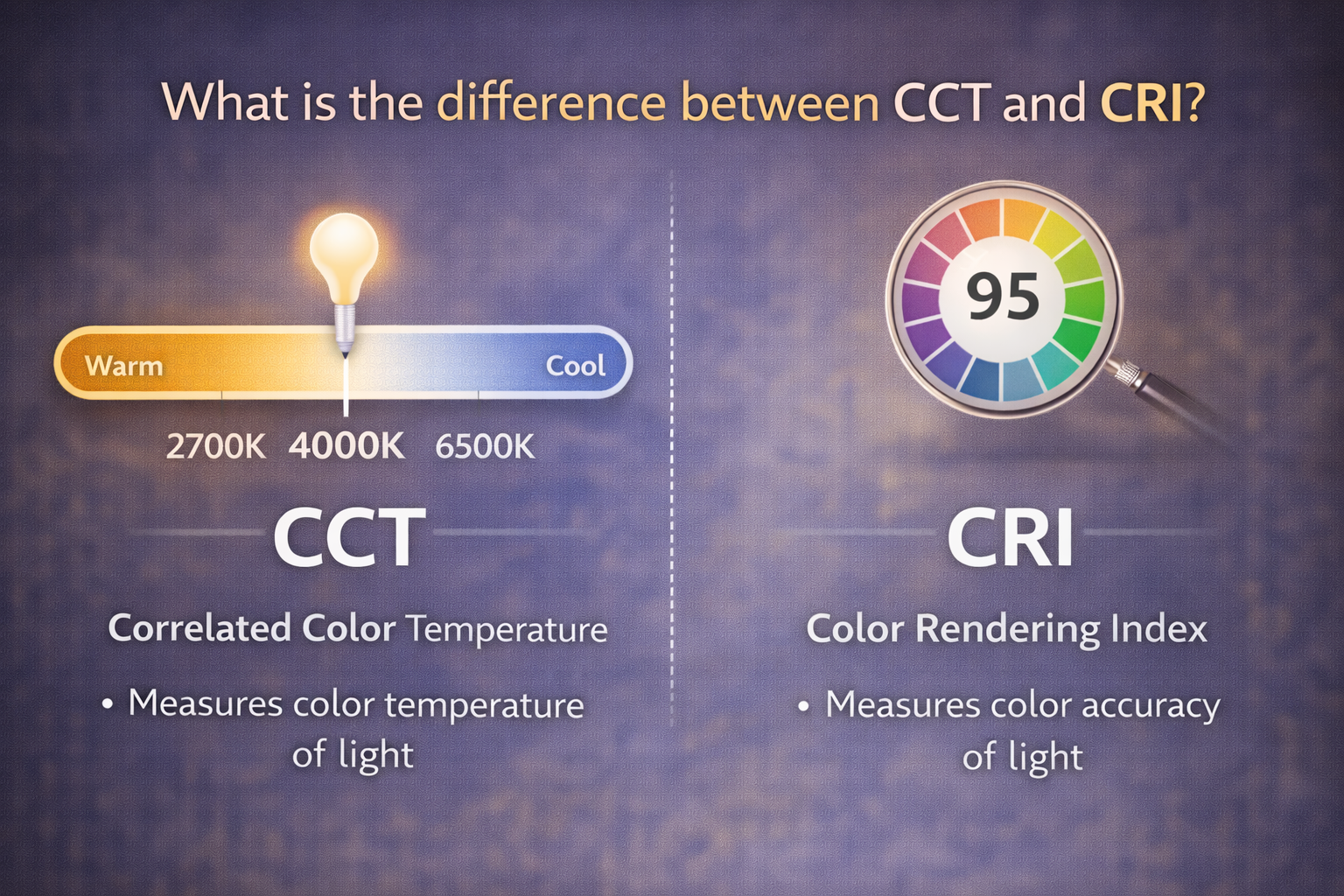

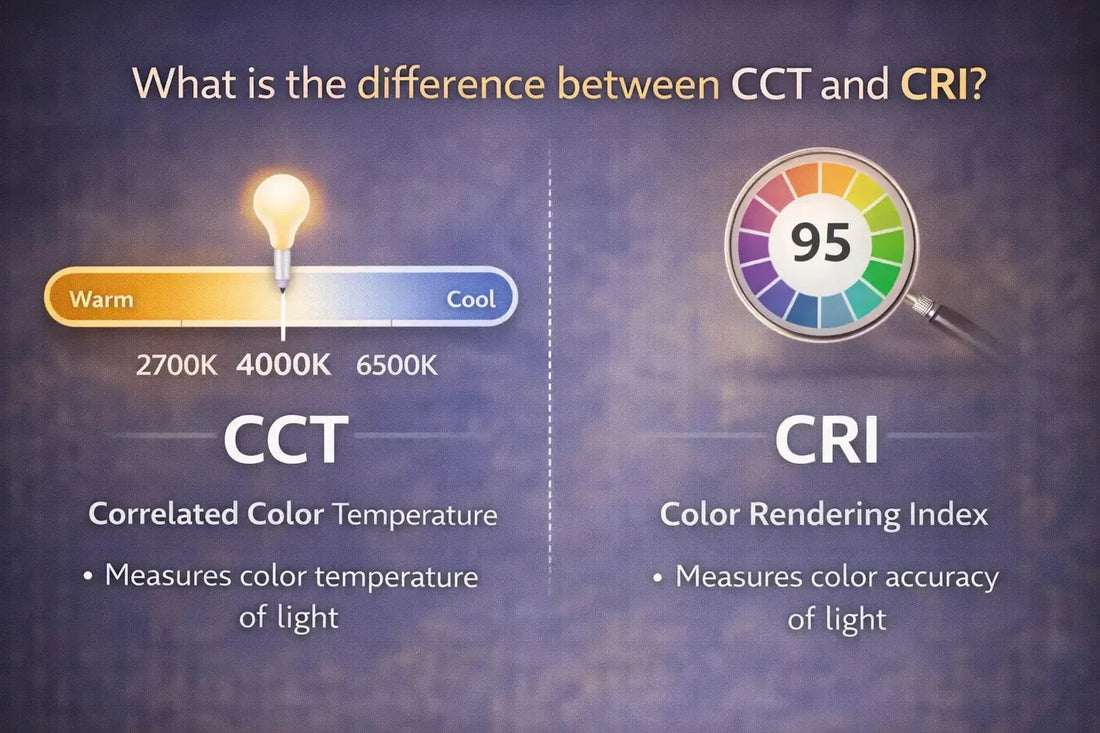

Functional Differences Between CCT and CRI
CCT and CRI evaluate fundamentally different aspects of lighting performance.
CCT defines the perceived color of the light itself and influences the overall visual tone of a space. CRI determines how objects appear under that light, affecting color clarity, contrast, and visual accuracy.
A fixture may have a suitable CCT for an application but still perform poorly if its CRI is insufficient for the tasks being performed.
Typical Commercial Application Ranges
Professional lighting specifications commonly align CCT and CRI values with task requirements.
- 3000K – 3500K: Used in hospitality, dining, and select retail environments where a warmer appearance is desired.
- 4000K: Standard for offices, classrooms, healthcare-adjacent spaces, and general commercial interiors.
- 5000K – 6500K: Specified for warehouses, manufacturing floors, service bays, and high-detail work environments.
- CRI 80: Baseline requirement for most commercial and industrial lighting.
- CRI 90+: Required for color-critical environments such as retail merchandising, printing, inspection, and finishing operations.
Specification and Verification Considerations
CCT and CRI values cannot be reliably determined by visual inspection alone. These metrics are measured using spectroradiometric equipment and verified during product testing.
Professional lighting specifications should reference manufacturer-published photometric data to ensure that both color temperature consistency and color rendering performance are maintained across the installation.
Related Commercial Lighting Categories
Proper evaluation of both CCT and CRI ensures that commercial lighting systems deliver appropriate visual appearance, accurate color reproduction, and consistent performance across all operational areas.
Frequently Asked Questions
What is the difference between CCT and CRI?
CCT and CRI describe different characteristics of light. CCT (Correlated Color Temperature) defines the apparent color of the emitted light, reported in Kelvin (K). CRI (Color Rendering Index) indicates how accurately a light source renders object colors compared with a reference source, reported on a 0–100 scale.
CCT is used to set the visual tone of a space (warm, neutral, or cool). CRI is used to evaluate color fidelity for the tasks performed in that space. A fixture can meet the target CCT and still be unsuitable if CRI is too low for the application.
What CCT range is commonly specified for commercial and industrial spaces?
Common commercial CCT selections typically fall between 3000K and 5000K, with the exact choice driven by space function, visual comfort requirements, and glare control strategy. Warmer ranges are often used where a softer visual tone is desired, while cooler ranges are often used where higher perceived brightness and contrast support detailed tasks.
Exterior applications may also be constrained by local ordinances, including requirements that limit maximum CCT. When a project is subject to such rules, CCT should be specified to meet both the ordinance and the intended visibility outcome.
When is CRI 80 acceptable, and when is CRI 90 or higher required?
CRI 80 is commonly acceptable for general lighting in many commercial and industrial areas where color discrimination is not the controlling requirement. CRI 90+ is typically specified where accurate color evaluation is part of the work task or end-user experience, such as merchandising, inspection, printing, finishing operations, and other color-critical environments.
When CRI is a requirement, it should be written into the specification and verified against published test data for the exact model and configuration being supplied.
Does higher CCT mean higher CRI?
No. CCT and CRI are independent metrics. A light source can be 4000K with CRI 70, CRI 80, or CRI 90+. CCT describes the appearance of the light itself, while CRI describes color rendering performance under that light.
Specifications should list both values separately to avoid assumptions during submittals or procurement.
How do CCT and CRI affect perceived brightness and visual clarity?
CCT can influence perceived brightness and contrast, particularly in spaces with light-colored surfaces, but it does not change the measured lumen output. CRI affects how reliably colors and subtle differences in materials can be distinguished, which can influence visual clarity for tasks that depend on color recognition.
For performance-driven projects, CCT and CRI should be selected alongside distribution, glare control, and maintained illuminance targets rather than treated as standalone decisions.
What is CCT consistency, and why does it matter in large installs?
CCT consistency describes how closely fixtures match one another in color appearance across an installation. In large commercial projects, noticeable variation can occur if fixtures are sourced from different production batches or if tolerances are broad.
When color consistency is important, specifications may include tighter tolerances and requirements for consistent binning or documented chromaticity control, along with procurement practices that reduce batch-to-batch variation.
How can CCT and CRI be verified during submittals and commissioning?
CCT and CRI should be verified using manufacturer documentation tied to the exact product configuration, including published photometric reports and spectral data where available. Visual inspection alone is not a reliable verification method.
During commissioning, field checks can confirm that the installed products match the submitted model numbers and configuration. Where needed, instrumented testing can be used to confirm color characteristics for critical applications.
Do CCT selectable fixtures change how CCT and CRI should be specified?
Yes. With CCT selectable products, the specification should state the required installed setting and define how that setting will be documented. This helps ensure consistency across zones and reduces the risk of mixed settings after installation or maintenance.
CRI should still be specified as a minimum requirement for the product line at all selectable settings, and submittals should confirm that CRI performance is maintained across the available CCT options.
Can high CRI reduce efficacy, and how should that tradeoff be handled?
Higher CRI products can have lower efficacy compared with lower CRI versions, depending on the LED package and optical design. Where energy targets are strict, this should be addressed by selecting appropriate lumen packages, optimizing distribution, and using controls strategies that preserve required light levels while managing energy use.
Tradeoffs should be evaluated using delivered light, not only nameplate watts, and verified with photometric data for the intended mounting height and layout.
What is a practical way to specify CCT and CRI in a lighting schedule?
A typical schedule entry includes CCT (in Kelvin) and a minimum CRI requirement, along with lumen output, distribution type, dimming and control requirements, voltage, environmental rating, and any compliance constraints. This prevents substitutions that match one attribute while missing another.
For projects with color-critical areas, include zone-specific requirements so spaces with different visual tasks are not forced into a single CCT or CRI target.
