Chemical Exposure as a Primary Failure Driver in Vapor Tight Lighting
Vapor tight fixtures are often specified for environments where moisture, dust, or debris are present. In many industrial facilities, however, chemical exposure—not water ingress—is the primary cause of fixture failure. Lenses, gaskets, and seals are routinely exposed to ammonia vapors, alcohol-based sanitizers, degreasers, and alkaline cleaning agents that degrade materials long before electrical components reach end of life.
Understanding chemical compatibility is critical when specifying vapor tight lighting for food processing plants, cold storage facilities, agricultural operations, and industrial washdown areas. An IP rating alone does not indicate resistance to chemical attack.
Related resource: For ceiling-system retrofit guidance that connects vapor tight fixture selection to washdown exposure, chemical compatibility, ingress ratings, and inspection-ready documentation across commercial interiors, reference the Commercial Ceiling Lighting Buying Guide.
Common Chemicals Encountered in Industrial Environments
Chemicals encountered in vapor tight applications vary by industry but generally fall into a few categories. Each category affects lens and gasket materials differently.
| Chemical Type | Typical Applications | Exposure Characteristics |
|---|---|---|
| Ammonia vapors | Cold storage, food processing, agriculture | Continuous vapor exposure, corrosive over time |
| Alcohol-based sanitizers | Food production, healthcare, packaging | Frequent surface contact, solvent action |
| Alkaline cleaners | Industrial washdown, processing plants | High pH, aggressive to plastics |
| Degreasers and solvents | Manufacturing, automotive, maintenance bays | Intermittent exposure, high chemical strength |
Fixtures may be exposed through direct spray, residue buildup, or long-term vapor contact, each of which accelerates material degradation differently.
Lens Material Performance Under Chemical Exposure

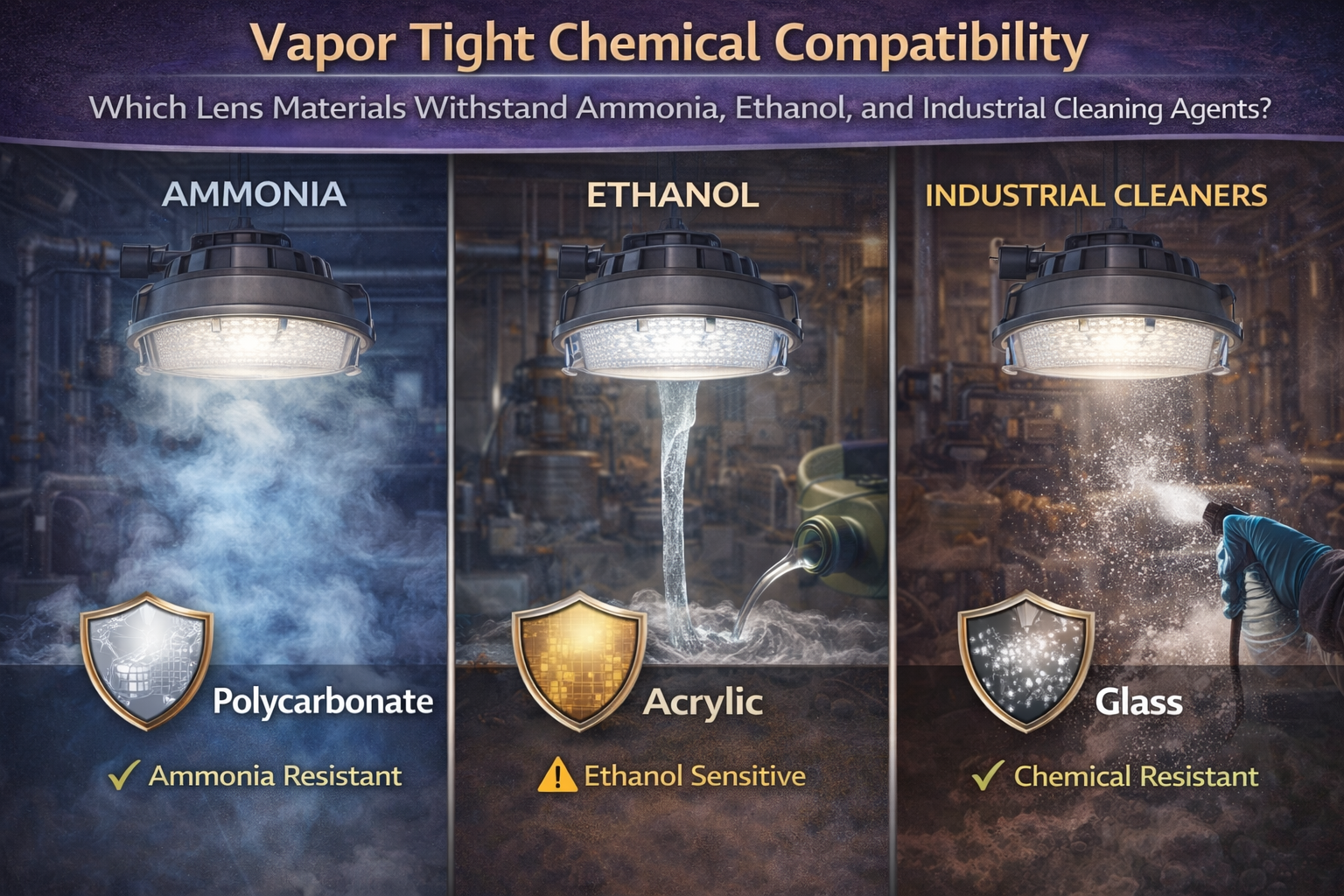

Lens material selection plays a central role in chemical resistance. The most common vapor tight lens materials—polycarbonate, acrylic, and glass—respond very differently when exposed to industrial chemicals.
| Lens Material | Ammonia Exposure | Alcohols | Alkaline Cleaners |
|---|---|---|---|
| Polycarbonate | Stress cracking over time | Surface degradation possible | High risk of cracking and haze |
| Acrylic | Poor resistance | Prone to crazing | Rapid degradation |
| Glass | Unaffected | Unaffected | Unaffected |
While polycarbonate offers impact resistance, it is vulnerable to chemical stress cracking. Acrylic lenses, though inexpensive, perform poorly in chemically aggressive environments and are rarely suitable for industrial vapor tight applications.
Gasket and Seal Material Compatibility
Lens material alone does not determine chemical survivability. Gaskets and seals are often the first components to fail, compromising ingress protection even when the lens remains intact.
| Gasket Material | Chemical Resistance | Common Failure Mode |
|---|---|---|
| Silicone | Excellent | Minimal degradation |
| EPDM | Good | Swelling or softening |
| PVC | Poor | Hardening and cracking |
Fixtures advertised as “IP65” or “IP66” may still fail prematurely if gasket materials are not compatible with site-specific chemicals.
Failure Modes Caused by Chemical Incompatibility
Chemical incompatibility typically results in gradual, non-obvious failure rather than immediate fixture breakdown. Common failure modes include:
- Lens crazing or haze that reduces light output
- Stress cracking leading to moisture ingress
- Gasket swelling that compromises sealing pressure
- Loss of IP rating despite intact housings
These failures are often misattributed to manufacturing defects when they are, in fact, specification errors.
Specifying Vapor Tight Fixtures for Chemical Environments
Proper specification requires evaluating chemical exposure alongside mechanical and ingress protection requirements.
| Environment | Recommended Lens | Recommended Gasket |
|---|---|---|
| Ammonia cold storage | Glass | Silicone |
| Food processing washdown | Glass or coated polycarbonate | Silicone |
| Light industrial maintenance areas | Polycarbonate | EPDM |
