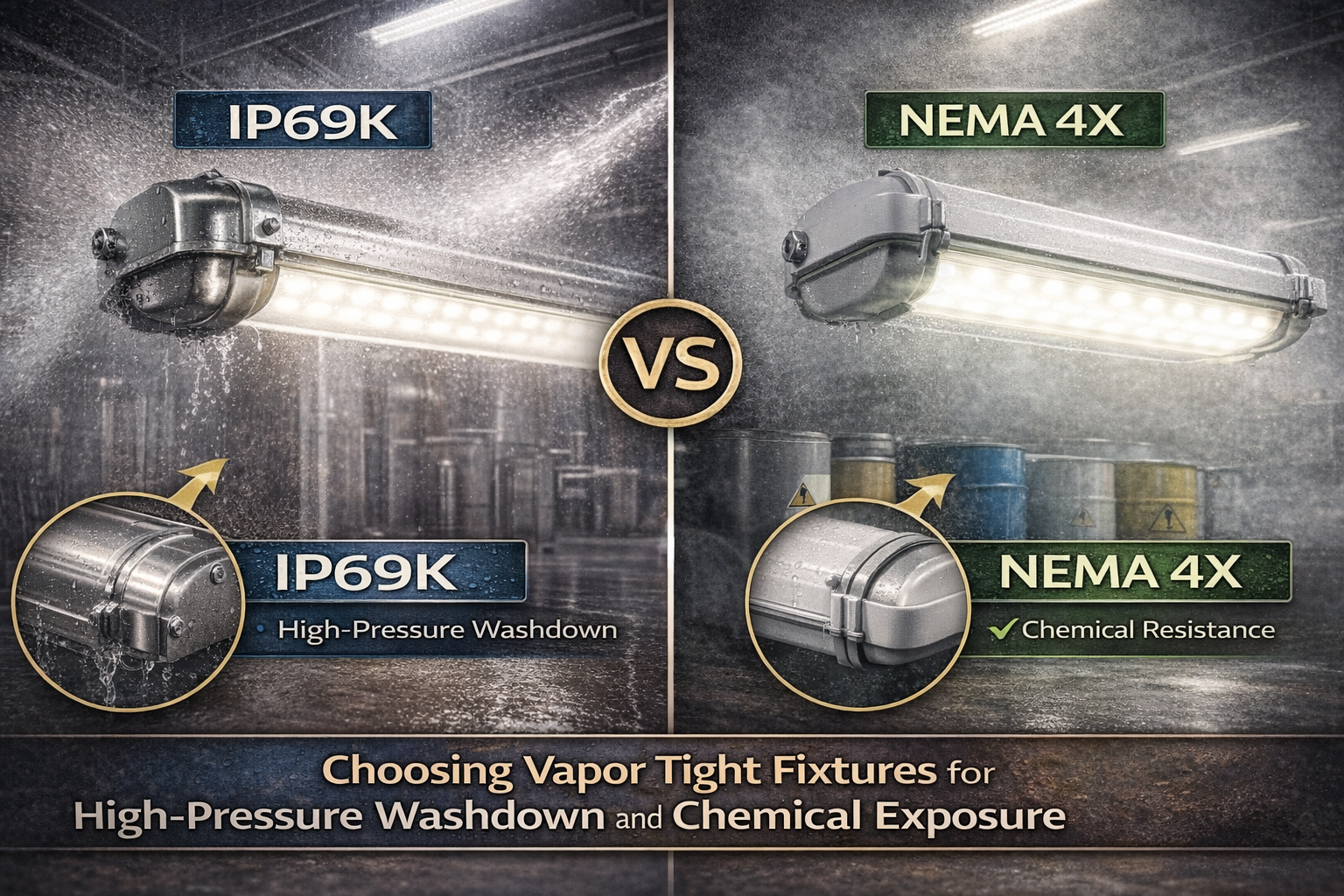

Why These Ratings Are Not Interchangeable
In washdown environments, specifiers often treat IP69K and NEMA 4X as equivalents. They are not. IP69K is a high-pressure, high-temperature washdown performance test within the IEC ingress protection framework, while NEMA 4X is a North American enclosure classification that emphasizes hose-directed water plus enhanced corrosion resistance.
For food plants, breweries, and wastewater facilities, the correct decision is often “which one,” but “do we need both” based on sanitation pressure, temperature, and chemical/corrosion exposure.
What IP69K Actually Tests
IP69K is associated with severe washdown: close-range, high-pressure water jets at elevated temperature. It is widely used in sanitary environments where equipment is regularly cleaned using aggressive wash procedures. :contentReference[oaicite:1]{index=1}
| Rating | Core Meaning | What It Protects Against |
|---|---|---|
| IP6X | Dust-tight | Complete dust ingress protection |
| IPX9K | Severe washdown jets | High-pressure, high-temperature water jets |
Key point: IP69K tells you the fixture can survive harsh washdown water exposure. It does not inherently guarantee corrosion resistance against specific chemicals.
What NEMA 4X Actually Covers
NEMA Type 4X enclosures are intended for indoor/outdoor use and protect against windblown dust and hose-directed water, with an additional emphasis on corrosion resistance (the “X”). :contentReference[oaicite:2]{index=2}
| NEMA Type | Water Exposure Covered | Other Critical Attribute |
|---|---|---|
| 4X | Hose-directed water, splashing | Enhanced corrosion resistance |
Key point: NEMA 4X is strong for corrosion and hose wash, but it does not automatically indicate performance under high-temp, close-range, high-pressure sanitation processes in the way IP69K is used. :contentReference[oaicite:3]{index=3}
Where Vapor Tight Fixtures Fail in Washdown Sites
Most early failures in washdown facilities happen at sealing interfaces and materials—not the LED board.
| Failure Point | Typical Cause | Field Result |
|---|---|---|
| Lens gasket | Compression set, chemical swelling, improper torque | Moisture ingress, fogging, corrosion |
| Endcap seals | Wash wand aimed directly at seams | Water entry under jet pressure |
| Fasteners and clips | Corrosion or galvanic reaction | Lost clamp force, seal failure |
| Cable glands / conduit entries | Wrong fitting type or poor sealing | Leak path into housing |
A fixture can be “rated” and still fail if installation methods don’t preserve the sealing system.
Selection Matrix by Application: Food, Brewery, Wastewater
Use the matrix below to determine whether IP69K, NEMA 4X, or both are justified.
| Environment | Primary Exposure | Minimum Recommendation |
|---|---|---|
| Food processing (sanitation washdown) | High-pressure, hot wash | IP69K (add NEMA 4X if corrosion/chemicals present) |
| Breweries | Frequent wash + caustic/acid cleaners | IP69K + NEMA 4X |
| Wastewater plants | Corrosive atmosphere, hose wash | NEMA 4X (add IP69K for severe wash bays) |
Where sanitation involves close-range hot jets, IP69K becomes the deciding requirement. :contentReference[oaicite:4]{index=4}
Inspection-Proof Spec Notes That Prevent Substitutions
To prevent “value engineering” substitutions that fail early, include enforceable specification language.
| Spec Note | Why It Matters |
|---|---|
| Require IP69K where high-pressure hot washdown is used | Avoids fixtures that survive hose wash but fail under sanitation jets |
| Require NEMA 4X where chemical/corrosion exposure exists | Targets corrosion-resistant construction expected in harsh atmospheres :contentReference[oaicite:5]{index=5} |
| Call out gasket material and hardware corrosion class | Seals and fasteners are common failure points |
| Require sealed entries (glands/fittings) rated to match housing | Prevents leak paths created during installation |
Related Commercial Lighting Categories
IP69K and NEMA 4X solve different problems: IP69K addresses survival under severe sanitation washdown, while NEMA 4X adds corrosion resistance and hose-directed water protection. In many real washdown facilities, specifying both is the only defensible way to prevent premature fixture failure.
