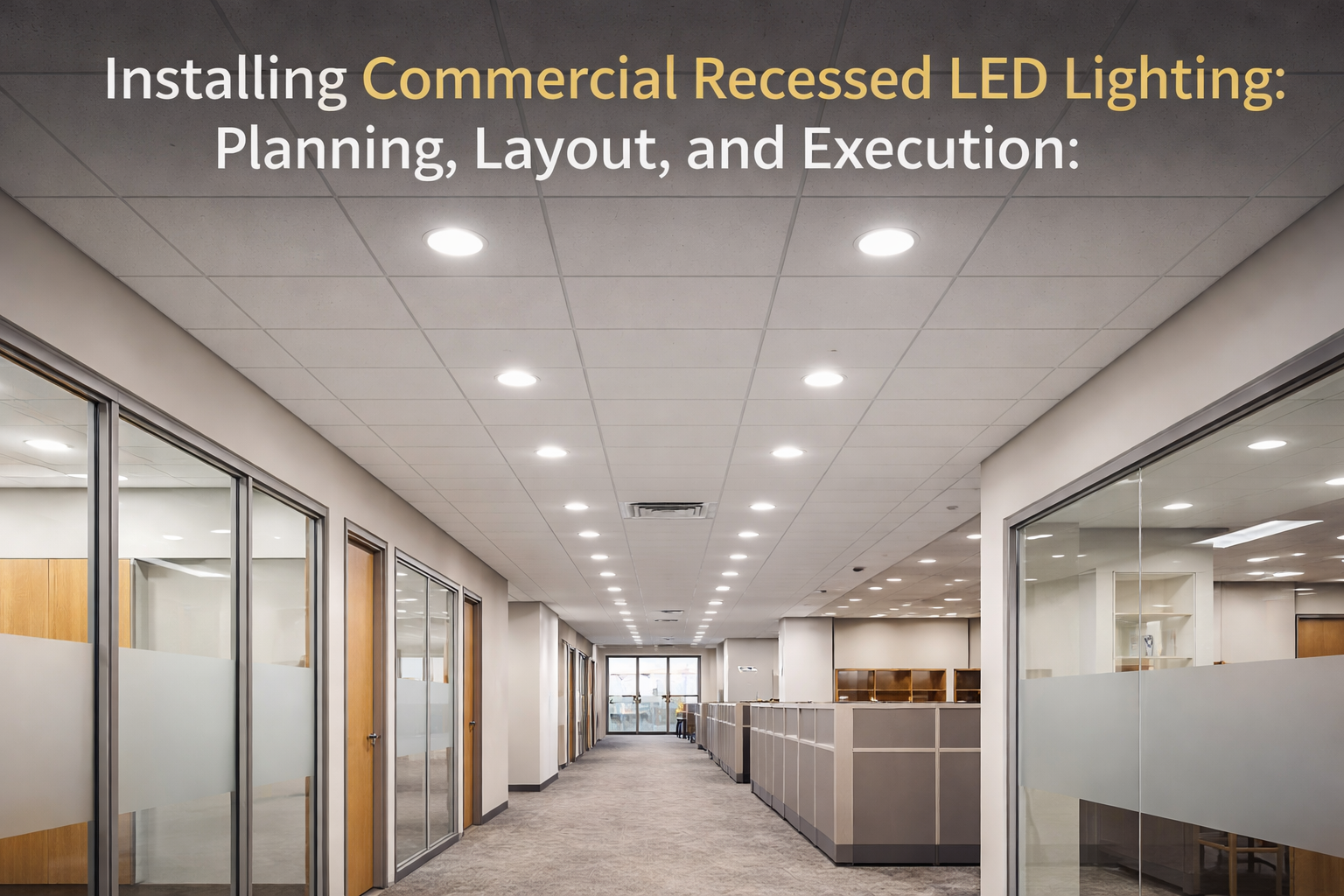

Recessed Lighting in Commercial and Institutional Spaces
Recessed lighting is widely used in commercial, institutional, and professional environments where clean ceiling lines, controlled illumination, and long-term performance are required. Offices, healthcare facilities, retail spaces, classrooms, and corridors rely on properly specified LED recessed lighting to deliver uniform light distribution while maintaining a streamlined architectural appearance.
Successful installation begins with accurate planning, proper spacing, and adherence to electrical and building codes.
Related resource: For system-level guidance on panels, troffers, recessed fixtures, linear layouts, ceiling integration, and compliance planning across commercial interiors, reference the Commercial Ceiling Lighting Buying Guide.
Pre-Installation Planning and Layout
Effective planning ensures consistent light levels, avoids shadowing, and minimizes costly rework during installation.
- Evaluate ceiling construction, plenum depth, and obstructions
- Confirm ceiling height and intended light distribution
- Identify task areas, circulation paths, and focal zones
- Coordinate fixture placement with HVAC, sprinklers, and sensors
Recommended Fixture Spacing Guidelines
| Ceiling Height | Typical Spacing | Application Notes |
|---|---|---|
| 8–9 ft | 4–5 ft on center | Offices, classrooms, exam rooms |
| 10–12 ft | 5–6 ft on center | Retail, corridors, conference rooms |
| 13–15 ft | 6–8 ft on center | Lobbies, open collaboration areas |
Fixture Selection and Specification Criteria
Performance Characteristics
- Lumen output matched to ceiling height and task requirements
- 4000K–5000K color temperature for commercial clarity
- 80+ CRI for accurate color rendering
- High efficacy to reduce operating costs
Compliance and Ratings
- IC-rated fixtures for insulated ceilings
- Damp-location ratings for restrooms and vestibules
- Compatibility with 0–10V dimming and control systems
Tools and Materials Required
| Item | Purpose |
|---|---|
| LED Recessed Fixtures | Primary lighting components |
| Junction Boxes | Protect electrical connections |
| Electrical Wire & Connectors | Power distribution and terminations |
| Drywall Saw or Hole Cutter | Precision ceiling cutouts |
| Stud Finder & Measuring Tools | Avoid structural conflicts |
Commercial Installation Workflow
- De-energize circuits at the breaker panel
- Mark fixture locations according to lighting layout
- Cut ceiling openings to manufacturer specifications
- Install junction boxes and secure housings
- Run and terminate wiring using approved methods
- Mount fixtures and trims securely
- Restore power and verify operation
Installation methods may vary based on fixture design, ceiling type, and local electrical codes. Always follow manufacturer instructions and applicable regulations.
Controls Integration and Energy Optimization
- Occupancy sensors reduce runtime in low-traffic areas
- Daylight harvesting improves efficiency near windows
- 0–10V dimming supports code compliance and visual comfort
Recessed fixtures are commonly deployed alongside LED ceiling lighting and integrated into complete commercial lighting systems for consistent illumination throughout the facility.
Related Commercial Ceiling Lighting Articles
Successful recessed lighting installations depend on more than fixture placement. Spacing density, aperture size, optical distribution, and system coordination directly influence visual comfort, compliance outcomes, and long-term performance. The following resources expand on specification and planning considerations that commonly affect commercial recessed lighting projects.
- How to Space Recessed Lighting for Balanced Professional Illumination
- How to Select the Correct Recessed Lighting Size for Commercial Spaces
- Commercial Recessed Ceiling Lighting Specification Standards and Performance Criteria
Reliable Recessed Lighting for Long-Term Performance
When properly planned and installed, commercial recessed LED lighting delivers clean aesthetics, uniform illumination, and reduced maintenance costs. Accurate layout, correct fixture selection, and professional installation practices ensure dependable performance across offices, healthcare facilities, retail environments, and institutional spaces.
Frequently Asked Questions
What information should be gathered during pre installation planning for commercial recessed LED lighting
Confirm ceiling construction, plenum depth, and the location of obstructions such as joists, ductwork, conduit, and cable trays. Identify room function, task locations, and circulation paths so the layout supports both visual performance and code requirements. Coordinate fixture locations with sprinklers, diffusers, smoke detectors, and sensors early to avoid field conflicts and rework.
How should spacing be determined beyond general on center guidelines
Use fixture photometrics, mounting height, and the target light level to establish spacing and quantity. General spacing tables are starting points, but distribution, beam spread, and ceiling reflectance can change results. Validate the layout by checking predicted average and minimum levels and reviewing uniformity to avoid bright spots, scalloping, or shadow bands.
What causes common layout issues such as shadowing or uneven brightness in recessed installations
Issues typically come from inconsistent spacing, misaligned rows, insufficient overlap of distributions, or placing fixtures without regard to task orientation. Obstructions and ceiling features can also block light or force last minute shifts that break the pattern. A coordinated reflected ceiling plan and photometric check reduces these outcomes.
How should fixture lumen output be matched to ceiling height and task requirements
Select lumen output based on the required maintained light level and the fixture distribution at the installed height. Higher ceilings typically require higher output or tighter spacing to maintain uniformity. For task areas, consider vertical illumination and glare control, not only horizontal light level, especially in spaces with screens or reflective surfaces.
What color temperature and color quality considerations apply to commercial recessed lighting
Select color temperature based on space function and maintain consistency within connected sight lines. Neutral to cooler selections are often used for work and clinical support areas where clarity is prioritized, while warmer selections may be used in reception or hospitality zones. Confirm CRI requirements and color consistency expectations so large quantities of fixtures do not show visible variation.
When is IC rating required and what should be confirmed on insulated ceilings
IC rating is used when the fixture will contact insulation in the ceiling assembly. Confirm the specific fixture listing and any insulation contact limitations stated by the manufacturer. Also confirm the ceiling assembly requirements and local code expectations so thermal conditions do not exceed the fixture rating.
How should damp location needs be evaluated for restrooms, vestibules, and similar areas
Assess whether the fixture will be exposed to humidity, condensation, or intermittent moisture. Specify damp rated or wet rated products based on the actual exposure at the ceiling plane and verify the listing aligns with the installation location. For areas with cleaning protocols, confirm the fixture construction supports the environment without compromising seals.
What wiring and junction box considerations are typical in commercial recessed lighting projects
Use listed junction boxes or manufacturer supplied enclosures to protect terminations and meet code requirements. Confirm conductor type, circuiting method, and grounding approach based on the building electrical design. Where controls wiring is present, separate line voltage and control conductors per applicable requirements and maintain clear labeling for commissioning and maintenance.
What steps reduce risk during ceiling cutting and fixture placement
Verify layout dimensions from fixed references, confirm there are no conflicts above the ceiling at each cut location, and use the manufacturer cutout template. Maintain consistent row alignment and spacing marks before cutting. For grid ceilings, coordinate tile cuts and support methods so fixtures remain secure and level after installation.
What should be verified when integrating occupancy sensors and daylight harvesting
Confirm the fixture driver and control method are compatible with the sensor output and intended control sequence. Verify sensor coverage patterns so aisles and work zones are reliably detected and avoid nuisance switching. For daylight harvesting, confirm zoning near glazing and set minimum levels that maintain visual comfort while still reducing energy use.
What should be confirmed for 0 to 10V dimming on commercial recessed fixtures
Confirm the fixture driver supports 0 to 10V control, verify the dimming range and low end stability, and ensure the control wiring topology matches the project design. During startup, verify that fixtures dim consistently within each zone and do not show visible mismatch at common dim levels. Document final setpoints and control groupings for future service.
What commissioning checks confirm the installation meets performance intent
Verify operation of every zone, confirm control response and schedules, and spot check light levels and uniformity in representative areas. Review glare and screen reflections where relevant and verify trim alignment and fixture seating. For maintenance planning, document fixture types, driver specifications, and control settings so replacements and future changes remain consistent.
