What Is 0–10V Dimming?
0–10V dimming is the primary lighting control protocol used in commercial and industrial environments. Unlike residential TRIAC dimming, which modulates the incoming AC power, 0–10V dimming uses a dedicated low-voltage DC control signal to regulate light output at the driver level.
This separation of control and power enables smooth, stable dimming across large fixture groups, making 0–10V the preferred standard for offices, classrooms, warehouses, and shop environments.
How 0–10V Dimming Operates
A 0–10V system controls light output by sending a low-voltage DC signal from a controller to the LED driver. The driver interprets the voltage level and adjusts output accordingly.
- 10 volts: Fixture operates at 100% light output.
- 5 volts: Fixture operates at approximately 50% output.
- 0–1 volts: Fixture reaches its minimum dimming level, typically between 1% and 10%, depending on driver design.
In most commercial drivers, removing the control signal defaults the fixture to full output, providing a fail-safe condition.
System Components
A functional 0–10V dimming system requires three coordinated components.
- Controller: A wall-mounted dimmer, relay panel, occupancy sensor, or building control system that generates or sinks the 0–10V signal.
- Dimming-Capable LED Driver: The internal fixture driver equipped with dedicated low-voltage dimming leads.
- Low-Voltage Control Wiring: Class 2 conductors that carry the control signal independently of line voltage.

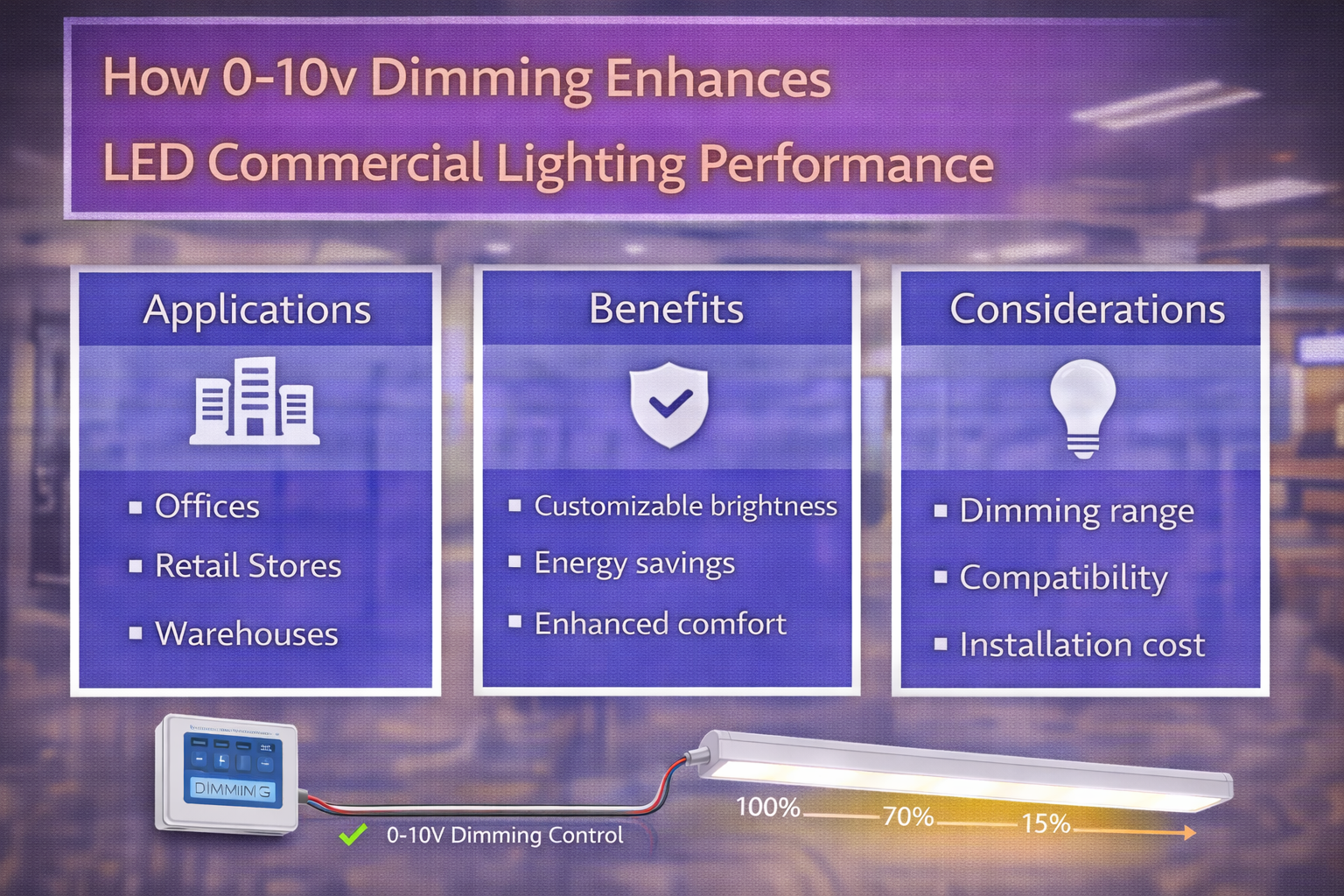

Advantages in Commercial Facilities
0–10V dimming provides consistent performance in large-scale installations.
- Smooth, Flicker-Free Operation: Because the dimming signal is isolated from the AC power line, transitions between light levels are stable and silent.
- Scalability: A single controller can manage multiple fixtures simultaneously, which is critical in open offices, classrooms, warehouses, and shop bays.
- Energy Reduction: When paired with occupancy sensors or daylight harvesting, 0–10V systems significantly reduce runtime and energy consumption.
Wiring 0–10V Control Systems
Commercial 0–10V installations involve two separate wiring systems at each fixture.
- Line Voltage Conductors: Black (hot) and white (neutral) supplying 120–277V power.
- Control Conductors: Purple (positive) and grey or pink (negative) carrying the low-voltage dimming signal.
Note: Per recent NEC revisions, the negative control conductor is transitioning from grey to pink to prevent confusion with neutral wiring.
Control wiring should be routed and terminated according to manufacturer instructions to avoid interference and signal loss.
Common Installation and Performance Issues
Most 0–10V performance issues are related to wiring or component mismatch.
- No Dimming Response: Reversed polarity on the control wires can cause fixtures to remain at full output or off.
- Flicker at Low Levels: Occurs when the controller output does not align with the driver’s minimum dimming threshold. Commercial-grade drivers reduce this risk.
- Inconsistent Dimming: Running control wiring parallel to high-voltage conductors over long distances can introduce interference if proper separation is not maintained.
Related Commercial Lighting Categories
0–10V dimming remains the industry standard for scalable, reliable lighting control in commercial and industrial facilities.
Frequently Asked Questions
What is 0–10V dimming in commercial LED lighting?
0–10V dimming is a low-voltage control method that adjusts LED driver output using a DC control signal that is separate from the branch-circuit power. The fixture stays on line voltage while the driver interprets the control voltage to set light output, which supports predictable dimming across large fixture groups.
How does a 0–10V dimming signal translate to light output?
The controller sends a DC signal to the driver. At 10V the driver commands full output, and as the signal is reduced the driver lowers output. The lowest usable level is set by the driver and is commonly in the 1% to 10% range at approximately 0–1V, depending on the driver’s design and published dimming curve.
Why is 0–10V preferred over phase-cut dimming in commercial spaces?
Because control is separated from the AC power waveform, 0–10V systems avoid many of the compatibility issues common to phase-cut dimming. This is useful in offices, classrooms, warehouses, and shop environments where multiple fixtures must dim together without instability, audible noise, or inconsistent behavior between driver models.
What components are required for a functioning 0–10V system?
A complete system includes a controller that produces or sinks the 0–10V signal, LED drivers that are designed and listed for 0–10V control, and Class 2 control conductors routed and terminated per manufacturer instructions. Performance depends on the controller and driver being compatible by design rather than only by label.
How does 0–10V dimming improve energy performance in commercial facilities?
0–10V control enables reduction of light output during low-need periods instead of running fixtures at full output. When paired with occupancy sensing, scheduling, or daylight-responsive control, it reduces runtime at full power and can lower lighting energy consumption while maintaining required task illuminance when spaces are occupied.
How does 0–10V support better visual performance and comfort?
Commercial drivers designed for 0–10V control can provide smoother transitions and more stable low-end behavior than many phase-cut solutions. This supports glare management and visual comfort by allowing facilities to tune light levels to the task, time of day, or occupancy conditions without re-lamping or changing optics.
What are the typical wiring conductors used for 0–10V control?
Each fixture has line-voltage conductors for power and separate low-voltage conductors for control. Common control lead colors are purple for the positive dimming lead and grey or pink for the negative lead, depending on fixture and driver conventions. The control pair is not a substitute for line-voltage conductors and should be treated as a distinct system.
What is the fail-safe behavior if the 0–10V control signal is lost?
Many commercial 0–10V drivers default to full output if the control circuit is open or the control signal is absent. This behavior varies by driver, so it should be verified in the driver documentation when designing egress lighting strategies or control fault requirements.
What are the most common installation issues that cause poor dimming performance?
Common causes include mismatched controllers and drivers, incorrect terminations on the control pair, control wiring practices that introduce noise over long runs, and low-end instability when the driver’s minimum dimming threshold does not align with the controller’s output range. Consistency improves when the same driver family and the same control method are used throughout a zone.
How do you prevent flicker or uneven behavior at low dimming levels?
Select drivers with published low-end dimming performance and a verified dimming curve, and use controllers that are specified for that driver type. In applications that require stable low-end output, confirm the minimum dim level and test a representative zone before full deployment, especially when mixing fixture types or driver revisions.
