2×2 LED drop ceiling troffer light for T-bar grids, diffused optic for uniform office and classroom lighting; 120–277V input, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.

2×2 LED Drop Ceiling Troffer Light 15/20/25/30/40W 1950–5000 Lumens 3500K/4000K/5000K/5700K/6500K 120–277V

$44.19 $51.99
Skip to product information
2×2 LED drop ceiling troffer light for T-bar grids, diffused optic for uniform office and classroom lighting; 120–277V input, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.

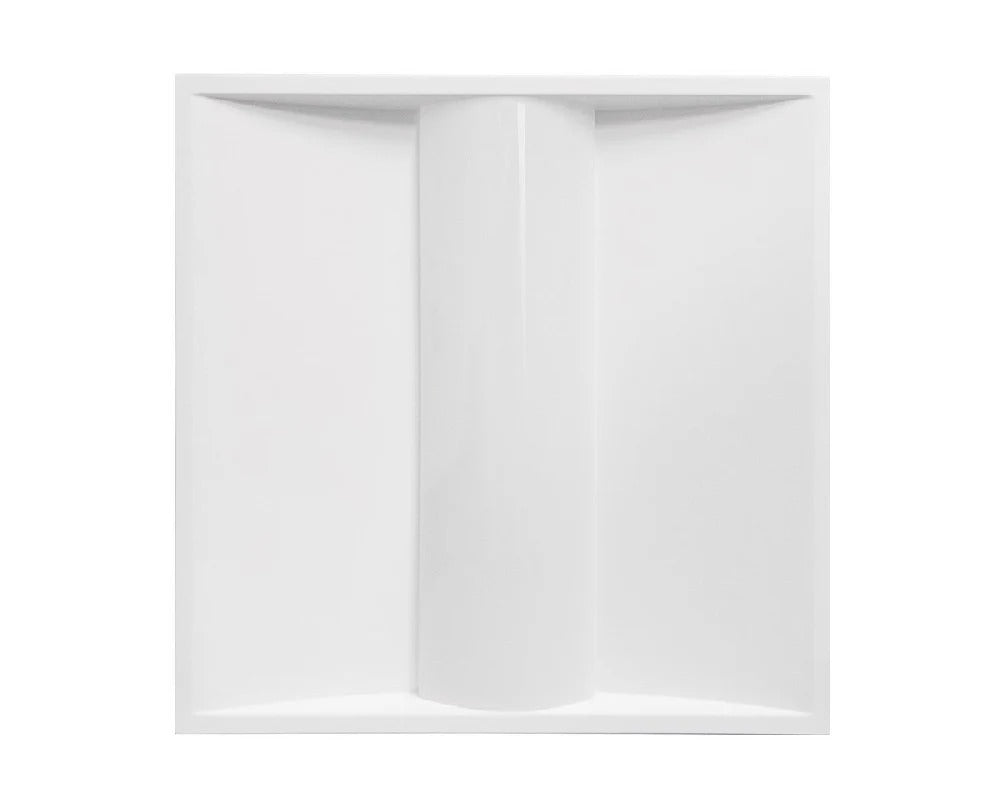

  • 2×2 LED drop ceiling troffer light for T-bar grids, diffused optic for uniform office and classroom lighting; 120–277V input, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.

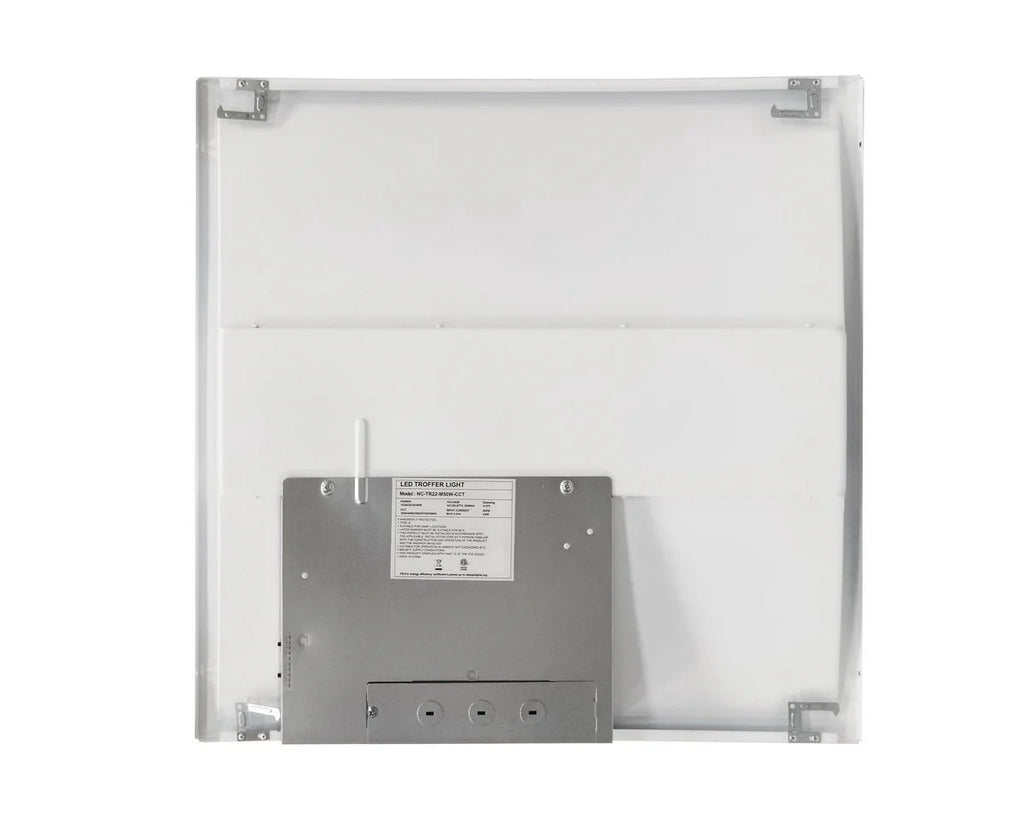

  • Back view of the 2×2 LED drop-ceiling troffer showing the wiring compartment with conduit knockout points, plus side-access CCT-select and wattage-select slide/DIP switches on the electrical box; 120–277V input, wattage-select 15/20/25/30/40W delivering 1,950–5,000 lumens with 3500K/4000K/5000K/5700K/6500K CCT options.

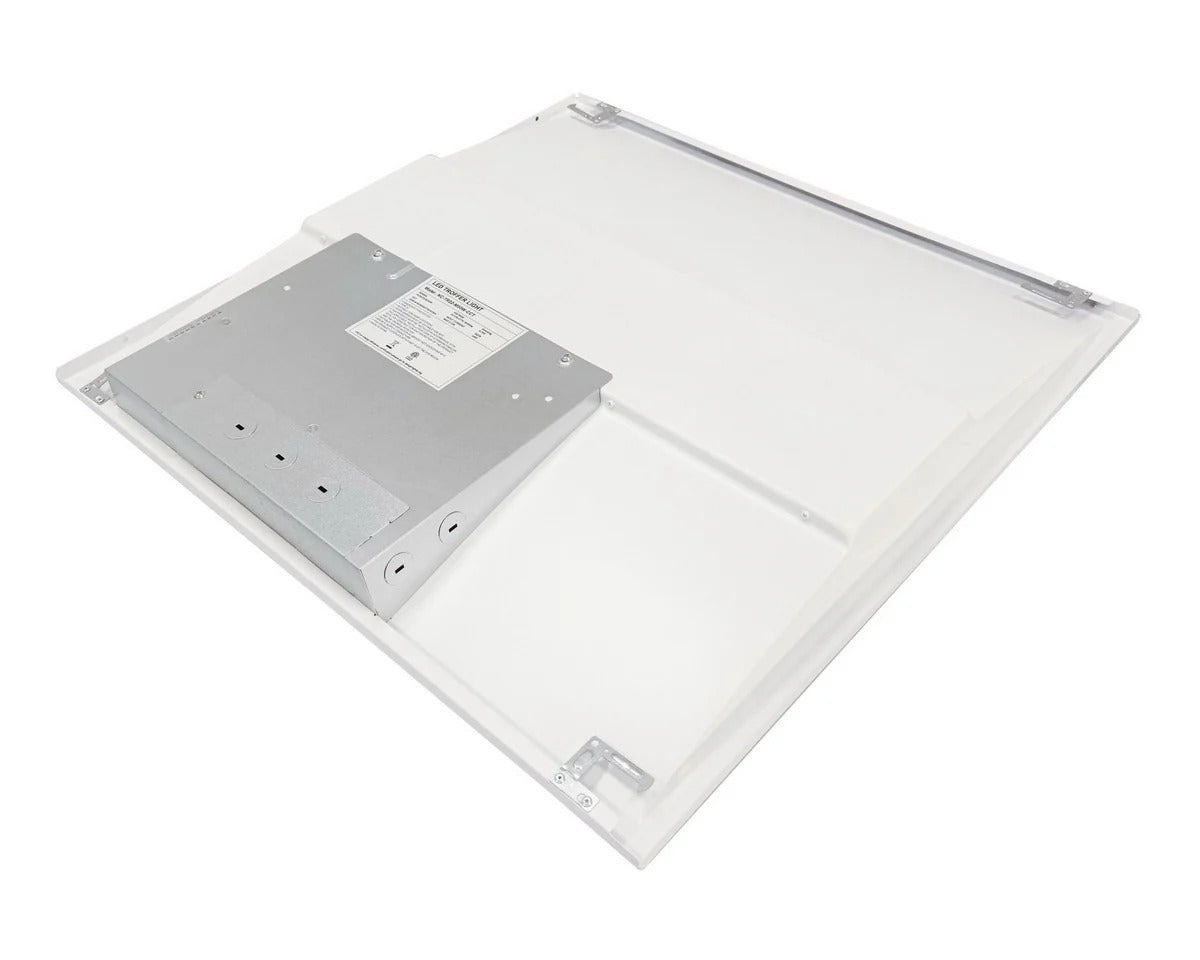

  • Angled back view of the 2×2 LED drop ceiling troffer showing T-bar grid clips and the wiring compartment/electrical box with multiple conduit knockouts for feed entry; 15/20/25/30/40W, 1,950–5,000 lm, 3500K/4000K/5000K/5700K/6500K, 120–277V.
  • 2×2 LED drop ceiling troffer light for T-bar grids, diffused optic for uniform office and classroom lighting; 120–277V input, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.
  • Back view of the 2×2 LED drop-ceiling troffer showing the wiring compartment with conduit knockout points, plus side-access CCT-select and wattage-select slide/DIP switches on the electrical box; 120–277V input, wattage-select 15/20/25/30/40W delivering 1,950–5,000 lumens with 3500K/4000K/5000K/5700K/6500K CCT options.
  • Angled back view of the 2×2 LED drop ceiling troffer showing T-bar grid clips and the wiring compartment/electrical box with multiple conduit knockouts for feed entry; 15/20/25/30/40W, 1,950–5,000 lm, 3500K/4000K/5000K/5700K/6500K, 120–277V.
  • 2×2 LED drop ceiling troffer light for T-bar grids, diffused optic for uniform office and classroom lighting; 120–277V input, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.
  • Back view of the 2×2 LED drop-ceiling troffer showing the wiring compartment with conduit knockout points, plus side-access CCT-select and wattage-select slide/DIP switches on the electrical box; 120–277V input, wattage-select 15/20/25/30/40W delivering 1,950–5,000 lumens with 3500K/4000K/5000K/5700K/6500K CCT options.
  • Angled back view of the 2×2 LED drop ceiling troffer showing T-bar grid clips and the wiring compartment/electrical box with multiple conduit knockouts for feed entry; 15/20/25/30/40W, 1,950–5,000 lm, 3500K/4000K/5000K/5700K/6500K, 120–277V.
  • 2×2 LED drop ceiling troffer light for T-bar grids, diffused optic for uniform office and classroom lighting; 120–277V input, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.
  • Back view of the 2×2 LED drop-ceiling troffer showing the wiring compartment with conduit knockout points, plus side-access CCT-select and wattage-select slide/DIP switches on the electrical box; 120–277V input, wattage-select 15/20/25/30/40W delivering 1,950–5,000 lumens with 3500K/4000K/5000K/5700K/6500K CCT options.
  • Angled back view of the 2×2 LED drop ceiling troffer showing T-bar grid clips and the wiring compartment/electrical box with multiple conduit knockouts for feed entry; 15/20/25/30/40W, 1,950–5,000 lm, 3500K/4000K/5000K/5700K/6500K, 120–277V.
2×2 LED Drop Ceiling Troffer Light 15/20/25/30/40W 1950–5000 Lumens 3500K/4000K/5000K/5700K/6500K 120–277V

2×2 LED Drop Ceiling Troffer Light 15/20/25/30/40W 1950–5000 Lumens 3500K/4000K/5000K/5700K/6500K 120–277V

Brand: NCLTG
SKU: NC-TR22-M40W-CCT
Product Type: LED Troffer Light

This 2×2 LED troffer is specified for T-grid ceiling applications that require uniform recessed illumination with adjustable output. It supports selectable 15W, 20W, 25W, 30W, or 40W operation and delivers 1,950 to 5,000 lumens, with 3500K, 4000K, 5000K, 5700K, or 6500K CCT options to standardize color across the space. 120–277V operation supports common commercial electrical systems used in offices, education, and healthcare interiors.
$44.19 $51.99
Secure Checkout

Payment information is processed through encrypted, PCI-compliant payment gateways. Card details are never stored on our servers.
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping is calculated at checkout based on product type, destination, and delivery method (parcel or freight). For lead times, tracking, freight delivery, and inspection requirements, see Shipping Reliability & Fulfillment.
Returns & Restocking

Returns and restocking are handled through an authorization and routing process based on product type and manufacturer policy. Some returns may be subject to a manufacturer-determined restocking fee. For eligibility, steps, and correction handling, see Returns & Restocking.

Specifications

BrandNCLTG
Manufacturer Part NumberNC-TR22-M40W-CCT
DLC Product IDS-9Q9R20
Wattage15W, 20W, 25W, 30W, 40W
Voltage120–277V
Lumens1,950, 2,600, 3,250, 3,750, 5,000
Efficacy125–130 lm/W
CCT3500K, 4000K, 5000K, 5700K, 6500K
Dimming0–10V
Special FeaturesWattage and CCT Selectable
CertificationscETLus Listed, RoHS Compliant, DLC Premium Listed
Dimensions23.74" L × 23.74" W × 2.12" H
Warranty5-Year Limited Warranty
