Why “Air-Handling” Fixtures Change More Than the Lighting Plan
Air-handling troffers combine lighting and air distribution (supply/return) within a ceiling grid. This can reduce ceiling clutter and simplify diffuser placement, but it also introduces coordination requirements with mechanical design, plenum pathways, and fire/life-safety constraints.
These fixtures affect grid layout, duct routing, balancing access, and in some cases the way penetrations and plenum spaces are evaluated. The goal is to avoid conflicts discovered late in construction.
Related resource: For system-level guidance on ceiling fixture selection, troffer layouts, panel integration, recessed options, and coordination considerations across commercial ceilings, reference the Commercial Ceiling Lighting Buying Guide.

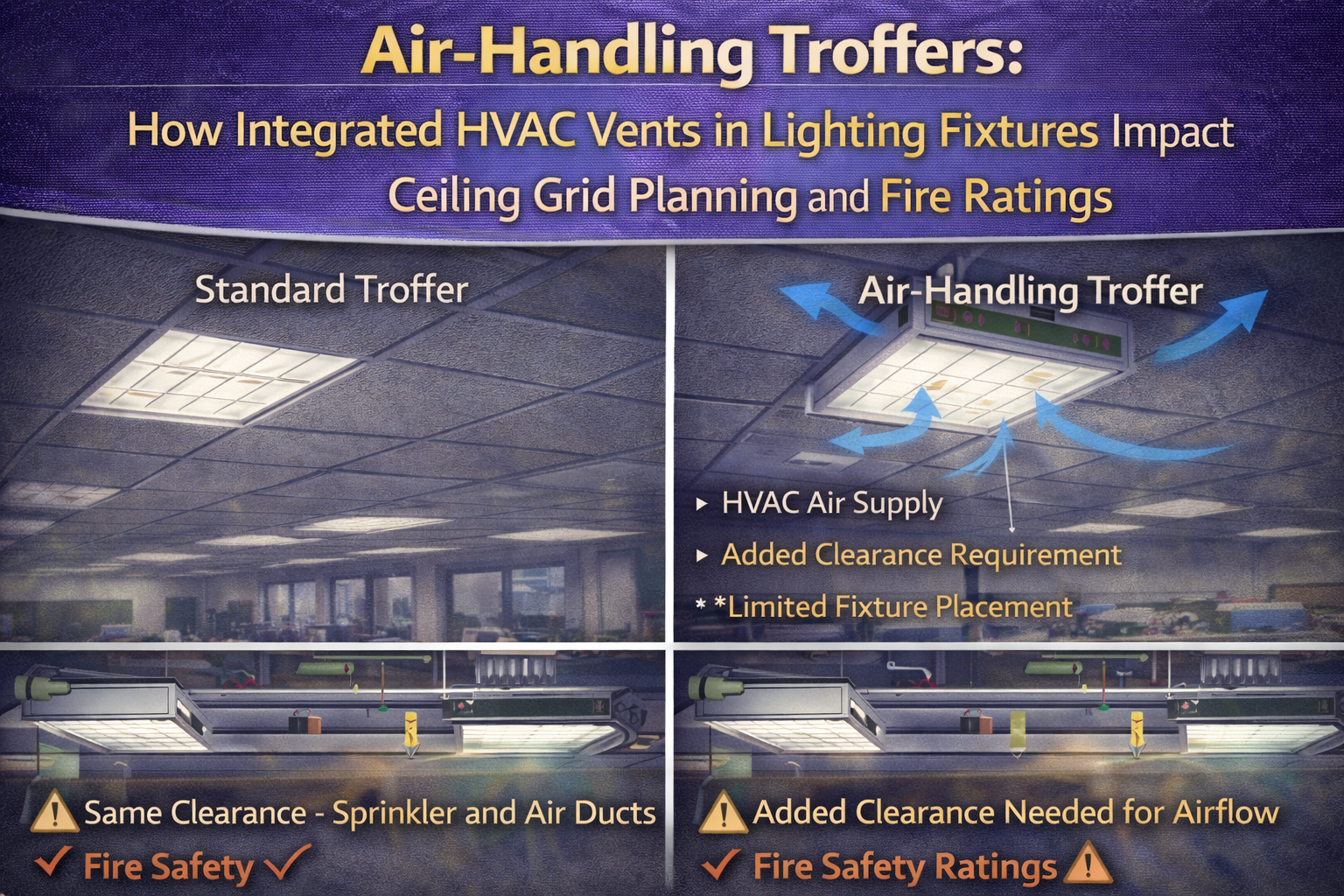

What Air-Handling Troffers Are
Air-handling troffers integrate slots, vents, or air pathways intended for supply or return air movement. The fixture becomes part of the ceiling air distribution strategy rather than a standalone luminaire.
| Configuration | Common Use | Planning Impact |
|---|---|---|
| Supply air troffer | Perimeter / office zones | Requires duct routing and balancing access |
| Return air troffer | Central return pathways | Must align with return strategy and plenum design |
| Combination supply/return | Architectural ceilings | More coordination with mechanical engineer |
Ceiling Grid and Mechanical Coordination Issues
- Air-handling fixtures dictate where duct drops or flexible connections must land
- Grid module (2x2 vs 2x4) affects diffuser-like performance and throw
- Mechanical zoning may force fixture locations that conflict with lighting uniformity
| Coordination Item | What to Confirm | Why It Matters |
|---|---|---|
| Duct routing | Duct drops align to fixture ports | Prevents field offsets and poor air delivery |
| Throw direction | Air discharge direction vs workstation layout | Avoids drafts over seating/desk zones |
| Structural conflicts | Plenum depth and obstructions | Prevents impossible installs in shallow plenums |
Plenum Use, Fire/Smoke, and Ceiling System Considerations
When fixtures become part of air movement pathways, the ceiling system and plenum assumptions matter. Project requirements vary by jurisdiction and building type, so the correct approach is to coordinate with the mechanical engineer and AHJ on how return air is handled and how penetrations are managed.
- Verify whether the space is used as a return plenum and what materials are permitted in that plenum
- Confirm any fire/smoke damper requirements for ducted connections
- Check ceiling system fire performance expectations where applicable
Access, Maintenance, and Balancing Planning
- Ensure balancing dampers and connections are reachable without removing large ceiling areas
- Plan for access panels if required by the mechanical design
- Coordinate service clearances so lighting maintenance doesn’t disrupt HVAC connections
Common Coordination Mistakes
- Placing air-handling troffers based on lighting layout only, then forcing duct offsets in the field
- Ignoring plenum depth and structural obstructions
- Assuming “return via plenum” is always acceptable without confirming jurisdiction requirements
- Failing to plan balancing access and service routes
Related Commercial Ceiling Lighting Articles
Ceiling system performance depends on optical design, glare control, retrofit strategy, and coordination between lighting and building systems. The following resources expand on related specification decisions that commonly affect commercial ceiling layouts.
- Volumetric vs. Flat Panel: Which Optical Design Reduces Computer Screen Glare in Open-Office Floor Plans
- Back-Lit vs. Edge-Lit LED Panels: Evaluating Long-Term Color Consistency and Housing Depth
- The 2×4 Troffer Retrofit: Comparing LED Plate Kits vs. Full Fixture Replacement for 2026 Energy Compliance
Related Troffer and Office Lighting Categories
Air-handling troffers can reduce ceiling clutter, but they increase coordination requirements. The success of these systems depends on early alignment between lighting layout, HVAC zoning, ceiling grid design, and access planning.
