MR16 LED Bulb 7 Watt 500 Lumens 80 CRI Dimmable Bi-Pin GU5.3 Base Energy Star Rated 12V

Name: MR16 LED Bulb 7 Watt 500 Lumens 80 CRI Dimmable Bi-Pin GU5.3 Base Energy Star Rated 12V
Brand: Euri Lighting
SKU: EM16-7W4020ew
Price: 3.56 USD
Availability: InStock

MR16 LED lamp with GU5.3 bi-pin base for low-voltage track and accent lighting, dimmable output; 12V input, 7W (500 lumens) with 80 CRI and Energy Star rating.

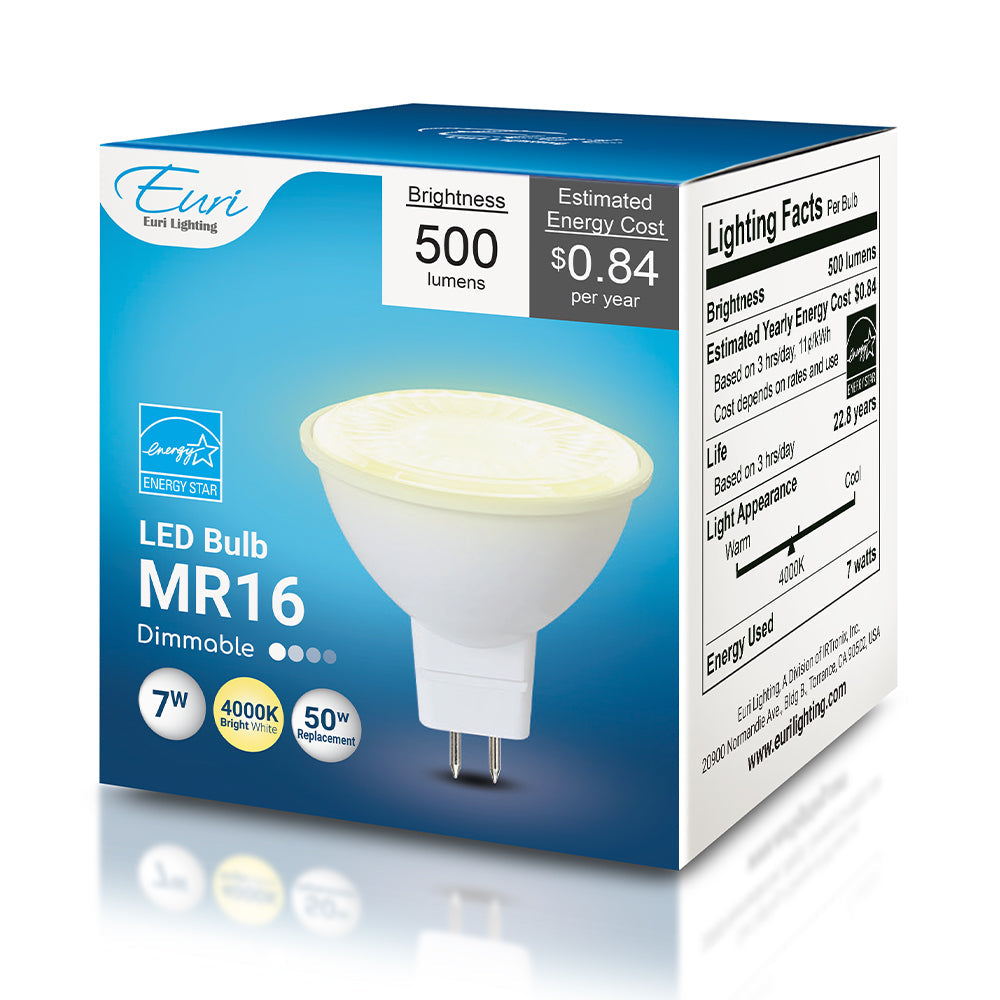

Retail packaging photo for an MR16 LED bulb showing the product box with listed specs: 7W input, 500-lumen output, 80 CRI, dimmable operation, bi-pin GU5.3 base, ENERGY STAR rating, and 12V low-voltage operation.

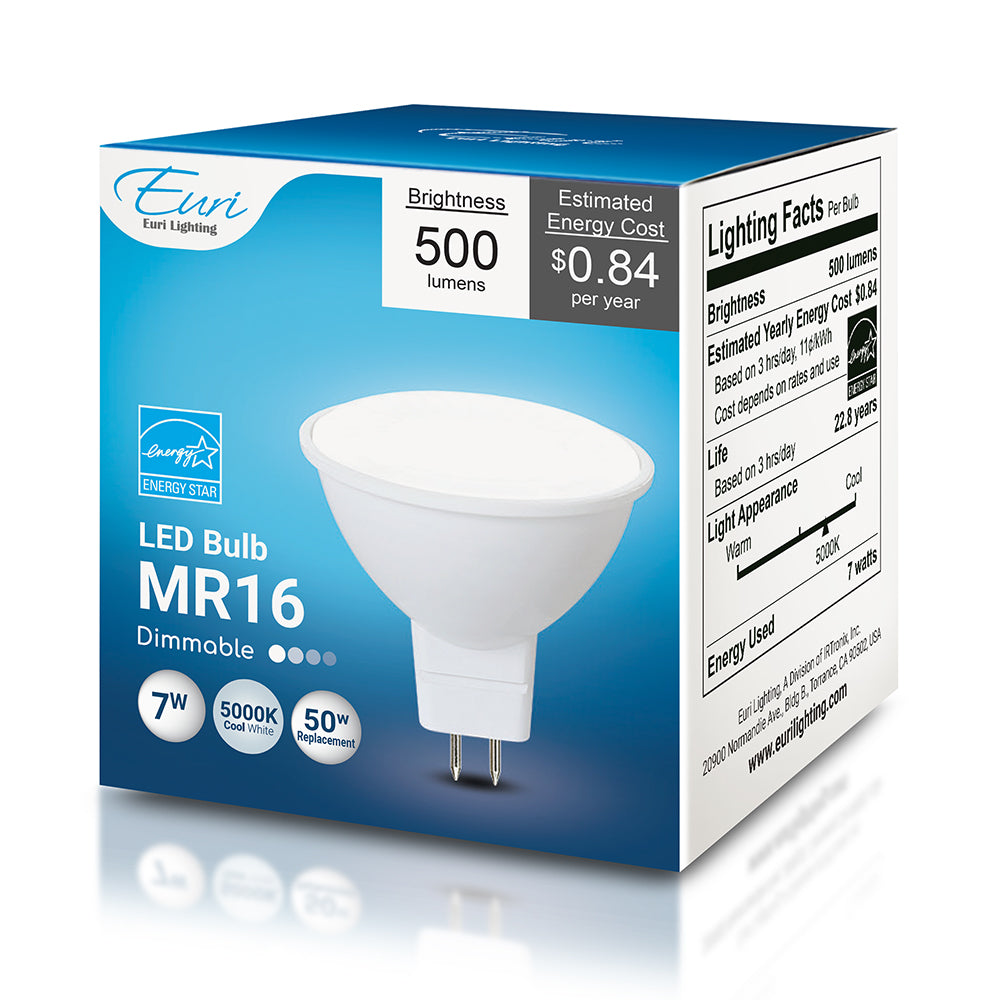

Retail box packaging for the MR16 LED bulb showing 12V specification; 7W, 500 lumens, 80 CRI, dimmable, GU5.3 bi-pin base, Energy Star rated.

Retail packaging photo of the MR16 LED bulb showing key specs on the box; 7W, 500 lm, 80 CRI, dimmable, GU5.3 bi-pin base, Energy Star rated, 12V.

Retail box packaging for the MR16 LED bulb showing 7W power, 500 lumens, 80+ CRI, dimmable performance, GU5.3 bi-pin base, ENERGY STAR rating, and 12V operation.

Installed in low-voltage directional fixtures requiring transformer-compatible operation. This Euri Lighting MR16 bulb supports dimming and controlled output for precision lighting applications. It operates on 12V systems with GU5.3 bases and meets Energy Star requirements.

$3.56

Free shipping calculated at checkout.

Color Temperature

2700K

3000K

4000K

5000K

In stock, ready to ship
Backordered, shipping soon

[{"id":43402388308209,"title":"2700K","option1":"2700K","option2":null,"option3":null,"sku":"EM16-7W4020ew","requires_shipping":true,"taxable":true,"featured_image":{"id":42544863084785,"product_id":7838745886961,"position":2,"created_at":"2024-11-23T20:12:08-06:00","updated_at":"2024-11-23T20:12:08-06:00","alt":"Retail packaging photo for an MR16 LED bulb showing the product box with listed specs: 7W input, 500-lumen output, 80 CRI, dimmable operation, bi-pin GU5.3 base, ENERGY STAR rating, and 12V low-voltage operation.","width":1000,"height":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-2.jpg?v=1732414328","variant_ids":[43402388308209]},"available":true,"name":"MR16 LED Bulb 7 Watt 500 Lumens 80 CRI Dimmable Bi-Pin GU5.3 Base Energy Star Rated 12V - 2700K","public_title":"2700K","options":["2700K"],"price":356,"weight":5897,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"811174033448","featured_media":{"alt":"Retail packaging photo for an MR16 LED bulb showing the product box with listed specs: 7W input, 500-lumen output, 80 CRI, dimmable operation, bi-pin GU5.3 base, ENERGY STAR rating, and 12V low-voltage operation.","id":34983264321777,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-2.jpg?v=1732414328"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43402388340977,"title":"3000K","option1":"3000K","option2":null,"option3":null,"sku":"EM16-7W4000ew","requires_shipping":true,"taxable":true,"featured_image":{"id":42544863150321,"product_id":7838745886961,"position":3,"created_at":"2024-11-23T20:12:12-06:00","updated_at":"2024-11-23T20:12:12-06:00","alt":"Retail box packaging for the MR16 LED bulb showing 12V specification; 7W, 500 lumens, 80 CRI, dimmable, GU5.3 bi-pin base, Energy Star rated.","width":1000,"height":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-3.jpg?v=1732414332","variant_ids":[43402388340977]},"available":true,"name":"MR16 LED Bulb 7 Watt 500 Lumens 80 CRI Dimmable Bi-Pin GU5.3 Base Energy Star Rated 12V - 3000K","public_title":"3000K","options":["3000K"],"price":356,"weight":5897,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"811174033455","featured_media":{"alt":"Retail box packaging for the MR16 LED bulb showing 12V specification; 7W, 500 lumens, 80 CRI, dimmable, GU5.3 bi-pin base, Energy Star rated.","id":34983264387313,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-3.jpg?v=1732414332"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43402388373745,"title":"4000K","option1":"4000K","option2":null,"option3":null,"sku":"EM16-7W4040ew","requires_shipping":true,"taxable":true,"featured_image":{"id":42544863248625,"product_id":7838745886961,"position":4,"created_at":"2024-11-23T20:12:17-06:00","updated_at":"2024-11-23T20:12:17-06:00","alt":"Retail packaging photo of the MR16 LED bulb showing key specs on the box; 7W, 500 lm, 80 CRI, dimmable, GU5.3 bi-pin base, Energy Star rated, 12V.","width":1000,"height":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-4.jpg?v=1732414337","variant_ids":[43402388373745]},"available":true,"name":"MR16 LED Bulb 7 Watt 500 Lumens 80 CRI Dimmable Bi-Pin GU5.3 Base Energy Star Rated 12V - 4000K","public_title":"4000K","options":["4000K"],"price":356,"weight":5897,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"811174033462","featured_media":{"alt":"Retail packaging photo of the MR16 LED bulb showing key specs on the box; 7W, 500 lm, 80 CRI, dimmable, GU5.3 bi-pin base, Energy Star rated, 12V.","id":34983264452849,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-4.jpg?v=1732414337"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43402388406513,"title":"5000K","option1":"5000K","option2":null,"option3":null,"sku":"EM16-7W4050ew","requires_shipping":true,"taxable":true,"featured_image":{"id":42544863346929,"product_id":7838745886961,"position":5,"created_at":"2024-11-23T20:12:21-06:00","updated_at":"2024-11-23T20:12:21-06:00","alt":"Retail box packaging for the MR16 LED bulb showing 7W power, 500 lumens, 80+ CRI, dimmable performance, GU5.3 bi-pin base, ENERGY STAR rating, and 12V operation.","width":1000,"height":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-5.jpg?v=1732414341","variant_ids":[43402388406513]},"available":true,"name":"MR16 LED Bulb 7 Watt 500 Lumens 80 CRI Dimmable Bi-Pin GU5.3 Base Energy Star Rated 12V - 5000K","public_title":"5000K","options":["5000K"],"price":356,"weight":5897,"compare_at_price":null,"inventory_quantity":-5,"inventory_management":null,"inventory_policy":"deny","barcode":"811174033479","featured_media":{"alt":"Retail box packaging for the MR16 LED bulb showing 7W power, 500 lumens, 80+ CRI, dimmable performance, GU5.3 bi-pin base, ENERGY STAR rating, and 12V operation.","id":34983264518385,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-5.jpg?v=1732414341"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":43402388308209,"title":"2700K","option1":"2700K","option2":null,"option3":null,"sku":"EM16-7W4020ew","requires_shipping":true,"taxable":true,"featured_image":{"id":42544863084785,"product_id":7838745886961,"position":2,"created_at":"2024-11-23T20:12:08-06:00","updated_at":"2024-11-23T20:12:08-06:00","alt":"Retail packaging photo for an MR16 LED bulb showing the product box with listed specs: 7W input, 500-lumen output, 80 CRI, dimmable operation, bi-pin GU5.3 base, ENERGY STAR rating, and 12V low-voltage operation.","width":1000,"height":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-2.jpg?v=1732414328","variant_ids":[43402388308209]},"available":true,"name":"MR16 LED Bulb 7 Watt 500 Lumens 80 CRI Dimmable Bi-Pin GU5.3 Base Energy Star Rated 12V - 2700K","public_title":"2700K","options":["2700K"],"price":356,"weight":5897,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"811174033448","featured_media":{"alt":"Retail packaging photo for an MR16 LED bulb showing the product box with listed specs: 7W input, 500-lumen output, 80 CRI, dimmable operation, bi-pin GU5.3 base, ENERGY STAR rating, and 12V low-voltage operation.","id":34983264321777,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/MR16-LED-Bulb-7-Watt-500-Lumens-80-CRI-Dimmable-Bi-Pin-GU5_3-Base-Energy-Star-Rated-12V-2.jpg?v=1732414328"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Technical Specifications & Performance Data

Brand	Euri Lighting
Wattage	7W
Voltage	12V
Lumens	500
Lamp Type	LED
CCT	2700K, 3000K, 4000K, 5000K
CRI	80
Dimming	Yes
Base	GU5.3
Certifications	UL Listed, Energy Star Rated
Location Rating	Damp Location
Dimensions	1.97"D × 1.96"H
Rated Hours	25,000
Warranty	3-Year Warranty

Project Documentation & Technical Downloads

Engineering & Specification Resources

Related Lighting Systems & Categories

Commercial Applications & Site Integration

Technical FAQ Deep-Dive

How is a 12V GU5.3 MR16 different from a 120V GU10 MR16?

This lamp uses a GU5.3 bi-pin base and operates on 12V, which is the low-voltage MR16 format commonly used with a transformer. It is not interchangeable with GU10 lamps, which are line-voltage (120V) twist-lock types, so confirm the socket and supply type before ordering.

What power supply is required to run a 12V MR16 LED?

You will need a 12V supply, typically provided by an electronic or magnetic transformer in the fixture. Verify the transformer output matches the lamp requirements and that the existing transformer is compatible with LED loads to avoid flicker or drop-out.

How bright is 500 lumens for an MR16 application?

At 500 lumens, this MR16 LED is commonly used for accent and task lighting, such as display lighting, track heads designed for MR16, or recessed low-voltage downlights. Delivered brightness depends on the fixture optics and beam angle used.

What should I consider for dimming on a transformer-fed MR16 circuit?

It is dimmable, but dimming performance depends on both the dimmer and the transformer type. For stable dimming, confirm compatibility between the LED lamp, the transformer (electronic vs magnetic), and the dimmer control method being used.

How do I choose between 2700K, 3000K, 4000K, and 5000K?

This lamp is available in 2700K, 3000K, 4000K, or 5000K. 2700K is warm and residential-leaning, 3000K is warm-neutral, 4000K is a neutral white often used in commercial interiors, and 5000K is cooler and commonly selected where higher perceived contrast supports task visibility.
