Why Driver Architecture Matters More Than Initial Tube Cost
Direct Answer: In large-scale troffer retrofits, driver architecture determines the true lifecycle cost. Internal-driver tubes minimize troubleshooting and simplify maintenance (swap the lamp, restore light), but you “repurchase the driver” with every tube replacement. External-driver systems centralize electronics so tubes are simpler consumables and drivers can be replaced in batches, but they introduce higher initial complexity, driver inventory management, and longer repair events when a driver takes down multiple lamps in a fixture.
T8 LED tube retrofits are often selected based on upfront material cost or installation speed, but the driver architecture—whether internal or external—has a far greater impact on long-term maintenance labor, downtime, and failure recovery.
Facilities with hundreds or thousands of troffers frequently underestimate the lifecycle cost differences between internal-driver LED tubes and external-driver (remote driver) systems. Understanding how each system fails, how it is serviced, and how labor is allocated is essential for making a defensible retrofit decision.
Buying guide reference: For the full specification workflow—retrofit options, ballast-bypass decisions, control integration, flicker/driver quality checkpoints, and inspection-ready documentation—use the Commercial Ceiling Lighting Buying Guide.
In this guide

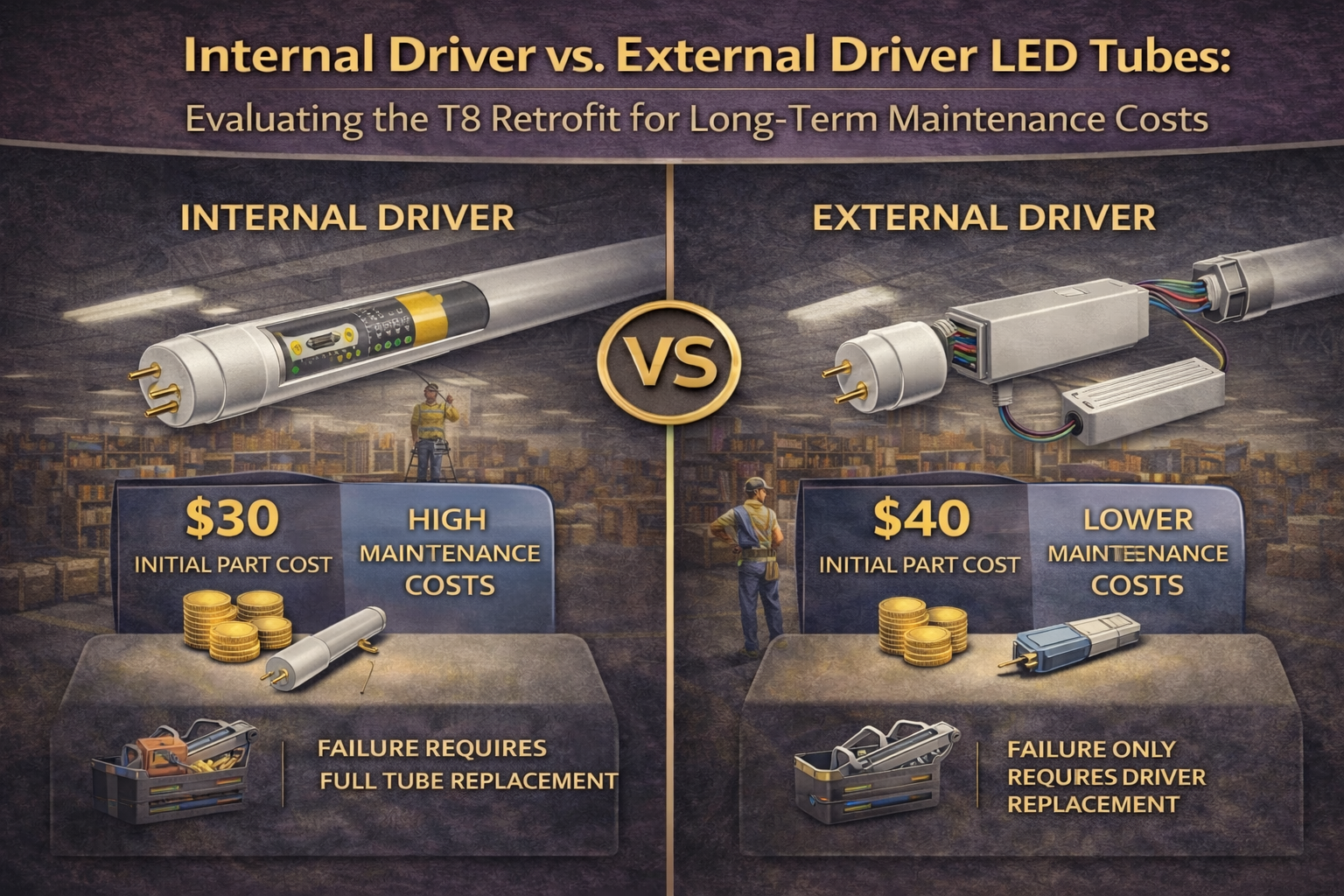

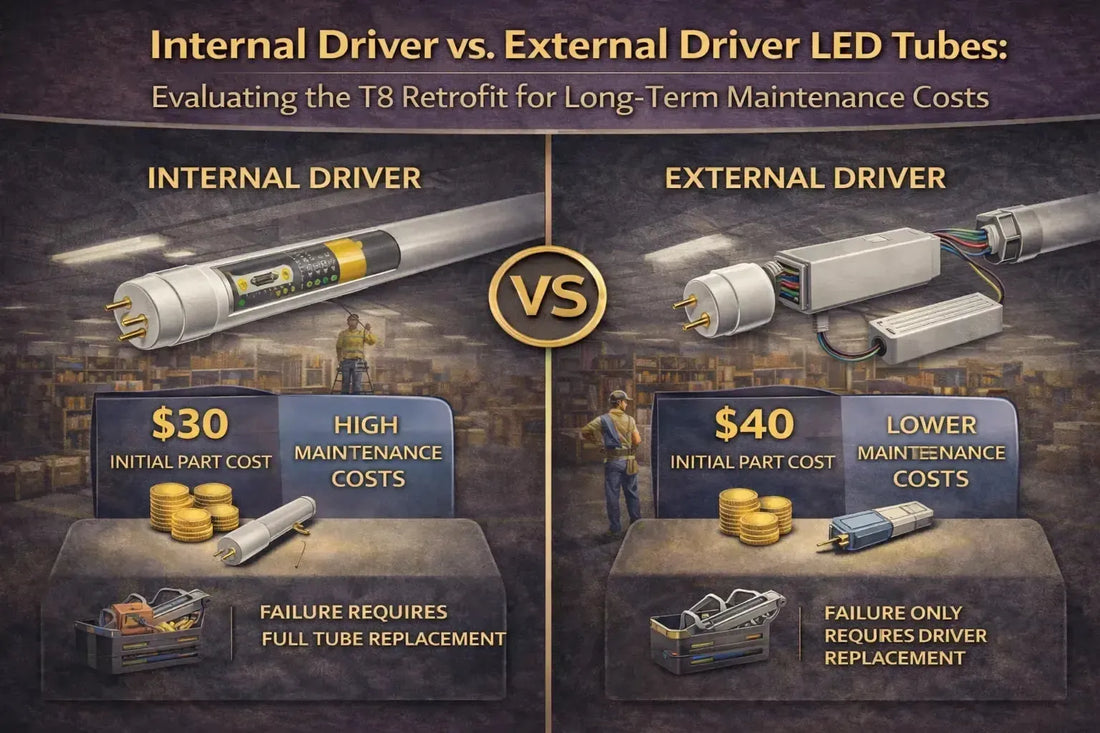

Defining Internal and External Driver T8 Systems
The distinction is where power conversion and current regulation occur—and what becomes “consumable” during service events.
| System Type | Driver Location | Typical Wiring | Service Philosophy |
|---|---|---|---|
| Internal-driver tube | Inside each tube | Line voltage to lampholders (ballast-bypass or hybrid) | Replace lamp to restore operation |
| External-driver system | Remote driver per fixture (or per channel) | Driver output to tubes (system-specific) | Replace driver for electronics; replace tubes as light engines |
Practical takeaway: Internal-driver tubes behave like “lamp-as-a-system.” External-driver systems behave like “fixture electronics + replaceable light engines.”
Failure Modes and Repair Scenarios
Lifecycle cost is driven by what fails most often and what you must replace to get the space back online.
| Failure Event | Internal Driver Tube | External Driver System | Downtime Pattern |
|---|---|---|---|
| Driver electronics failure | Replace entire tube | Replace driver; reuse tubes | Internal: single-lamp outage External: multi-lamp outage per driver channel |
| LED array degradation/failure | Replace tube | Replace tube (driver remains) | Similar event, different inventory impact |
| Intermittent flicker / nuisance issues | Swap tube first (fast isolation) | Verify driver channel, wiring, then component | External usually takes longer to diagnose |
| “One fixture dark” complaint | Often 1–2 tubes at end of life | Often driver/channel event | External can impact multiple lamps instantly |
What this means in the field: Internal-driver tubes are usually “swap-and-go.” External-driver systems are usually “diagnose-then-repair,” but can reduce long-term tube replacement cost in high-heat or high-run-hour sites.
Maintenance Labor and Downtime Analysis
Over the life of a large troffer population, labor dominates. The question isn’t “which tube is cheaper,” but “which failure creates the least operational disruption for your staffing model.”
| Maintenance Factor | Internal Driver | External Driver | Why It Matters |
|---|---|---|---|
| First-response repair speed | Fast | Moderate | Restoring light quickly reduces complaints and safety exposure |
| Troubleshooting complexity | Low | Medium | External requires driver/channel verification |
| Parts consumed per failure | Higher (tube includes driver) | Lower for tube events; higher for driver events | Impacts replacement budget and inventory planning |
| Inventory management | Simpler (one SKU strategy) | More complex (tube + driver SKUs) | Wrong driver = longer downtime |
Operational rule: If the facility has limited technical staff or relies on quick, non-specialist service calls, internal-driver tubes often win on labor. If the facility has planned maintenance windows and standardized fixture families, external-driver systems can reduce long-term electronics churn.
Electrical and Thermal Considerations
Driver location changes the operating environment of the electronics—and electronics hate heat.
- Internal drivers live inside the tube envelope and often see higher localized heat, especially in poorly ventilated troffers or warm plenums.
- External drivers can be positioned where airflow is better (fixture channel or accessible compartment), reducing thermal stress in some layouts.
- Thermal stress accelerates capacitor aging and is a common driver-life limiter—so hotter installations magnify architecture differences.
Controls note: If you need consistent dimming behavior and reduced flicker risk across a large area, driver quality and control compatibility matter more than the tube itself. Internal-driver tubes can be excellent, but external-driver systems often provide more uniform “system-level” control behavior when properly specified.
Which Architecture Makes Sense by Facility Type
Pick the architecture that matches your maintenance model, runtime profile, and tolerance for multi-lamp outage events.
| Facility Type | Recommended Starting Point | Reason |
|---|---|---|
| Office buildings | Internal-driver tubes | Fast service response, simpler inventory, minimal diagnostic time |
| Warehouses (warm plenums / long runtime) | External-driver systems | Electronics can be managed as a system; better long-run maintenance strategy in heat |
| Healthcare facilities | External-driver systems (when continuity plans exist) | System-level serviceability and standardized parts can reduce long-term disruption |
| Schools / municipal | Internal-driver tubes | Non-specialist maintenance staff; quick restoration is priority |
Related T8 & Troffer Retrofit Articles
- T8 LED Tube Beam Angles: Why 330° Glass Tubes Outperform 180° Plastic Tubes in Troffer Reflectors
- How to Read a Photometric Report: Decoding IES Files for Layout and Uniformity
Related Commercial Lighting Categories
Bottom line: Choosing between internal and external driver LED tube systems is less about upfront savings and more about how failures are managed, how quickly lighting is restored, and how you budget labor and replacement parts across thousands of fixtures.
