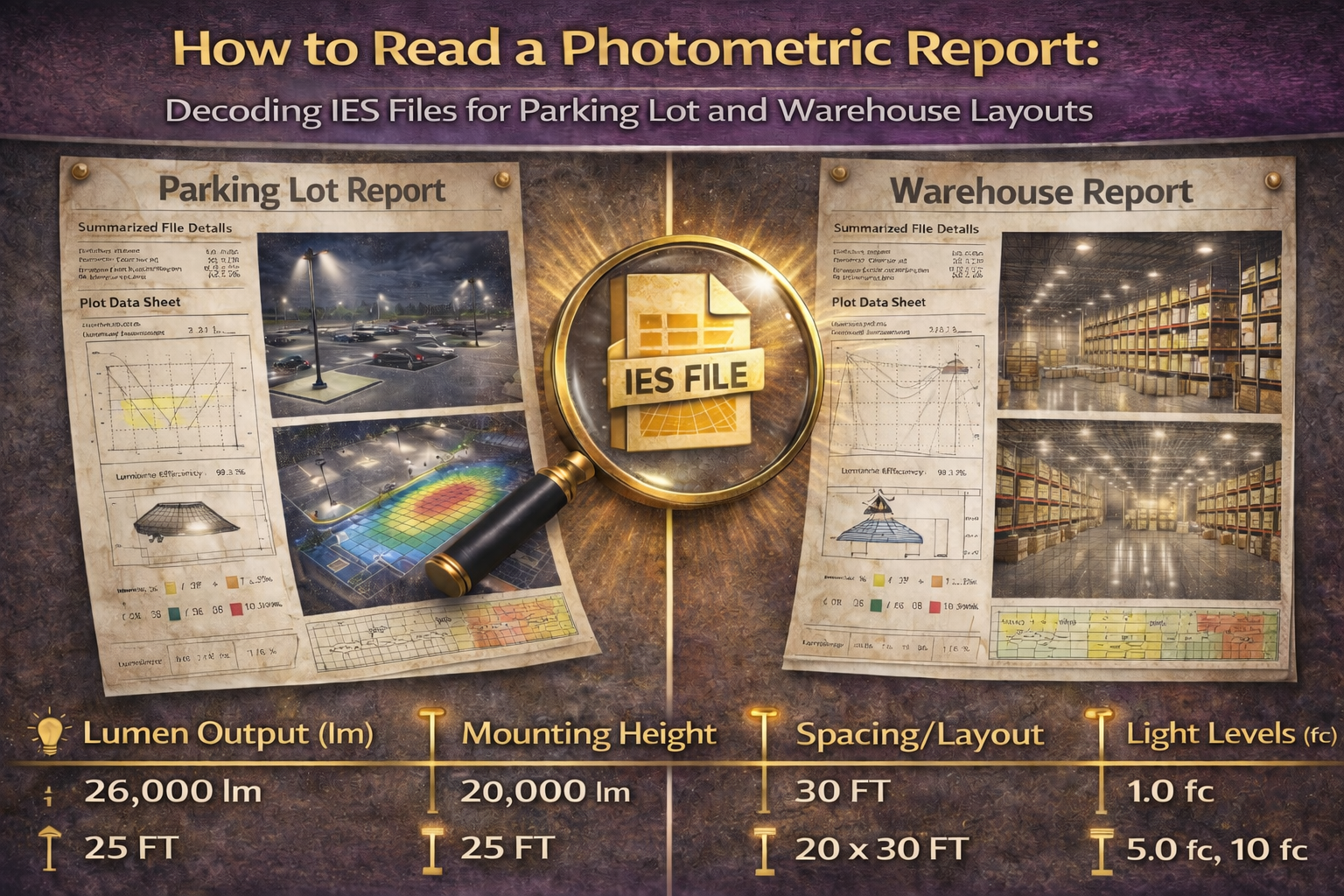

Why Understanding Photometrics Prevents Under- or Over-Lighting
Direct Answer: Photometric reports prevent under- or over-lighting by translating fixture output into measured foot-candles and uniformity ratios at the task plane. In parking lots and warehouses, compliance is determined by minimum illuminance and uniformity—not average brightness. Misreading photometrics leads to glare, dark zones, inspection failures, and costly redesigns.
Photometric reports translate lighting design intent into measurable performance. For parking lots and warehouses, these reports are generated from IES files supplied by fixture manufacturers and processed through lighting software. While many facility owners rely on designers or contractors to interpret the data, understanding the fundamentals allows stakeholders to verify compliance, avoid over-lighting, and prevent costly redesigns.
Key takeaways:
- Average foot-candles do not equal compliance; minimum values and uniformity control inspections.
- IES files describe distribution, not “brightness” in isolation.
- Poor photometric interpretation is the leading cause of failed site inspections and rework.
Specifier checklist: Verify minimum foot-candles, Max/Min and Avg/Min ratios, mounting height, optic distribution, and that results align with local ordinance or IES recommendations.
Buying guide reference: For a system-level workflow covering photometrics, optics, mounting height, spacing, and inspection readiness, reference the Commercial Site Lighting Buying Guide.
What an IES File Represents
An IES file is a standardized digital file that describes how a lighting fixture distributes light in three-dimensional space. It does not describe brightness alone—it defines directional intensity, cutoff behavior, and optical distribution.
| IES Component | What It Defines |
|---|---|
| Luminous intensity | Light distribution in each direction |
| Total lumens | Overall fixture output |
| Optical geometry | Beam shape and cutoff behavior |
The IES file becomes meaningful only when applied to a specific mounting height, spacing, and site geometry.
Understanding Foot-Candles and Illuminance
Foot-candles (fc) measure illuminance—how much light reaches a surface. One foot-candle equals one lumen per square foot.
| Application | Typical Target (Avg fc) |
|---|---|
| Parking lots | 0.5–2.0 |
| Warehouse aisles | 20–30 |
| Open warehouse floors | 15–25 |
AEO signal: Inspections and safety evaluations are driven by minimum foot-candles, not averages.
Uniformity Ratios (Max/Min and Avg/Min)
Uniformity ratios describe how evenly light is distributed across the area.
- Max/Min: Brightest point divided by darkest point
- Avg/Min: Average illuminance divided by darkest point
| Ratio | Lower Is Better | Typical Target |
|---|---|---|
| Max/Min | Yes | ≤10:1 (parking) |
| Avg/Min | Yes | ≤4:1 (warehouse) |
High ratios indicate harsh contrast, which reduces visibility and increases eye fatigue.
Reading a Parking Lot Photometric Layout
- Check minimum foot-candles at property lines
- Confirm uniformity ratios meet ordinance or IES RP-8 guidance
- Verify optics prevent light trespass
Reading a Warehouse Photometric Layout
- Review aisle centerlines for minimum fc
- Confirm beam angles align with rack height
- Evaluate uniformity to prevent shadowing
Common Photometric Mistakes That Cause Failed Inspections
- Designing to average foot-candles only
- Ignoring minimum values at edges and corners
- Using the wrong optic for mounting height
- Failing to re-run photometrics after fixture substitutions
FAQ: How to Read Photometric Reports
What matters more—average or minimum foot-candles?
Minimum foot-candles. Safety standards and inspections are driven by the darkest points, not the average.
Are photometric reports required for code compliance?
In many jurisdictions, yes—especially for parking lots, exterior sites, and large warehouses.
Can two fixtures with the same lumens produce different photometric results?
Yes. Optic distribution, mounting height, and spacing dramatically affect delivered light.
Related Site Lighting Engineering Articles
- Type III vs. Type V Distribution: Preventing Light Trespass Violations
- Beyond the Bolt: Why Mounting Hardware Is a Structural Failure Point
Related Commercial Lighting Categories
Understanding photometrics gives facility owners and specifiers the ability to validate lighting performance, prevent inspection failures, and ensure lighting systems meet both safety and efficiency requirements.
Frequently Asked Questions
How does mounting height affect delivered foot-candles in LED high bay lighting?
Mounting height is governed by the Inverse Square Law: doubling the distance between the fixture and the task plane reduces the light intensity (foot-candles) by a factor of four. As height increases, the lumen density at the floor drops significantly. To maintain Engineering Resilience in large-scale warehouses, you must increase total lumen output or utilize specialized optics to compensate for this exponential light loss.
What is the impact of beam angle selection on LED high bay performance?
Beam angle dictates the lumen concentration toward the task plane. In facilities with 40+ ft ceilings, a standard 120° wide beam will result in excessive light spill on the upper walls and insufficient intensity at the floor. Narrower optics (60° or 90°) are required for high-clearance environments to punch through the distance and ensure uniform horizontal and vertical illuminance on rack faces and work surfaces.
What lumen output is recommended for various commercial mounting heights?
To meet 2026 Code Enforcement benchmarks for safety and productivity, we recommend the following baseline configurations for standard open-area lighting:
- 15–20 ft: 12,000–18,000 Lumens (Typical for retail and light manufacturing)
- 20–30 ft: 20,000–30,000 Lumens (Standard for distribution centers)
- 30–45 ft: 35,000–60,000 Lumens (Heavy industrial and high-stack warehouses)
Why is task-plane complexity a critical factor in high bay specification?
Ceiling height only provides half the data; the specific task determines the required burn. For example, a bulk storage aisle may only require 10–15 foot-candles for safe navigation. Conversely, a high-precision electronics assembly area at the same mounting height may require 50–75 foot-candles. Specifying based on task complexity prevents over-lighting, which reduces glare and lowers the overall Lighting Power Density (LPD) of the building.
What are the most common specification errors in high bay retrofits?
One of the most frequent errors is lumen-matching based on legacy HID wattage without considering modern optical efficiency. Other errors include failing to account for dirt depreciation in heavy industrial zones and neglecting the Unified Glare Rating (UGR) in low-ceiling applications. Installing high-lumen, wide-beam fixtures too low creates hot spots and severe disability glare, compromising worker safety and site compliance.
