2-foot LED linear high bay fixture with compact housing and diffused lens for high-ceiling applications; 120–277V input, 0–10V dimming, 110/135/160W options (13,500–21,600 lumens) with 3500K/4000K/5000K color settings.

2 Foot LED Linear High Bay Light 110W/135W/160W 13500–21600 Lumens 3500K/4000K/5000K 0–10V Dimming 120–277V

$68.84 $80.99
Skip to product information
2-foot LED linear high bay fixture with compact housing and diffused lens for high-ceiling applications; 120–277V input, 0–10V dimming, 110/135/160W options (13,500–21,600 lumens) with 3500K/4000K/5000K color settings.

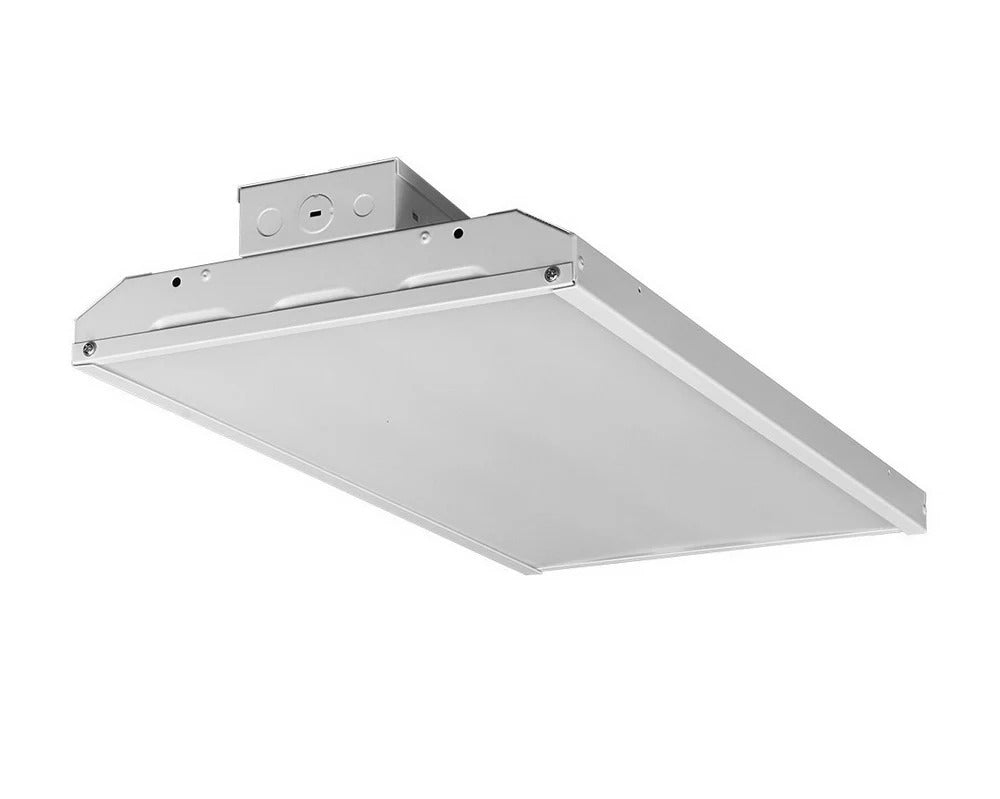

  • 2-foot LED linear high bay fixture with compact housing and diffused lens for high-ceiling applications; 120–277V input, 0–10V dimming, 110/135/160W options (13,500–21,600 lumens) with 3500K/4000K/5000K color settings.

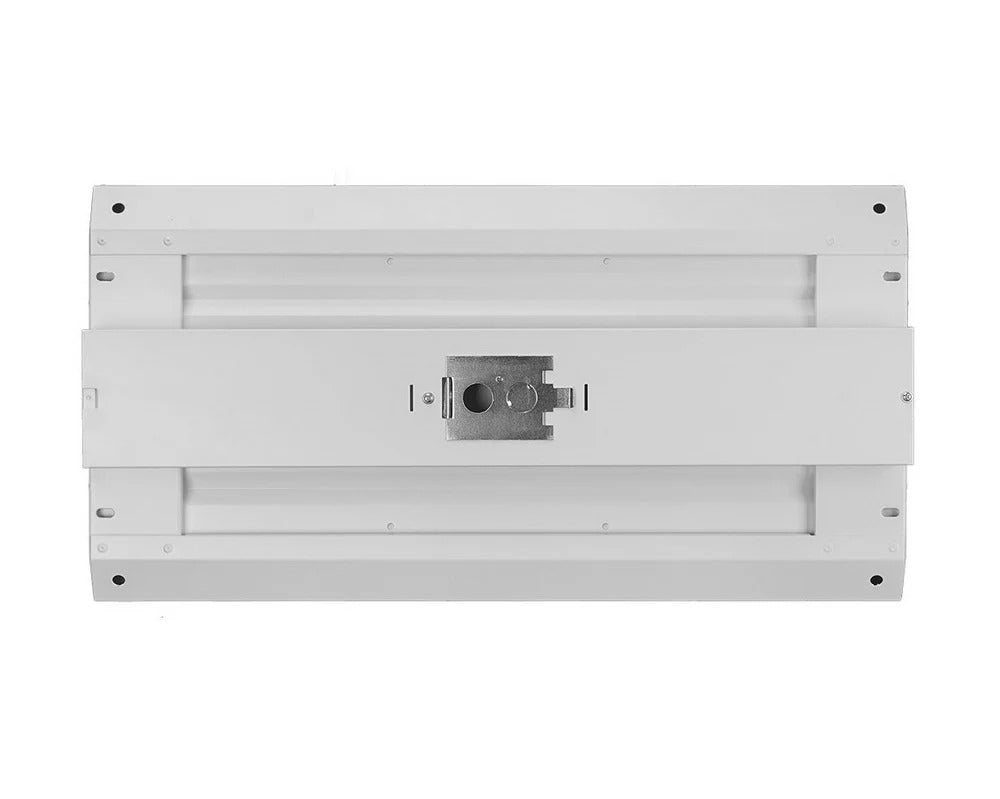

  • 2ft LED linear high bay rear housing view highlighting the center knockout locations for conduit entry and the two end suspension points for chain/aircraft cable mounting; 120–277V input with 0–10V dimming, 110/135/160W selectable delivering 13,500–21,600 lumens with 3500K/4000K/5000K CCT options.

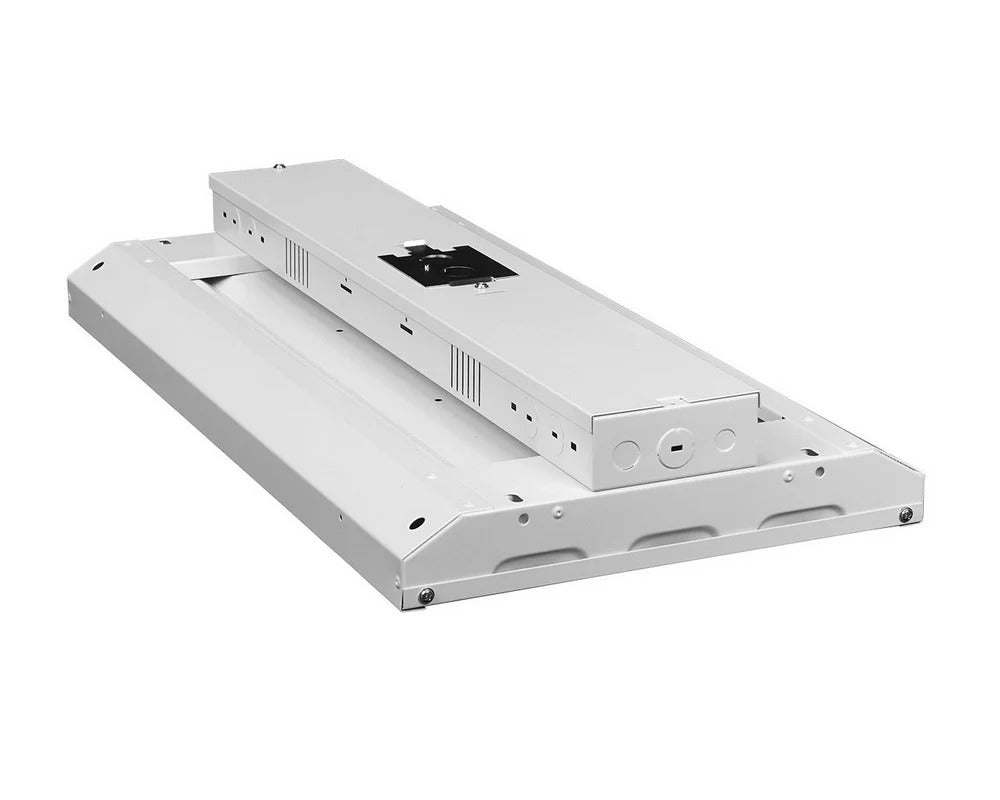

  • Angled back view of the 2ft LED linear high bay showing the wiring compartment/electrical box with multiple knockout locations (including a center knockout), plus CCT-select and wattage-select switches on the side of the box and the end mounting points; 110/135/160W, 13,500–21,600 lm, 3500K/4000K/5000K, 0–10V dimming, 120–277V.
  • 2-foot LED linear high bay fixture with compact housing and diffused lens for high-ceiling applications; 120–277V input, 0–10V dimming, 110/135/160W options (13,500–21,600 lumens) with 3500K/4000K/5000K color settings.
  • 2ft LED linear high bay rear housing view highlighting the center knockout locations for conduit entry and the two end suspension points for chain/aircraft cable mounting; 120–277V input with 0–10V dimming, 110/135/160W selectable delivering 13,500–21,600 lumens with 3500K/4000K/5000K CCT options.
  • Angled back view of the 2ft LED linear high bay showing the wiring compartment/electrical box with multiple knockout locations (including a center knockout), plus CCT-select and wattage-select switches on the side of the box and the end mounting points; 110/135/160W, 13,500–21,600 lm, 3500K/4000K/5000K, 0–10V dimming, 120–277V.
  • 2-foot LED linear high bay fixture with compact housing and diffused lens for high-ceiling applications; 120–277V input, 0–10V dimming, 110/135/160W options (13,500–21,600 lumens) with 3500K/4000K/5000K color settings.
  • 2ft LED linear high bay rear housing view highlighting the center knockout locations for conduit entry and the two end suspension points for chain/aircraft cable mounting; 120–277V input with 0–10V dimming, 110/135/160W selectable delivering 13,500–21,600 lumens with 3500K/4000K/5000K CCT options.
  • Angled back view of the 2ft LED linear high bay showing the wiring compartment/electrical box with multiple knockout locations (including a center knockout), plus CCT-select and wattage-select switches on the side of the box and the end mounting points; 110/135/160W, 13,500–21,600 lm, 3500K/4000K/5000K, 0–10V dimming, 120–277V.
  • 2-foot LED linear high bay fixture with compact housing and diffused lens for high-ceiling applications; 120–277V input, 0–10V dimming, 110/135/160W options (13,500–21,600 lumens) with 3500K/4000K/5000K color settings.
  • 2ft LED linear high bay rear housing view highlighting the center knockout locations for conduit entry and the two end suspension points for chain/aircraft cable mounting; 120–277V input with 0–10V dimming, 110/135/160W selectable delivering 13,500–21,600 lumens with 3500K/4000K/5000K CCT options.
  • Angled back view of the 2ft LED linear high bay showing the wiring compartment/electrical box with multiple knockout locations (including a center knockout), plus CCT-select and wattage-select switches on the side of the box and the end mounting points; 110/135/160W, 13,500–21,600 lm, 3500K/4000K/5000K, 0–10V dimming, 120–277V.
2 Foot LED Linear High Bay Light 110W/135W/160W 13500–21600 Lumens 3500K/4000K/5000K 0–10V Dimming 120–277V

2 Foot LED Linear High Bay Light 110W/135W/160W 13500–21600 Lumens 3500K/4000K/5000K 0–10V Dimming 120–277V

Brand: NCLTG
SKU: NC-LHB-2-160/135/110W-3CCT
Product Type: LED High Bay Light

Lower mounting heights and reduced-output high-bay layouts often require linear distribution with controllable performance, and this 2-foot linear high bay is specified to match those conditions. It supports selectable 110W, 135W, or 160W output delivering 13,500 to 21,600 lumens to align with aisle spacing and work-plane targets. Three CCT options (3500K, 4000K, 5000K) support facility standards, while 0–10V dimming and 120–277V input support commercial controls and power.
$68.84 $80.99
Secure Checkout

Payment information is processed through encrypted, PCI-compliant payment gateways. Card details are never stored on our servers.
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping is calculated at checkout based on product type, destination, and delivery method (parcel or freight). For lead times, tracking, freight delivery, and inspection requirements, see Shipping Reliability & Fulfillment.
Returns & Restocking

Returns and restocking are handled through an authorization and routing process based on product type and manufacturer policy. Some returns may be subject to a manufacturer-determined restocking fee. For eligibility, steps, and correction handling, see Returns & Restocking.

Specifications

BrandNCLTG
Manufacturer Part NumberNC-LHB-2-160/135/110W-3CCT
Wattage110W, 135W, 160W
Voltage120–277V
Lumens13,500, 18,225, 21,600
Efficacy135 lm/W
CCT3500K, 4000K, 5000K
Dimming0–10V
Special FeaturesWattage and CCT Selectable
CertificationsUL Listed, RoHS Compliant, DLC Premium
Dimensions25.59"L x 12.59"W x 3.62"H
Warranty5-Year Limited Warranty
