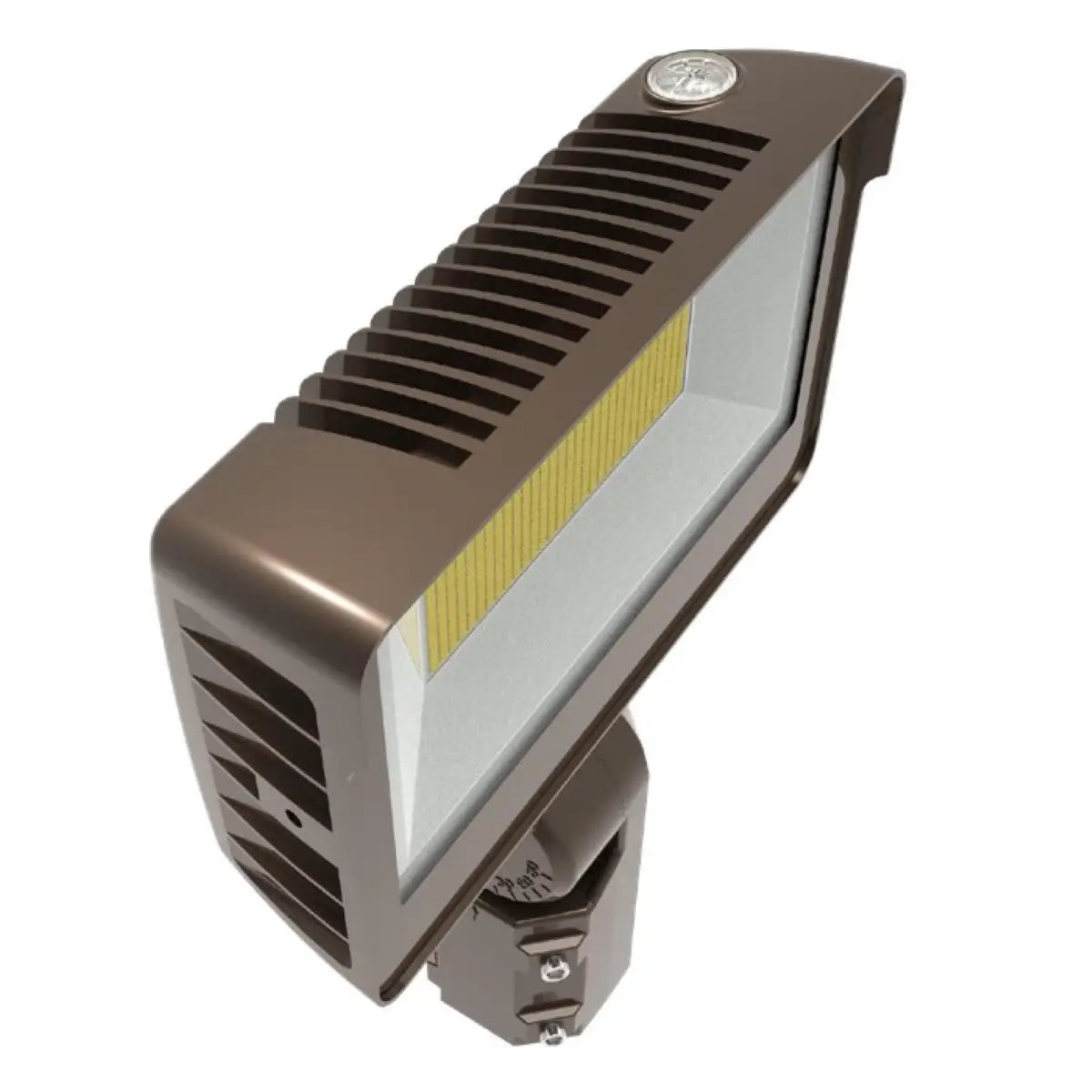

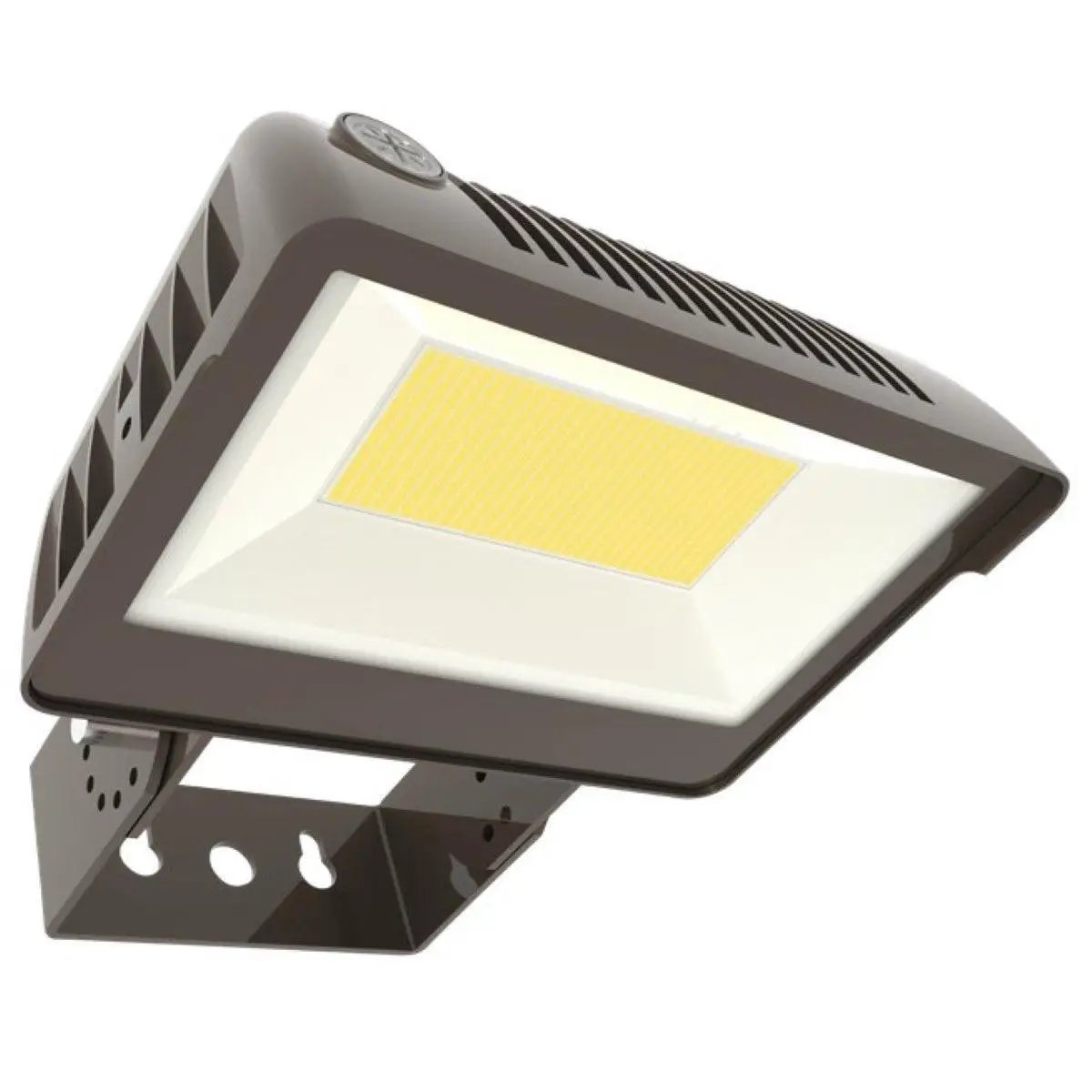

Name: Outside Flood Light 100 Watt 14300 Lumens 3K / 4K / 5K 80+ CRI 0-10V Dimmable Slip Fitter Mount / Trunnion Mount Built-In Photocell IP65 Rated Tempered Glass 120-277V
Brand: Keystone Technologies
SKU: KT-FLED100-R1A-UNV-8CSB-VDIM
Price: 257.0 USD
Availability: InStock

Outside Flood Light 100 Watt 14300 Lumens 3K / 4K / 5K 80+ CRI 0-10V Dimmable Slip Fitter Mount / Trunnion Mount Built-In Photocell IP65 Rated Tempered Glass 120-277V

Quick Answer: Specify this 14,300-lumen flood for architectural and site security.

Key Features:

Powerful Coverage: 14,300 lumens output.
Dual Mount: Includes slipfitter & trunnion.
Dusk-to-Dawn: Integrated photocell control.
Reliable: Tempered glass and IP65 seal.

Brand	Keystone Technologies
Wattage	100W
Voltage	120–277V
Lumens	14,300
Lamp Type	LED
CCT	3000K, 4000K, 5000K (Selectable)
CRI	80+
Dimming	0–10V Dimmable
Certifications	UL Listed, DLC Premium Listed
IP Rating	IP65
Minimum Operating Temperature	-4°F
Location Rating	Wet Location
Housing Material	Die-Cast Aluminum
Lens Material	Tempered Glass
Mounting Options	Slipfitter, Trunnion
Finish	Bronze
Dimensions	10.55" W × 3.38" D × 7.05" H
Rated Life	50,000 Hours
Warranty	5-Year Warranty

Selection Guidance: Specified for building facades and high-visibility security zones. This dedicated 100W flood delivers 14,300 lumens with a broad distribution, perfect for illuminating large signage or perimeter boundaries.

Application & Performance Considerations

$257.00

Free shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

Start here: For the fastest commercial routing, use Request a Project Quote. For the complete intake → documentation → shipping visibility → closeout workflow, see Commercial Project Support.

Submittals: Submittals
Layouts & IES: Photometrics
Closeout package: Closeout Documentation

Call: (800) 357-6860 Email: support@starsandstripeslighting.com

Quick answer: Shipping method, lead time, and tracking visibility vary by product type and carrier (parcel vs. freight/LTL). For commercial receiving requirements, delivery appointments, inspection steps, and documentation, use Shipping Reliability & Fulfillment.

If you’re working against a site schedule, include your ship-to requirements and target date in your quote request: Request a Project Quote.

Quick answer: Returns and restocking are evaluated based on condition, packaging, and manufacturer requirements. Start here for eligibility, restocking expectations, and documentation steps: Returns & Restocking.

Important: Do not ship items back without an approved return request and routing instructions.

Quick answer: Warranty routing depends on product line and the documentation available (order/PO reference, photos, and configuration details). Use Warranty Claims to submit the required information so we can route your claim correctly.

If you’re submitting project closeout records (submittals, IES, warranty docs), see Closeout Documentation.

Quick answer: For common questions about quoting, documentation, shipping visibility, returns, and warranty routing, use our Frequently Asked Questions page.

For a full commercial workflow overview, start here: Commercial Project Support.

Spec-reviewed for commercial installs

Brandon Waldrop

Lead Commercial Lighting Specialist • Spec Verification + Project Documentation

Keystone’s exterior LED floodlight (100W) is reviewed for a focused 14,300-lumen package that covers the “most-used” perimeter zones, commissioning-friendly tuning with 3-CCT select (3000K/4000K/5000K) and 0–10V dimming, and IP65 / tempered-glass protection, with built-in photocell plus slipfitter or trunnion mounting on 120–277V so sites get dependable dusk-to-dawn coverage without fragile lenses, inconsistent aiming, or mixed Kelvin across a property.

Spec review focus:
Verified for powerful, practical coverage at 14,300 lumens, fitting entries, equipment pads, dock approaches, and building-side walkways where you need brightness without stepping up into higher-wattage flood classes; verified for mounting flexibility out of the box by including both slipfitter and trunnion so the same SKU can work on pole/arm setups or surface-mount applications without re-spec’ing; verified for automatic night operation using an integrated dusk-to-dawn photocell to keep the perimeter predictable and reduce manual switching errors; verified for site-matching color control through 3-CCT selectable (3K/4K/5K) to align with campus standards and prevent the “two different whites” look when retrofits happen in phases; verified for controls integration with 0–10V dimming to support schedules, occupancy logic, or curfew trims when a control strategy is preferred over photocell-only behavior; verified for weather durability via IP65 sealing against rain, dust, and wind-driven debris; verified for optic toughness with a tempered glass lens designed to hold clarity and resist surface damage better than softer lens materials; verified for commercial electrical compatibility on 120–277V and 80+ CRI for usable recognition and safer navigation around active exterior areas.

Verified configuration:
This flood is configurable in CCT (3K/4K/5K) and control approach (photocell vs. 0–10V dimming), and it can be installed using two different mount styles, so document the “as-built” setup per location. Standardize Kelvin across each zone—one fixture left at 5000K in a 4000K area reads like a mismatch immediately. Choose one control method per circuit: photocell-led dusk-to-dawn or a 0–10V-controlled schedule; mixed modes are the most common cause of different on/off timing or nighttime brightness between fixtures. After final aiming (especially on slipfitter installs), re-check hardware torque—small aim shifts are what turn a clean layout into glare into windows or uneven hot spots later.

Team-backed support: Quotes, photometrics, submittals, shipping visibility, and closeout documentation are supported through Commercial Project Support . Call 800-357-6860.

How this spec is verified
