Why Surge Protection Is a Critical Specification in Outdoor Area Lighting
Surge events are one of the leading causes of premature LED driver failure in outdoor area lighting systems. In storm-prone regions, lightning-induced voltage transients regularly exceed the tolerance of standard surge protection built into many luminaires.
For high-wattage area lights—particularly those installed on tall poles or fed from long branch circuits—surge suppression is not a secondary feature. It is a primary reliability requirement that directly affects driver lifespan, maintenance cost, and system uptime.
What Surge Protection Ratings Mean in LED Lighting
Surge protection ratings—such as 10kV or 20kV—refer to the maximum voltage transient the surge protective device (SPD) can withstand without failing. These ratings are defined by standardized test waveforms, not theoretical limits.
| Rating Term | What It Represents | Why It Matters |
|---|---|---|
| kV Rating | Peak surge voltage the SPD can withstand | Determines survivability during lightning events |
| Waveform | Standardized surge pulse (e.g., 1.2/50 µs) | Simulates real-world transient behavior |
| Clamping Level | Voltage passed to the driver | Lower clamping reduces internal damage |
Surge protection is sacrificial. Each event degrades the device, even if the fixture remains operational.

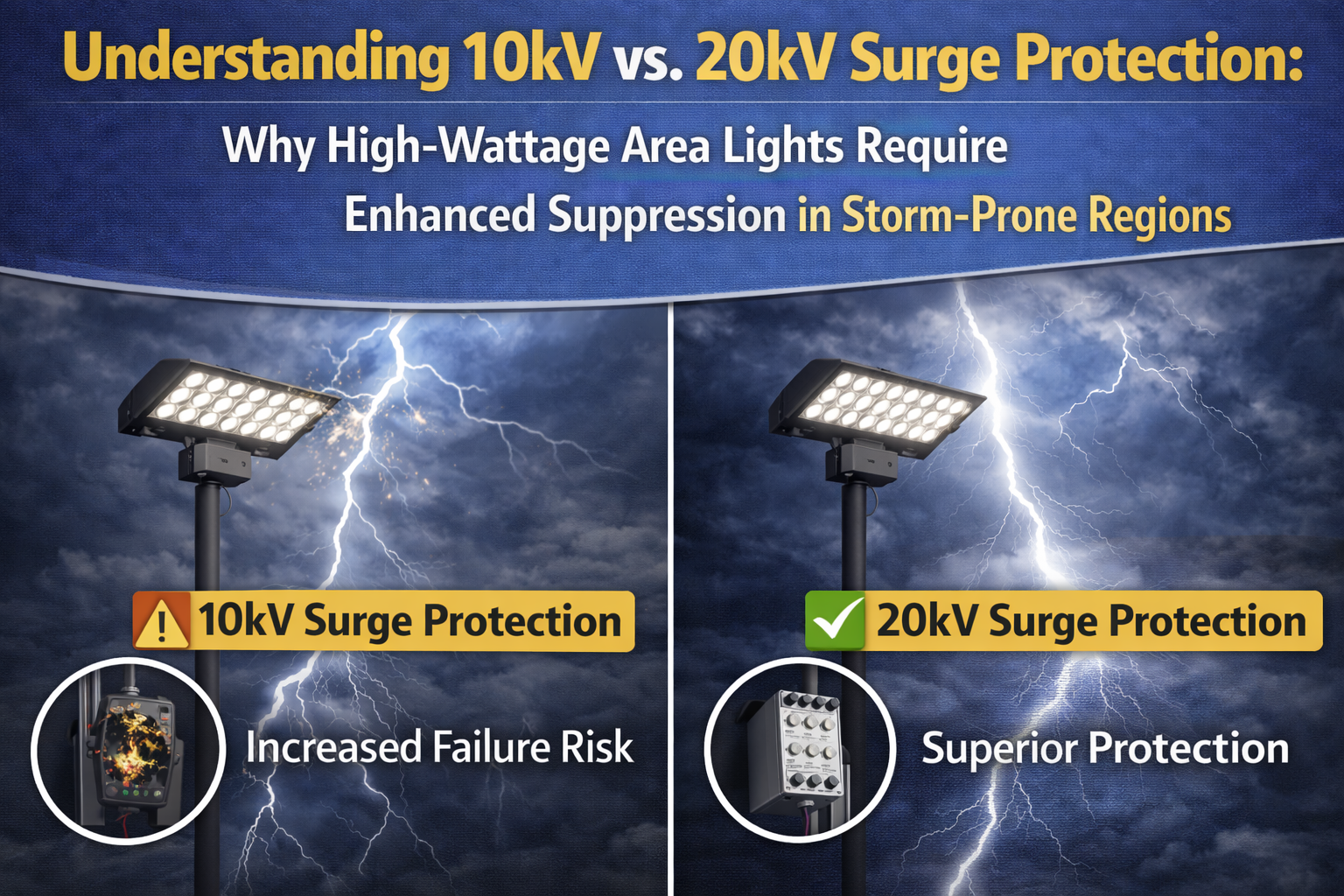

Comparing 10kV vs. 20kV Surge Protection
While 10kV surge protection is common in standard commercial fixtures, it is often insufficient for high-exposure outdoor environments.
| Characteristic | 10kV Protection | 20kV Protection |
|---|---|---|
| Typical inclusion | Standard driver-level protection | Enhanced or optional SPD |
| Lightning survivability | Moderate | High |
| Multiple-event tolerance | Limited | Significantly higher |
| Recommended for | Urban, shielded installations | Open areas, tall poles, storm zones |
The cost difference between 10kV and 20kV protection is minimal compared to the cost of driver replacement.
Why High-Wattage Area Lights Are More Vulnerable
High-wattage area lights introduce several risk factors that amplify surge exposure.
| Risk Factor | Impact on Surge Exposure | Resulting Failure Mode |
|---|---|---|
| Higher pole height | Increased lightning coupling | Driver input failure |
| Long branch circuits | Greater transient amplification | SPD degradation |
| Larger drivers | More internal components exposed | Premature driver burnout |
These factors compound, making surge protection a system-level concern rather than a fixture-level checkbox.
Storm-Prone Regions and Real-World Surge Exposure
Facilities in regions with frequent thunderstorms experience repeated low- and medium-level surges that may never trip breakers but still degrade SPDs.
- Gulf Coast and Southeast U.S.
- Midwest open plains
- Mountain regions with rapid storm development
- Coastal facilities with exposed infrastructure
In these environments, 10kV protection often fails through cumulative damage rather than a single catastrophic event.
Where 20kV Surge Protection Is Strongly Recommended
| Application | Typical Conditions | Recommended Protection |
|---|---|---|
| Parking lots | Tall poles, open exposure | 20kV |
| Industrial yards | Metal structures, long feeders | 20kV |
| Transportation hubs | Critical uptime required | 20kV+ |
| Campus-style facilities | Distributed lighting networks | 20kV |
In these cases, enhanced surge protection should be specified at the fixture—not assumed at the panel.
Common Mistakes in Surge Protection Specification
- Assuming panel-level SPDs protect branch circuits
- Specifying 10kV protection for tall-pole installations
- Ignoring cumulative surge degradation
- Failing to document surge ratings in submittals
Most surge-related failures are predictable and preventable at the specification stage.
Related Outdoor Lighting Categories
Specifying 20kV surge protection for high-wattage outdoor area lights is not overengineering—it is a measured response to real electrical conditions. In storm-prone regions, enhanced surge suppression consistently delivers lower maintenance costs, longer driver life, and higher system reliability.
Frequently Asked Questions
What is a BUG Rating and why is it mandatory?
BUG stands for Backlight, Uplight, and Glare. It is a standardized rating system (IES TM-15-11) used to quantify how much stray light a fixture emits.
- Backlight (B): Measures light directed behind the fixture (trespass).
- Uplight (U): Measures light directed above the horizontal plane (sky glow). U0 is the standard for Dark Sky compliance.
- Glare (G): Measures high-angle light that causes visual discomfort for drivers.
Why is 3000K the new standard for outdoor CCT?
In the past, 5000K (Daylight White) was popular for its perceived brightness. However, blue-rich light (found in 4000K and 5000K) scatters more easily in the atmosphere, significantly increasing sky glow. It also disrupts nocturnal wildlife and human circadian rhythms. The International Dark-Sky Association (IDA) now requires a Correlated Color Temperature (CCT) of 3000K or lower for its seal of approval.
Can I tilt a fixture to get more reach?
No. Tilting an area light upwards to cover a dark spot is a primary cause of compliance failure. As soon as a fixture is tilted, the U0 (Zero Uplight) rating is voided, as the optics are now pushing light above the horizontal plane. If your layout has dark spots, you must either decrease pole spacing or select a more aggressive Type III or Type IV forward-throw optic rather than tilting the head.
What is a Full Cutoff fixture?
A Full Cutoff fixture is designed so that no light is emitted at or above 90 degrees (horizontal). The light source (the LED diodes) must be recessed or shielded so that they are not visible from the side. This architecture ensures that 100% of the lumens are directed downward toward the pavement, maximizing efficiency and eliminating direct glare to the surrounding community.
How do House-Side Shields help with property-line compliance?
Even with a good Type III optic, some light naturally spills behind the pole (Backlight). If your parking lot border is adjacent to a residential backyard, you may need a House-Side Shield (HSS). This is a physical internal or external barrier that chops the light pattern at the pole, ensuring the foot-candle reading at the property line remains at 0.0, as required by many nuisance-light ordinances.
