Outdoor LED flood light with knuckle or yoke mount and built-in photocell, sealed housing with tempered glass lens for directional lighting; 120–277V input, 0–10V dimming, IP65-rated, 15W output (2,175 lumens) with selectable 3000K/4000K/5000K and 80+ CRI.

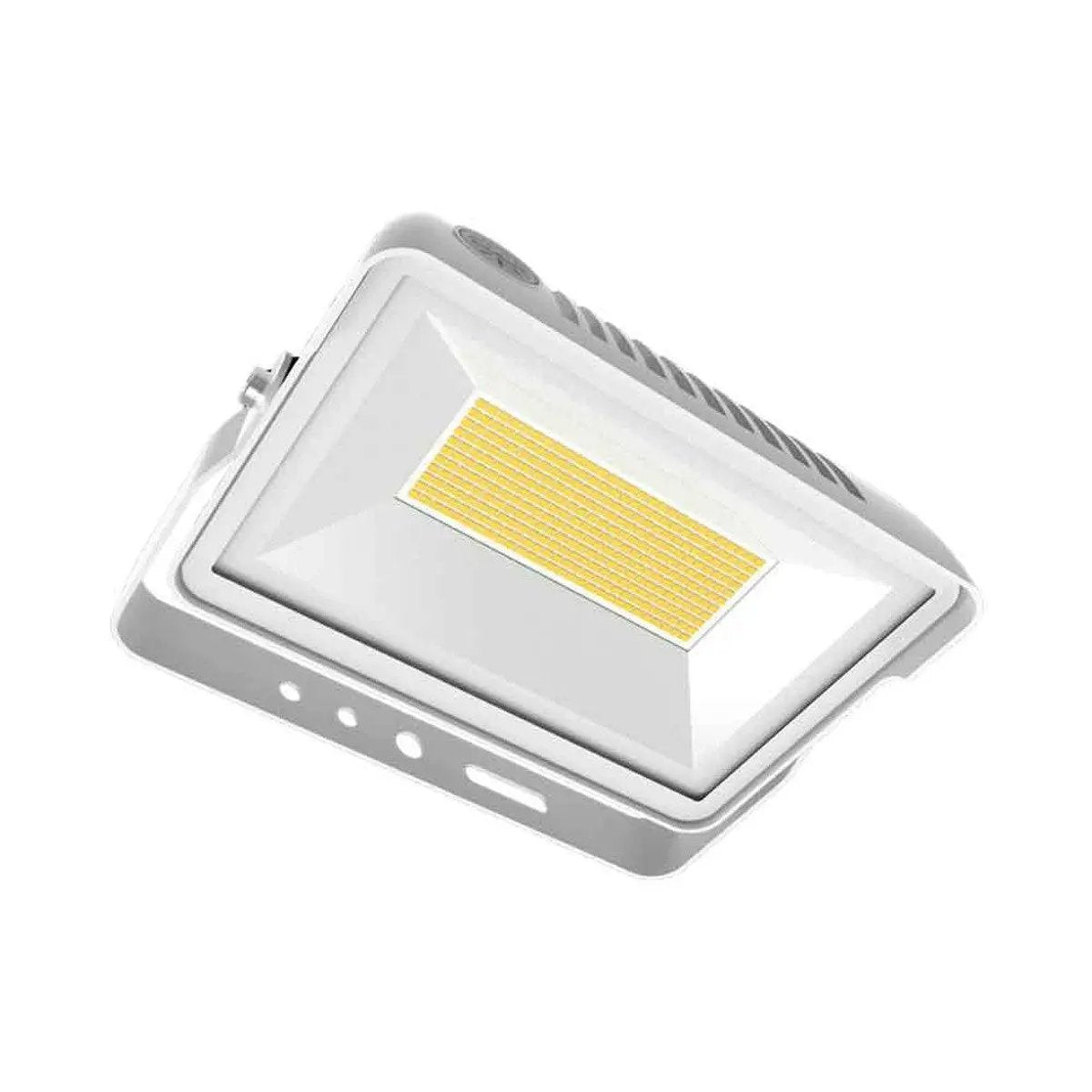

Main product shot in white finish of an outdoor LED flood lighting fixture showing the tempered-glass lens and knuckle/yoke mounting hardware; built-in photocell for automatic dusk-to-dawn control, IP65-rated housing, 120–277V input with 0–10V dimming, selectable 3000K/4000K/5000K (3K/4K/5K) at 80+ CRI, 15W output delivering 2,175 lumens.

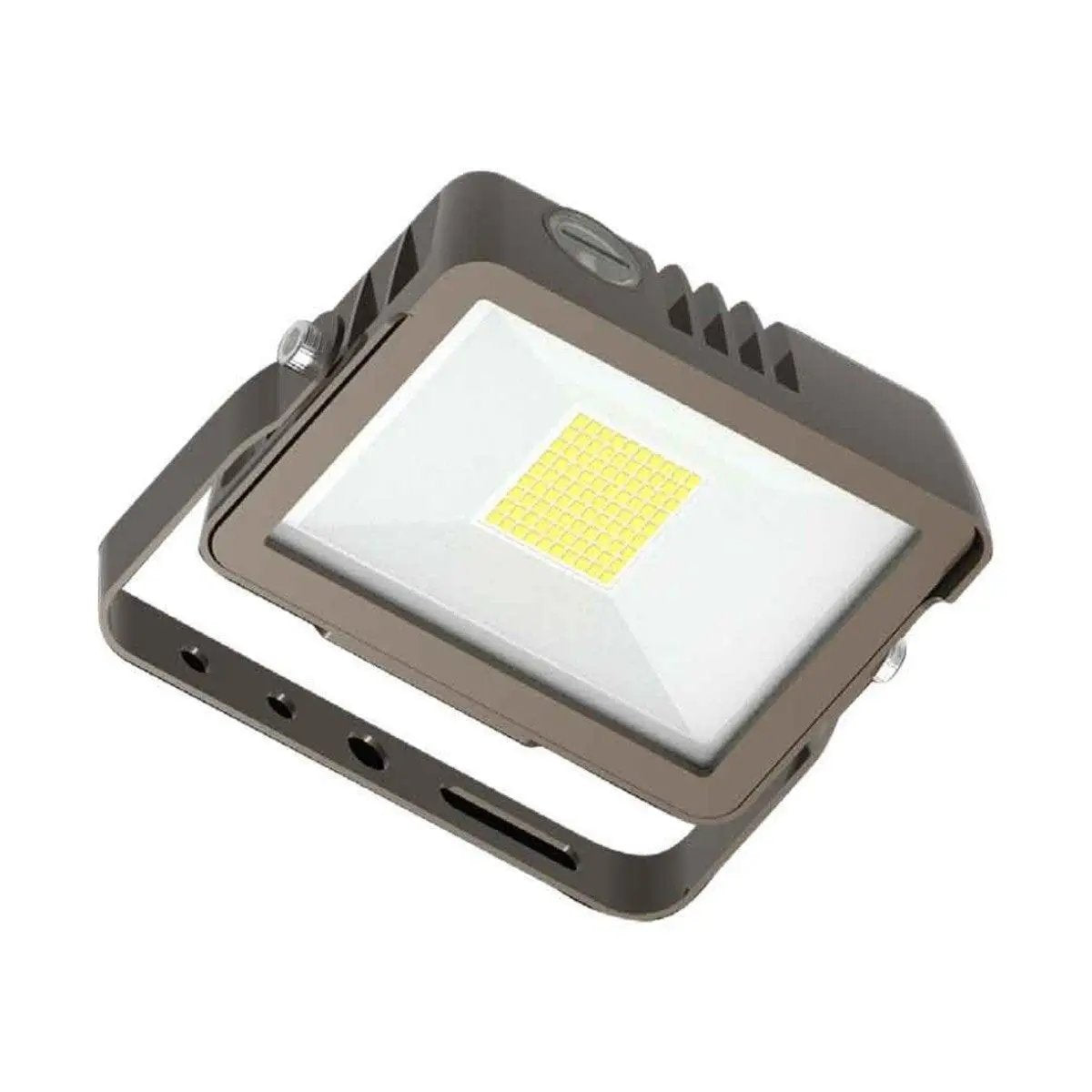

Tight bottom-angled close-up of the bronze outdoor LED flood lighting fixture highlighting the tempered glass lens and knuckle/yoke mounting bracket, with the built-in photocell visible on the housing; 15W, 2,175 lm, 3000K/4000K/5000K, 80+ CRI, 0–10V dimming, IP65, 120–277V.
Low-angle bottom view of the white outdoor LED flood light showing the tempered glass lens and yoke mount, with the built-in photocell on the housing for dusk-to-dawn operation; 15W, 2,175 lm, 3000K/4000K/5000K, 80 CRI, 0–10V dimming, IP65, 120–277V.
Outdoor LED flood light with knuckle or yoke mount and built-in photocell, sealed housing with tempered glass lens for directional lighting; 120–277V input, 0–10V dimming, IP65-rated, 15W output (2,175 lumens) with selectable 3000K/4000K/5000K and 80+ CRI.
Main product shot in white finish of an outdoor LED flood lighting fixture showing the tempered-glass lens and knuckle/yoke mounting hardware; built-in photocell for automatic dusk-to-dawn control, IP65-rated housing, 120–277V input with 0–10V dimming, selectable 3000K/4000K/5000K (3K/4K/5K) at 80+ CRI, 15W output delivering 2,175 lumens.
Tight bottom-angled close-up of the bronze outdoor LED flood lighting fixture highlighting the tempered glass lens and knuckle/yoke mounting bracket, with the built-in photocell visible on the housing; 15W, 2,175 lm, 3000K/4000K/5000K, 80+ CRI, 0–10V dimming, IP65, 120–277V.
Low-angle bottom view of the white outdoor LED flood light showing the tempered glass lens and yoke mount, with the built-in photocell on the housing for dusk-to-dawn operation; 15W, 2,175 lm, 3000K/4000K/5000K, 80 CRI, 0–10V dimming, IP65, 120–277V.

Outdoor Flood Lighting Fixture 15 Watt 2175 Lumens 3K / 4K / 5K 80+ CRI 0-10V Dimmable Knuckle Mount / Yoke Mount Built-In Photocell IP65 Rated Tempered Glass 120-277V

Keystone Technologies

Used for targeted exterior illumination in small-scale site or façade applications. This Keystone Technologies outdoor flood lighting fixture provides controlled output with integrated photocell operation. It supports dimming and installs on 120–277V building power.

$63.00
/
Free shipping calculated at checkout.
Color
  • In stock, ready to ship
  • Backordered, shipping soon

Technical Specifications & Performance Data

Brand Keystone Technologies
Wattage 15W
Voltage 120–277V
Lumens 2,175
Lamp Type LED
CCT 3000K, 4000K, 5000K (Selectable)
CRI 80+
Dimming 0–10V Dimmable
Certifications UL Listed, DLC Premium Listed
IP Rating IP65
Location Rating Wet Location
Housing Material Die-Cast Aluminum
Lens Material Tempered Glass
Mounting Options Knuckle, Yoke
Finish Bronze, White
Dimensions 6.22" W × 2.4" D × 4.76" H
Rated Life 50,000 Hours
Warranty 5-Year Warranty

Visual Product Overview & Application Context

Project Documentation & Technical Downloads

Engineering & Specification Resources

Related Lighting Systems & Categories

LED flood fixtures are directional luminaires specified within exterior site lighting systems, where beam spread, aiming flexibility, and controlled spill light are required to illuminate building exteriors and site boundaries.

Commercial Applications & Site Integration

Technical FAQ Deep-Dive

What are the key electrical and photometric specifications for this outdoor flood lighting fixture?

This Keystone Technologies outdoor flood light operates on 120–277V, delivers 2,175 lumens, and is available in selectable CCT options of 3000K, 4000K, and 5000K. With a CRI of 80+, it provides excellent color rendering. This fixture is also dimmable using 0–10V dimming, which allows for energy control via occupancy sensors or scheduling.

What are the typical IESNA-style footcandle targets for outdoor lighting applications using this flood light?

Typical IESNA footcandle targets for outdoor areas using this fixture are as follows:

  • Walkways and pedestrian paths: 2–5 fc average
  • Parking lots and general outdoor areas: 5–10 fc average
  • Security lighting and perimeter lighting: 5–15 fc average

How does the 0-10V dimming feature contribute to energy savings in outdoor lighting?

0-10V dimming enables the fixture’s brightness to be reduced based on control inputs such as occupancy sensors or time-based schedules. This helps reduce energy consumption during low-activity periods, ensuring that the lighting is only at full brightness when necessary.

What environmental protection and ratings support the outdoor application of this flood light?

This flood light is IP65 rated, which means it is protected against dust and water jets, making it ideal for wet-location installations. It is suitable for outdoor environments exposed to rain, dust, and other harsh weather conditions.

What certifications does this flood light have, and how do they support compliance and rebates?

This flood light is UL Listed and DLC Premium Listed. The DLC Premium certification makes it eligible for potential energy rebates in qualifying areas. Confirm rebate eligibility using the exact DLC listing and local program requirements.

What are the physical dimensions and available finishes for this flood light?

This flood light is available in a durable bronze or white finish. It has a compact design with dimensions of 6.22" W × 2.4" D × 4.76" H, making it suitable for various mounting locations, including walls and poles.

What minimum operating temperature and warranty are specified for this flood light?

This flood light operates in temperatures as low as -40°F, making it suitable for cold climates. It comes with a 5-year warranty, ensuring long-term performance and durability.
