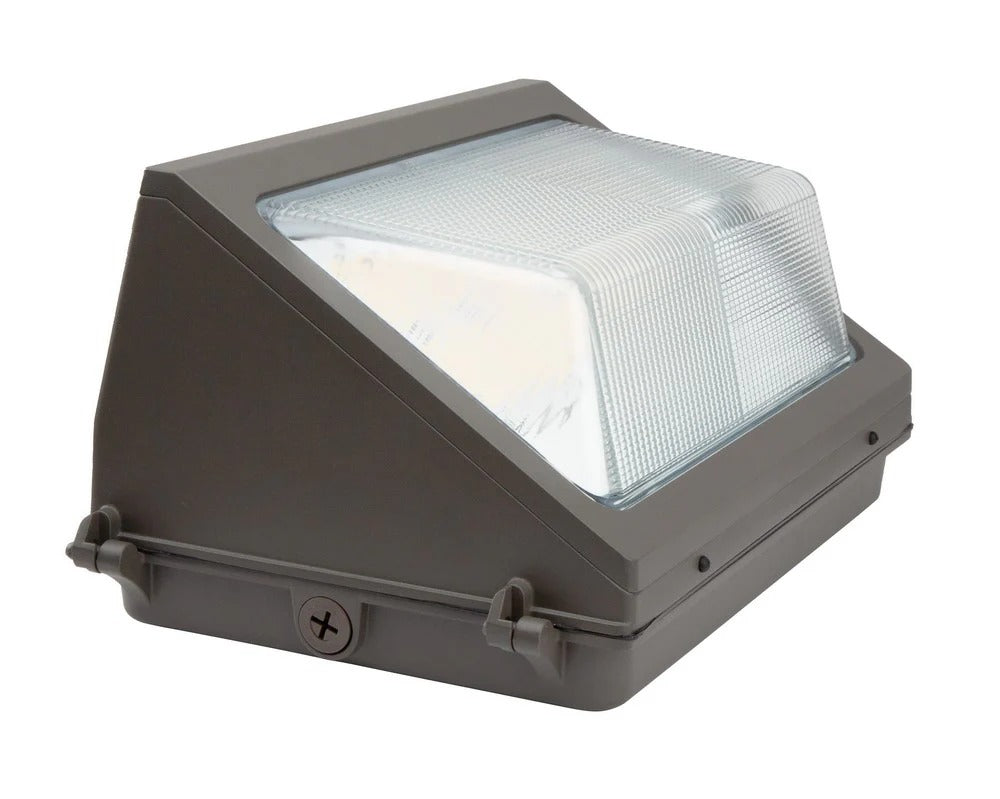

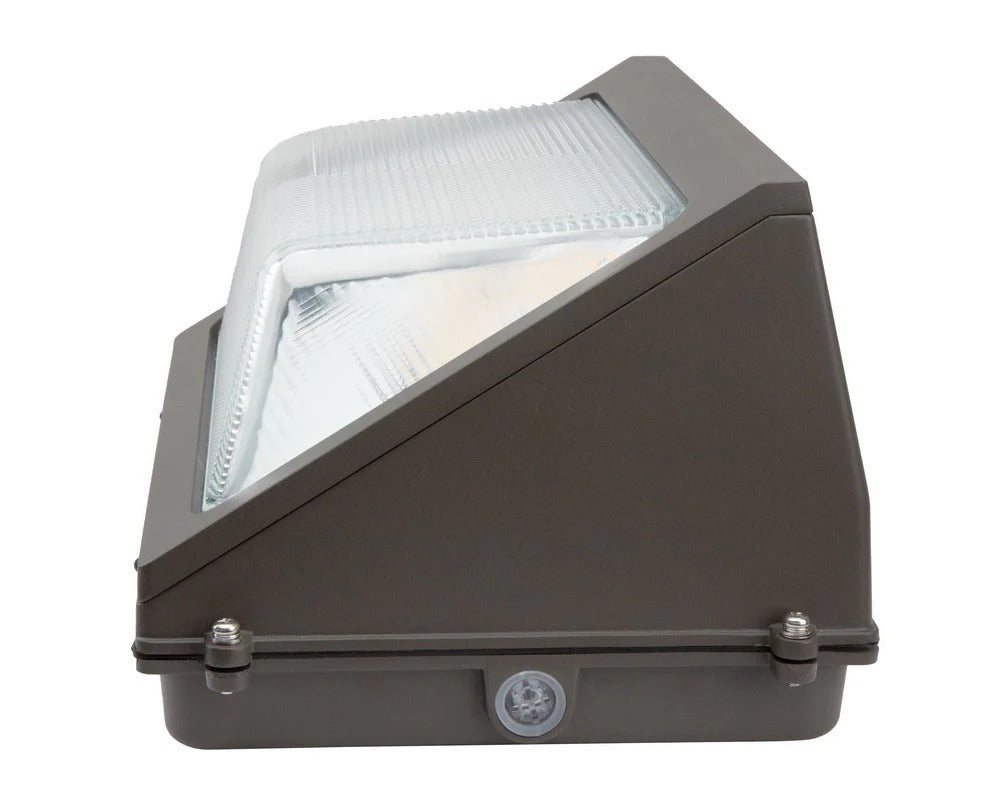

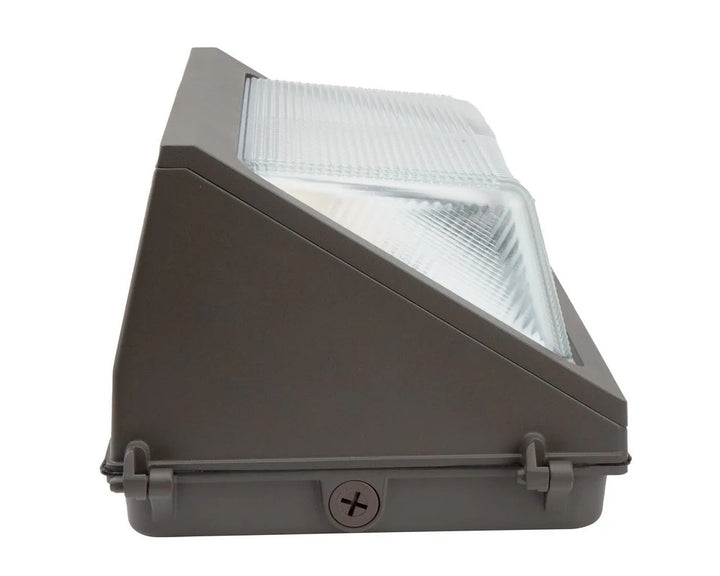

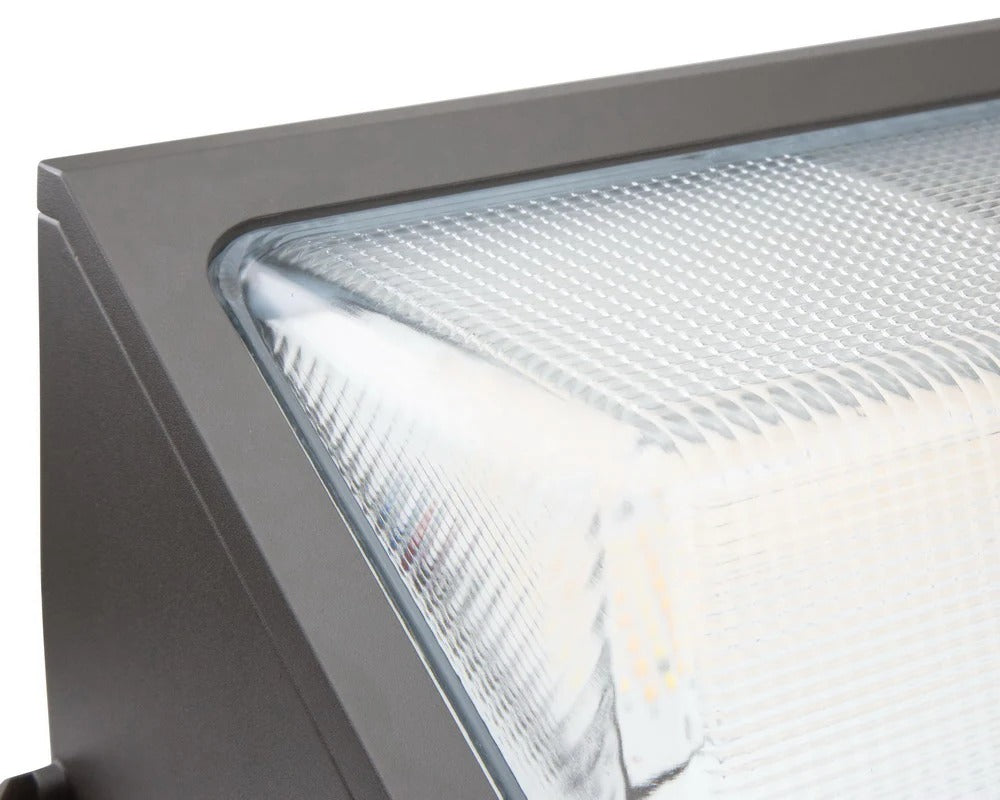

LED Wall Pack Light 30/40/50/60W 4770–9471 Lumens 3000K/4000K/5000K IP65 Rated 0–10V Dimming Integrated Emergency Backup 120–277V

What wattage options are available for the LED Wall Pack Light?

The LED Wall Pack Light is available in four selectable wattage settings: 30W, 40W, 50W, and 60W. This range supports output matching for smaller perimeters, walkways, and building-side mounting heights without changing fixture type.

What lumen outputs correspond to each wattage setting?

The lumen packages by wattage are: 30W provides 4,770 lumens, 40W provides 6,320 lumens, 50W provides 7,800 lumens, and 60W provides 9,471 lumens. This step-up structure helps balance spacing and uniformity while controlling glare at lower mounting heights.

How does 139–159 lm/W efficacy affect energy use and ROI?

An efficacy of 139–159 lm/W reduces required input watts for a given light level compared with lower-efficacy exterior fixtures. For ROI, quantify the watt reduction versus the baseline fixture, multiply by annual operating hours and utility rate, then add any documented rebate value tied to DLC Premium qualification. The selectable wattage also helps avoid oversizing, which improves payback by reducing unnecessary connected load.

What CCT options are available, and how do they impact exterior applications?

The selectable CCT options are 3000K, 4000K, and 5000K. 3000K is commonly used where warmer appearance and reduced perceived glare are priorities, 4000K is a frequent default for commercial perimeter lighting, and 5000K is typically specified where higher contrast is preferred for visibility and camera scenes.

Does this wall pack support dimming and control strategies?

Yes. The fixture includes 0–10V dimming for scheduled setbacks, late-night reduction, and compatibility with exterior control panels and common lighting control architectures.

What does the integrated emergency backup provide?

The integrated emergency backup enables the wall pack to operate during normal power loss for life-safety coverage at exterior doors and egress-adjacent areas. The listed emergency duration is 90 minutes, which aligns with typical emergency lighting duration requirements used in commercial applications.

What does the IP65 rating indicate for outdoor performance?

IP65 indicates dust-tight construction and protection against water jets. This supports reliability in wind-driven rain and typical exterior exposure conditions when mounted and sealed per installation instructions.

What is the minimum operating temperature, and why is it relevant?

The minimum operating temperature is -22°F. Cold-weather operation matters for driver startup and for maintaining stable performance in winter climates, especially on exterior perimeter runs that see prolonged low-temperature exposure.

What certifications are listed for this LED Wall Pack Light?

This model is UL Listed and DLC Premium Listed. UL listing documents luminaire safety compliance, while DLC Premium listing is commonly used for rebate documentation and performance qualification in commercial retrofit projects.

What are the fixture dimensions?

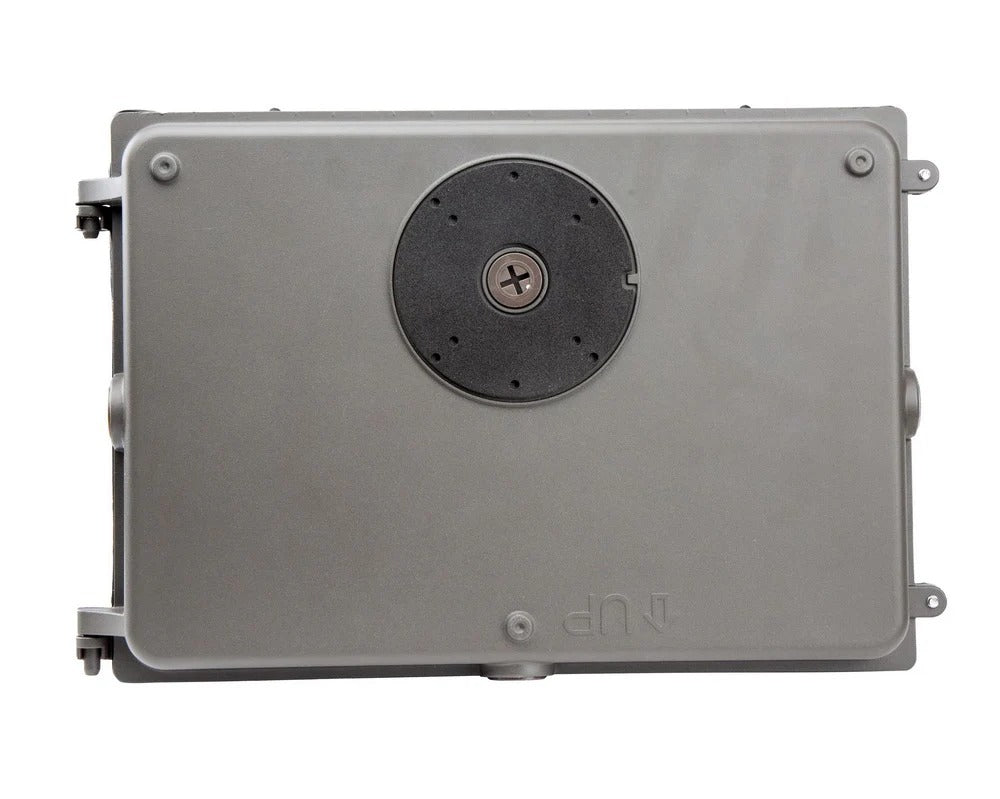

The housing measures 14.2" W × 9.3" H × 7.3" D. Verify mounting surface, junction box alignment, and conduit entry clearance so the fixture seats flat and maintains the intended cutoff geometry.

What warranty coverage is included?

The LED Wall Pack Light is covered by a 5-year limited warranty. For commissioning records, document the selected wattage and CCT settings and note emergency backup presence for future service and replacement planning.
