Why Wall Pack Selection Creates Compliance Risk in Industrial Sites
Wall packs are perimeter fixtures. That means they are frequently installed near property lines, adjacent roadways, and neighboring buildings. When glare or spill light becomes an issue, wall packs are often the first fixtures cited in complaints and inspections.

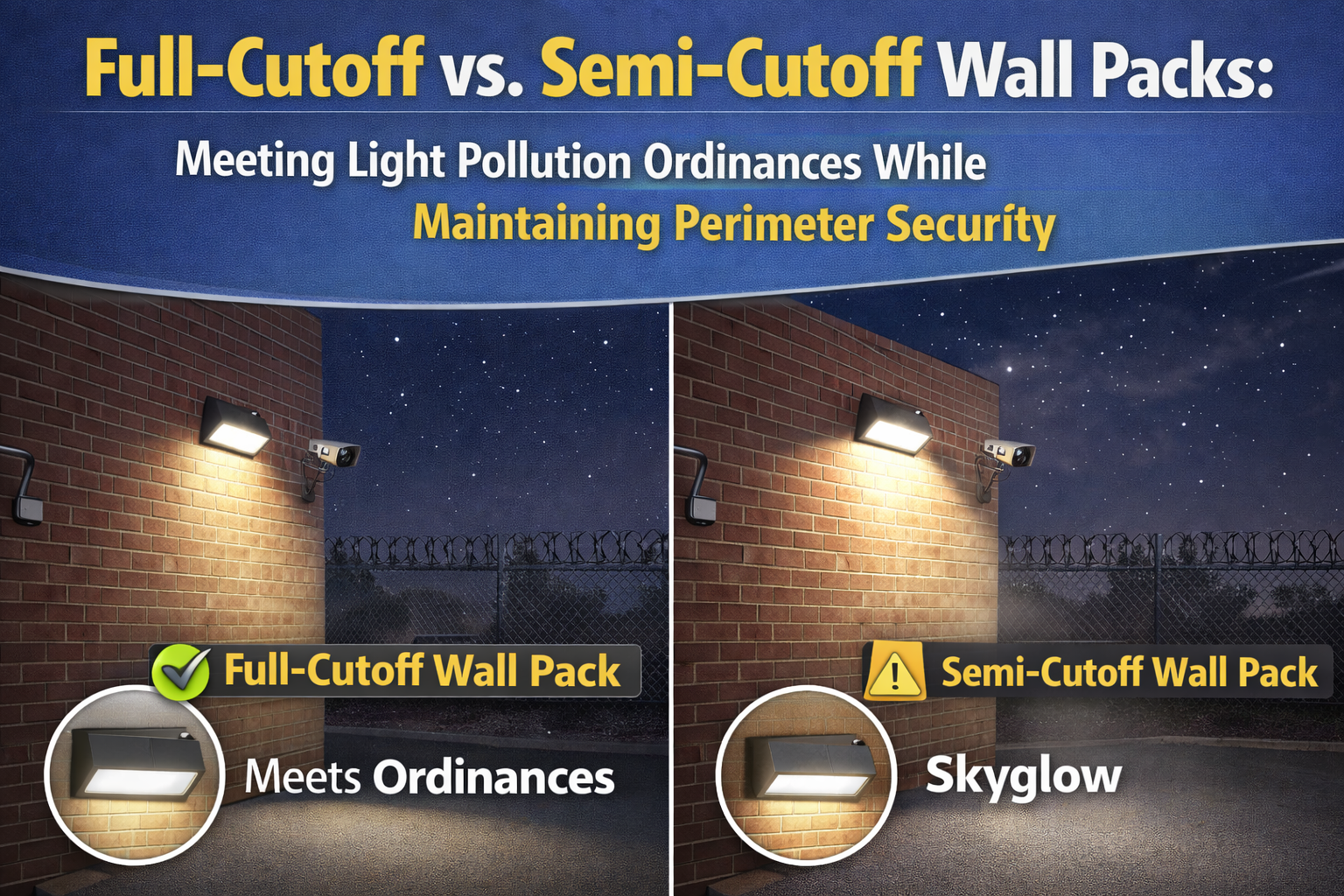

Full-cutoff and semi-cutoff wall packs solve different problems. Full-cutoff designs are used to control uplight and glare. Semi-cutoff designs can improve near-wall vertical illumination but can also increase window trespass and perceived brightness if misapplied.
What Full-Cutoff and Semi-Cutoff Mean in Practice
Cutoff describes how much light is emitted at high angles above horizontal. Practically, cutoff is a glare and trespass control tool.
| Wall Pack Type | Distribution Behavior | Most Common Result |
|---|---|---|
| Full-Cutoff | Light directed downward with minimal uplight | Lower glare, less light trespass |
| Semi-Cutoff | Includes some upward/forward component | Brighter façades, higher glare risk |
Full-cutoff designs are typically easier to defend during a dark-sky or nuisance-lighting review.
How Cutoff Affects Glare, Trespass, and Security
Security lighting is often misunderstood as “more brightness.” In practice, security requires predictable visibility without creating glare that reduces situational awareness.
| Performance Goal | Full-Cutoff Impact | Semi-Cutoff Impact |
|---|---|---|
| Glare control | Strong | Weaker (depends on lens) |
| Window trespass risk | Lower | Higher |
| Near-wall vertical lighting | Moderate | Higher |
| Camera usability | Often better (less flare) | Can cause bloom and washout |
Glare can reduce security effectiveness by lowering contrast and causing camera flare, even when illuminance is high.
Where Full-Cutoff Wall Packs Are the Correct Choice
- Facilities adjacent to residential properties
- Sites with strict nuisance-lighting or dark-sky ordinances
- Perimeters near public roads where glare affects drivers
- Industrial yards where pole lights provide most area illumination
Full-cutoff wall packs are typically the safest selection when compliance and complaints are primary concerns.
Where Semi-Cutoff Wall Packs Are Justified
Semi-cutoff wall packs can be defensible when the objective is to illuminate the building façade and improve near-wall vertical visibility—provided boundary control is not compromised.
| Condition | Why Semi-Cutoff May Be Used | Required Mitigation |
|---|---|---|
| Isolated industrial sites | Low neighbor exposure | Limit tilt; verify property-line performance |
| High façade identification needs | Doors, signage, perimeter features | Use lower output and controlled optics |
| Short setbacks where poles are not possible | Wall packs must do the work | Use tighter spacing and lower lumen levels |
Semi-cutoff becomes a problem when it is used to “reach” areas better served by poles or properly placed area lights.
Layout Tactics for Compliance Without Dark Zones
- Use full-cutoff wall packs for the perimeter baseline and add poles for lot coverage where needed
- Reduce mounting height variance to avoid hot spots and shadow bands
- Keep fixtures level; avoid upward tilt as a substitute for spacing
- Use controls (dimming/occupancy) to reduce late-night nuisance light while maintaining security modes
| Problem | Typical Bad Fix | Correct Fix |
|---|---|---|
| Dark band between wall packs | Increase lumens | Tighten spacing or add a pole light |
| Insufficient yard coverage | Tilt wall packs upward | Use a Type III area light aimed into the yard |
| Neighbor complaints | Swap to lower wattage only | Change cutoff/optics and add shielding |
Compliance and security are compatible when the perimeter is treated as a controlled lighting system, not a brightness problem.
Common Wall Pack Mistakes That Trigger Violations
- Using semi-cutoff wall packs along residential boundaries
- Tilting fixtures upward to compensate for poor spacing
- Mounting too high and creating high-angle glare
- Choosing lumen packages based on “security” assumptions instead of measured need
- Ignoring how wall packs interact with area lights and site optics
Most ordinance failures are caused by glare and spill direction, not inadequate brightness.
Related Outdoor Lighting Categories
Full-cutoff wall packs are the compliance-first option for perimeter lighting because they control uplight and glare. Semi-cutoff wall packs can be justified for façade visibility, but they must be used with spacing, output, and boundary control in mind to avoid nuisance-lighting violations.
Frequently Asked Questions
What is the 30-Second / 90-Minute testing rule?
NFPA 101 requires two types of tests for all emergency lighting: a monthly 30-second functional test to ensure the lamps activate, and an annual 90-minute duration test to ensure the battery can sustain light for the full evacuation period. In a manual program, a technician must physically walk to every sign, press the test button, and wait/observe. Self-diagnostic units perform these tests automatically, internalizing the labor of the test cycle.
How do self-diagnostic signs signal a failure?
Instead of waiting for a manual inspection to find a dead battery, a self-diagnostic sign uses a multi-colored LED indicator.
- Steady Green: System is healthy and charged.
- Flashing Red (1x): Battery failure (cannot hold a charge).
- Flashing Red (2x): Lamp failure (LED or emergency head is out).
- Flashing Red (3x): Charger board failure.
Why is Access Labor the biggest hidden cost?
In warehouses or large retail spaces, exit signs are often mounted 15–20 feet high. For a manual test, a technician must use a ladder or a lift just to reach the test button. If you have 100 signs, that is 1,200 ladder setups per year for monthly tests alone. Self-diagnostic units eliminate this at-height labor by automating the test, only requiring a lift when the status light indicates a repair is actually needed.
Does self-testing satisfy the Fire Marshal’s record-keeping rules?
Yes, provided you maintain a log. While the sign performs the test, the facility manager is still responsible for documenting the results. However, because self-diagnostic units provide clear fault codes, the log becomes a simple checklist of status lights rather than a time-consuming report on individual button-presses and duration observations. This significantly reduces the administrative burden during a surprise fire inspection.
Can self-diagnostics identify Partial Battery Failure?
This is a major advantage. A manual 30-second test only tells you if the battery has some power. It won't tell you if the battery will die at the 45-minute mark during a real emergency. Self-diagnostic circuitry monitors the discharge rate and internal resistance. If it detects the battery is beginning to degrade—even if it still lights up—it will trigger a fault code before the unit actually fails an annual 90-minute test.
