Why Light Pollution Compliance Matters in Municipal Lighting Codes
Municipalities increasingly regulate outdoor lighting to reduce light pollution, protect neighboring properties, and preserve nighttime visibility. These regulations are no longer advisory. Many jurisdictions actively enforce compliance through plan review, inspections, and post-installation complaints that can result in fines or mandatory fixture replacement.
Most modern outdoor lighting ordinances reference BUG ratings—a standardized system that evaluates how a luminaire controls backlight, uplight, and glare. Understanding how these ratings work is essential for avoiding violations and redesign costs.

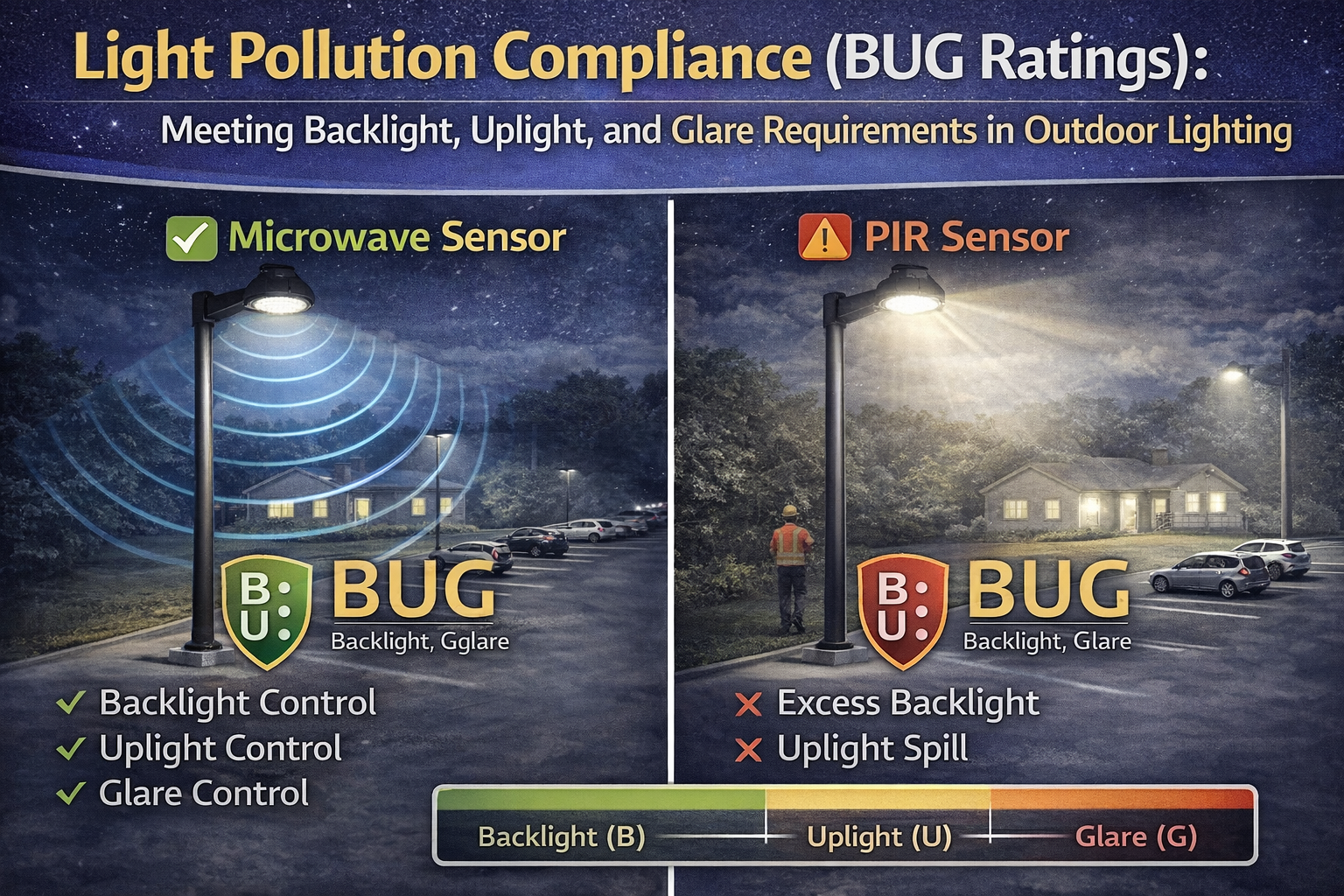

What BUG Ratings Are and How They Are Used
BUG ratings are defined by the Illuminating Engineering Society (IES) and are used to quantify how light is distributed outside the intended target area.
- B = Backlight (light spilling behind the pole)
- U = Uplight (light emitted above horizontal)
- G = Glare (high-angle brightness causing visual discomfort)
Each component is rated independently using numeric values. Lower numbers indicate better light control and lower potential for light pollution.
Breaking Down Backlight, Uplight, and Glare
| BUG Component | What It Controls | Why It Matters |
|---|---|---|
| Backlight (B) | Light emitted behind the mounting point | Prevents spill onto adjacent properties or roadways |
| Uplight (U) | Light emitted above 90° from nadir | Reduces sky glow and night-sky pollution |
| Glare (G) | High-angle brightness visible to occupants or drivers | Improves visibility and reduces discomfort complaints |
Each element is evaluated independently, meaning a fixture can pass one category while failing another.
How Municipalities Apply BUG Requirements
Most lighting ordinances specify maximum allowable BUG ratings based on zoning, land use, or proximity to residential areas.
| Application Area | Typical BUG Requirement | Enforcement Focus |
|---|---|---|
| Residential-adjacent sites | B1–B2 / U0 / G1–G2 | Backlight and glare |
| Commercial parking lots | B2–B3 / U0–U1 / G2–G3 | Glare and uplight |
| Industrial zones | B3–B4 / U1 / G3–G4 | Glare toward roadways |
| Environmentally sensitive areas | B1 / U0 / G1 | Uplight and sky glow |
Exceeding any single component can result in non-compliance, even if total lumen output is low.
Selecting Fixtures That Meet BUG Compliance
BUG compliance is determined by optical design, not wattage alone.
- Full cutoff or fully shielded optics reduce uplight
- House-side shields control backlight near property lines
- Lower glare ratings are achieved through lens diffusion and optic control
| Fixture Feature | BUG Impact |
|---|---|
| Full cutoff optic | Reduces U and G ratings |
| House-side shield | Reduces B rating |
| Lower mounting tilt | Improves glare control |
| Optic distribution selection | Controls spill direction |
Fixture selection should always be verified against photometric files, not marketing summaries.
Common Violations That Lead to Fines or Rework
- Tilting fixtures to compensate for poor spacing
- Ignoring house-side shielding near property lines
- Submitting outdated photometric data during plan review
- Changing fixture models after approval without re-verification
Most violations stem from field changes rather than original design intent.
Documentation Required for Code Approval
| Document | Purpose |
|---|---|
| IES photometric files | Confirms BUG ratings |
| Site photometric plan | Demonstrates compliance in context |
| Fixture cut sheets | Verifies optical configuration |
| Shielding details | Documents backlight control |
Clear documentation reduces review time and protects against post-installation complaints.
Related Outdoor Lighting Categories
BUG compliance is not optional in modern outdoor lighting design. Fixtures that control backlight, uplight, and glare from the outset reduce regulatory risk, minimize complaints, and eliminate costly post-installation corrections.
Frequently Asked Questions
What is the difference between 80 CRI and 90 CRI in a retail setting?
While 80 CRI is the standard for offices and warehouses, it often lacks the spectral depth required for retail. The jump to 90+ CRI significantly improves the vibrancy of products. In a 90 CRI fixture, the light spectrum is more continuous, meaning there are fewer gaps in the wavelengths. When these wavelengths hit a product, they reflect the true pigment of the dye or material rather than a muddy or muted version of it.
Why is the R9 value specifically mentioned for high-end retail?
CRI is an average of eight color samples (R1–R8), most of which are pastels. It does not naturally include R9 (saturated red). Many 80 CRI LEDs have an R9 value near zero, which makes reds look brown and skin tones look sickly. For high-end retail, especially apparel and cosmetics, you should specify fixtures with a 90+ CRI and an R9 value of at least 50 to ensure vibrant, lifelike reds and warm tones.
Does a higher CRI mean the light is warmer?
No. CRI and CCT (Correlated Color Temperature) are independent. You can have a Cool White 5000K light with a 95 CRI, and you can have a Warm White 2700K light with a 70 CRI. CCT tells you the color of the light itself (yellow vs. blue), while CRI tells you how accurately that light reveals the colors of the objects it hits.
How does CRI affect Color Shifting in fitting rooms?
The fitting room is the most critical point of sale. If a customer sees a Navy dress that looks Black in the fitting room due to low CRI lighting, they may return the item later. 90+ CRI lighting in fitting rooms ensures that the color the customer sees in the mirror matches what they saw on the showroom floor and what they will see in natural sunlight.
Are there downsides to using 90+ CRI fixtures?
Historically, higher CRI meant lower efficacy (lumens per watt). Because the LED chip must use more phosphors to fill in the color gaps, it typically produces about 10% to 15% fewer lumens than an 80 CRI chip of the same wattage. However, in high-end retail, the trade-off is almost always worth it, as the quality of light is prioritized over raw energy savings.
Can I upgrade to 90+ CRI by just changing the bulbs?
In many cases, yes. If you have existing track lighting or recessed cans, you can swap standard lamps for high-CRI LED replacements. However, for integrated LED fixtures, the entire light engine must be specified as 90+ CRI from the factory. Always check the photometric report to ensure the CRI is tested, not just estimated.
