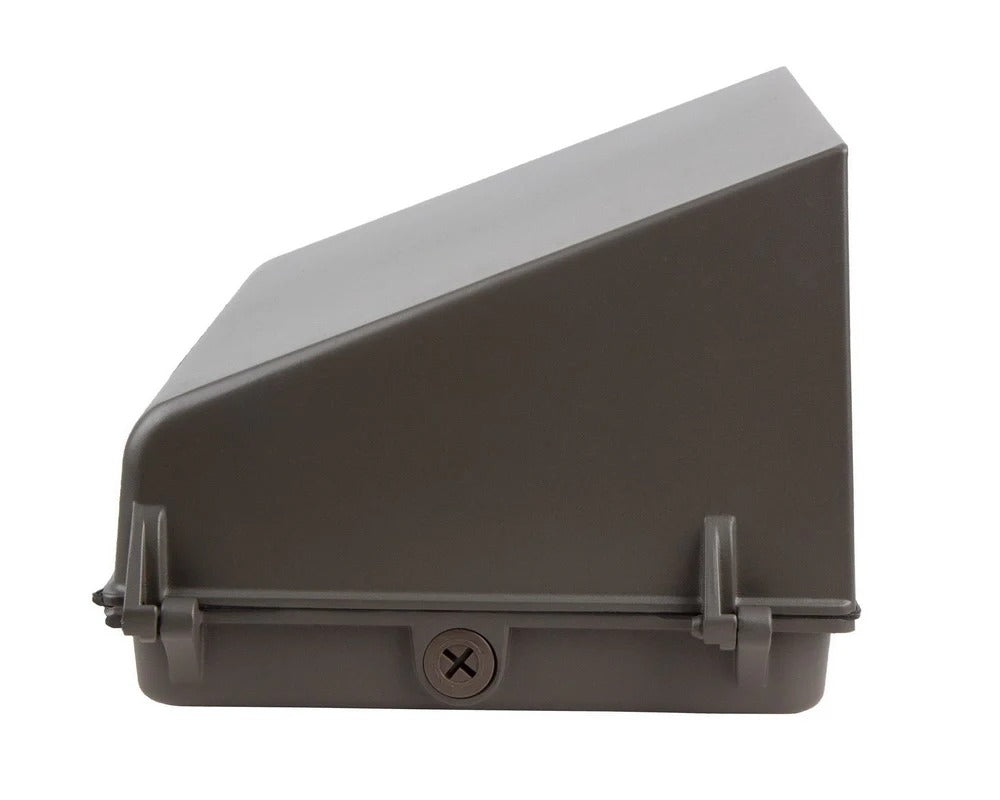

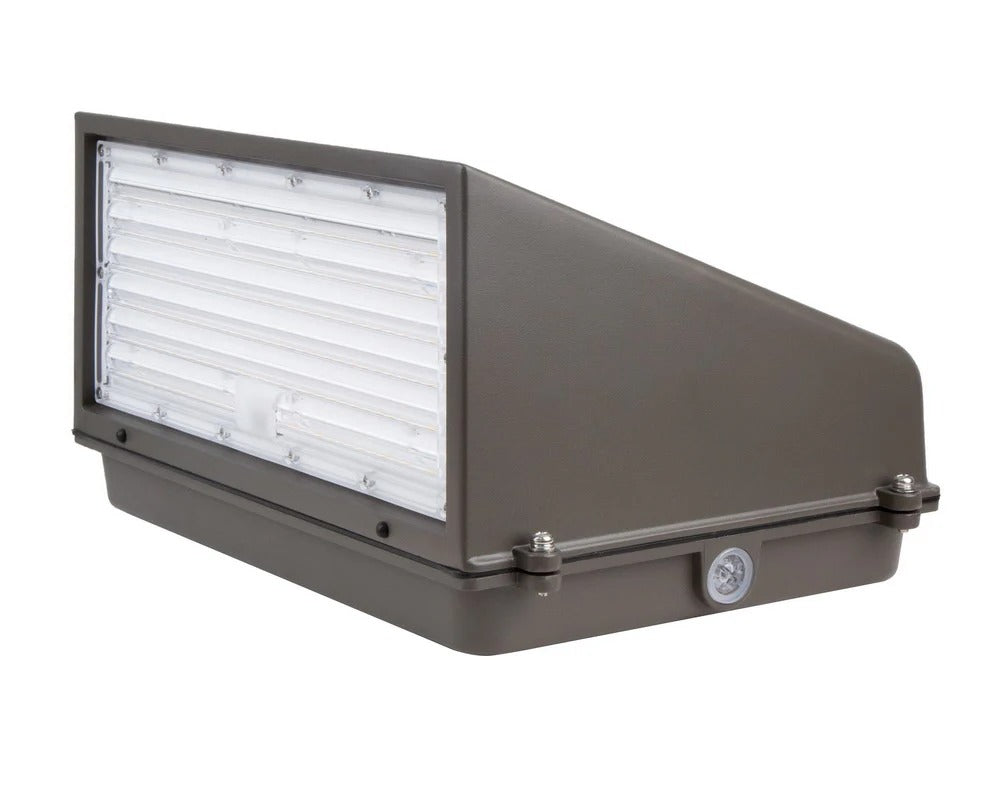

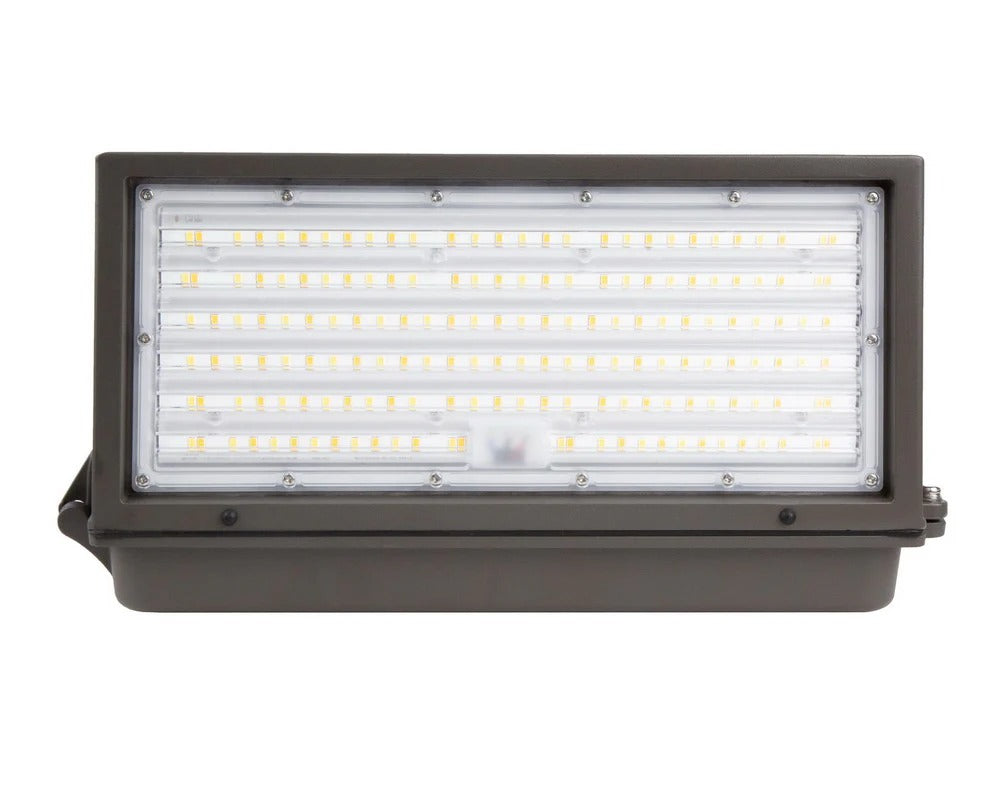

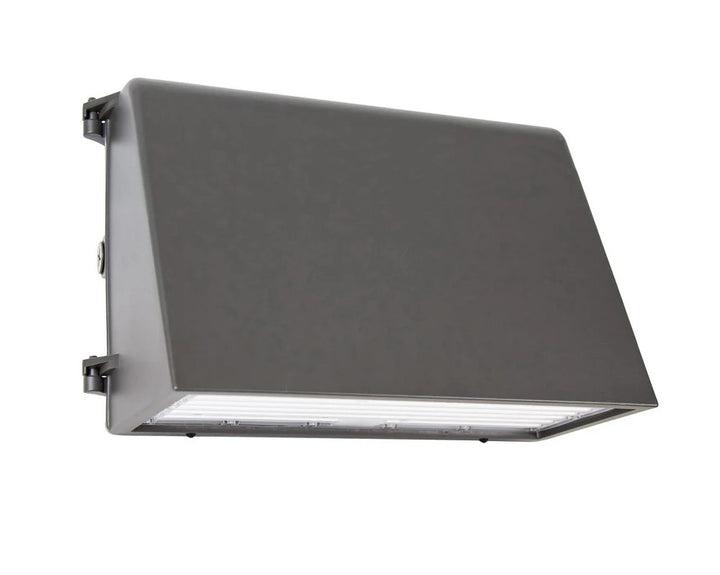

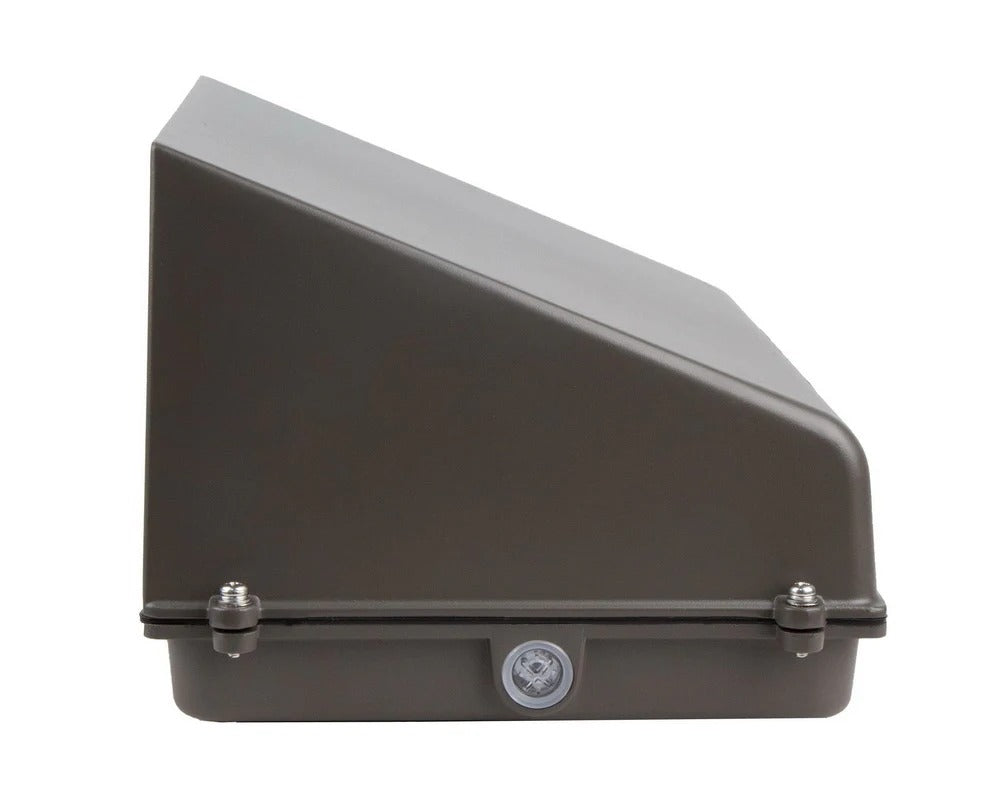

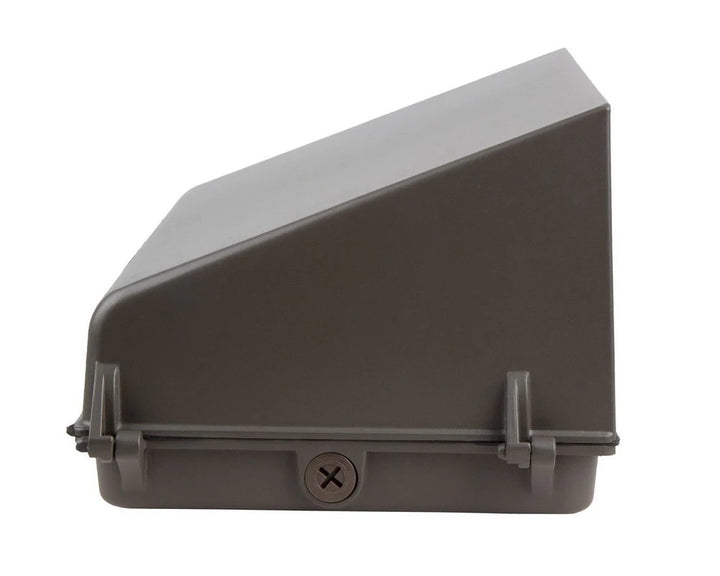

LED Full Cutoff Wall Pack Light 30/40/50/60W 5350–9641 Lumens 3000K/4000K/5000K IP65 Rated 0–10V Dimming 120–277V

What wattage options are available for the LED Full Cutoff Wall Pack Light?

The LED Full Cutoff Wall Pack Light has four selectable wattage settings: 30W, 40W, 50W, and 60W. This range supports output matching for varying mounting heights, perimeter setbacks, and target light levels without changing the fixture footprint.

What lumen outputs correspond to each wattage setting?

The lumen packages by wattage are: 30W provides 5,350 lumens, 40W provides 6,598 lumens, 50W provides 8,075 lumens, and 60W provides 9,641 lumens. These steps make it easier to tune spacing and uniformity while keeping the same housing size.

How does 148–174 lm/W efficacy affect operating cost and ROI?

An efficacy of 148–174 lm/W lowers watts per delivered lumen, which improves payback in retrofit work where older wall packs typically use higher system wattage. For ROI calculations, compare the selected wattage to the existing fixture’s measured or nameplate system watts, multiply the watt reduction by annual runtime and local $/kWh, then add any rebate value tied to DLC Premium qualification where applicable.

What CCT options are available, and how are they typically specified for exterior applications?

The selectable CCT settings are 3000K, 4000K, and 5000K. 3000K is commonly selected to reduce perceived glare and keep a warmer exterior appearance, 4000K is a standard choice for general-purpose commercial sites, and 5000K is often used where higher contrast is preferred for perimeter visibility and camera performance.

What does “full cutoff” mean for light control?

A full cutoff optic is designed to keep light directed downward with minimal uplight. This helps control spill onto adjacent properties, reduces window glare, and supports tighter compliance with site lighting plans that specify uplight and glare limits.

Is the LED Full Cutoff Wall Pack Light dimmable?

Yes. It supports 0–10V dimming for light-level reduction, scheduling strategies, and integration with compatible commercial lighting control systems.

What does the IP65 rating indicate for outdoor reliability?

IP65 indicates the enclosure is dust-tight and protected against water jets. This rating is well-suited for exterior wall-mounted installations exposed to wind-driven rain and airborne debris.

What is the minimum operating temperature, and why is it relevant?

The minimum operating temperature is -22°F. Cold-weather performance matters for exterior sites where the driver and optical assembly must start and operate reliably in low ambient temperatures.

What certifications does this wall pack carry?

This model is UL Listed and DLC Premium Listed. UL listing verifies luminaire safety compliance, and DLC Premium listing is commonly used to support utility rebate eligibility where DLC qualification is required.

What are the fixture dimensions?

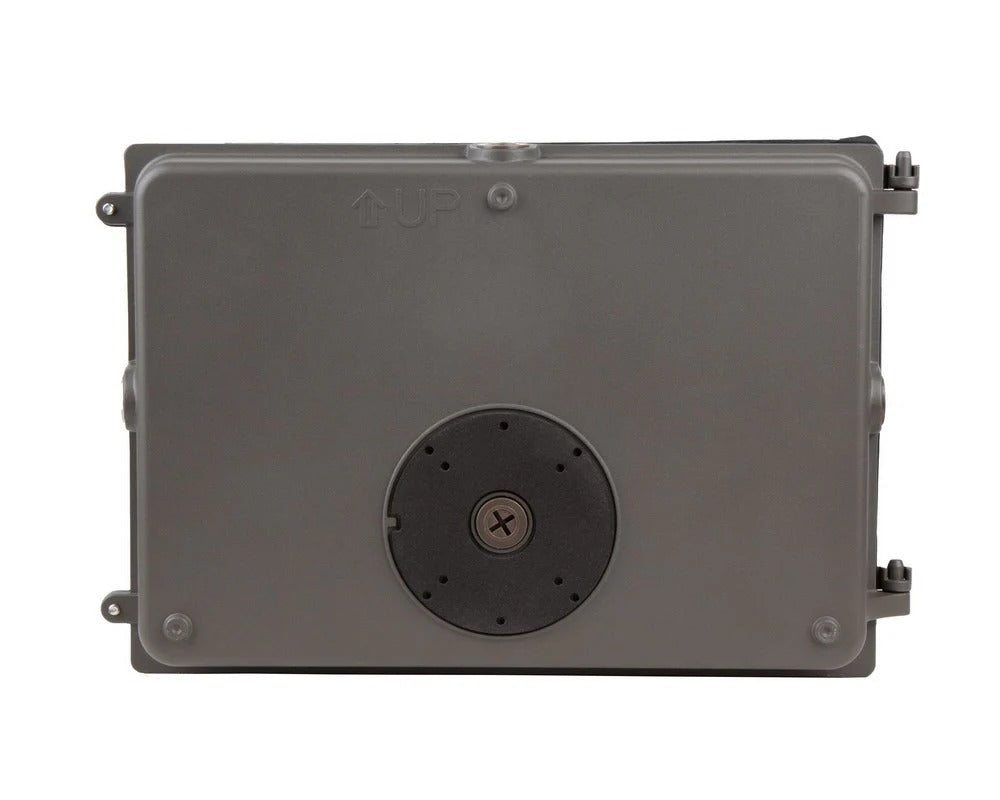

The housing measures 13.08" W × 9.259" H × 7.1917" D. For layout and installation, confirm mounting height, junction box compatibility, conduit entry planning, and fixture orientation so the cutoff distribution aligns with the intended coverage zone.

What warranty coverage is included?

The LED Full Cutoff Wall Pack Light includes a 5-year limited warranty. For maintenance documentation, record the selected wattage and CCT at commissioning for consistent service and future replacements.
