Technical Specifications & Performance Data
| Brand | NCLTG |
|---|---|
| Manufacturer Part Number | NC-FL01G-15W-3CCT-1/2-KNUCKLE |
| DLC Product ID | S-XWDDR5 |
| Wattage | 5W, 10W, 15W |
| Voltage | 120–277V |
| Lumens | 650, 1,300, 1,950 |
| Efficacy | 130 lm/W |
| CCT | 3000K, 4000K, 5000K |
| Dimming | 0–10V |

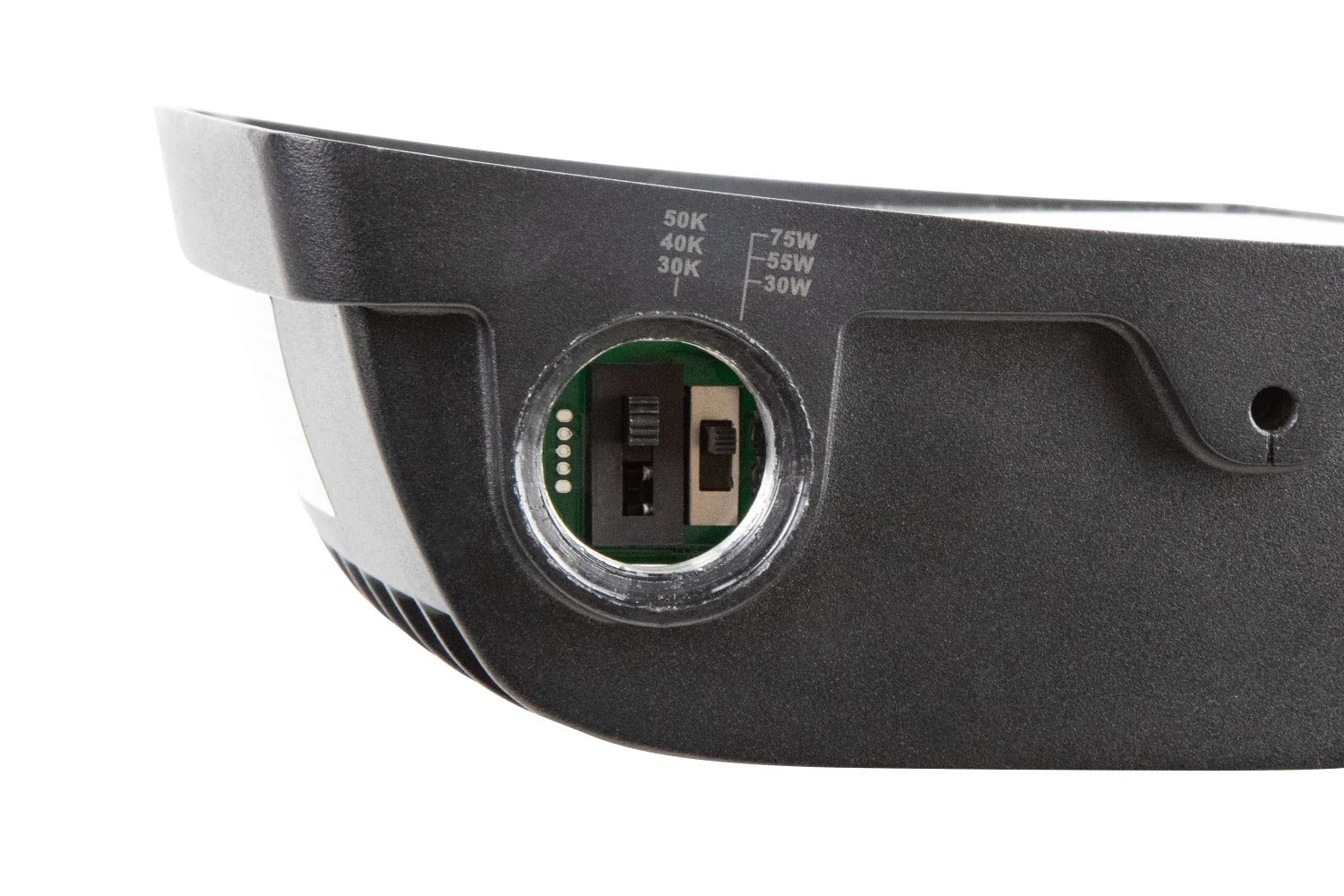

| Special Features | Wattage and CCT Selectable |
| Certifications | UL Listed, DLC Premium Listed |
| IP Rating | IP65 |
| Minimum Operating Temperature | -22°F |
| Dimensions | 7.8"W x 5.9"H x 2.9"D |
| Warranty | 5-Year Limited Warranty |
Project Documentation & Technical Downloads
Engineering & Specification Resources
Related Lighting Systems & Categories
Commercial Applications & Site Integration
Technical FAQ Deep-Dive
What is the wattage range for the LED Flood Light Knuckle Mount?
The LED Flood Light Knuckle Mount is available in three wattage options: 5W, 10W, and 15W, designed for use in small outdoor spaces, security lighting, signage, and general area lighting in commercial and industrial environments.
How does the LED Flood Light Knuckle Mount’s efficacy compare to industry standards?
This fixture delivers an efficacy of 130 lm/W, which exceeds industry standards for energy-efficient lighting. Its high efficacy ensures compliance with Lighting Power Density (LPD) benchmarks while providing sufficient illumination for outdoor applications.
What color temperatures (CCT) are available for the LED Flood Light Knuckle Mount?
The fixture offers three selectable color temperatures: 3000K, 4000K, and 5000K, providing tailored light quality for different environments:
- 3000K: Ideal for warmer lighting in decorative settings and recreational spaces, providing a cozy and inviting atmosphere.
- 4000K: The standard choice for outdoor security lighting and parking lot applications, offering a neutral white light.
- 5000K: Optimal for areas requiring high contrast and visibility, such as industrial sites and loading docks where safety is a priority.
Can the LED Flood Light Knuckle Mount be dimmed?
Yes, the fixture supports 0-10V dimming, allowing precise control over light levels. This dimming capability ensures compatibility with Building Management Systems (BMS) and facilitates compliance with Daylight Harvesting and Demand Response (DR) strategies required by Title 24 and IECC energy codes.
What certifications does the LED Flood Light Knuckle Mount hold?
The fixture is UL Listed and DLC Premium certified, ensuring it meets the highest standards for safety, performance, and energy efficiency. The IP65 rating confirms the fixture is dust-tight and resistant to water exposure, making it suitable for harsh outdoor environments.
How does the LED Flood Light Knuckle Mount contribute to energy efficiency?
With an efficacy of 130 lm/W, this fixture provides high light output with minimal energy consumption. Its design ensures compliance with Lighting Power Density (LPD) limits, making it an ideal choice for energy-efficient outdoor lighting while maintaining adequate illumination levels.
What is the lumen output for the different wattages of the LED Flood Light Knuckle Mount?
The lumen output varies by wattage: 5W provides 650 lumens, 10W delivers 1,300 lumens, and 15W offers 1,950 lumens. These lumen outputs are suitable for a range of outdoor lighting applications, ensuring proper illumination in smaller spaces and security environments.
What is the expected lifespan of the LED Flood Light Knuckle Mount?
The fixture is rated for 50,000 hours at L70, meaning it will retain at least 70% of its initial lumen output after 50,000 hours of operation. This long lifespan reduces maintenance costs and ensures reliable performance in outdoor lighting applications.
How does the 0-10V dimming feature support Building Management Systems (BMS)?
The integrated 0-10V sinking driver allows seamless integration with Building Management Systems (BMS), enabling automated lighting control. This integration supports Demand Response (DR) and Daylight Harvesting, ensuring compliance with energy codes and reducing energy consumption during peak demand periods.
What is the significance of the DLC Premium certification for this light fixture?
The DLC Premium certification ensures that the LED Flood Light Knuckle Mount meets high standards for efficacy, lumen maintenance, and energy efficiency. This certification qualifies the fixture for top-tier utility rebates and confirms its performance in demanding outdoor applications.
Is the LED Flood Light Knuckle Mount suitable for use in outdoor environments?
Yes, the LED Flood Light Knuckle Mount is IP65 rated, meaning it is dust-tight and resistant to water exposure. This makes it suitable for use in outdoor environments such as parking lots, building exteriors, and security lighting where weather resistance and durability are essential.
What warranty coverage does the LED Flood Light Knuckle Mount come with?
The LED Flood Light Knuckle Mount is backed by a 5-year limited warranty, ensuring reliable performance and protection against defects for long-term use in outdoor lighting applications.
