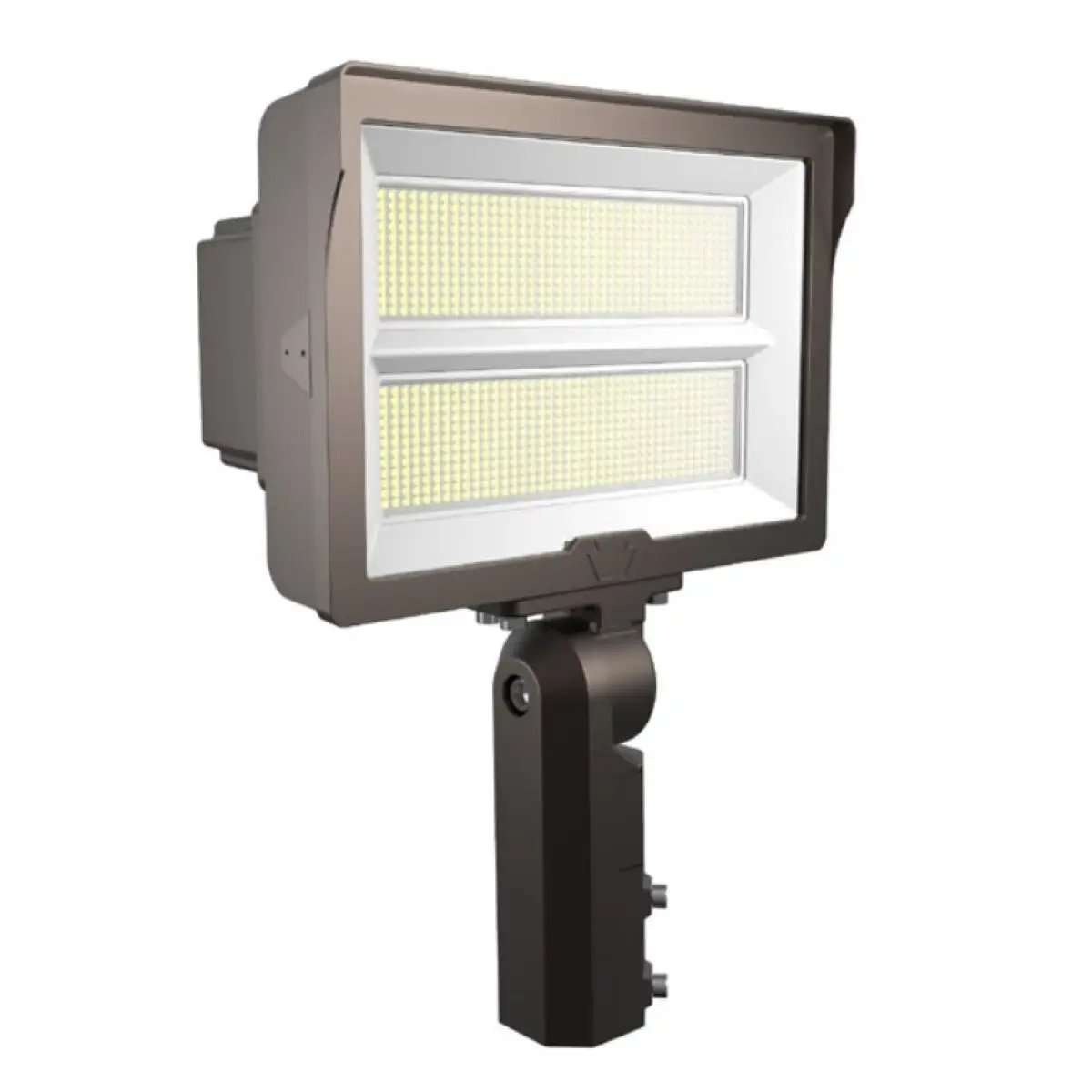

High-output LED floodlight with slip-fitter or trunnion mount, built-in photocell, and tempered glass lens for outdoor aiming; 120–277V input, 0–10V dimming, IP65-rated, 210/290W options (29,820–40,600 lumens) with selectable 3000K/4000K/5000K and 80+ CRI.

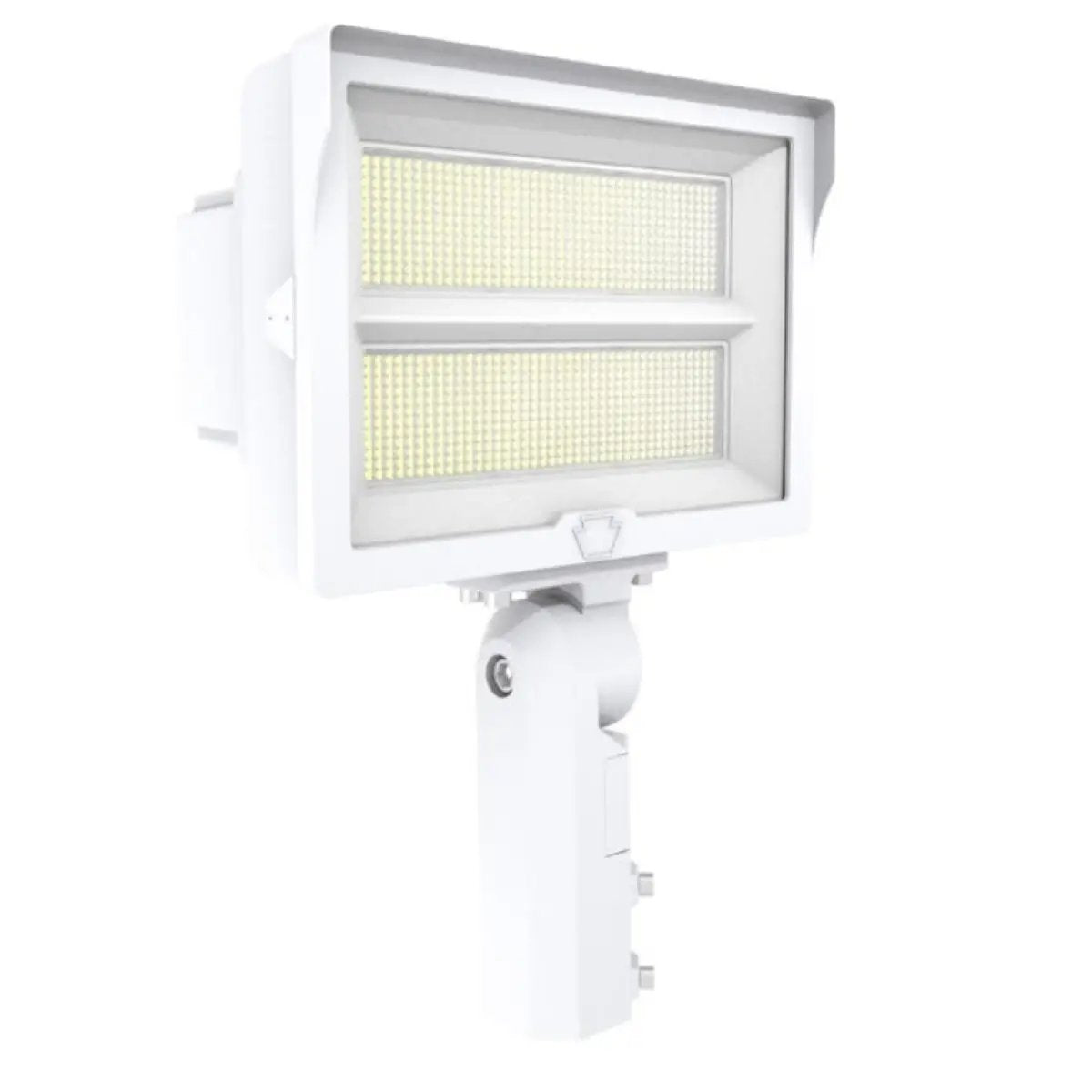

Main product shot in white finish of a high-output LED floodlight showing the rectangular housing and tempered glass lens; configured for slip fitter or trunnion mounting with built-in photocell, IP65-rated sealing, 120–277V input with 0–10V dimming, selectable 3000K/4000K/5000K (3K/4K/5K) at 80+ CRI, and 210W/290W options producing 29,820–40,600 lumens.

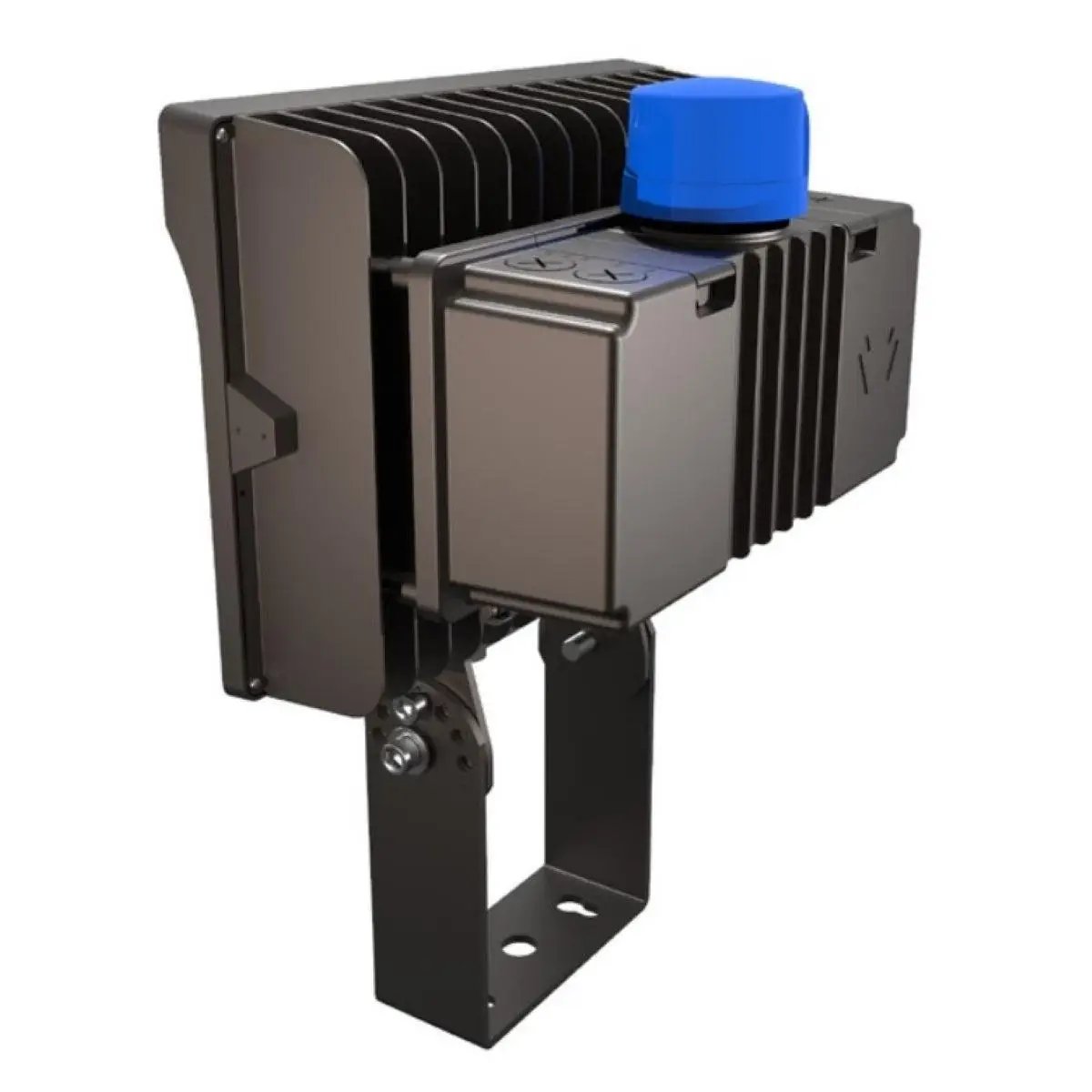

Bronze LED floodlight shown from an angled rear perspective with the trunnion bracket, blue dusk-to-dawn photocell on top, finned heat-sink back, and tempered glass face; 210–290W, 29,820–40,600 lm, 3000K/4000K/5000K, 80+ CRI, 0–10V dimming, IP65, 120–277V.

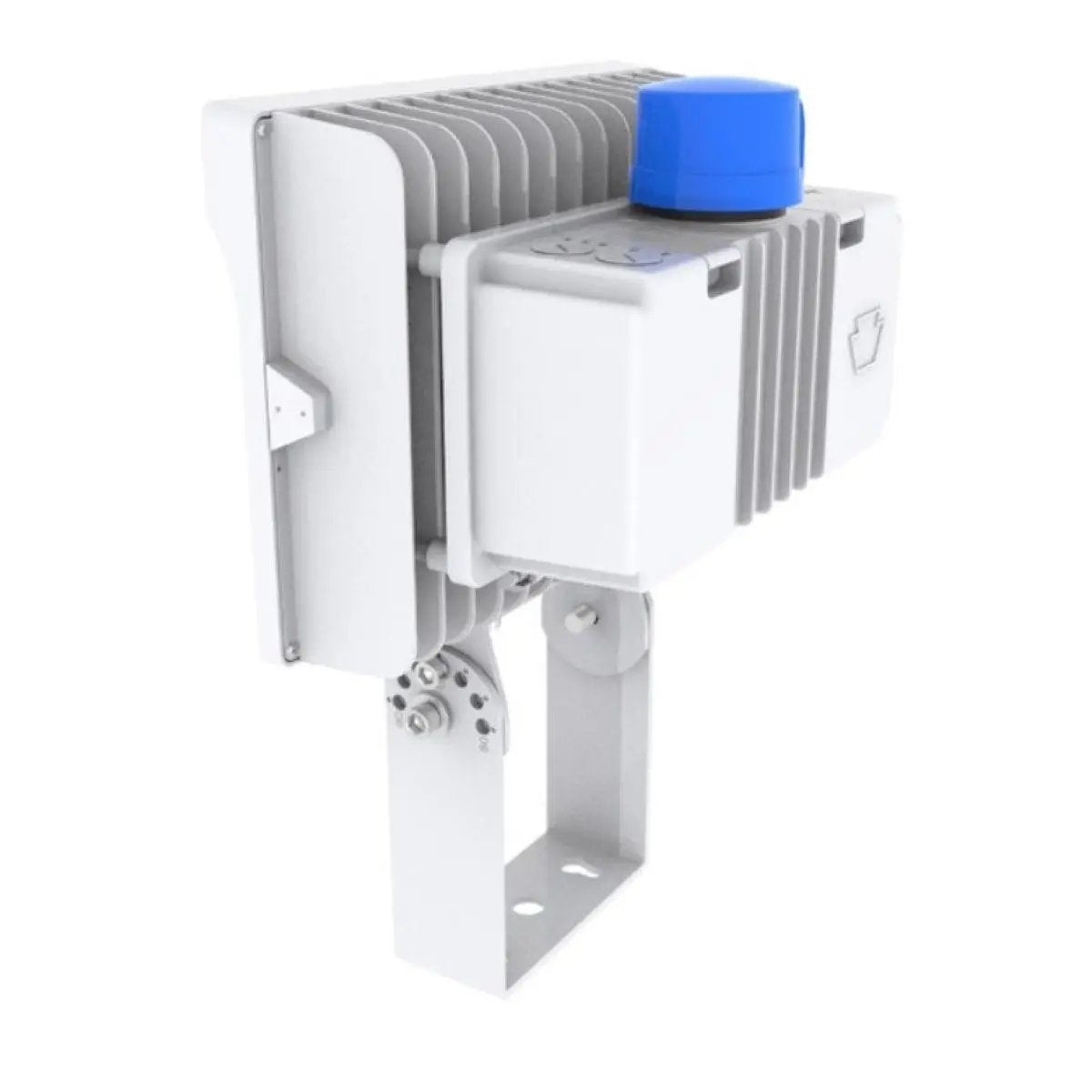

Rear three-quarter view of the white LED floodlight with slip-fitter/trunnion mounting showing the blue photocell on top, finned heat-sink housing, and tempered glass lens; 210–290W, 29,820–40,600 lm, 3000K/4000K/5000K, 80+ CRI, 0–10V dimming, IP65, 120–277V.

Floodlight 210W / 290W 29820 thru 40600 Lumens 3K / 4K / 5K 80+ CRI 0-10V Dimmable Slip Fitter Mount / Trunnion Mount Built-In Photocell IP65 Rated Tempered Glass 120-277V

Name: Floodlight 210W / 290W 29820 thru 40600 Lumens 3K / 4K / 5K 80+ CRI 0-10V Dimmable Slip Fitter Mount / Trunnion Mount Built-In Photocell IP65 Rated Tempered Glass 120-277V
Brand: Keystone Technologies
SKU: KT-FLED290PS-R2B-UNV-8CSB-VDIM
Price: 559.95 USD
Availability: InStock

Keystone Technologies

Used in large-area exterior lighting applications where high mounting heights and wide coverage are required. This Keystone Technologies floodlight supports multiple mounting options for flexible installation on poles or structures. It integrates a photocell and 0–10V dimming on 120–277V systems for exterior lighting control.

$559.95

Free shipping calculated at checkout.

Color

Bronze

White

In stock, ready to ship
Backordered, shipping soon

[{"id":43338223452401,"title":"Bronze","option1":"Bronze","option2":null,"option3":null,"sku":"KT-FLED290PS-R2B-UNV-8CSB-VDIM","requires_shipping":true,"taxable":true,"featured_image":{"id":42544796958961,"product_id":7824096887025,"position":1,"created_at":"2024-11-23T19:54:44-06:00","updated_at":"2024-11-23T19:54:44-06:00","alt":"High-output LED floodlight with slip-fitter or trunnion mount, built-in photocell, and tempered glass lens for outdoor aiming; 120–277V input, 0–10V dimming, IP65-rated, 210\/290W options (29,820–40,600 lumens) with selectable 3000K\/4000K\/5000K and 80+ CRI.","width":1200,"height":1200,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/Floodlight-210W-290W-29820-thru-40600-Lumens-3K-4K-5K-80-CRI-0-10V-Dimmable-Slip-Fitter-Mount-Trunnion-Mount-Built-In-Photocell-IP65-Rated-Tempered-Glass-120-277V.jpg?v=1732413284","variant_ids":[43338223452401]},"available":true,"name":"Floodlight 210W \/ 290W 29820 thru 40600 Lumens 3K \/ 4K \/ 5K 80+ CRI 0-10V Dimmable Slip Fitter Mount \/ Trunnion Mount Built-In Photocell IP65 Rated Tempered Glass 120-277V - Bronze","public_title":"Bronze","options":["Bronze"],"price":55995,"weight":5897,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"843654138657","featured_media":{"alt":"High-output LED floodlight with slip-fitter or trunnion mount, built-in photocell, and tempered glass lens for outdoor aiming; 120–277V input, 0–10V dimming, IP65-rated, 210\/290W options (29,820–40,600 lumens) with selectable 3000K\/4000K\/5000K and 80+ CRI.","id":34983211466993,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/Floodlight-210W-290W-29820-thru-40600-Lumens-3K-4K-5K-80-CRI-0-10V-Dimmable-Slip-Fitter-Mount-Trunnion-Mount-Built-In-Photocell-IP65-Rated-Tempered-Glass-120-277V.jpg?v=1732413284"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43338223485169,"title":"White","option1":"White","option2":null,"option3":null,"sku":"KT-FLED290PS-R2B-UNV-8CSB-VDIM-W","requires_shipping":true,"taxable":true,"featured_image":{"id":42544797090033,"product_id":7824096887025,"position":2,"created_at":"2024-11-23T19:54:48-06:00","updated_at":"2024-11-23T19:54:48-06:00","alt":"Main product shot in white finish of a high-output LED floodlight showing the rectangular housing and tempered glass lens; configured for slip fitter or trunnion mounting with built-in photocell, IP65-rated sealing, 120–277V input with 0–10V dimming, selectable 3000K\/4000K\/5000K (3K\/4K\/5K) at 80+ CRI, and 210W\/290W options producing 29,820–40,600 lumens.","width":1200,"height":1200,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/Floodlight-210W-290W-29820-thru-40600-Lumens-3K-4K-5K-80-CRI-0-10V-Dimmable-Slip-Fitter-Mount-Trunnion-Mount-Built-In-Photocell-IP65-Rated-Tempered-Glass-120-277V-2.jpg?v=1732413288","variant_ids":[43338223485169]},"available":true,"name":"Floodlight 210W \/ 290W 29820 thru 40600 Lumens 3K \/ 4K \/ 5K 80+ CRI 0-10V Dimmable Slip Fitter Mount \/ Trunnion Mount Built-In Photocell IP65 Rated Tempered Glass 120-277V - White","public_title":"White","options":["White"],"price":55995,"weight":5897,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"843654138664","featured_media":{"alt":"Main product shot in white finish of a high-output LED floodlight showing the rectangular housing and tempered glass lens; configured for slip fitter or trunnion mounting with built-in photocell, IP65-rated sealing, 120–277V input with 0–10V dimming, selectable 3000K\/4000K\/5000K (3K\/4K\/5K) at 80+ CRI, and 210W\/290W options producing 29,820–40,600 lumens.","id":34983211532529,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/Floodlight-210W-290W-29820-thru-40600-Lumens-3K-4K-5K-80-CRI-0-10V-Dimmable-Slip-Fitter-Mount-Trunnion-Mount-Built-In-Photocell-IP65-Rated-Tempered-Glass-120-277V-2.jpg?v=1732413288"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":43338223452401,"title":"Bronze","option1":"Bronze","option2":null,"option3":null,"sku":"KT-FLED290PS-R2B-UNV-8CSB-VDIM","requires_shipping":true,"taxable":true,"featured_image":{"id":42544796958961,"product_id":7824096887025,"position":1,"created_at":"2024-11-23T19:54:44-06:00","updated_at":"2024-11-23T19:54:44-06:00","alt":"High-output LED floodlight with slip-fitter or trunnion mount, built-in photocell, and tempered glass lens for outdoor aiming; 120–277V input, 0–10V dimming, IP65-rated, 210\/290W options (29,820–40,600 lumens) with selectable 3000K\/4000K\/5000K and 80+ CRI.","width":1200,"height":1200,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/Floodlight-210W-290W-29820-thru-40600-Lumens-3K-4K-5K-80-CRI-0-10V-Dimmable-Slip-Fitter-Mount-Trunnion-Mount-Built-In-Photocell-IP65-Rated-Tempered-Glass-120-277V.jpg?v=1732413284","variant_ids":[43338223452401]},"available":true,"name":"Floodlight 210W \/ 290W 29820 thru 40600 Lumens 3K \/ 4K \/ 5K 80+ CRI 0-10V Dimmable Slip Fitter Mount \/ Trunnion Mount Built-In Photocell IP65 Rated Tempered Glass 120-277V - Bronze","public_title":"Bronze","options":["Bronze"],"price":55995,"weight":5897,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"843654138657","featured_media":{"alt":"High-output LED floodlight with slip-fitter or trunnion mount, built-in photocell, and tempered glass lens for outdoor aiming; 120–277V input, 0–10V dimming, IP65-rated, 210\/290W options (29,820–40,600 lumens) with selectable 3000K\/4000K\/5000K and 80+ CRI.","id":34983211466993,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/starsandstripeslighting.com\/cdn\/shop\/files\/Floodlight-210W-290W-29820-thru-40600-Lumens-3K-4K-5K-80-CRI-0-10V-Dimmable-Slip-Fitter-Mount-Trunnion-Mount-Built-In-Photocell-IP65-Rated-Tempered-Glass-120-277V.jpg?v=1732413284"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Technical Specifications & Performance Data

Brand	Keystone Technologies
Wattage	210W, 290W (Selectable)
Lumens	29,820 – 40,600
Voltage	120–277V
Lamp Type	LED
CCT	3000K, 4000K, 5000K (Selectable)
CRI	80+
Dimming	0–10V Dimmable
Certifications	cULus Listed, DLC Premium Listed
IP Rating	IP65
Minimum Operating Temperature	-40°F
Location Rating	Wet Location
Housing Material	Die-Cast Aluminum
Lens Material	Tempered Glass
Mounting Options	Slipfitter, Trunnion
Finish	Bronze, White
Dimensions	13.86" W × 7.7" D × 19.88" H
Rated Life	50,000 Hours
Warranty	5-Year Warranty

Visual Product Overview & Application Context

Project Documentation & Technical Downloads

Engineering & Specification Resources

Related Lighting Systems & Categories

Commercial Applications & Site Integration

Technical FAQ Deep-Dive

What are the electrical and photometric specifications for this LED floodlight?

This Keystone Technologies LED floodlight is selectable between 210W and 290W, producing 29,820–40,600 lumens. It operates on 120–277V, supports 0–10V dimming, provides 80+ CRI, and has selectable color temperatures of 3000K, 4000K, and 5000K.

What mounting options are available for this fixture?

The floodlight can be mounted via slipfitter or trunnion mounts. Ensure the mounting surface and hardware support the fixture weight and intended orientation. Mounting height and tilt should be planned according to photometric requirements.

What are typical IESNA-style footcandle targets for exterior areas?

Footcandle targets depend on the area type, spacing, and mounting height. Typical maintained illuminance ranges include:

Parking lots: 5–20 fc average
Perimeter or drive lanes: 5–15 fc average
Pedestrian walkways: 10–20 fc average
Accent or site feature lighting: 20–40 fc average

Always verify using a photometric layout to ensure uniformity and glare control.

How is LPD (Lighting Power Density) documented for this floodlight?

LPD is calculated as total connected load divided by the area (W/ft²). For this unit:

Connected load per fixture: 210W or 290W depending on selection
Installed LPD = (Quantity × Selected Wattage) ÷ Total area in ft²

Dimming via 0–10V can reduce operational energy use, but LPD compliance is based on the connected wattage.

What control features are enabled with 0–10V dimming?

0–10V dimming allows the fixture output to adjust with occupancy sensors, time schedules, or networked lighting controls. This supports energy savings and code compliance in large exterior spaces.

What environmental ratings support outdoor use?

The fixture is IP65-rated and wet-location certified, suitable for open-air applications including parking lots, pathways, or wall-mounted site lighting. Ensure that conduit entries and seals are properly maintained to preserve IP rating.

What certifications and listings are provided?

cULus Listed and DLC Premium Listed. DLC Premium eligibility supports rebate programs; confirm using the exact DLC listing and local program requirements.

What are the housing, lens materials, and finish options?

The housing is die-cast aluminum with a tempered glass lens. Finish options include Bronze or White. Dimensions are 13.86" W × 7.7" D × 19.88" H, which should be checked against mounting clearances and nearby structures.

What are the rated life and warranty details?

This floodlight has a rated life of 50,000 hours and includes a 5-year warranty. For lifecycle planning, combine connected load, hours of operation, and dimming schedules to estimate annual energy use and payback versus legacy HID or metal-halide fixtures.
