Why Surge Protection Is a Primary Reliability Factor in Outdoor Area Lights
Surge events are one of the most common causes of premature LED driver failure in outdoor area lighting. Lightning strikes, utility switching, and long feeder runs can introduce transient voltages that exceed what standard fixture-level protection is designed to absorb.
High-wattage area lights installed on tall poles and exposed sites experience greater surge stress than smaller fixtures. In storm-prone regions, selecting the correct surge protection rating directly affects driver lifespan, maintenance frequency, and total cost of ownership.
Related resource: For the complete commercial site-lighting specification workflow—including optics, mounting height strategy, code compliance, and survivability variables like surge protection—use the Commercial Site Lighting Buying Guide.
What Surge Protection Ratings Actually Mean
Surge protection ratings such as 10kV or 20kV indicate the maximum transient voltage a surge protective device (SPD) can withstand during standardized test conditions. These ratings are based on defined impulse waveforms intended to simulate real-world electrical surges.
| Term | Definition | Practical Impact |
|---|---|---|
| kV Rating | Peak voltage the SPD can withstand | Determines survivability during surge events |
| Impulse Waveform | Standardized surge pulse (e.g., 1.2/50 µs) | Represents lightning-induced transients |
| Clamping Voltage | Voltage passed downstream after suppression | Lower values reduce driver stress |
Each surge event degrades the SPD slightly, even when no immediate failure is visible.

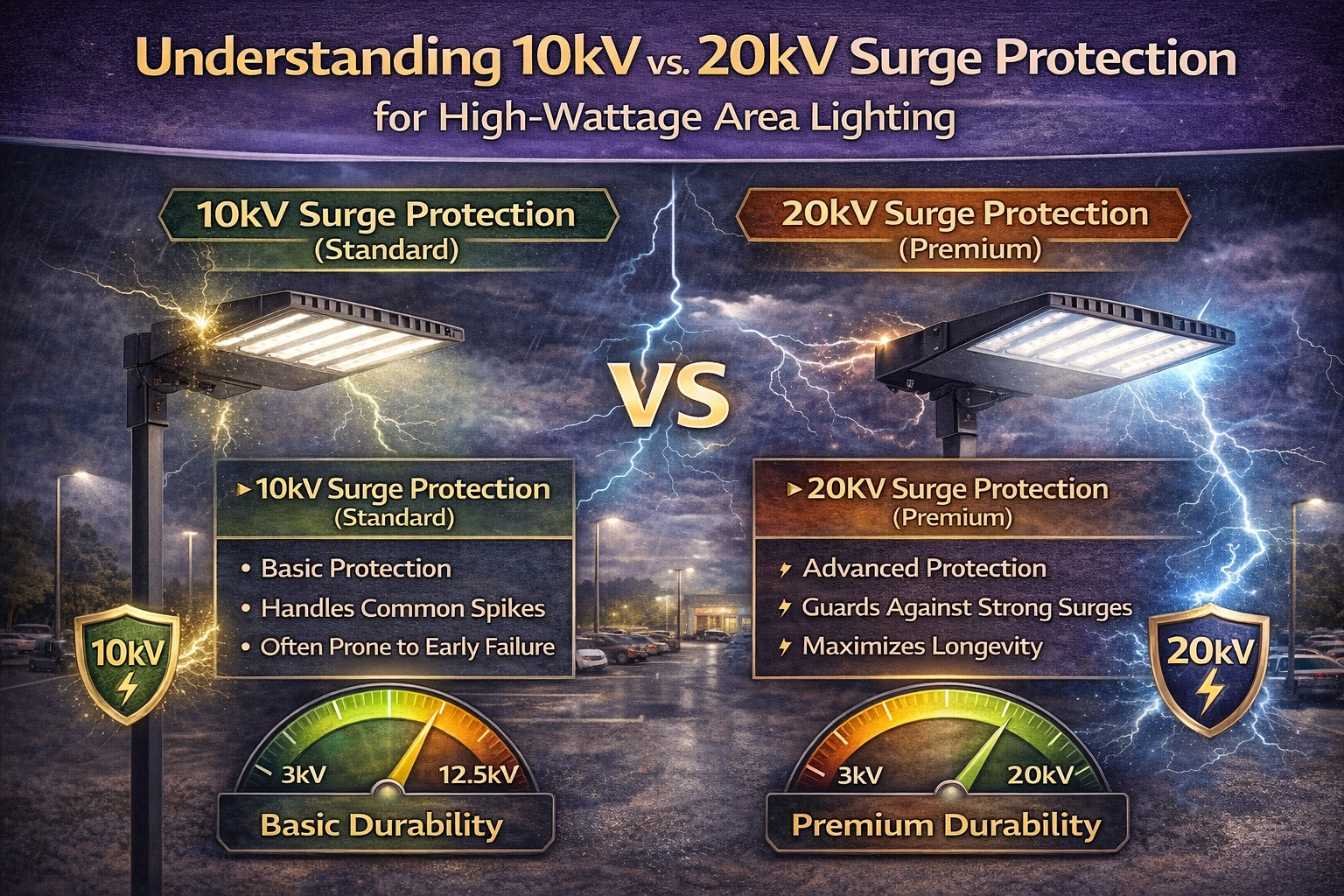

10kV vs. 20kV Surge Protection: Technical Comparison
Many commercial luminaires include 10kV surge protection by default. While adequate for sheltered or urban installations, this level is often insufficient for exposed, high-wattage area lighting.
| Characteristic | 10kV Protection | 20kV Protection |
|---|---|---|
| Typical implementation | Driver-level, standard | Enhanced or add-on SPD |
| Surge event tolerance | Moderate | High |
| Multi-event durability | Limited | Significantly improved |
| Best suited for | Low-exposure sites | Open, storm-exposed sites |
The cost difference between 10kV and 20kV protection is minimal compared to the cost of replacing failed drivers and dispatching service crews.
Why High-Wattage Area Lights Face Higher Surge Risk
High-wattage area lights typically incorporate larger drivers, longer wiring paths, and higher mounting heights—all of which increase surge exposure.
| Risk Factor | Why It Matters | Common Failure Result |
|---|---|---|
| Tall poles | Greater lightning coupling | Driver input damage |
| Long branch circuits | Higher transient amplification | SPD degradation |
| Large driver capacity | More internal components exposed | Premature driver failure |
These factors compound, making surge protection a system-level design decision rather than a checkbox item.
Storm-Prone Regions and Cumulative Surge Damage
In regions with frequent thunderstorms, fixtures may experience dozens of small surge events each season. While a single event may not exceed a 10kV rating, repeated exposure accelerates SPD wear.
- Gulf Coast and Southeast U.S.
- Midwest open plains
- Mountain and high-elevation regions
- Coastal sites with exposed infrastructure
In these environments, 10kV protection often fails through cumulative damage rather than a single catastrophic surge.
When 20kV Surge Protection Should Be Specified
| Application | Typical Conditions | Recommended Protection |
|---|---|---|
| Parking lots | Tall poles, open exposure | 20kV |
| Industrial yards | Long feeders, heavy equipment | 20kV |
| Transportation facilities | Critical uptime required | 20kV or higher |
| Campus environments | Distributed lighting networks | 20kV |
Panel-level surge protection alone does not adequately protect long branch circuits feeding pole-mounted fixtures.
Common Surge Protection Specification Errors
- Assuming panel-level SPDs protect all downstream fixtures
- Using 10kV protection on tall-pole, high-wattage luminaires
- Ignoring cumulative surge degradation over time
- Failing to document surge ratings in submittals
Most surge-related failures are predictable and preventable at the specification stage.
Related Site Lighting Engineering Articles
Surge protection is only one of the variables that determines whether an outdoor site lighting system passes inspection and survives real-world conditions. These supporting resources cover optic control, ordinance compliance, and structural reliability.
- Type III vs. Type V Distribution: Preventing Light Trespass Violations in Parking Lots
- Why Dark Sky Compliance Matters in Modern Parking Lot Lighting
- The 2026 Dark Sky Curfew: Meeting 3000K CCT and Shielding Requirements
- Beyond the Bolt: Why Mounting Hardware Is a Structural Failure Point
Related Outdoor Lighting Categories
Specifying 20kV surge protection for high-wattage area lights is a practical response to real electrical conditions. In storm-prone regions, enhanced surge suppression consistently reduces driver failures, maintenance labor, and unplanned downtime.
Frequently Asked Questions
What is Power-Tuning on-site?
Most modern commercial LED fixtures—including high bays, wall packs, and area lights—now feature internal switches that allow you to choose between three or four different wattage settings. For example, a single fixture might be adjustable to 100W, 120W, or 150W. This allows the installer to tune the brightness to the specific needs of the environment after the poles are standing and the power is on.
Why is this better than a fixed photometric layout?
Photometric layouts are mathematical best guesses based on perfect conditions. In the real world, several factors can render a layout inaccurate:
- Reflectance: New black asphalt absorbs more light than old, grey concrete. Power-tuning allows you to increase wattage to compensate.
- Pole Spacing Errors: If a pole had to be moved 5 feet to avoid an underground utility, the light levels will be uneven. You can now boost the output on that specific pole to maintain uniformity.
- Task Changes: If a warehouse section moves from bulk storage to fine-parts picking, you can increase the wattage on those specific high bays without replacing the system.
Does selectable wattage simplify 2026 energy compliance?
Yes. Many energy codes, such as Title 24 and ASHRAE 90.1-2026, require strict Lighting Power Density (LPD) limits. With selectable wattage, you can install a high-output fixture but cap it at a lower wattage setting to meet code. This provides the safety margin of a powerful light while officially documenting a lower energy draw for inspection approval.
How does this affect maintenance and inventory?
For facility managers, selectable wattage is a massive logistical win. Instead of stocking five different 2x4 troffers for various ceiling heights, you can stock one SKU that covers every room in the building. When a fixture fails, the maintenance team simply grabs the universal model and sets the switch to match the existing light levels in that specific room.
Does power-tuning replace the need for a lighting plan?
No. You still need to ensure your optics (Type III vs. Type V) are correct for the application. Increasing the wattage will make a light brighter, but it won't fix a hot spot caused by the wrong lens. Think of a photometric layout as the foundation and selectable wattage as the fine-tuning knob that guarantees the project passes inspection the first time.
